Vendor: UV INK PRO

For second-hand machines

We Recycle and refurbish units from the market to ensure reliable performance.

Second-hand machines are more affordable than brand new ones.

Prices are not listed online—please contact us via WhatsApp for current availability and a personalized quote.
Type: CG-130AR
AfterPay American Express Apple Pay Diners Club Discover Google Pay JCB Klarna Maestro Mastercard PayPal Sofort Visa

Secure payments

Every payment you make on UV Ink Pro is secured with strict SSL encryption and PCI DSS data protection protocols

Standard refund policy

Claim a refund if your order doesn't ship, is missing, or arrives with product issues
For any product questions, click the Contact button to reach us directly.
Cathy Cathy
WhatsApp WhatsApp +86 186 6466 9614
Cathy@icolorpro.com
Secure Ordering Premium Quality 24/7 Support On Time Delivery
Mimaki CG-AR Series Cutting Plotter

Mimaki CG-AR Series Cutting Plotter

$1,850.00
Mimaki CG-AR Series Cutting Plotter
Mimaki CG-AR Series Cutting Plotter
Mimaki CG-AR Series Cutting Plotter
Mimaki CG-AR Series Cutting Plotter
Mimaki CG-AR Series Cutting Plotter
Mimaki CG-AR Series Cutting Plotter
Mimaki CG-AR Series Cutting Plotter
Mimaki CG-AR Series Cutting Plotter

Mimaki CG-AR Series Cutting Plotter

$1,850.00
Type: CG-130AR
Product Details
Product Details
x

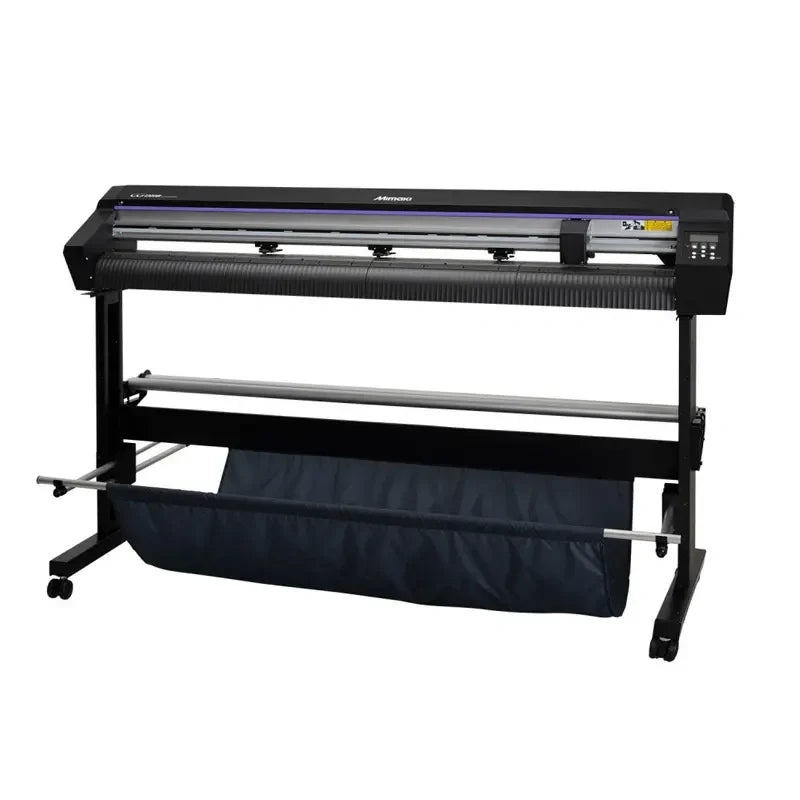

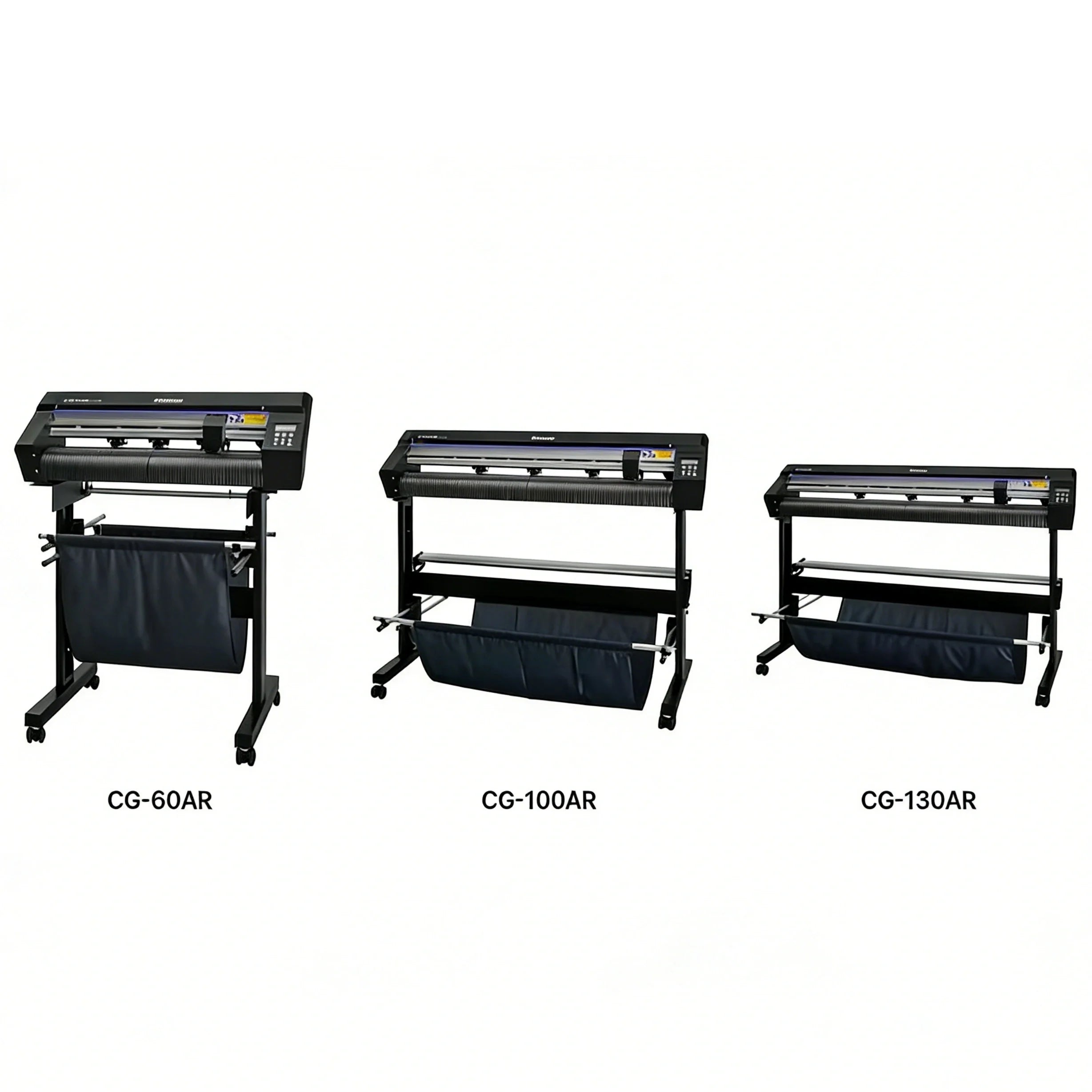

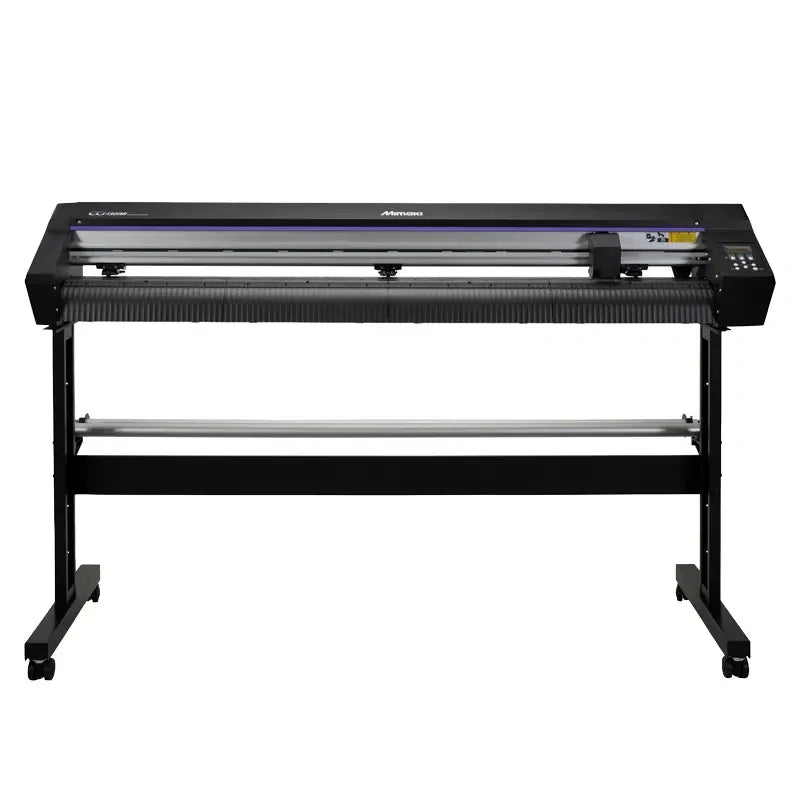

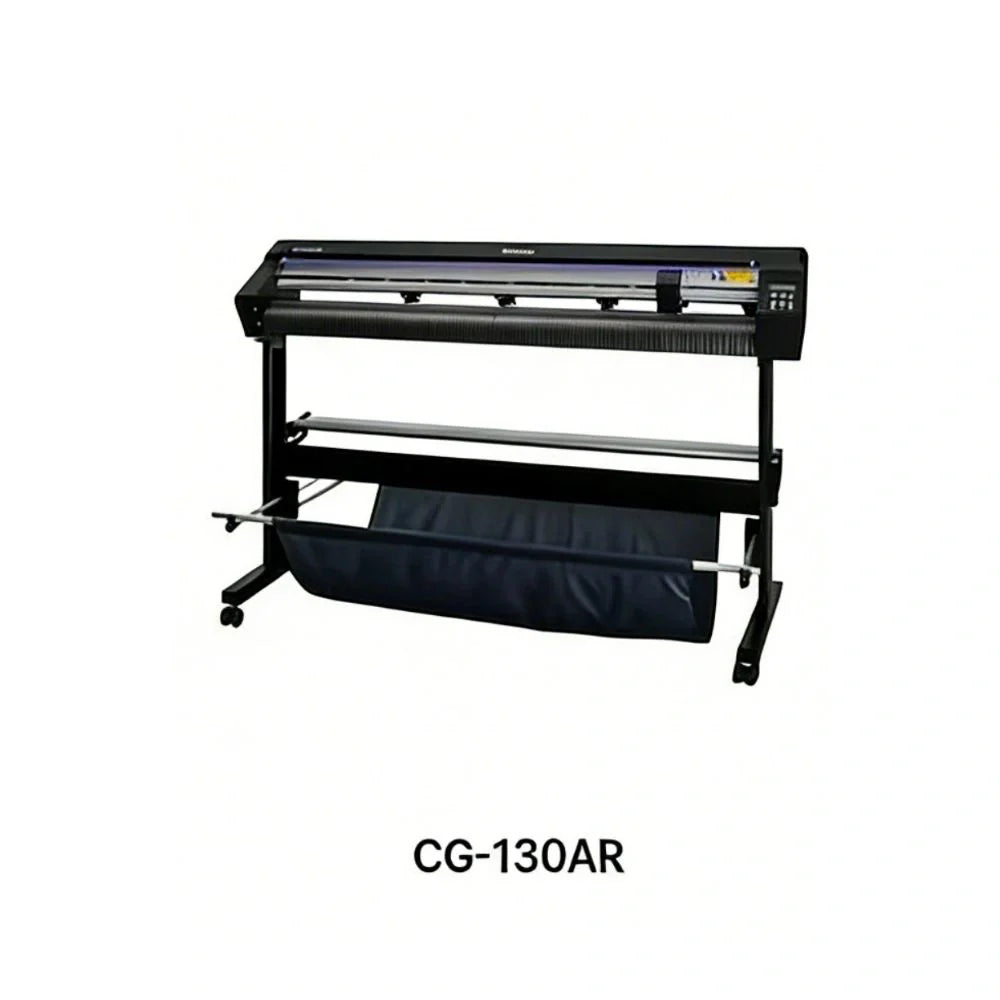

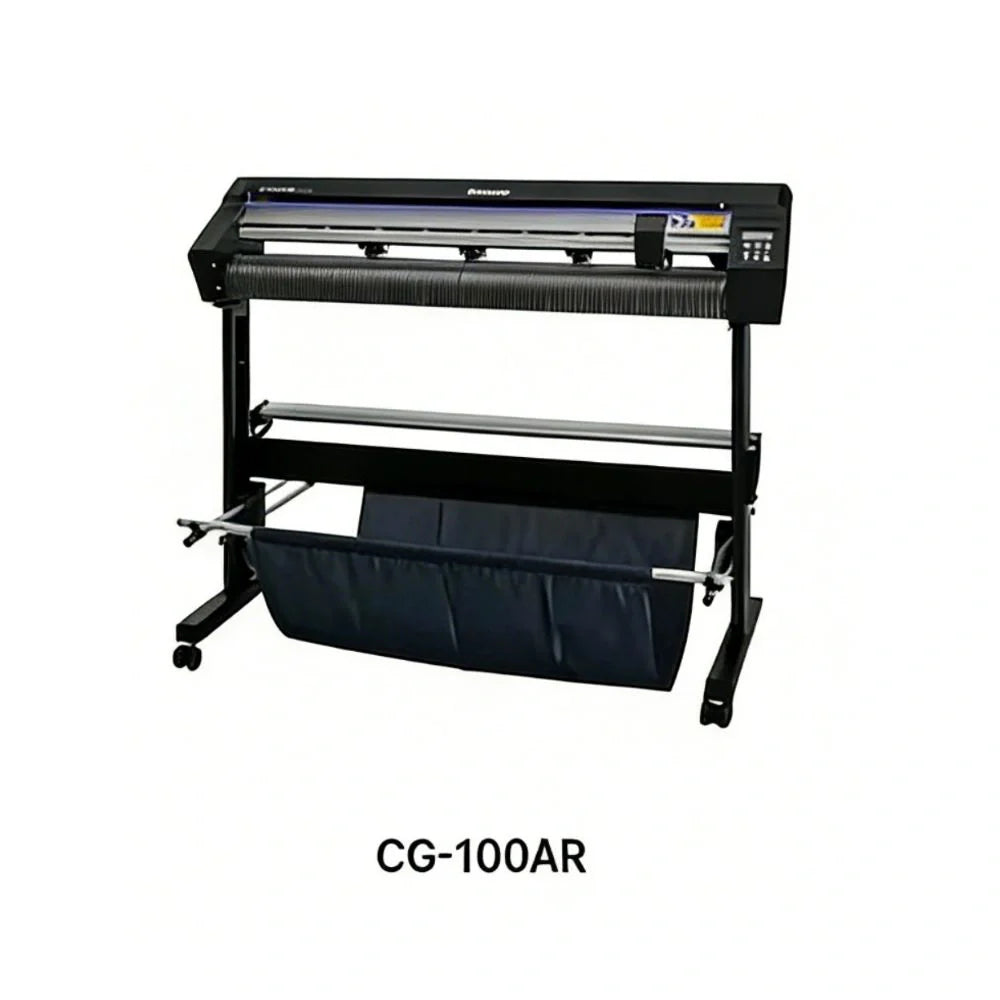

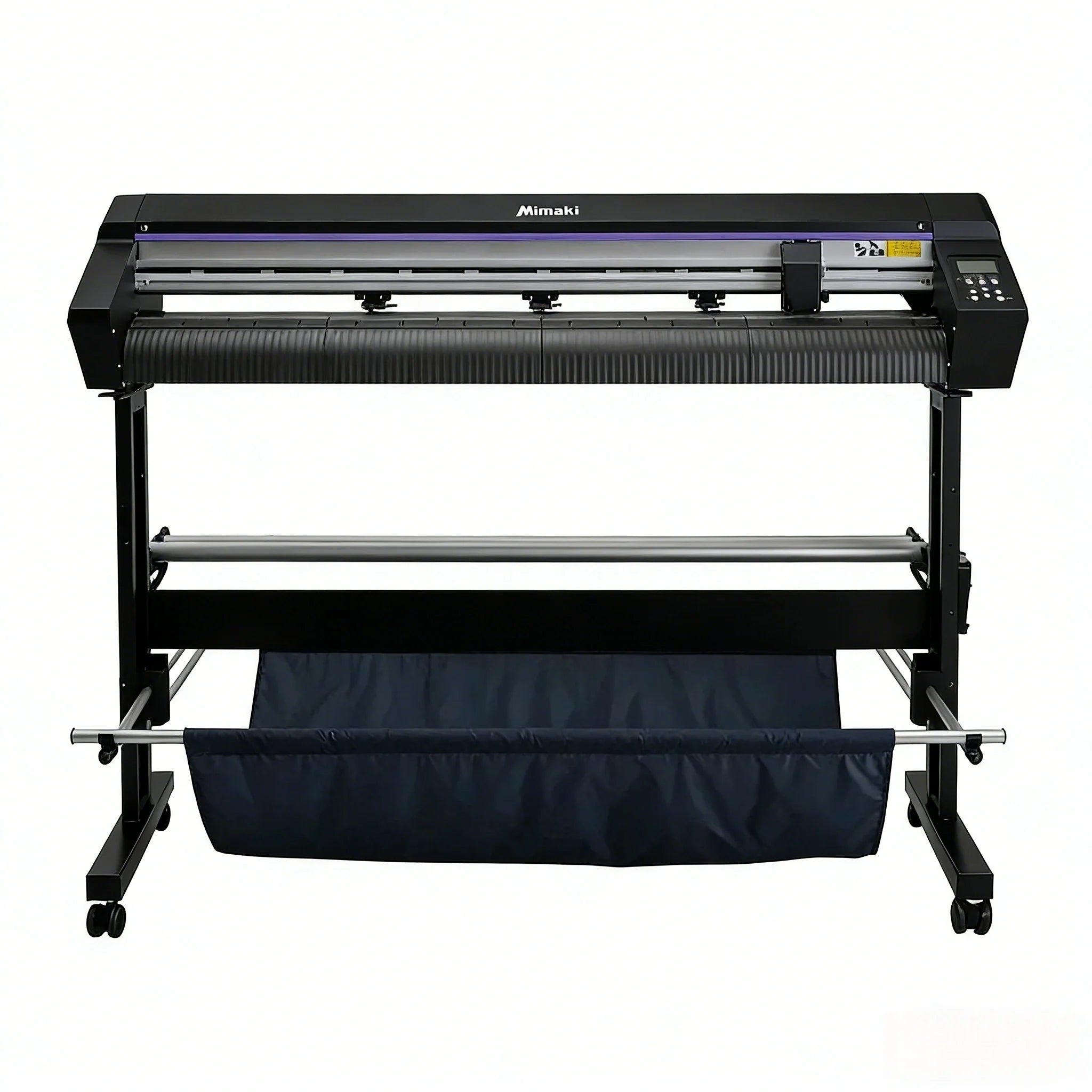

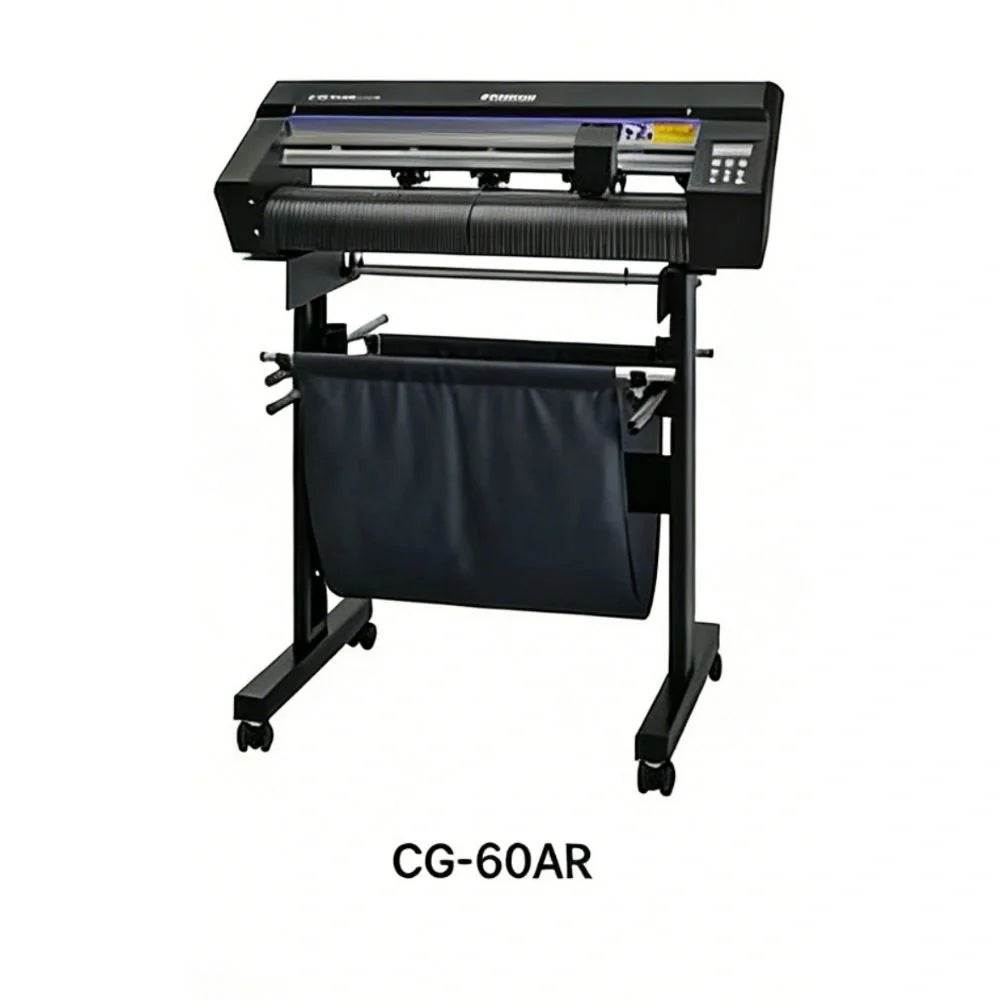

Mimaki CG-AR Series Cutting Plotter is a professional roll-to-roll vinyl cutting machine designed for sign production, sticker cutting and graphic applications. The series includes three models: CG-60AR, CG-100AR and CG-130AR, providing different cutting widths to meet various production needs.

These cutting plotters deliver stable performance, high cutting precision and strong cutting pressure, making them ideal for advertising companies, printing shops and graphic production environments.

Key Features

  • Professional roll-to-roll vinyl cutting plotter
  • Maximum cutting pressure up to 550g
  • High cutting speed up to 73 cm/s
  • Accurate mechanical resolution for precise graphics
  • Supports PVC, reflective and fluorescent films
  • USB, RS-232C and Ethernet connectivity

Applications

  • Advertising sign production
  • Vinyl sticker and decal cutting
  • Reflective safety graphics
  • Label and graphic production
  • Printing and manufacturing industries

Specifications

Item CG-60AR CG-100AR CG-130AR
Applicable Media Width 90-740mm (3.5-29.1") 90-1,250mm (3.5-49.2") 90-1,550mm (3.5-61.0")
Cuttable Area 606mm × 51m (23.9 × 167.3") 1,070mm × 51m (42.1 × 167.3") 1,370mm × 51m (53.9 × 167.3")
Maximum Speed Cutting: 73 cm/s (45° direction: 103 cm/s)
Settable Speed 1-10 cm/s (1 cm/s step adjustment), 10-73 cm/s (5 cm/s step adjustment)
Mechanical Resolution X-axis: 2.5 μm, Y-axis: 5 μm
Program Step 25,10 μm (MGL-IIc) / 100, 50 μm (MGL-IC1)
Repetition Accuracy 0.2 mm / 2 m
Accuracy help support Range 586mm × 2m 1,050mm × 2m 1,350mm × 2m
Maximum Pressure 550 g
Set Pressure (Cutter) 10-20g (2g step), 20-100g (5g step), 100-550g (10g step)
Set Pressure (Pen) 10-20g (2g step), 20-100g (5g step), 100-550g (10g step)
Set Pressure (Creasing Tool) 10-20g (2g step), 20-100g (5g step), 100-550g (10g step)
Applicable Media PVC sheet (≤0.25mm laminated), rubber sheet, fluorescent sheet, reflective sheet
Additional Material Cardboard (used with optional sheet table)
Usable Tools Eccentric cutter, ball-point pen, creasing tool (optional)
Commands MGL-IIC / IC1
Interface USB, RS-232C, Ethernet
Receive Buffer Capacity About 27MB standard (17MB when sorting is effective)
Operational Environment Temperature: 5-35℃ | Humidity: 35-75% RH (without condensation)
Power Supply AC 100-240V 1A 50/60Hz
Power Consumption 168W or less 228W or less 228W or less
Dimensions (W×D×H) 1,010 × 355 × 355 mm 1,510 × 580 × 1,160 mm 1,810 × 580 × 1,160 mm
Weight 17 kg 35 kg 43 kg
Stand Optional Standard Equipment Standard Equipment

The Mimaki CG-AR series provides reliable cutting performance for professional sign makers and printing companies that require precise and stable vinyl cutting production.

Shipping & Return
Shipping & Return
x

Returns Policy

Please confirm product model, specifications, and compatibility before ordering. Buyer-side compatibility mistakes are generally not eligible for return, refund, or compensation.

Printheads, inks, cleaning liquids, electronic boards, and opened or installed items are non-returnable and non-refundable unless we shipped the wrong item or the goods arrived damaged.

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Shipping

Shipping time, stock availability, duties, and import charges may vary by product and destination. Some orders require manual confirmation before shipment.

Estimated delivery time is for reference only and is not a guaranteed delivery date.

If you need an urgent shipment or compatibility check, please contact us before purchase.
