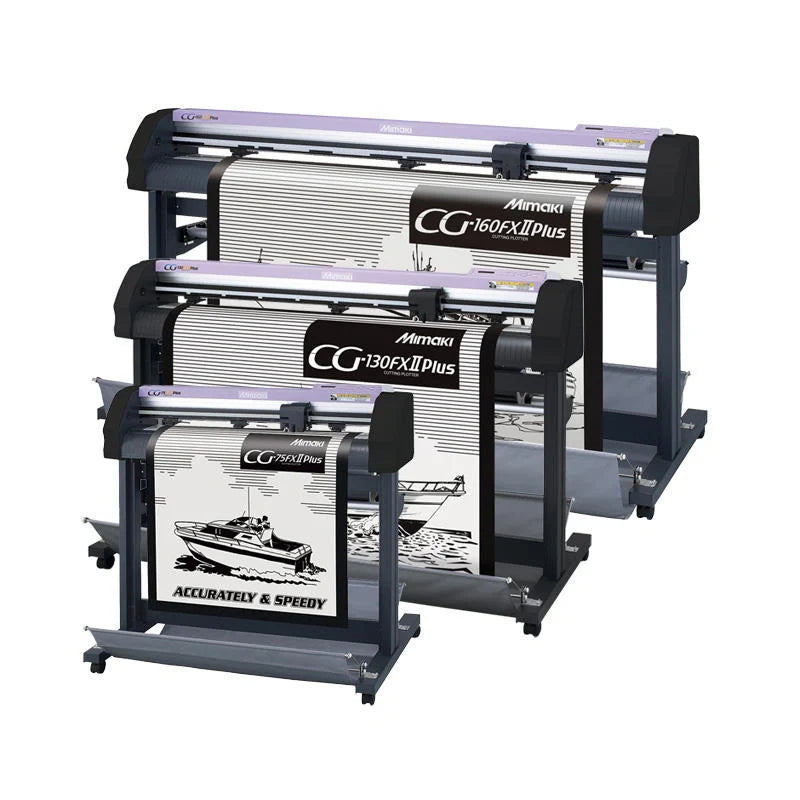

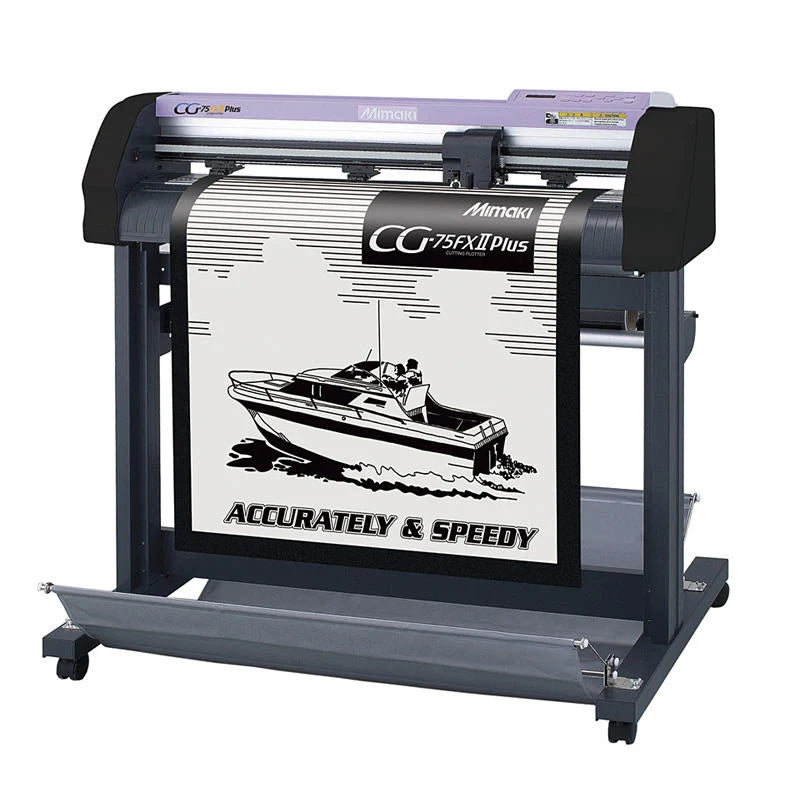

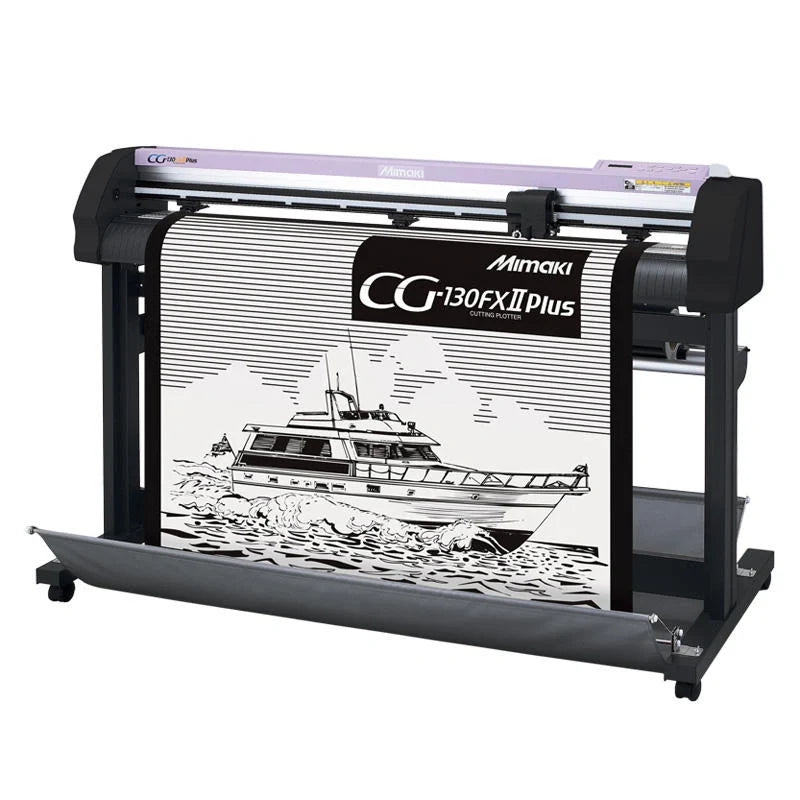

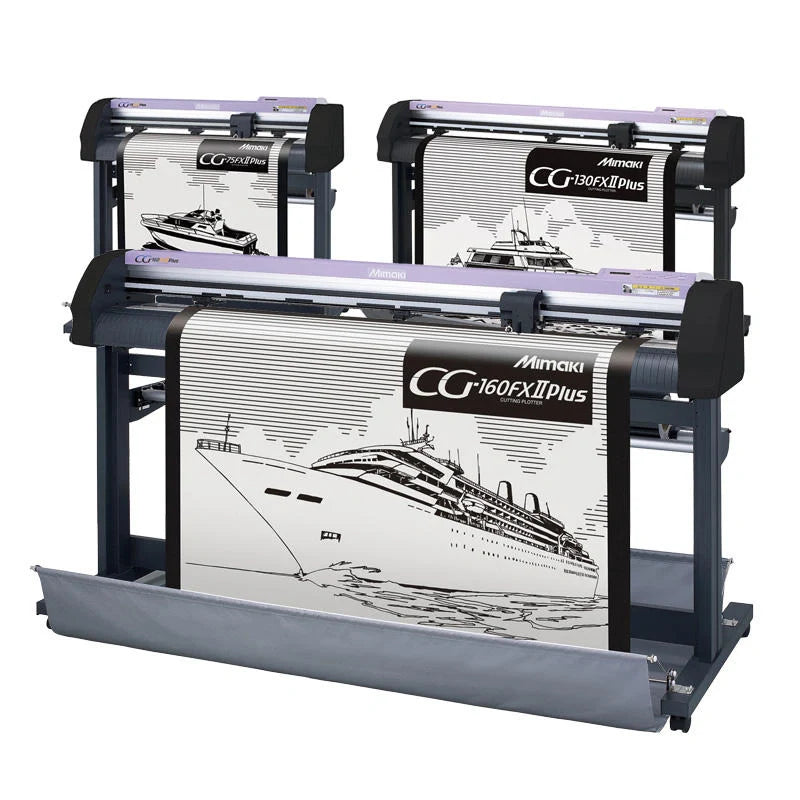

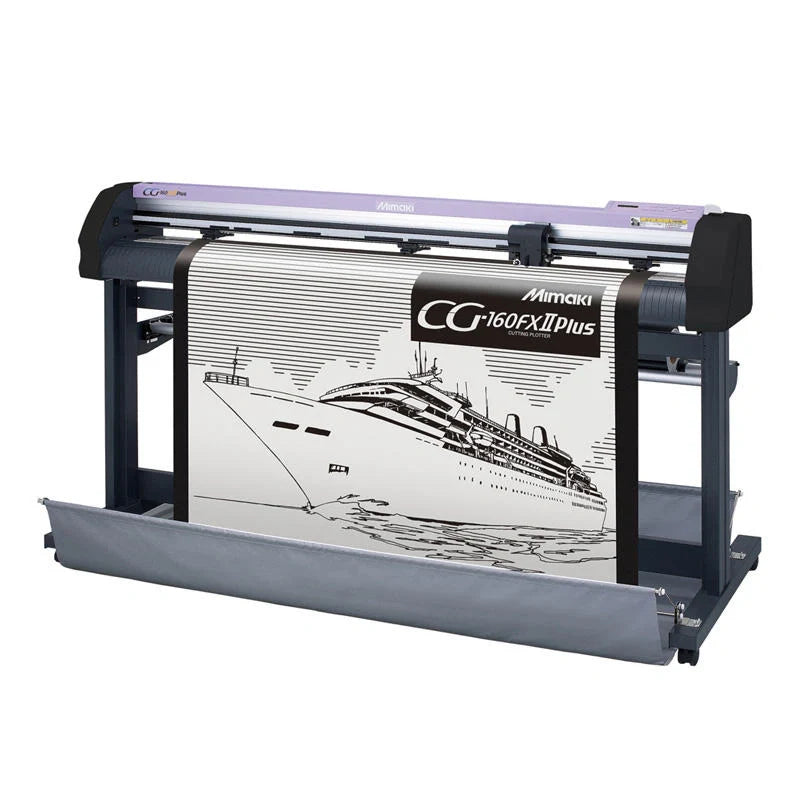

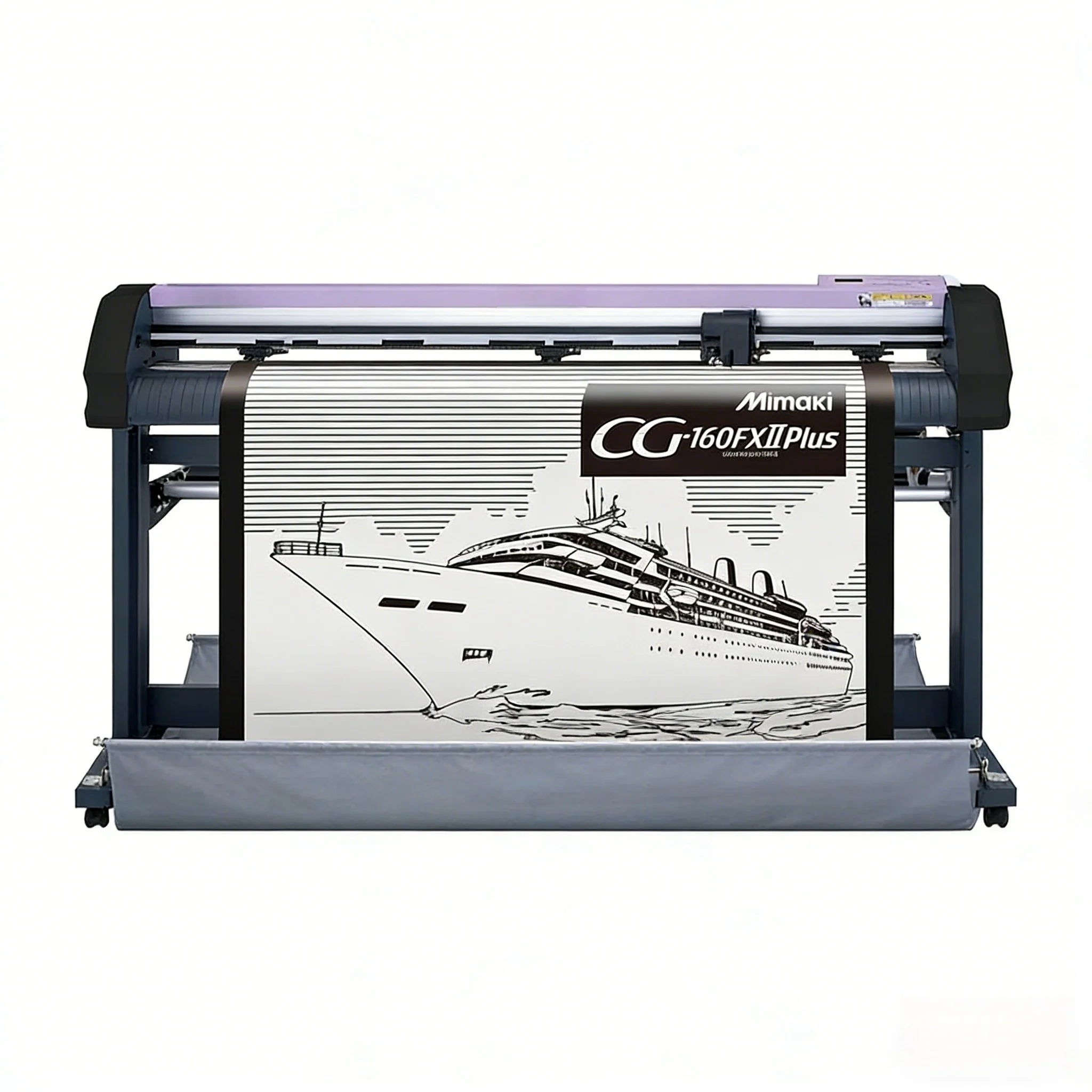

Mimaki CG-FXII Series Cutting Plotter is a professional roll-fed vinyl cutting machine designed for sign production, sticker cutting and graphic processing. The series includes three models: CG-75FXII, CG-130FXII and CG-160FXII, offering different cutting widths for various production needs.

These cutters provide high-precision cutting performance, stable operation and powerful cutting pressure. They are widely used in advertising companies, print shops and industrial graphic production.

Key Features

  • High precision roll-to-roll cutting plotter
  • Maximum cutting speed up to 100 cm/s
  • Maximum pressure up to 500 g
  • High mechanical resolution of 5 μm
  • Supports vinyl, reflective and fluorescent media
  • Stable repeatability accuracy ±0.2 mm
  • USB and RS-232C connectivity

Applications

  • Advertising sign production
  • Vinyl graphics and decals
  • Reflective safety graphics
  • Label and sticker cutting
  • Graphic and printing industries

Specifications

Item CG-75FXII Plus CG-130FXII Plus CG-160FXII Plus
Acceptable Sheet Width 90mm – 1,040mm (3.54" – 40.9") 90mm – 1,580mm (3.54" – 62.0") 90mm – 1,880mm (3.54" – 74")
Rolled Media Weight 18kg (40 lb) or less 22kg (49 lb) or less 22kg (49 lb) or less
Roll Outside Diameter Φ200mm (7.87") or less
Effective Cutting Area 760mm × 51m (29.9" × 167') 1,300mm × 51m (51.2" × 167') 1,600mm × 51m (62.9" × 167')
Maximum Auto Cutting Width 870mm (34.2") 1,425mm (56.1") 1,720mm (67.7")
Maximum Cutting Speed 100 cm/s (39.3"/s)
Maximum Moving Speed 140 cm/s (55"/s) in a 45° direction and pen-up state
Adjustable Speed Range 1-10cm/s (1cm step adjustment)
10-50cm/s (5cm step adjustment)
50-100cm/s (10cm step adjustment)
Mechanical Resolution 5 μm (0.0002")
Command Resolution 25μm, 10μm (MGL-IIc), 100μm, 50μm (MGL-Ic1)
Repeatability ±0.2mm (excluding shrinkage or expansion caused by film temperature)
Accuracy Assurance Range 760mm × 10m 1,300mm × 10m 1,600mm × 10m
Maximum Pressure 500 g
Range of Down Pressure (Cutter) 10-20g (2g step), 20-100g (5g step), 100-500g (10g step)
Range of Down Pressure (Pouncing) 10-20g (2g step), 20-100g (5g step), 100-500g (10g step)
Range of Down Pressure (Pen) 10-20g (2g step), 20-100g (5g step), 100-150g (10g step)
Acceptable Sheet Vinyl up to 0.25mm thickness, fluorescent vinyl, reflective sheet
Acceptable Sheet for Pouncing Paper thickness: 0.06 – 0.13mm
Applicable Tools Cutter, water-based ball-point pen, oil-based ball-point pen, pouncing tool
Certifications VCCI Class A, FCC Class A, ETL IEC 60950-1, CE Marking, supplier compliance document, CB, supplier compliance document, RCM, EAC
Type of Command MGL-IIc / Ic1
Interface RS-232C, USB
Receiver Buffer Size 30MB Standard (20MB when sorting)
Operational Environment Temperature: 5-35°C | Humidity: 35-75% RH (Non-condensing)
Power Requirement AC100-240V 1A 50/60Hz
Power Consumption 100W or less
Dimensions (W×D×H) 1,285 × 700 × 1,217 mm 1,825 × 700 × 1,217 mm 2,125 × 700 × 1,217 mm
Weight (with Stand) 47 kg 62 kg 70 kg

The Mimaki CG-FXII series provides reliable and accurate vinyl cutting performance for professional sign makers and printing companies requiring efficient and stable production.
