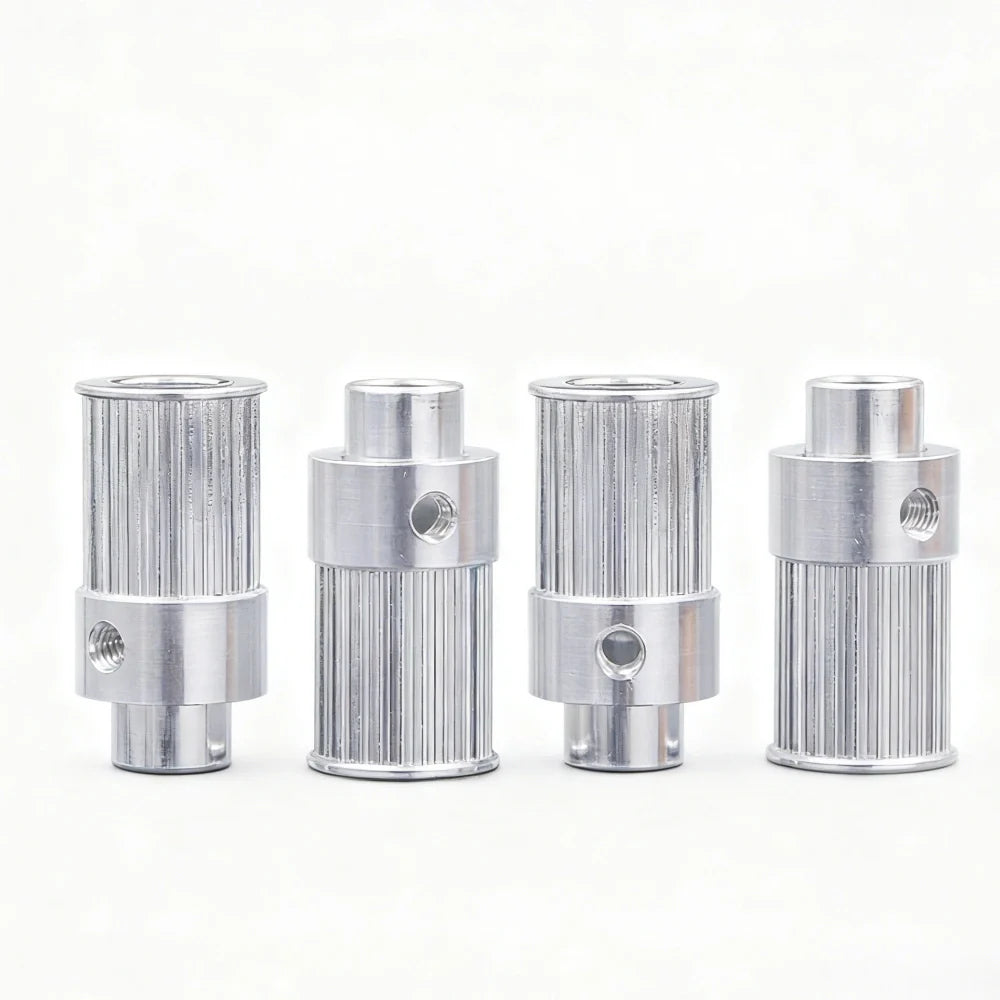

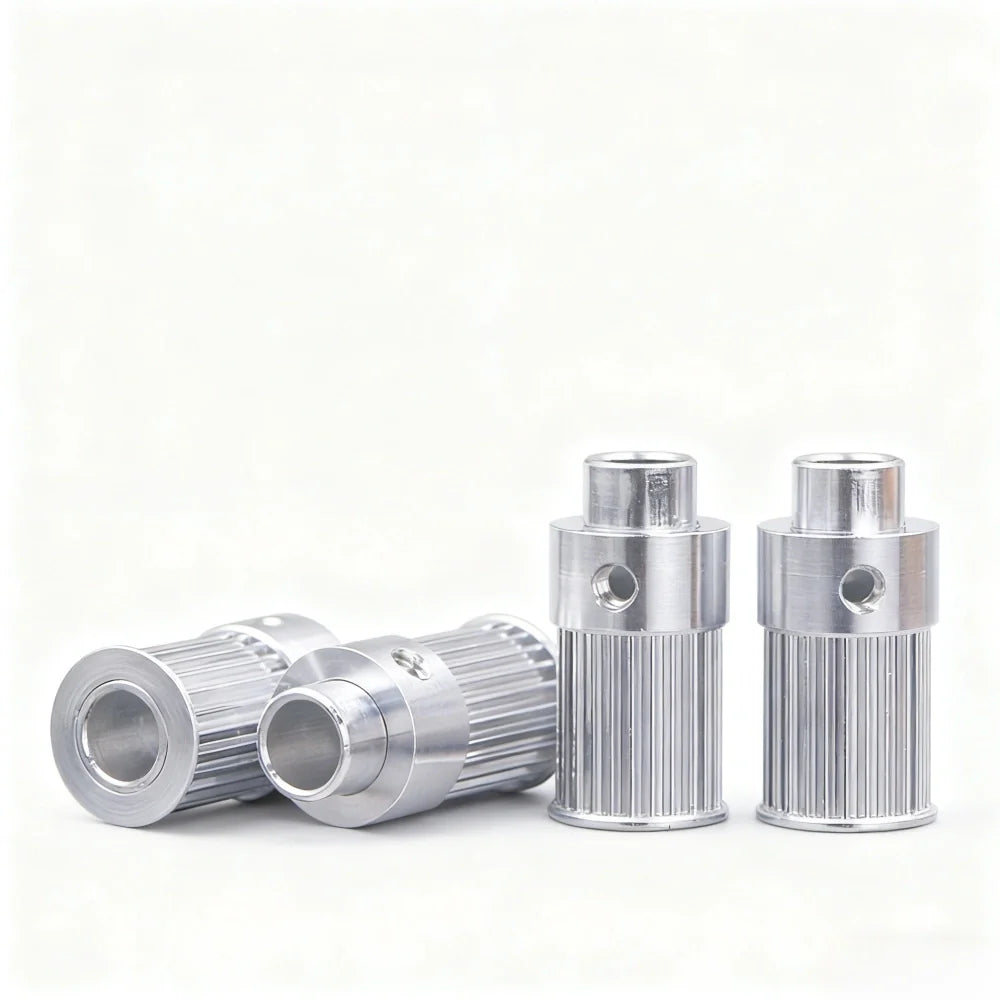

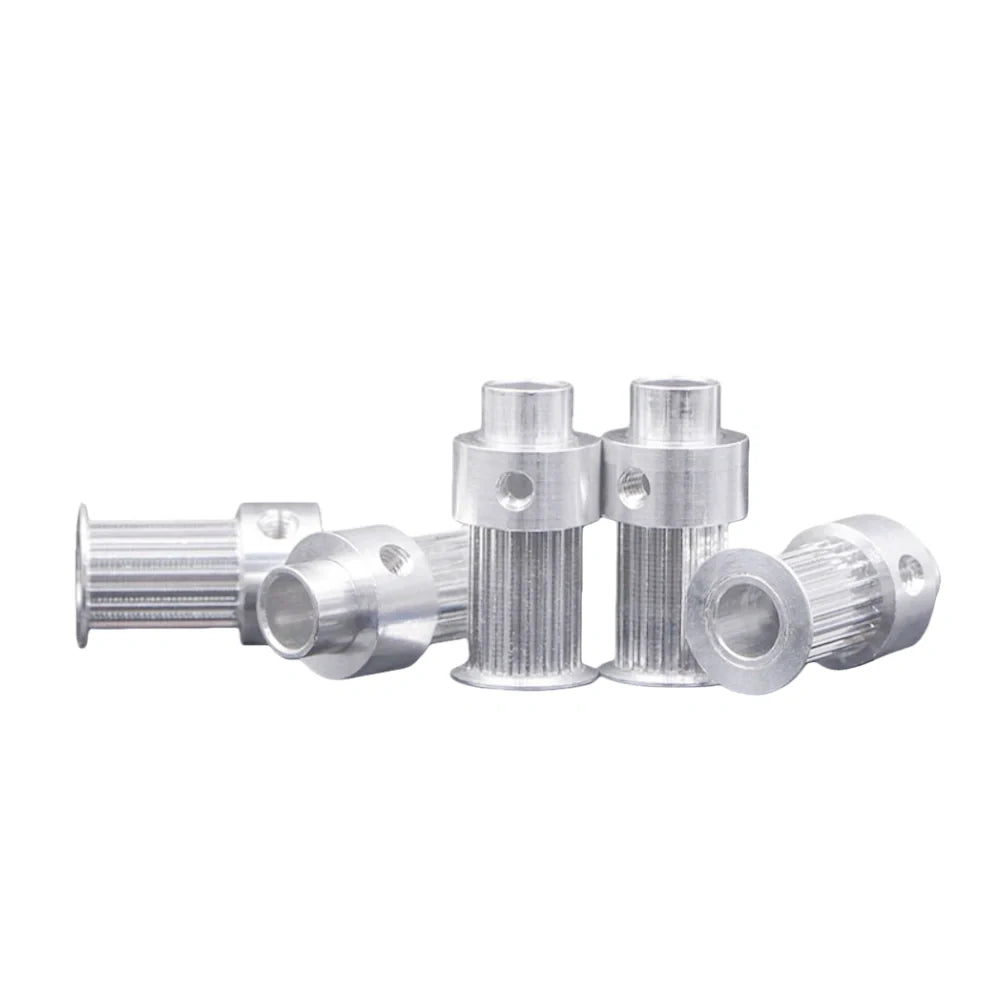

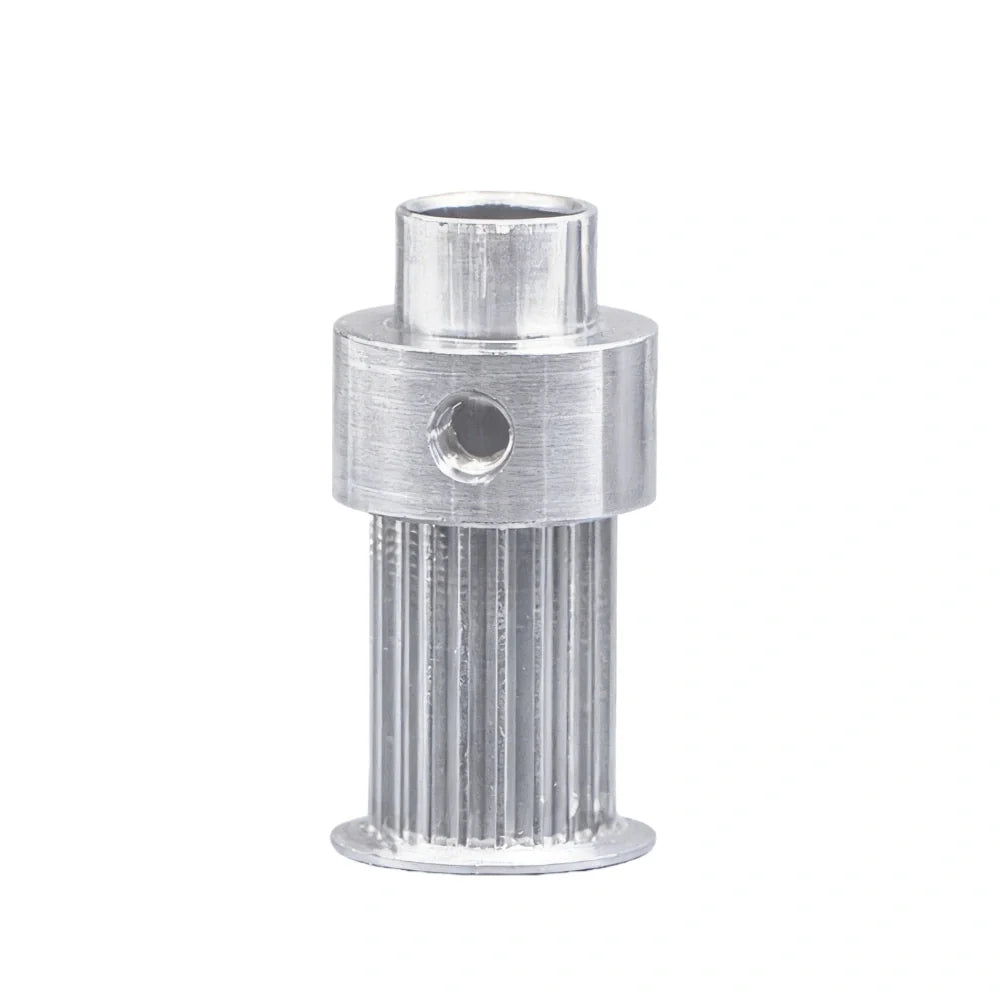

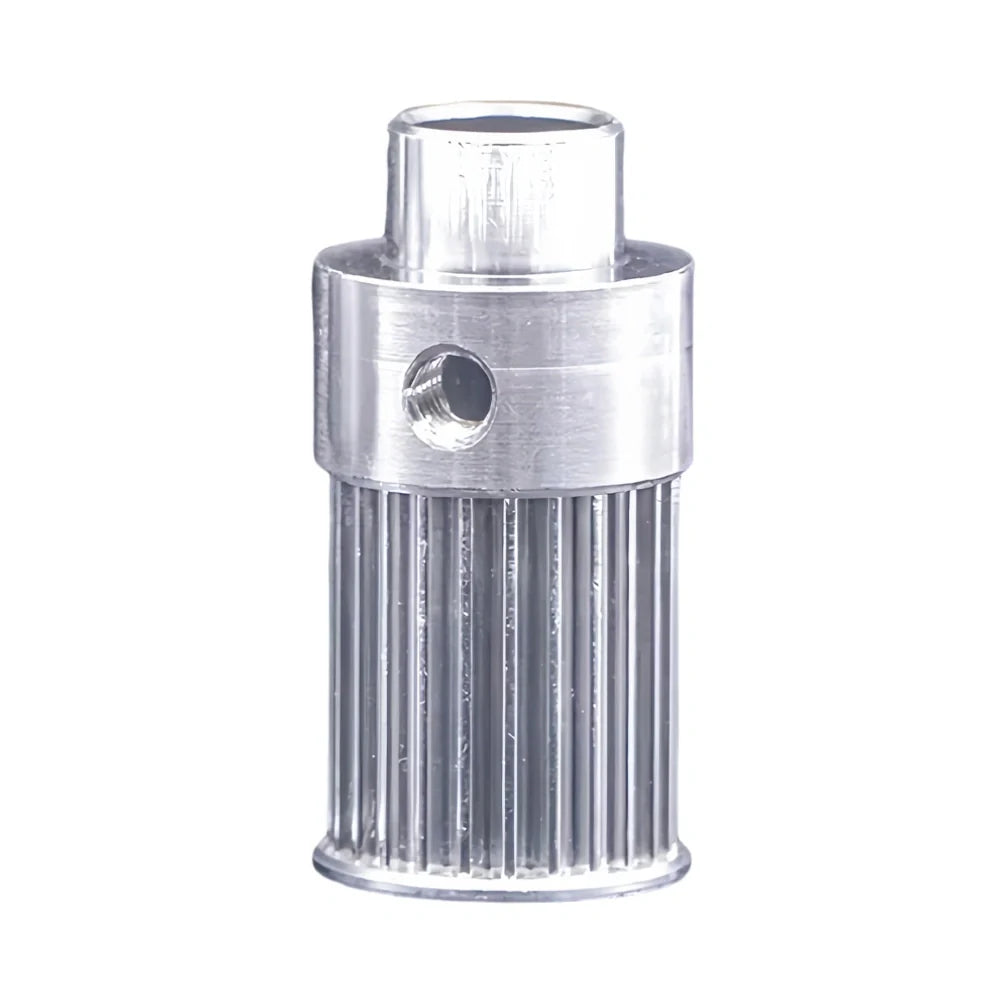

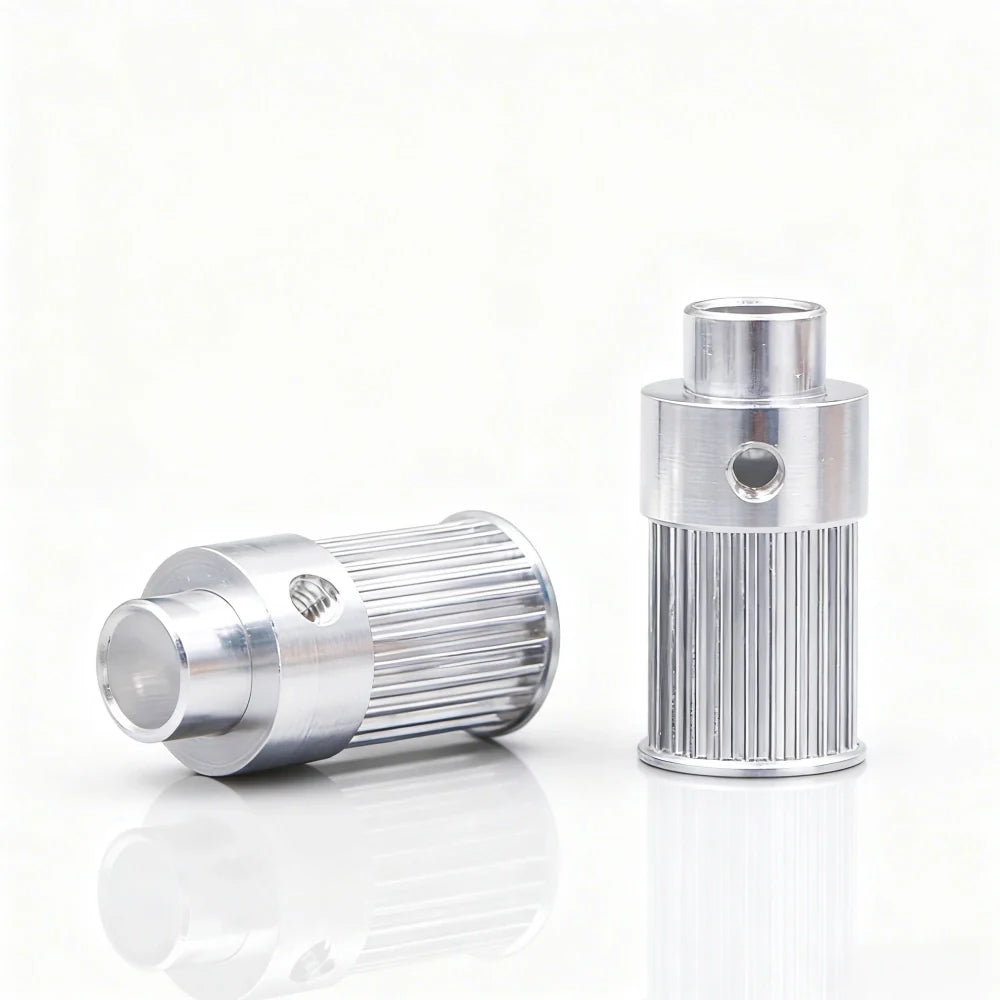

20 / 24-Tooth Motor Pulley

The 20-tooth and 24-tooth motor pulleys are designed for printer drive systems that require reliable belt transmission and precise motion synchronization. Both models support stable torque transfer and smooth belt engagement, making them suitable for continuous-duty wide format printing equipment.

Constructed from durable aluminum alloy, these pulleys feature accurately machined gear teeth that reduce vibration and operating noise. Their compact and lightweight design helps protect the motor while maintaining consistent transmission performance.

With two tooth count options available, users can easily choose the correct pulley based on belt tension requirements and printer design. These pulleys are commonly used as replacement components to restore stable movement and printing accuracy.

Available Models

• 20-Tooth Motor Pulley
• 24-Tooth Motor Pulley

Technical Details

• Outer Diameter: 16 mm
• Bore Diameter: 8 mm
• Height: 32 mm
• Material: Aluminum alloy

Typical Uses

• Wide format printer motor belt drive systems
• Printer transmission and motion control components
• Motor pulley replacement and system maintenance

To ensure optimal performance, please confirm the required tooth count (20T or 24T) before placing your order.

Compatibility Check

• Confirm the exact machine model before ordering.
• Compare the connector layout, mounting position, and dimensions with the model-reference part.
• Match the manufacturer part number whenever possible before purchase.

Buying Notes

• This part should be selected by machine revision, connection style, and physical fit, not by title similarity alone.
• If your printer has multiple board, cable, or motor revisions, compare the old part directly before ordering.
• For critical electronics or motion parts, professional installation is recommended after fitment is confirmed.
