Compatible Replacement 4+4 Ink Supply System - For Mimaki JV33/JV5, Mutoh & Roland Printers
- $68.90
Prices are displayed in USD. Available payment methods and shipping options are shown at checkout based on destination and order details.
Secure payments
Order issue support
Product Details
xOrdering help: For model-specific products, contact us if you need compatibility or fitment help before ordering. Product price and availability are shown on this page, and shipping options and charges available for the entered destination are shown at checkout.
4+4 Ink Supply System – For Mimaki JV33/JV5, Mutoh & Roland Printers Printing Printer
Product Overview
4+4 Ink Supply System – For Mimaki JV33/JV5, Mutoh & Roland Printers Printing Printer. Provides ink supply behavior depends on installation and machine condition and reliable compatibility for continuous and long-term printing applications.
Key Features
- Equipped with 4 large-capacity main tanks and 4 secondary ink boxes to help support long, continuous printing sessions.
- Reinforced metal frame for stable positioning and easy maintenance.
- Compatible with eco-solvent, sublimation, and UV ink types.
- Corrosion-resistant materials ensure long-term durability and chemical stability.
- Designed for professional wide-format printing environments with high ink usage.
Technical Specifications
| Model | 4+4 Continuous Ink Supply System |
| Main Tank Capacity | 1.5L × 4 large tanks |
| Sub Tank Capacity | 440ml × 4 secondary ink boxes |
| Frame Material | High-strength iron frame with anti-rust coating |
| Filters Compatibility | Eco-Solvent, UV, Sublimation, Pigment |
| Compatible Printers | Mimaki JV33 / JV5, Mutoh 1604 / 900C, Roland FJ540 / 740 |

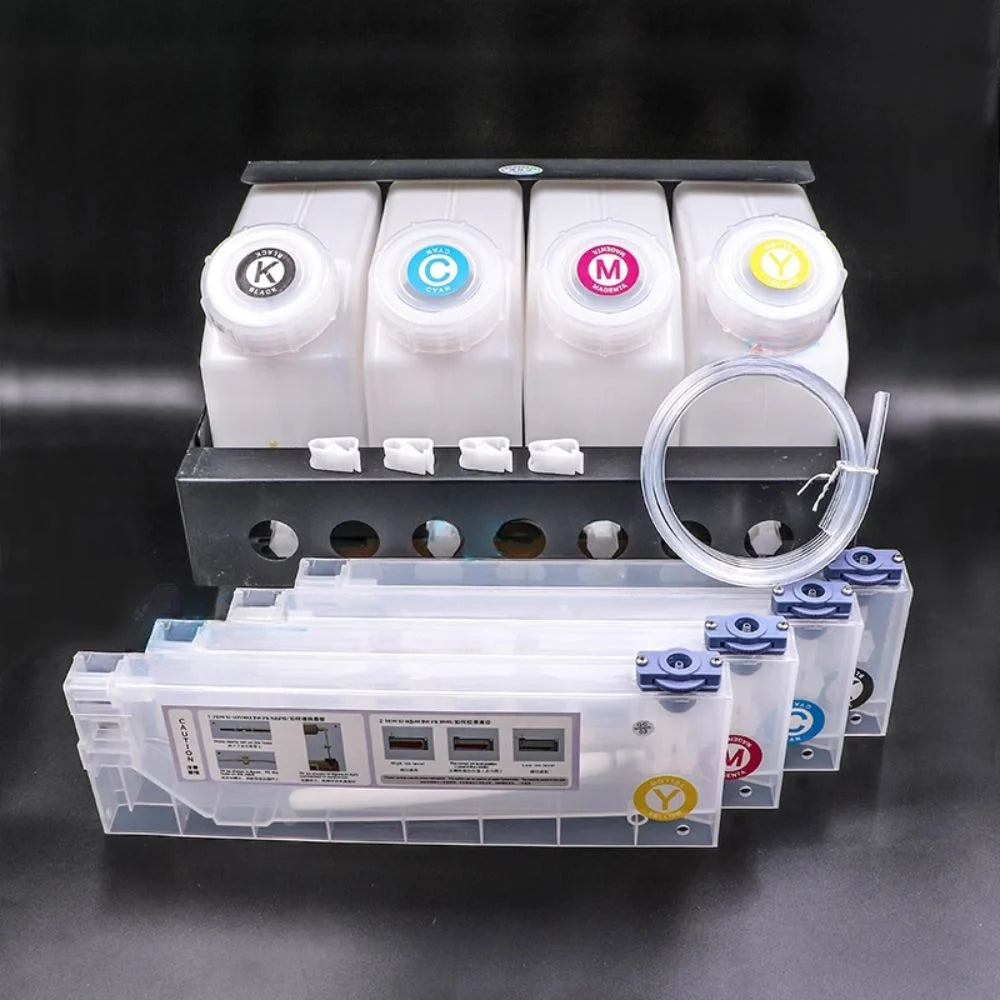

System Components

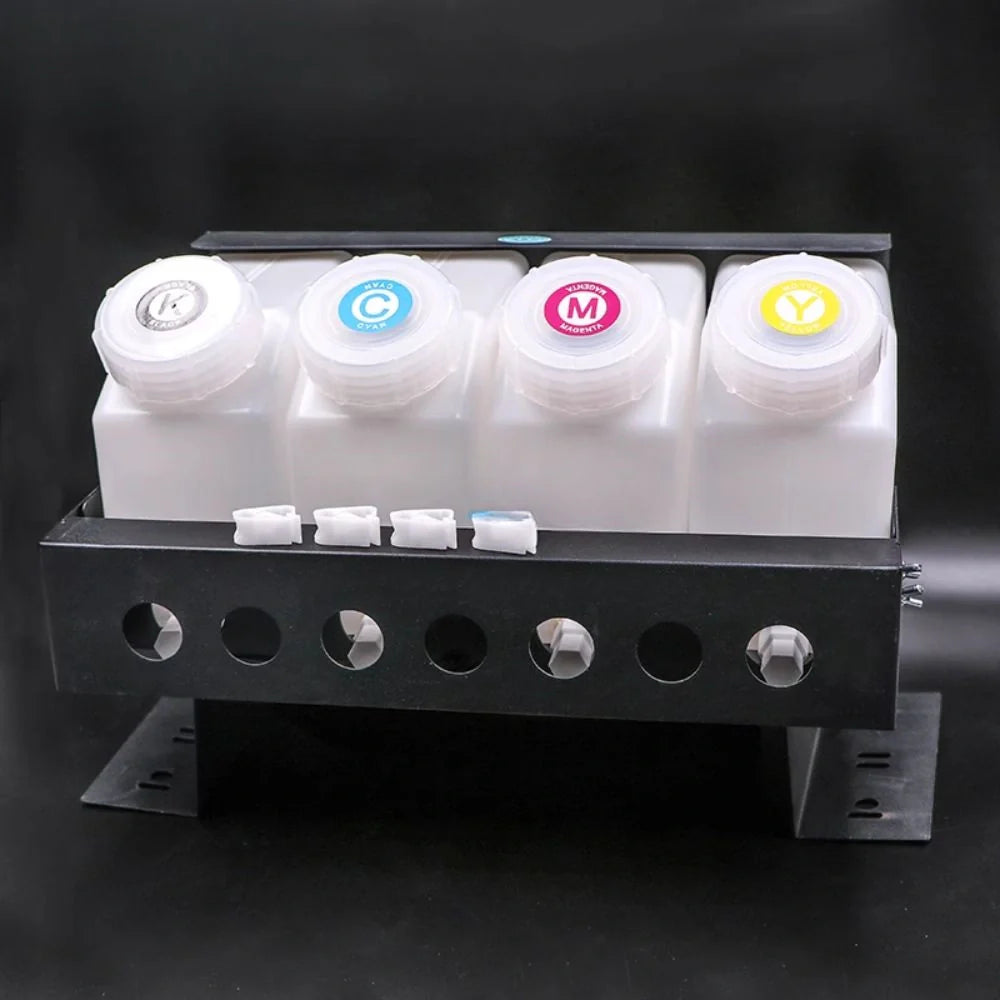

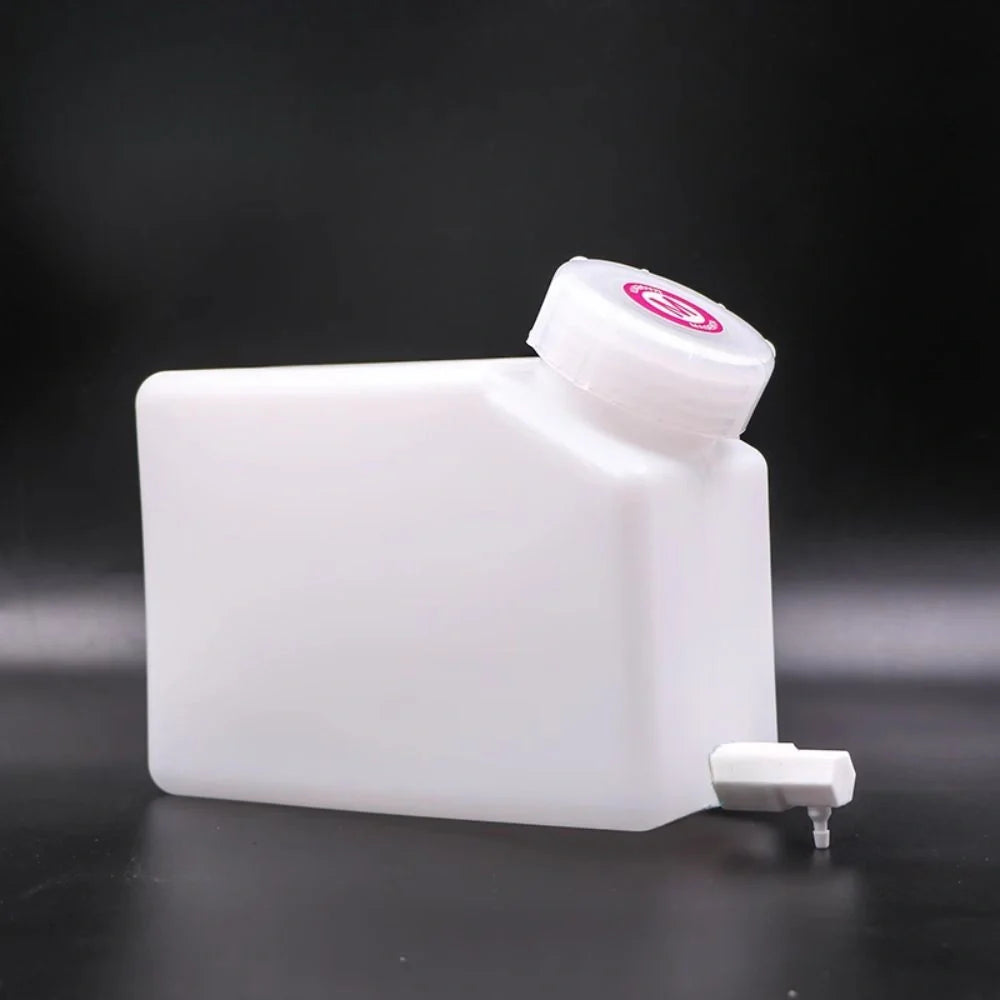

- 4 large main ink tanks for bulk storage.

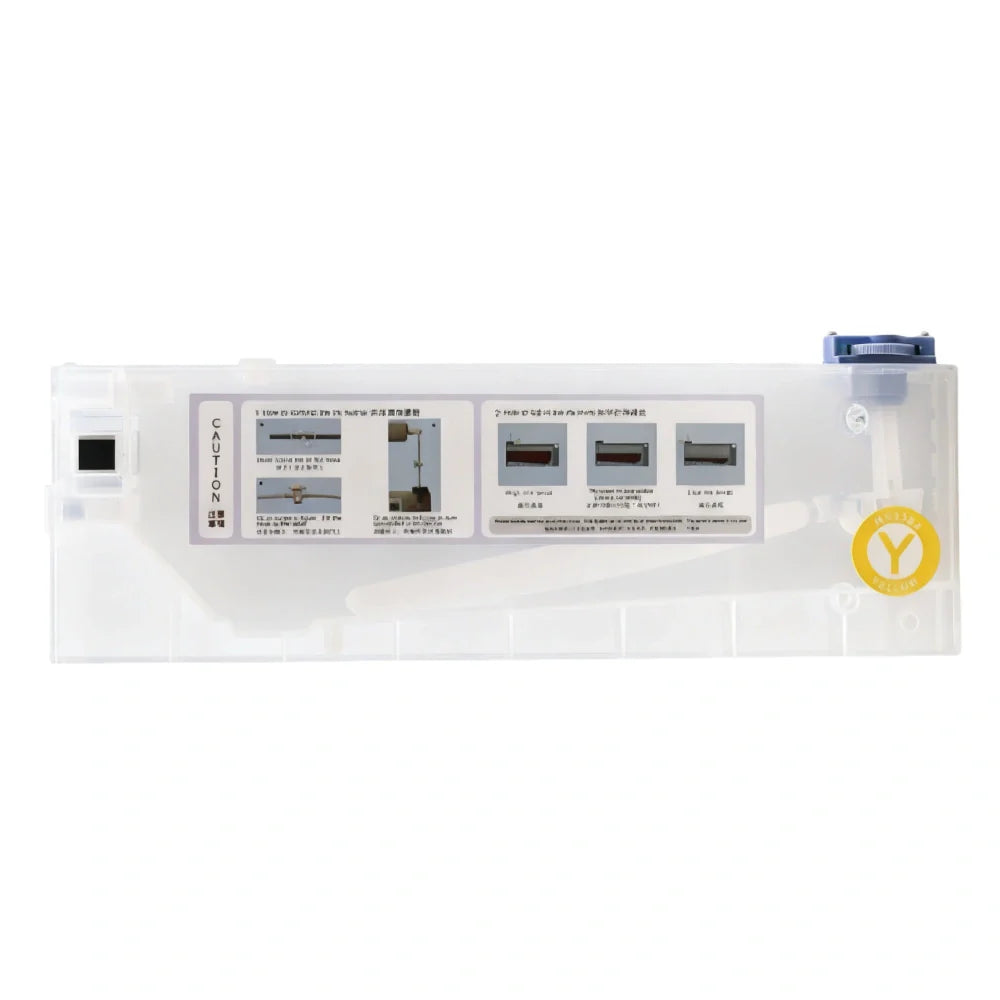

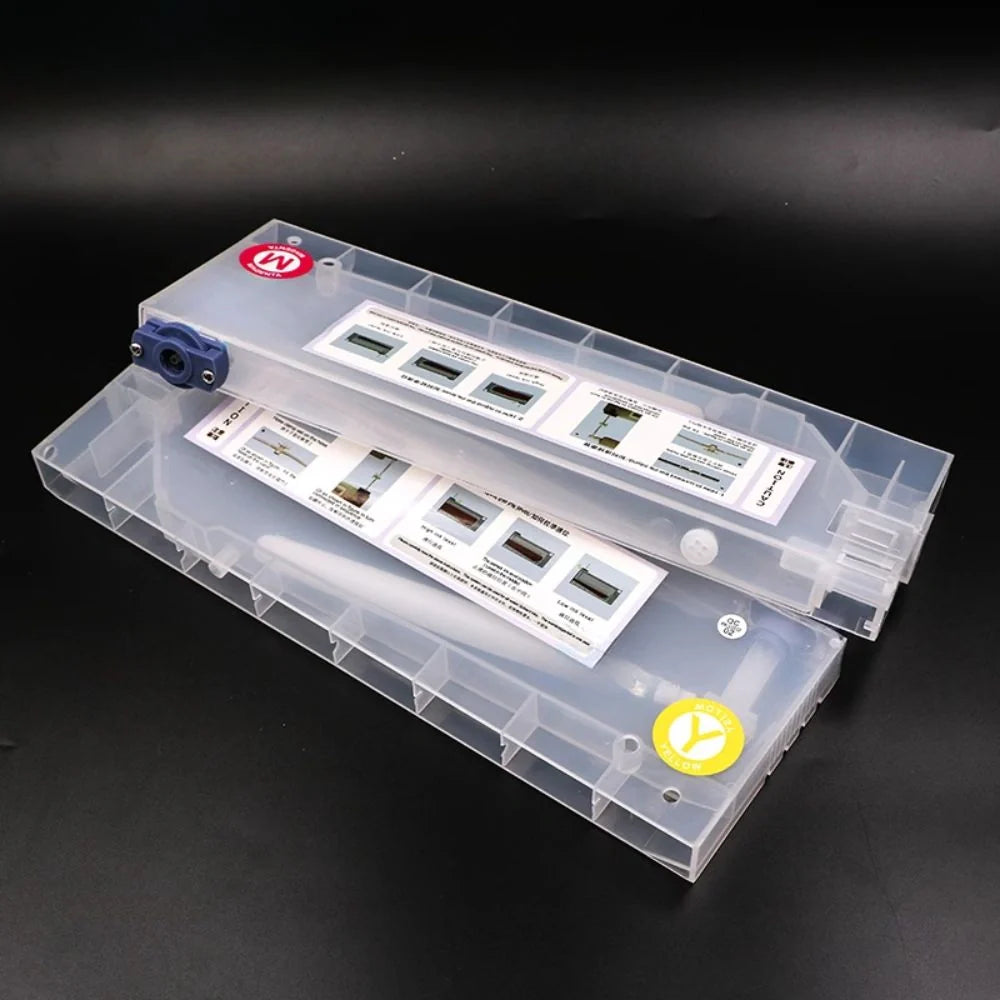

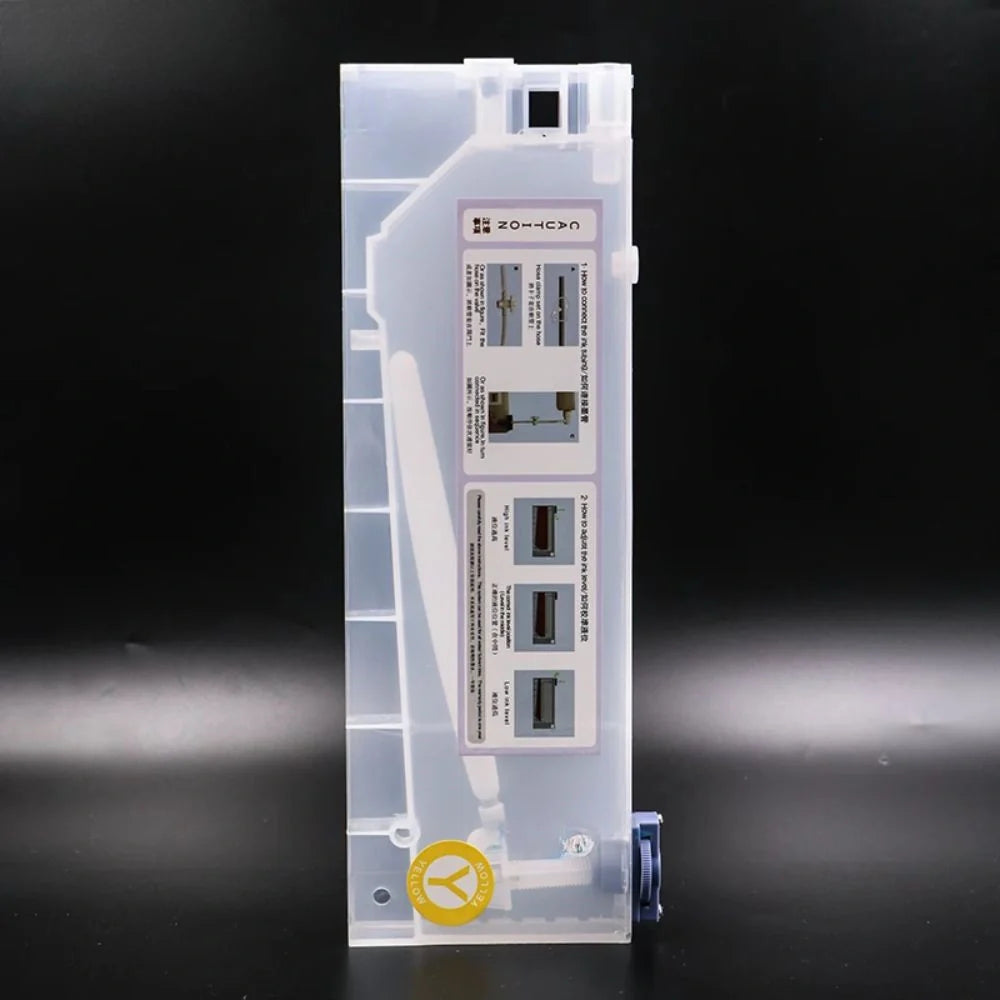

- 4 secondary floating ink boxes for pressure stabilization.
- Metal stand with reinforced support structure.
- High-flexibility ink tubes with secure connectors.
- Air balance valves and anti-backflow protection system.
Advantages
- Minimizes printing downtime caused by manual ink replacement.
- Prevents ink leakage, air bubbles, and pressure fluctuations.
- Improves ink utilization rate and reduces waste.
- Suitable for high-volume production and continuous printing tasks.
Installation and Maintenance
- Place the ink supply system on a stable surface near the printer.
- Connect ink tubes to the sub tank ports and ensure no air bubbles remain.
- Secure the system connections to prevent ink leakage during operation.
- Regularly clean or replace the ink tubes and filters to maintain performance.
Note: This 4+4 ink supply system is widely compatible with Mimaki, Mutoh, and Roland printers, providing reliable ink delivery for professional-grade printing.
Compatibility Check
- Referenced machine models: JV33, FJ540.
- Compare the connector layout, mounting position, and dimensions with the model-reference part.
- Match the reference part number whenever possible before purchase.
Buying Notes
- This part should be selected by machine revision, connection style, and physical fit, not by title similarity alone.
- If your printer has multiple board, cable, or motor revisions, compare the old part directly before ordering.
- For critical electronics or motion parts, professional installation is recommended after fitment is confirmed.
Installed Position In The Ink Path
- This cartridge or sub-tank is normally installed between the main ink source and the printhead-side ink path to buffer supply and support more stable feeding.
- It is commonly used in bulk-ink, negative-pressure, or local sub-ink systems where stable ink level control matters.
- Correct port layout and valve structure are important for pressure balance, priming behavior, and daily service reliability.
Best-Fit Workflows
- Bulk-ink or continuous-ink systems used on eco-solvent and solvent printers.
- Shops that want more stable local ink buffering between the cartridge area and the printhead path.
- Printer rebuild or maintenance projects where bottle style, tubing layout, and pressure behavior must match the reference setup.
Fitment Checklist
- Confirm the matching printhead family or local ink-system layout before ordering.
- Match the old cartridge assembly by valve count, port count, and installation size whenever possible.
- Confirm whether your system requires a float sensor or liquid-level trigger.
- Before payment, confirm valve quantity, port direction, mounting points, and tubing connection size against the reference assembly.
