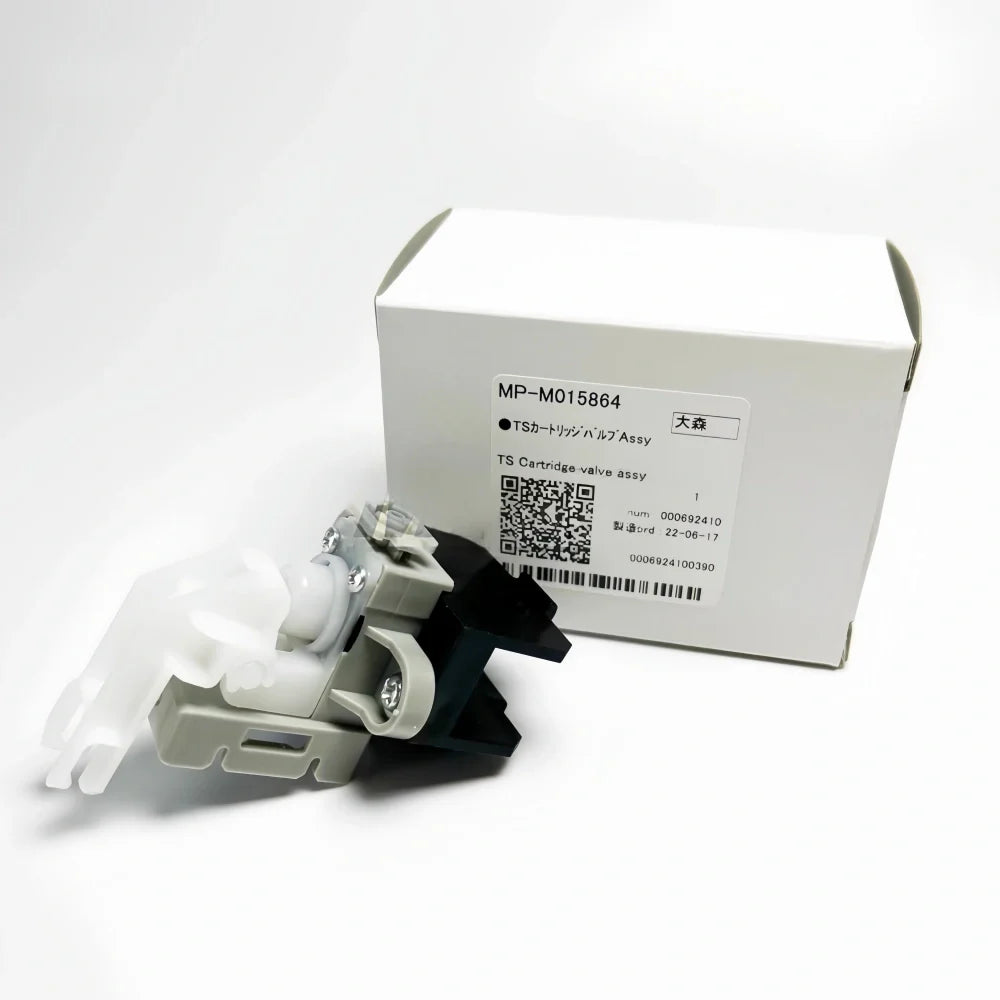

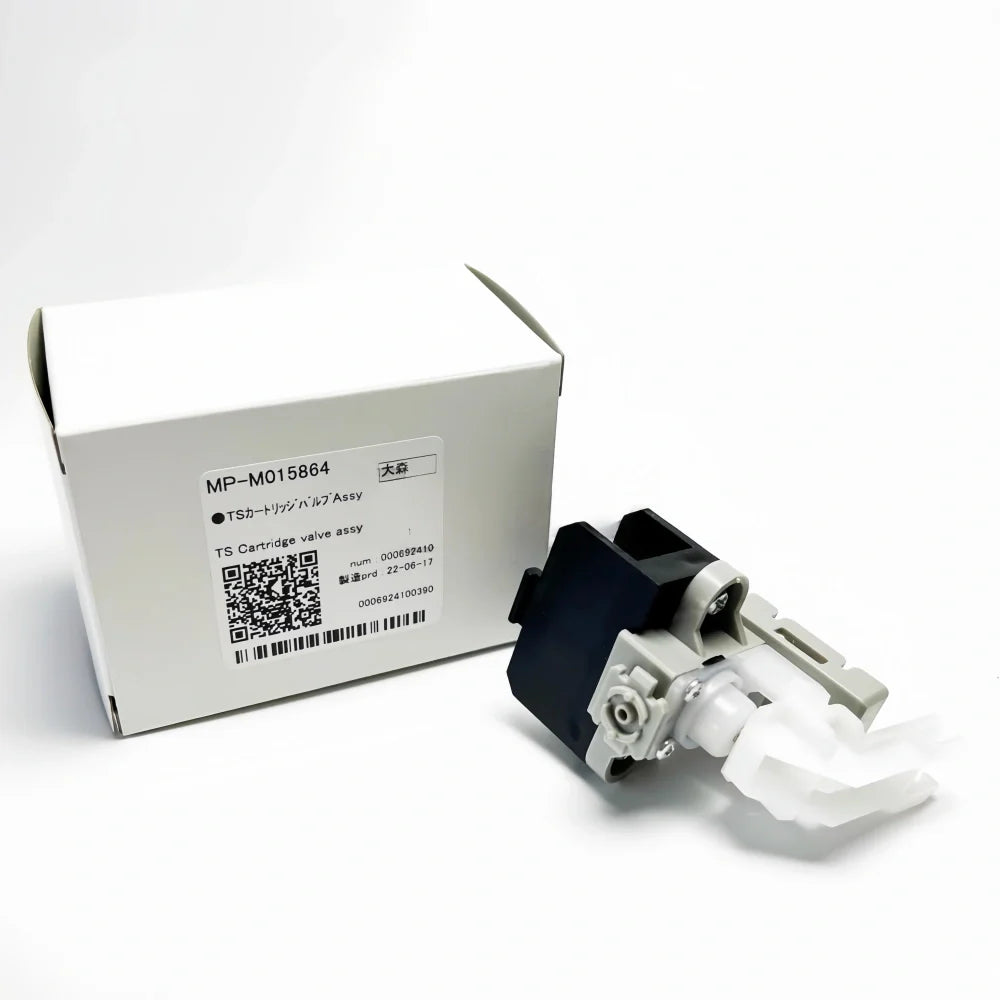

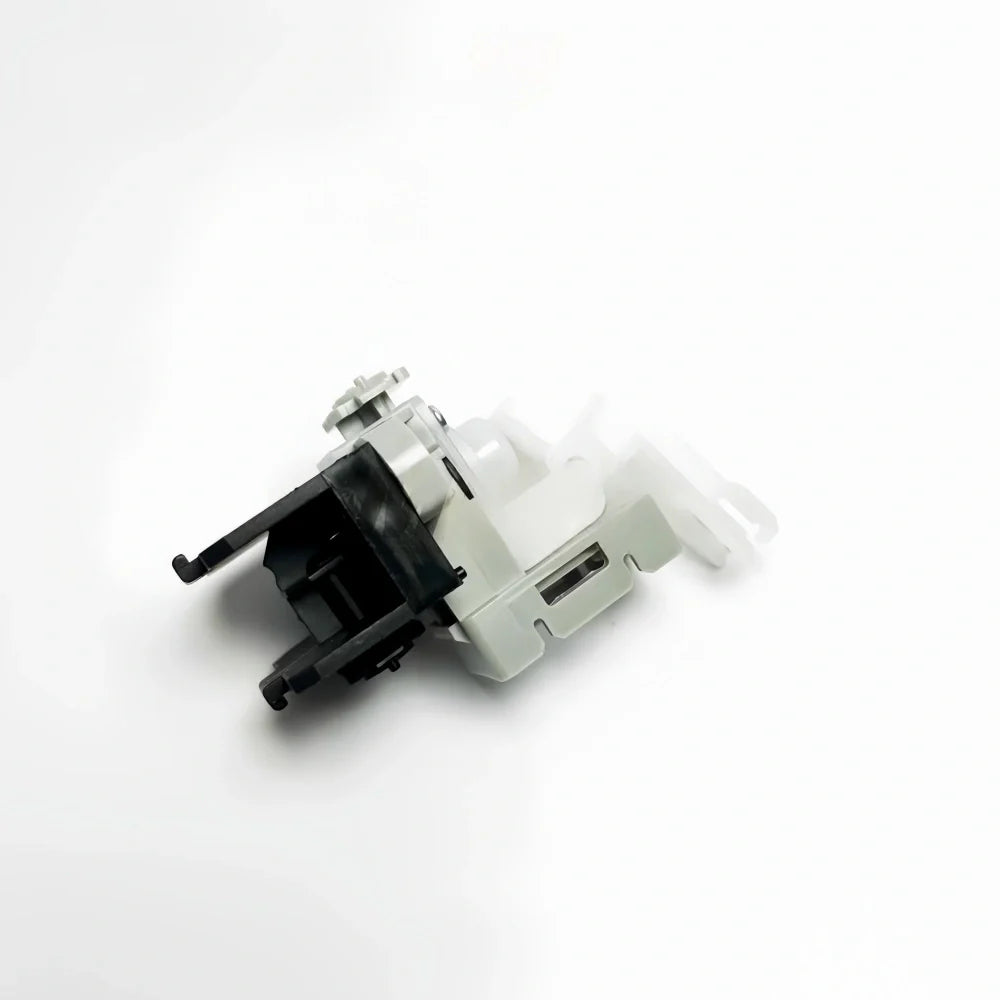

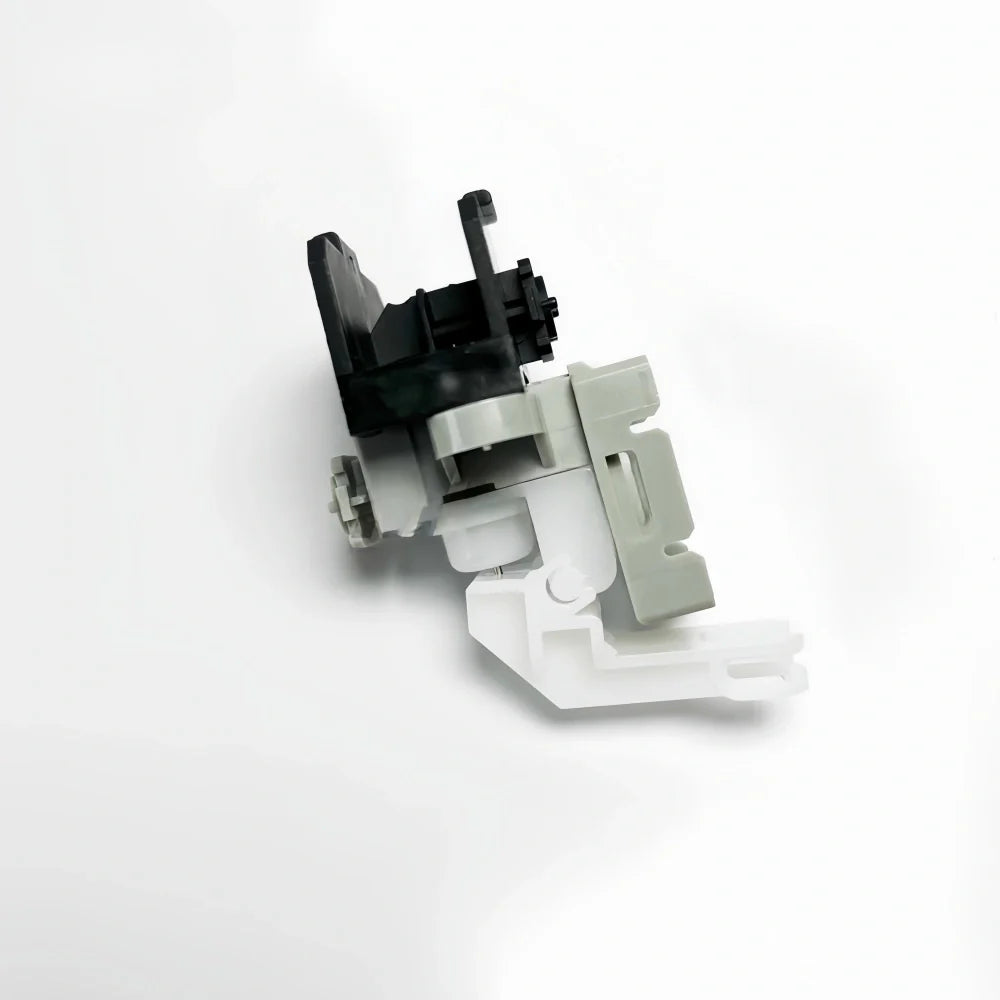

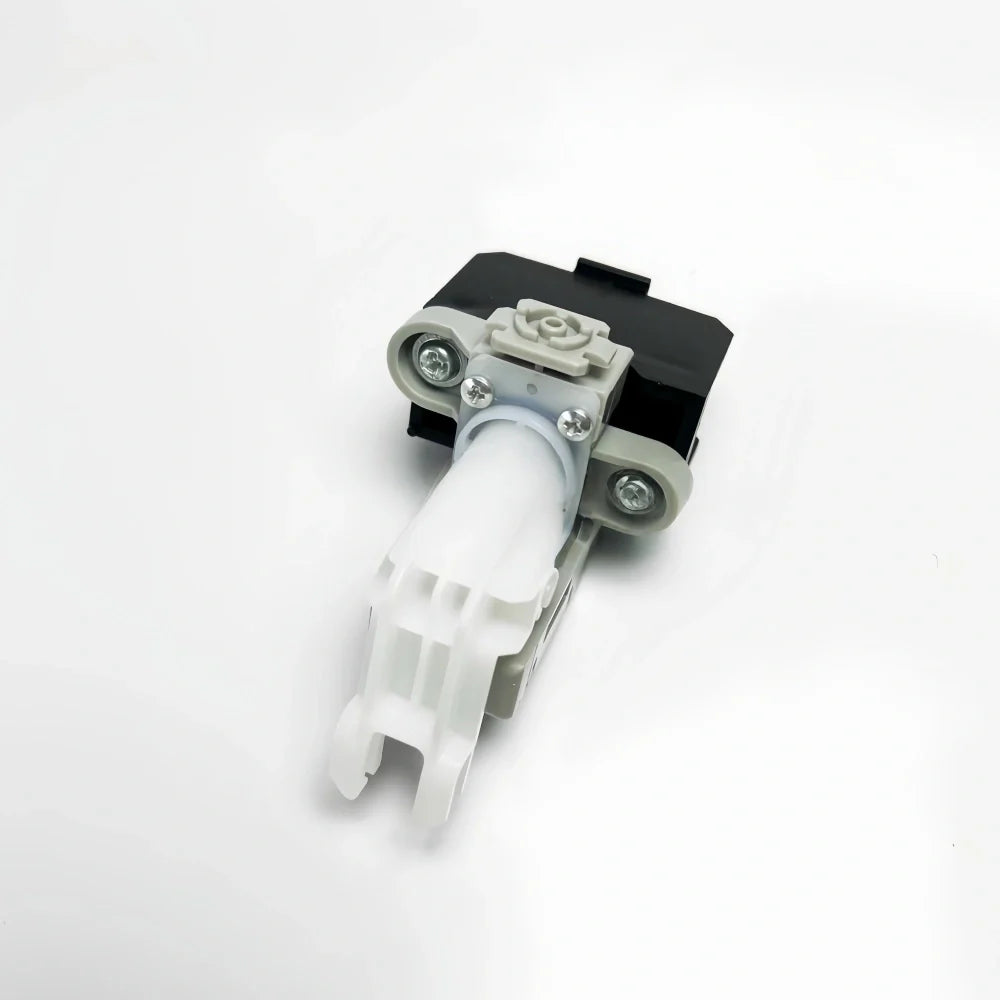

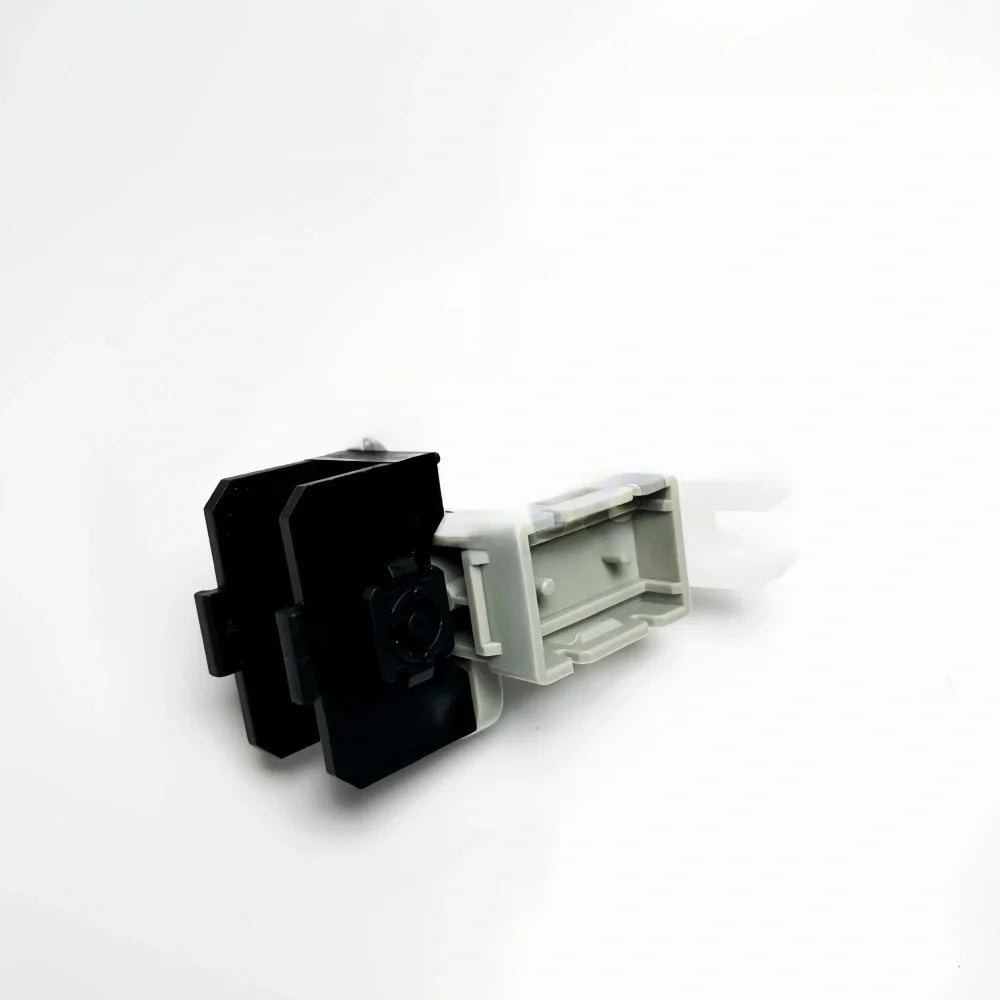

Compatible Replacement MP-M015864 - Mimaki TS Cartridge Valve Assy

MP-M015864 - Mimaki TS Cartridge Valve Assy is offered as a reference cartridge for compatible printer maintenance and spare-parts replacement. It is intended for buyers who need to match the correct machine configuration, connector type, and manufacturer part number before installation.

Compatibility

• Printer models referenced in current product data: M015864
• Confirm the printer model, part number, connector layout, size, and use position before ordering when compatibility is uncertain.
• Part number reference: MP-M015864, M026750
• If your machine has multiple revisions, compare the model-reference part number, connector layout, and mounting position before ordering.

Function and Use Position

• Provides ink storage or ink transfer in the printer supply system
• Should be matched with the correct ink series, slot design, and chip configuration
• Useful when replacing worn, leaking, or damaged cartridge components

Key Details

Ordering Notes

• Reference status: Reference.
• Match reference / part number: MP-M015864, M026750.
• Common machine reference found in title or tags: M015864.
• For electronic parts, motion parts, and fluid-system parts, professional installation is recommended.

Package Includes: 1 × MP-M015864 - Mimaki TS Cartridge Valve Assy

Installed Position In The Ink Path

• This cartridge or sub-tank is normally installed between the main ink source and the printhead-side ink path to buffer supply and support more stable feeding.
• It is commonly used in bulk-ink, negative-pressure, or local sub-ink systems where stable ink level control matters.
• Correct port layout and valve structure are important for pressure balance, priming behavior, and daily service reliability.

Best-Fit Workflows

• Industrial ink delivery systems that need local ink storage, valve control, or negative-pressure support.
• UV, solvent, or hybrid printers where the sub-tank design directly affects ink stability near the printhead side.
• Buyers who need to match port count, sensor layout, and installation space before ordering.

Fitment Checklist

• Confirm the matching printhead family or local ink-system layout before ordering.
• Part number references found in current product data: MP-M015864, M026750.
• Before payment, confirm valve quantity, port direction, mounting points, and tubing connection size against the reference assembly.
