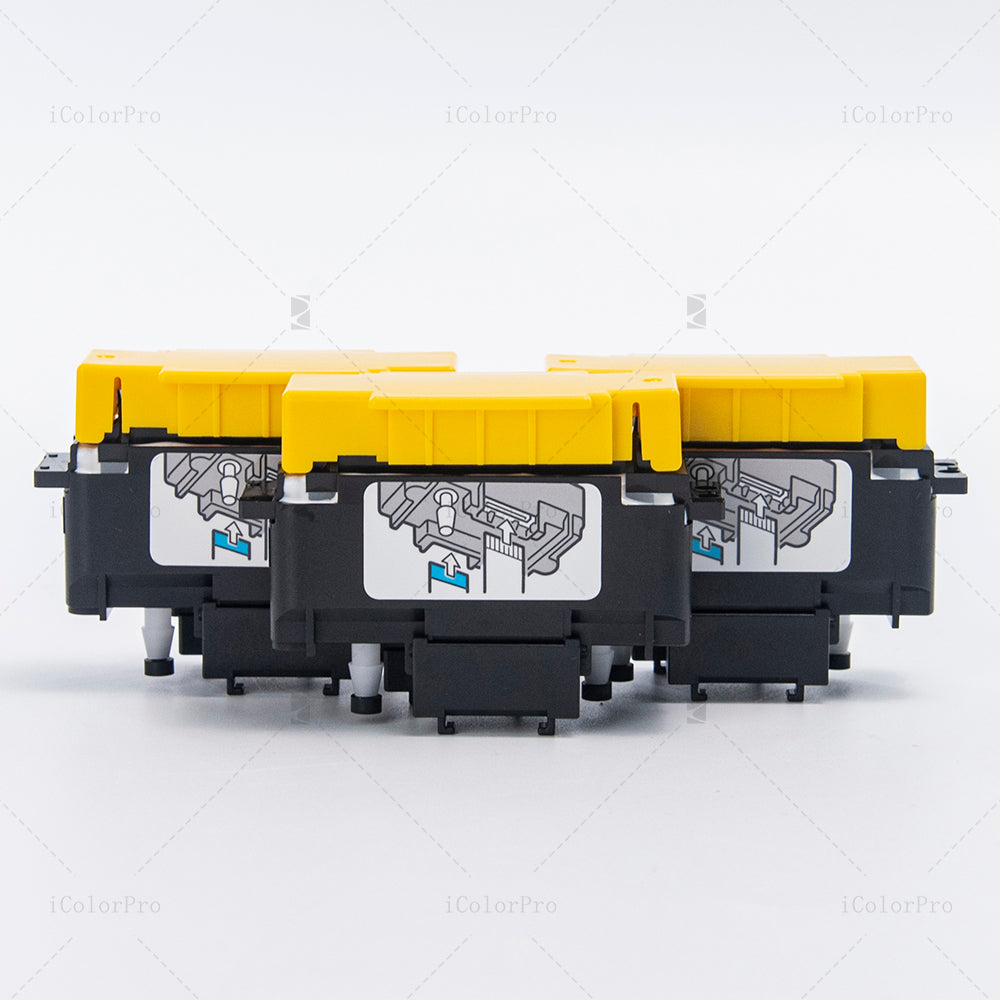

Compatible Ricoh GH2220 Inkjet Printhead

$558.00 In stock
Type
Estimated total · 1 item $558.00
Protected payment
American express Apple pay Google pay Master Shopify pay Unionpay Visa

Payment options are shown at checkout based on destination and order details.

Secure payments

Checkout is processed through Shopify and available payment providers using their security measures and verification processes.

Order issue support

Please contact us promptly if your order arrives damaged, incorrect, or incomplete so we can review the case.

Ricoh GH2220 Compatible Replacement Printhead

A compatible replacement listing for industrial printers configured around the Ricoh GH2220 reference.

Confirm compatibility before payment. Brand and model names are used only to identify the required part reference and compatibility.

384Nozzles
150 npi per rowResolution
3–5 pL binaryDrop range
32.4 mmPrint width

Technical Details

Reference model
Ricoh GH2220
Technology
Piezo drop-on-demand
Nozzle count
384
Resolution / print width
150 npi per row / 32.4 mm
Drop performance
3–5 pL binary
Jetting frequency
30 kHz
Ink reference
Aqueous and solvent
Dimensions / weight
61.8 × 23.3 × 40.5 mm / 38 g

Send These Details Before Ordering

  • Printer brand, model, and machine revision
  • Clear photos of the existing printhead label
  • Cable, connector, and drive-board information
  • Ink type and ink-delivery configuration
  • Destination country and required condition
Important: “Gen4,” “Gen5,” “Gen5i,” and “Gen6” are market family names. Confirm the exact MH model code and installed-head label before payment. Professional installation is recommended. Incorrect wiring, waveform, voltage, pressure, ink, or handling can permanently damage a printhead.

Common Questions

Which ink can I use?

Only use a fluid, waveform, temperature, viscosity, pressure, and ink-delivery setup approved for the exact Ricoh head code and printer.

How do I confirm compatibility?

Send the printer model plus photos of the existing label, connector, cable, drive board, and ink setup. We will compare them before payment.

Can I install the printhead myself?

Professional installation is recommended. Inspect the label and condition before installing; contact us first if anything differs from the confirmed order.
