Mutoh Drafstation CR Return Pulley Assy - DF-49047

The CR Return Pulley Assembly (DF-49047) is a high-quality replacement pulley compatible with Mutoh Drafstation and ValueJet printers. It is responsible for maintaining the correct tension and smooth return of the carriage belt, ensuring accurate printhead movement and consistent output precision.

Key Features

• High-quality CR return pulley with durable construction
• Ensures smooth carriage movement and accurate belt tracking
• Compatible with multiple Mutoh Drafstation and ValueJet printer models
• Precision-engineered to reduce vibration and extend belt life
• Easy to install and maintain

Description

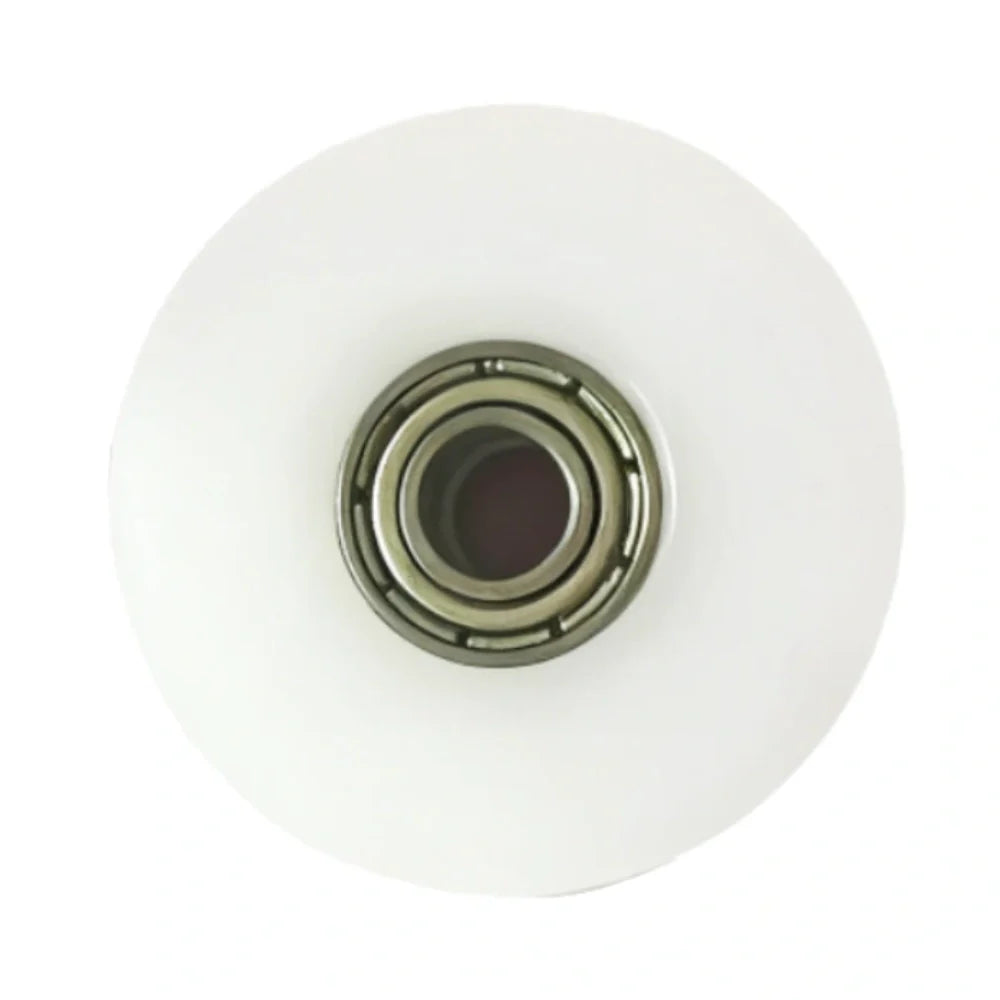

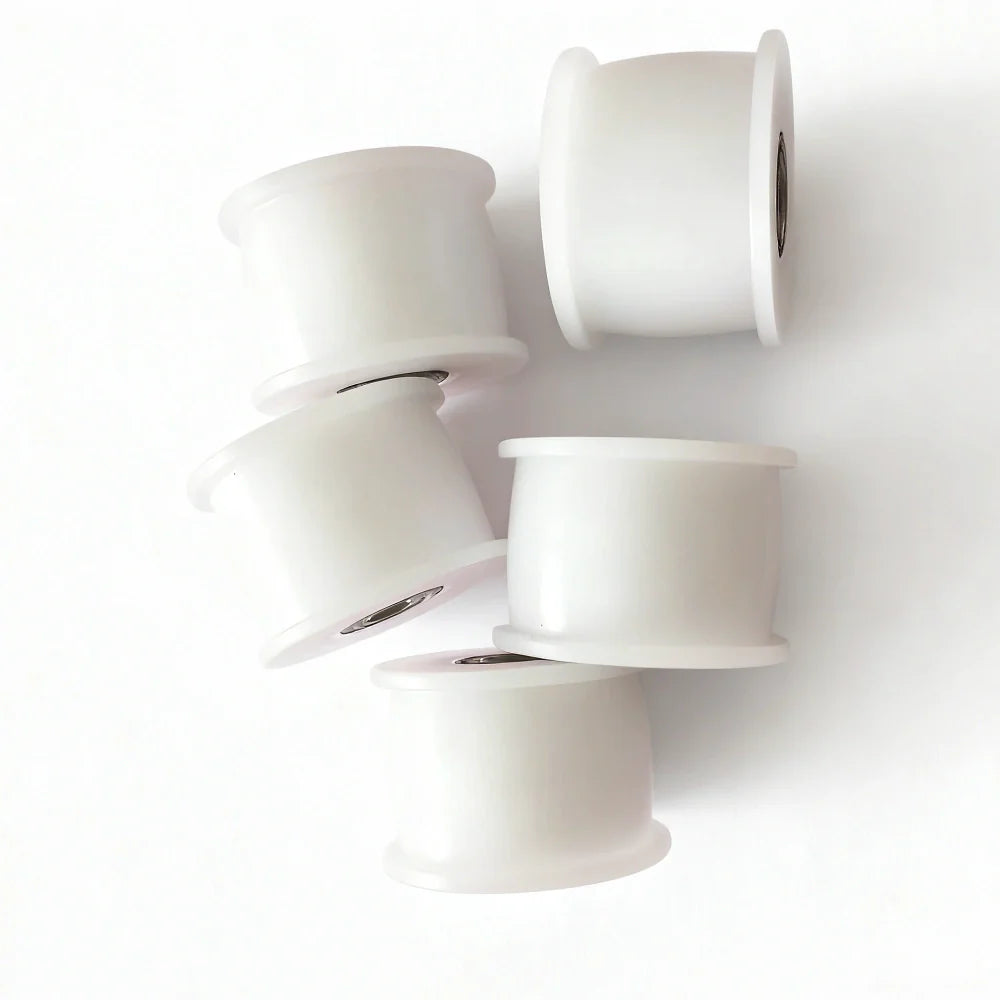

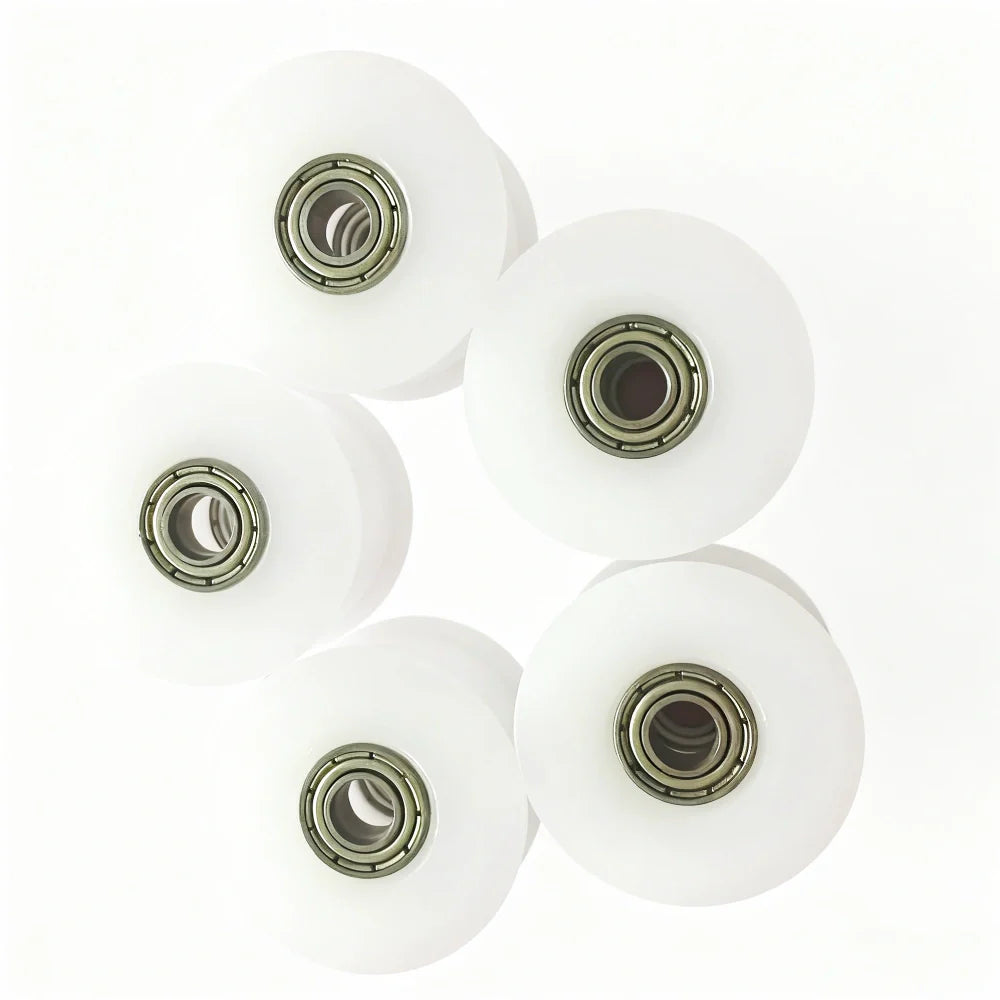

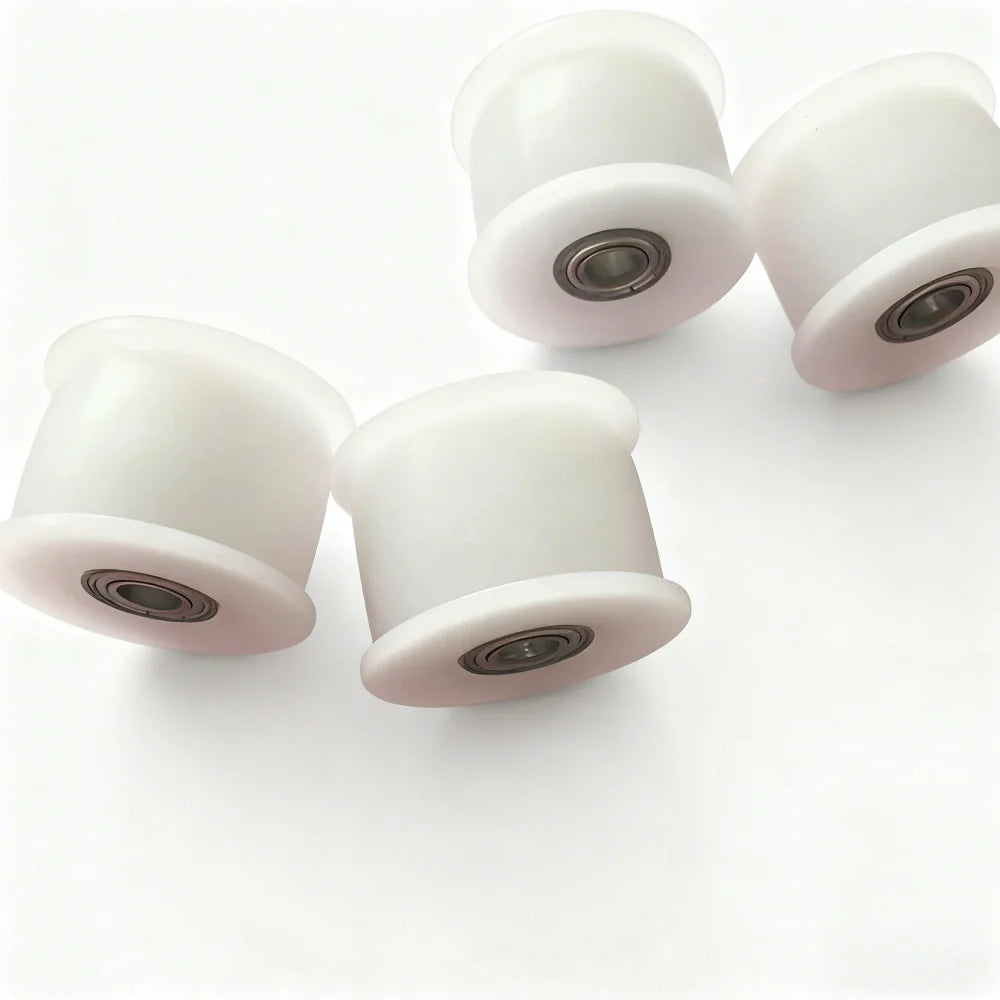

This CR Return Pulley Assy corresponds to Mutoh part number DF-49047. It measures 15mm in width, with an inner diameter of 4mm and an outer diameter of 23mm. The pulley plays a vital role in the carriage return system, maintaining proper belt tension for accurate bi-directional movement and reliable printing quality.

Printer Compatibility

Product Specifications

Installation Tips

• Ensure the carriage belt is properly tensioned before tightening the pulley.
• Clean the pulley area to remove any accumulated dust or ink residue.
• Apply a small amount of grease if necessary to maintain smooth rotation.
• Inspect regularly for wear or noise during carriage movement.

Why Choose UV INK PRO

UV INK PRO offers a complete range of Mutoh printer mechanical parts including pulleys, belts, bearings, and motor assemblies. Each part is manufactured to meet or exceed manufacturer part reference quality standards, ensuring reliable performance and long-term durability.
