Compatible Replacement Drafstation CR Board Assy - DF-48976
- $14.58
- $14.58
- Unit price
- per
All prices are in USD. Available payment methods and shipping options are shown at checkout based on destination and order details.
Secure payments
Order issue support
Product Details
xBefore payment: Please confirm stock, shipping method, duties, and compatibility with us before payment. Some printer parts, printheads, fluids, and special-order items may require manual confirmation before shipment.

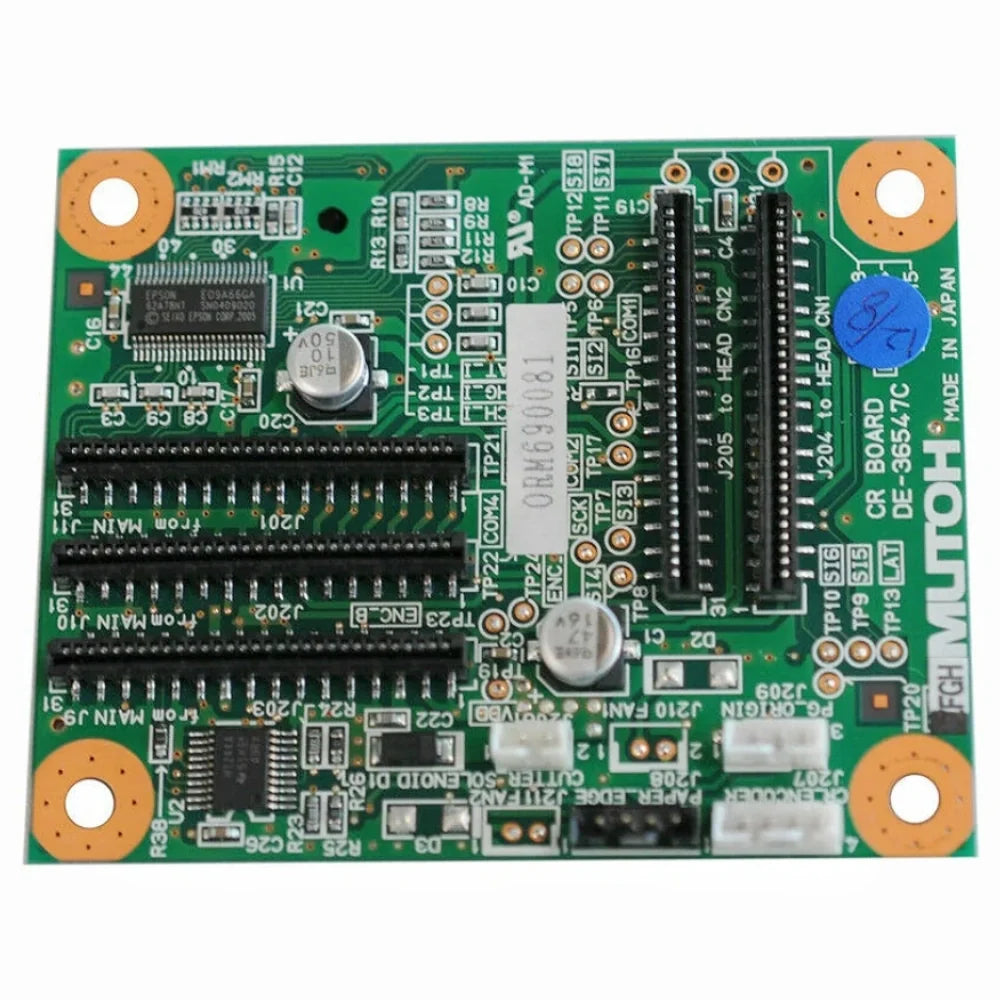

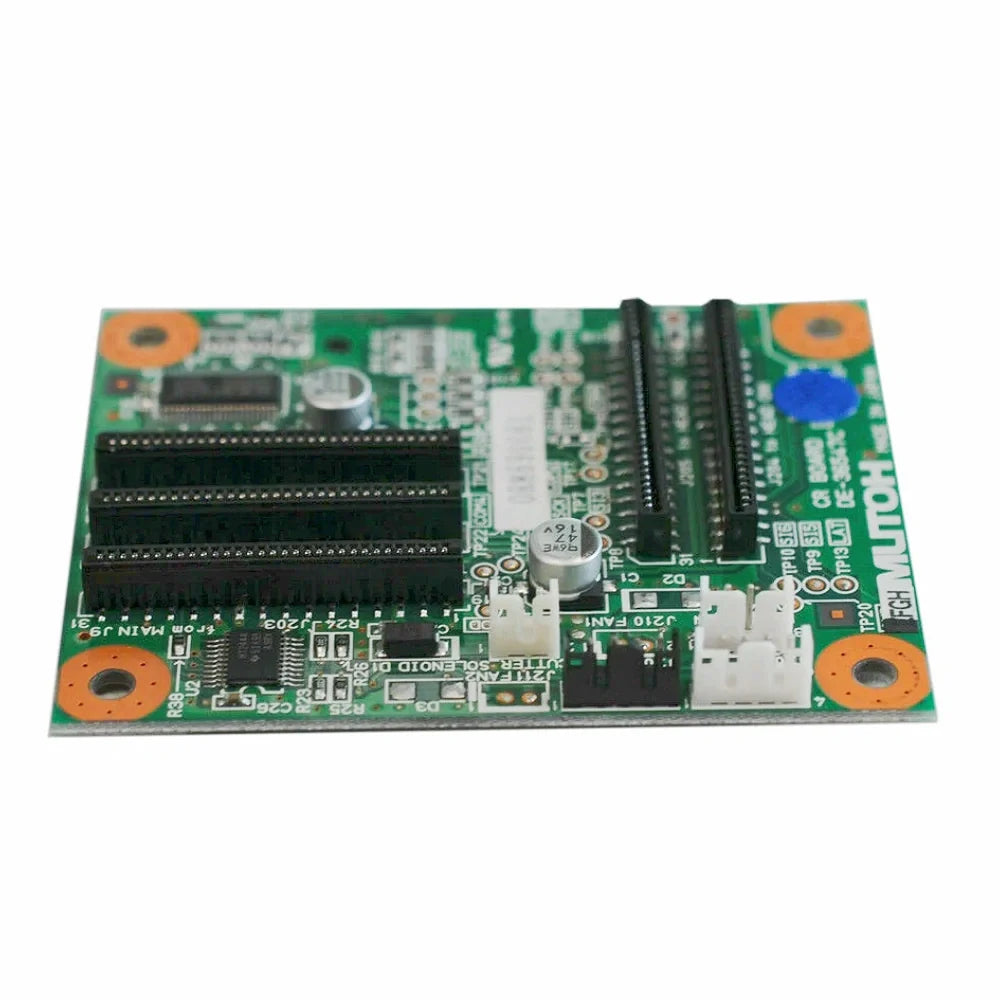

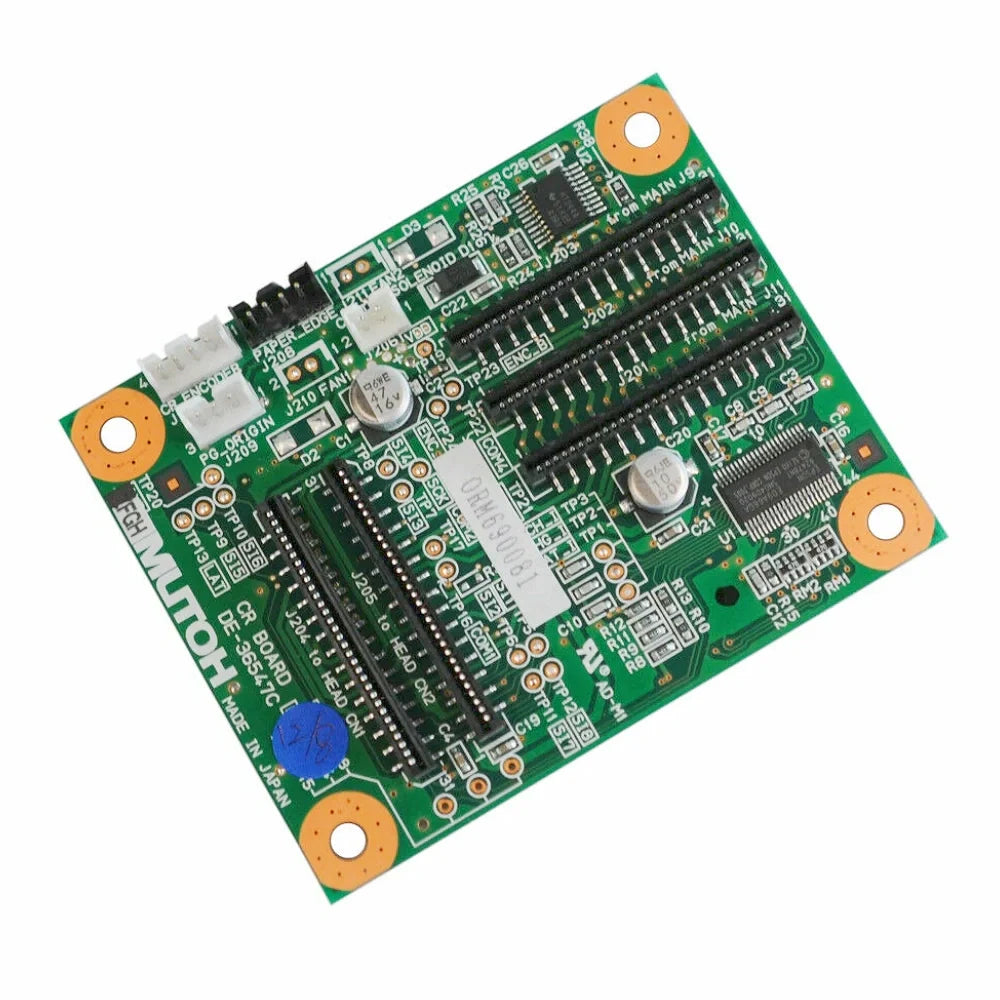

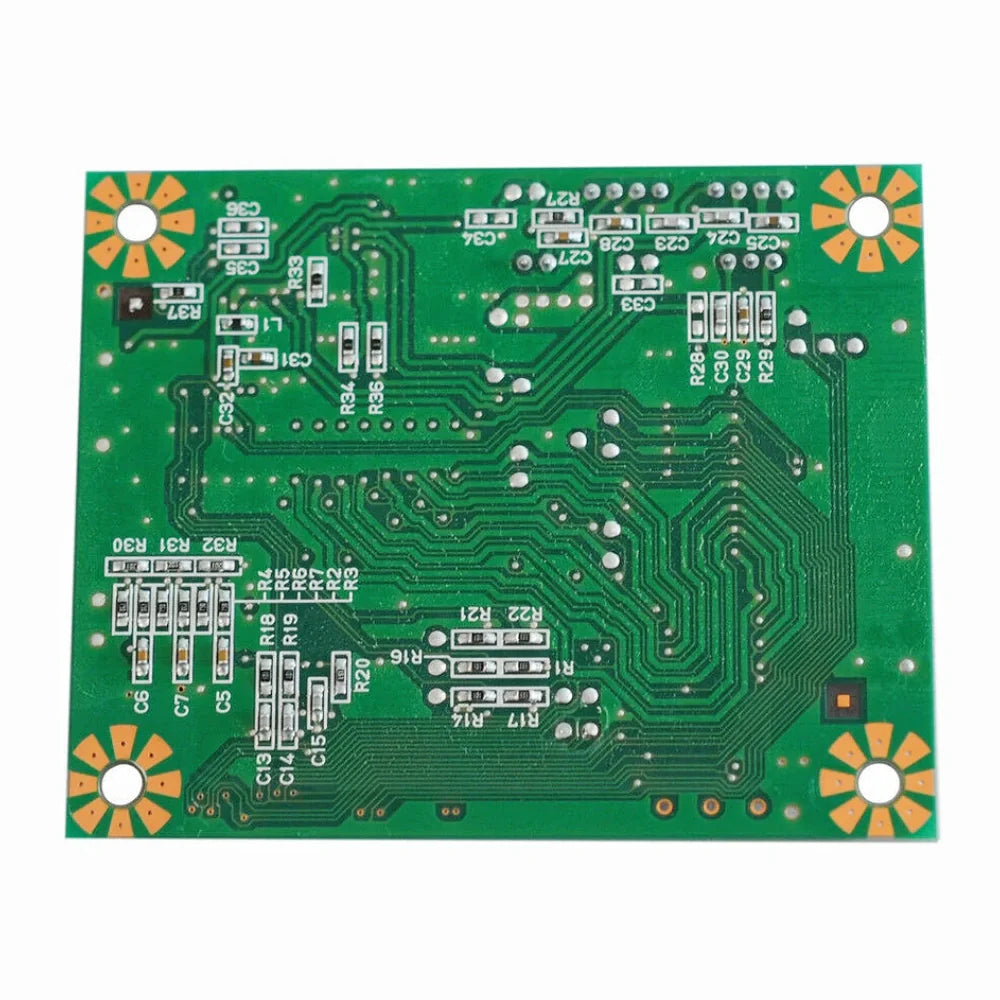

Drafstation CR Board Assy - DF-48976
The Mutoh DF-48976 CR Board Assy is a reference carriage control board designed for Mutoh RJ-900 series Drafstation printers. It serves as the main interface between the printhead and the printer’s motherboard, controlling all head movement, firing signals, and data transmission to ensure accurate and consistent printing.
Key Features
- Mutoh DF-48976 carriage board for Drafstation printers
- Controls printhead movement and firing synchronization
- Ensures accurate color data communication and stability
- High-quality components for service life that depends on installation, workload, fluid, environment, and maintenance and performance
- Easy plug-and-play installation, pre-tested by Mutoh
Description
The CR (Carriage Return) Board is one of the most important electronic modules in Mutoh printers. It directly controls the printhead drive signals and coordinates with the mainboard and encoder system to achieve precise ink firing and carriage motion. Replacing a damaged CR board can resolve issues such as head misfiring, carriage errors, or print quality instability.
Printer Compatibility
| Mutoh RJ-900C (Drafstation) | Mutoh RJ-900X (Drafstation) | Mutoh RJ-901C (Drafstation Pro) |
Product Specifications
| Type | Carriage Boards |
|---|---|
| Part Number | DF-48976 |
| Function | Controls printhead movement and firing signals |
| Condition | Mutoh part – brand new |
| Manufacturer | Mutoh |
Installation Notes
- Disconnect printer power before replacement.
- Handle the board with care to avoid static damage.
- Ensure all ribbon cables and head connectors are properly seated.
- After installation, perform printhead alignment and test printing.
Why Choose UV INK PRO
UV INK PRO supplies premium Mutoh spare parts including mainboards, CR boards, and encoder systems. All parts are fully inspected and intended for compatibility, stability, and durability to keep your Mutoh printer running smoothly.
Shipping & Return
xReturns Policy
Please confirm product model, specifications, and compatibility before ordering. Except where required by applicable law, buyer-side compatibility mistakes generally require review and may not qualify for return, refund, exchange, or compensation.
Printheads, inks, cleaning liquids, electronic boards, and opened or installed items usually require written review before return unless we shipped the wrong item or the goods arrived damaged.
If your order arrives damaged or incorrect, contact us within 72 hours after delivery with photos, package details, and your order number so we can review the case.
Shipping
Shipping time, stock availability, duties, and import charges may vary by product and destination. Available checkout and shipping details are shown before payment when Shopify checkout can calculate them for the destination.
For urgent shipment timing or fitment help, contact us before purchase.
