Compatible Replacement Drafstation Panel Cable Assy - DF-49014
- $10.42
Prices are displayed in USD. Available payment methods and shipping options are shown at checkout based on destination and order details.
Secure payments
Order issue support
Product Details
xOrdering help: For model-specific products, contact us if you need compatibility or fitment help before ordering. Product price and availability are shown on this page, and shipping options and charges available for the entered destination are shown at checkout.

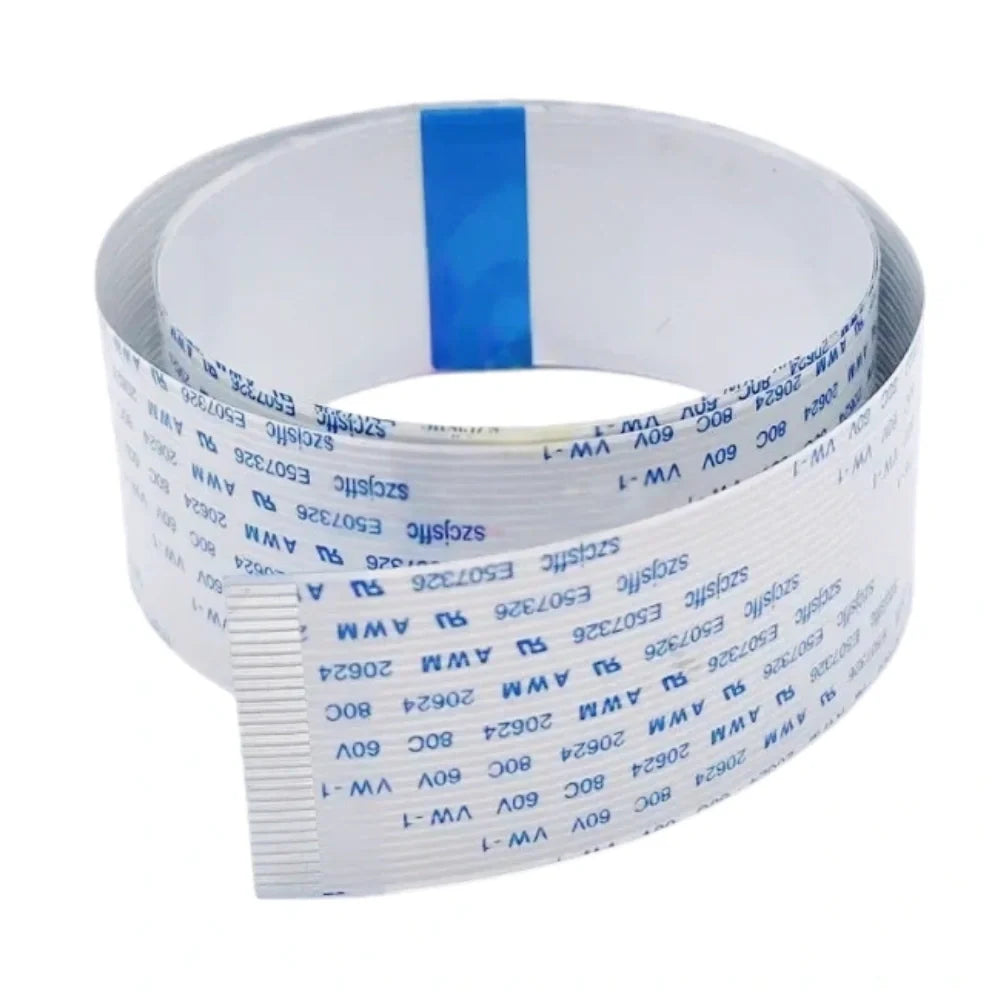

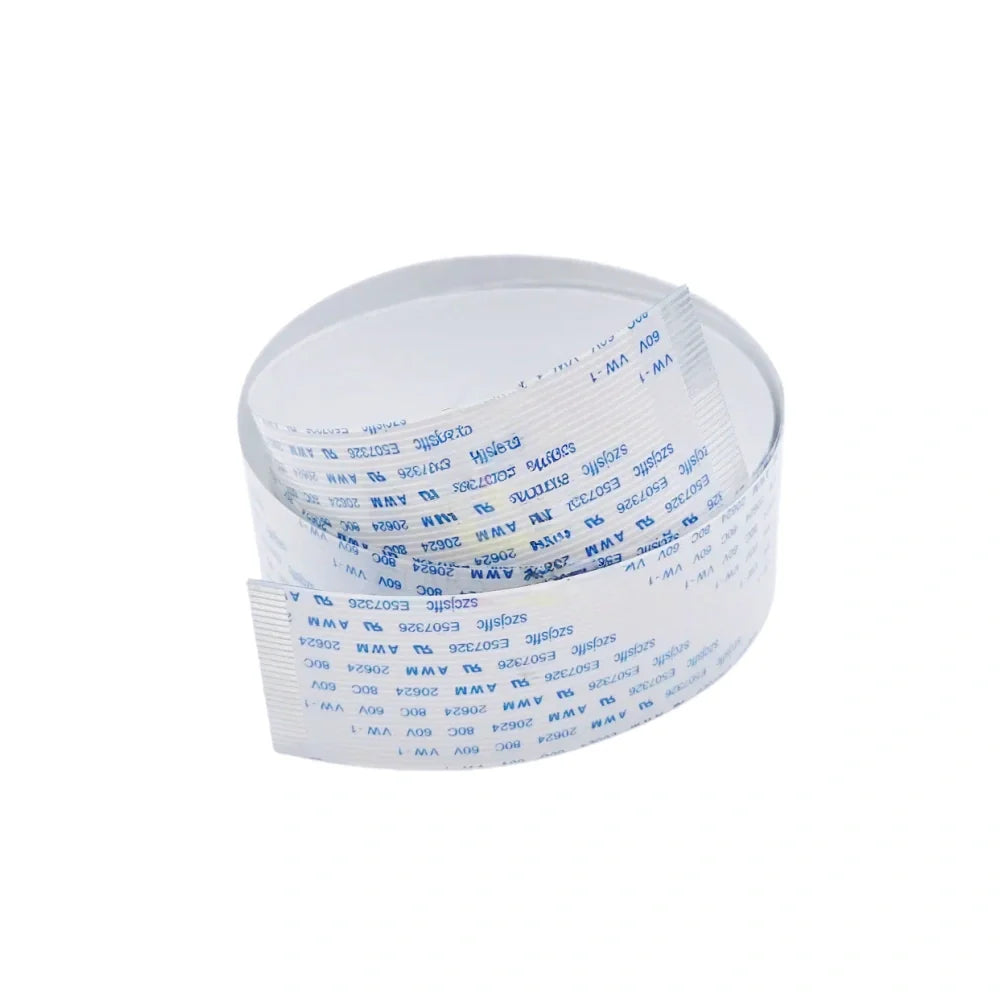

Mutoh Drafstation Panel Cable Assy - DF-49014
The Mutoh DF-49014 Panel Cable Assembly is a reference flat flexible cable (FFC) used in Mutoh Drafstation printers. This cable connects the printer’s mainboard to the control panel, ensuring smooth communication and stable power transmission between components.
Key Features
- Mutoh DF-49014 panel cable assembly
- 28-pin FFC design for reliable and accurate data transfer
- Durable construction with anti-interference shielding
- Provides stable signal communication between mainboard and panel
- Length: 67.8 cm | Width: 2.9 cm | 28 pins
Description
This Panel Cable Assy is specifically designed for Mutoh Drafstation printers. It connects the printer’s operational control panel to the mainboard, allowing proper display, function selection, and signal feedback during operation. The DF-49014 cable uses high-quality flexible material to ensure long-lasting reliability and minimal signal loss even during repeated bending and movement.
Printer Compatibility
| Mutoh RJ-900C (Drafstation) | Mutoh RJ-900X (Drafstation) | Mutoh RJ-901C (Drafstation Pro) |
| Mutoh ValueJet 1204 | Mutoh ValueJet 1324 | Mutoh ValueJet 1304 |
| Mutoh ValueJet 1304W | ||
Product Specifications
| Type | Panel Cable Assembly (FFC) |
|---|---|
| Part Number | DF-49014 |
| Length | 67.8 cm |
| Width | 2.9 cm |
| Pin Count | 28 pins |
| Function | Transfers control and display signals between mainboard and front panel |
| Condition | Mutoh Part – Brand New |
| Manufacturer | Mutoh |
Installation Tips
- Ensure the printer is powered off before replacing the cable.
- Insert the cable connectors carefully into the sockets; do not bend or crease the cable sharply.
- Check that all pins are aligned correctly before locking the connector latch.
- Keep away from ink or heat sources to avoid degradation.
Why Choose UV INK PRO
UV INK PRO provides reference and high-quality replacement parts for Mutoh printers, including cables, panels, boards, and other electronic assemblies. Each part is thoroughly tested to ensure consistent performance, precise compatibility, and service life that depends on installation, workload, fluid, environment, and maintenance for professional printing operations.
