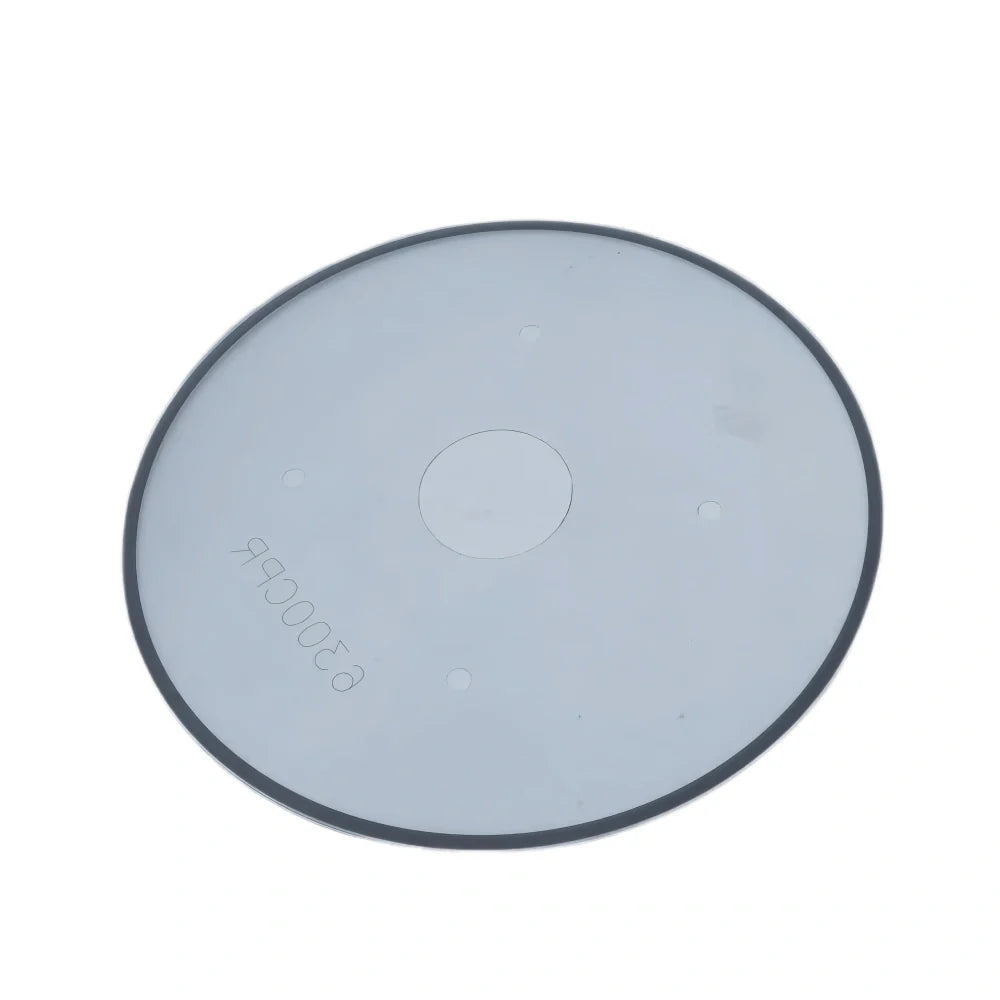

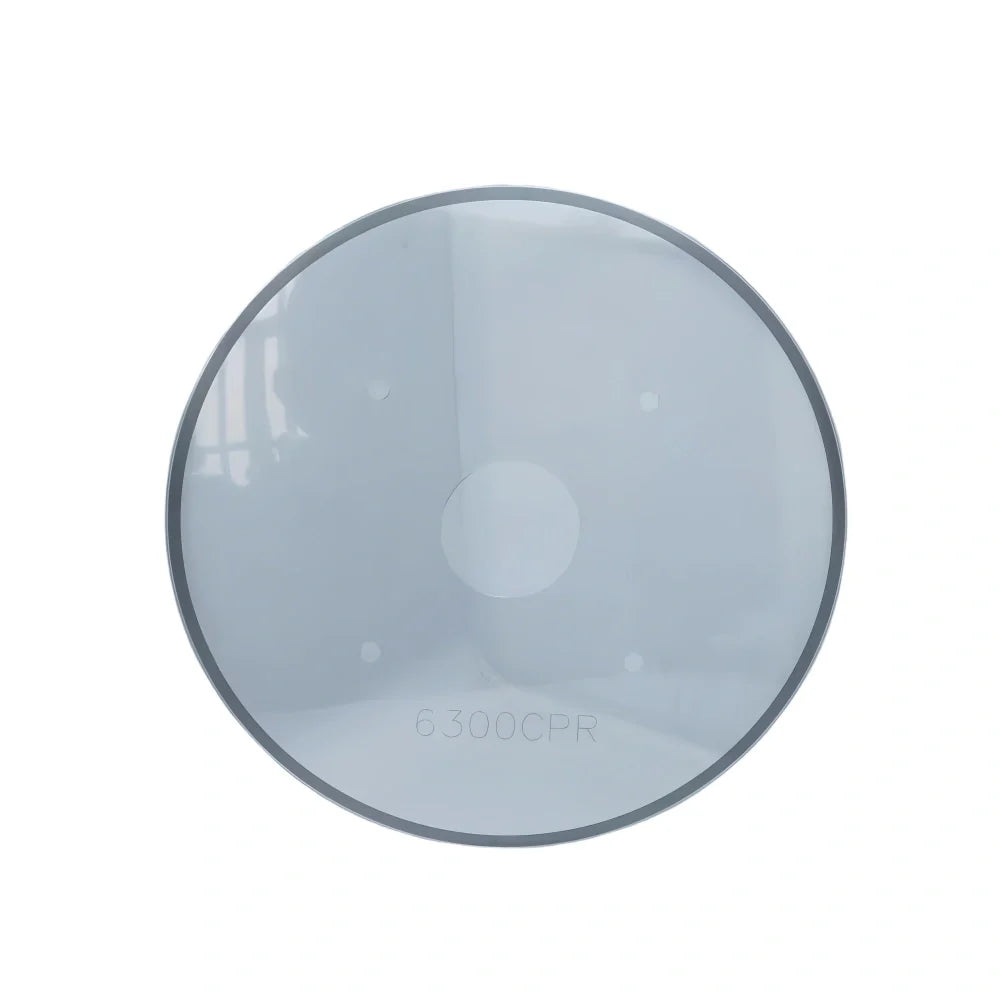

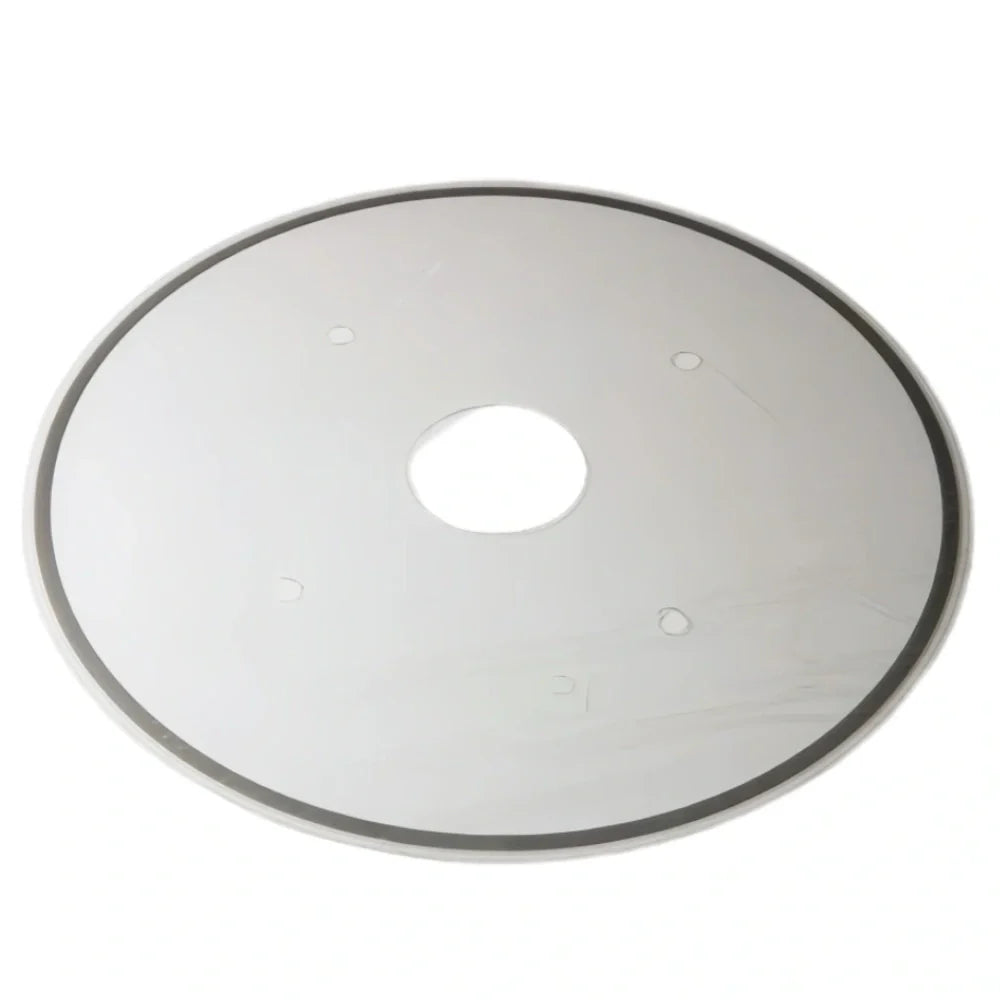

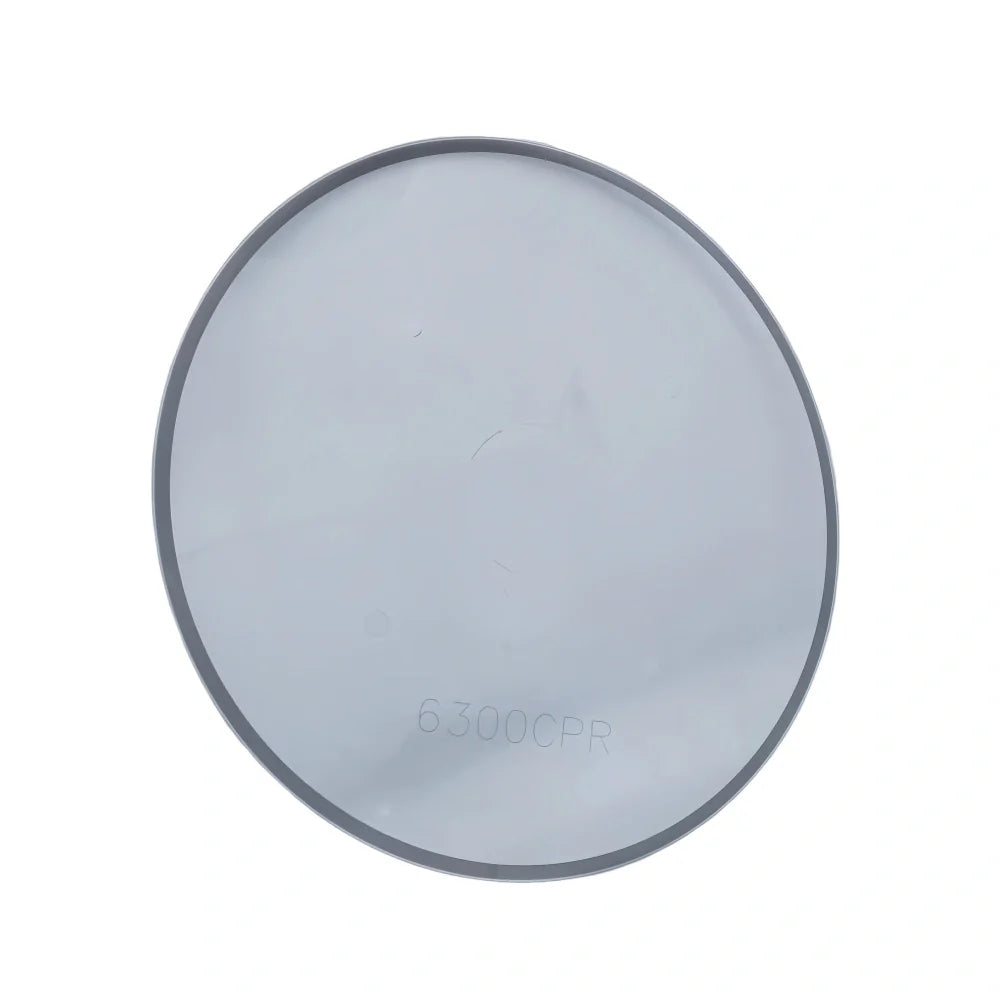

Drafstation PF_ENC Scale Assy - DF-49028

The Mutoh DF-49028 PF Encoder Scale Assembly is an Mutoh part designed for Drafstation and ValueJet series printers. It ensures accurate detection of media movement, providing precise control of the feed system for consistent print alignment and image quality.

Key Features

• Mutoh DF-49028 encoder scale assembly
• Ensures high-precision media feed synchronization
• Prevents print misalignment and banding
• Stable performance for continuous production printing
• Durable, scratch-resistant encoder film for long lifespan

Description

This PF Encoder Scale Assembly plays a vital role in maintaining the accuracy of the printer’s feed system. The encoder scale works together with the feed sensor to monitor the exact movement of the media during printing. A damaged or contaminated encoder strip can cause feed errors or uneven printing, so timely replacement ensures stable and accurate operation.

Printer Compatibility

Product Specifications

Installation & Maintenance Tips

• Handle with clean gloves to prevent fingerprint or dust contamination.
• Do not bend or scratch the encoder strip during installation.
• Clean using soft lint-free wipes and alcohol if contamination occurs.
• Check encoder sensor alignment after replacement for accurate reading.

Why Choose UV INK PRO

UV INK PRO supplies a full range of Mutoh printer parts, including encoder strips, sensors, dampers, and motors. All components are tested for precision and reliability to help maintain top-level print quality and long-term stability.
