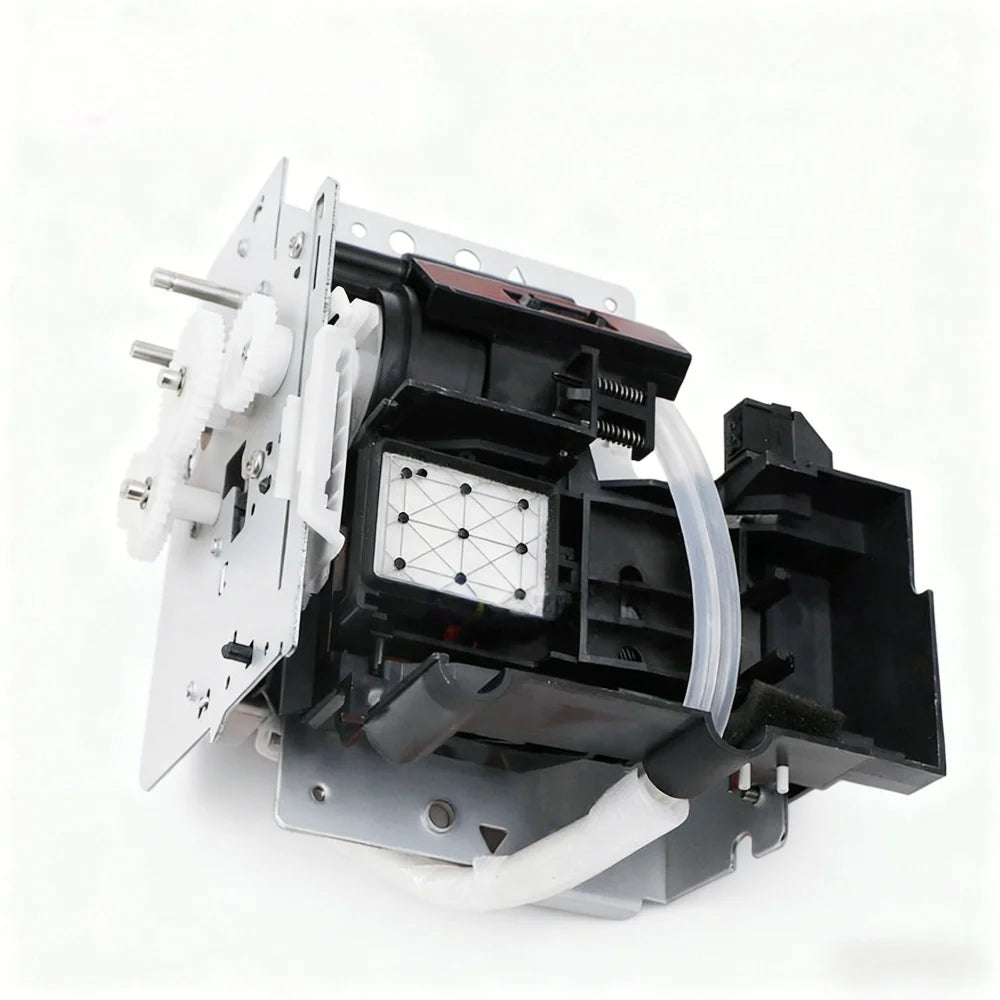

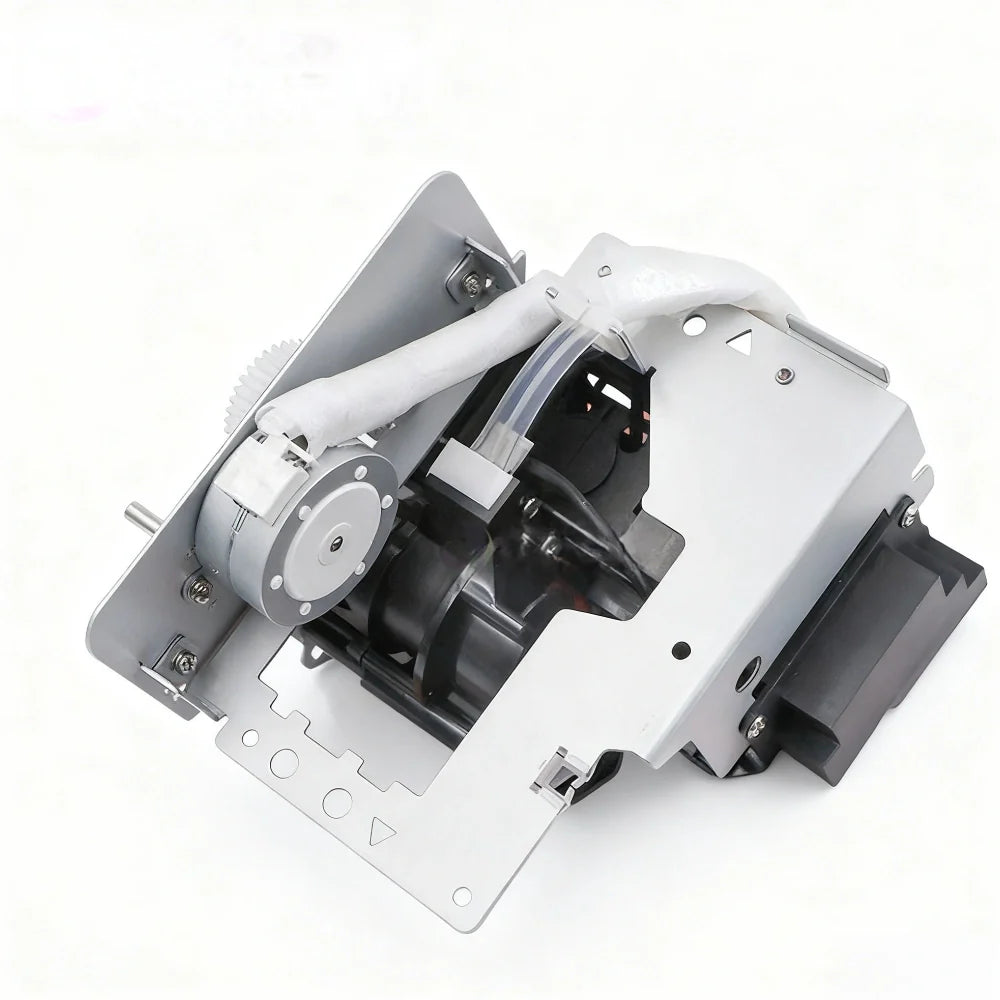

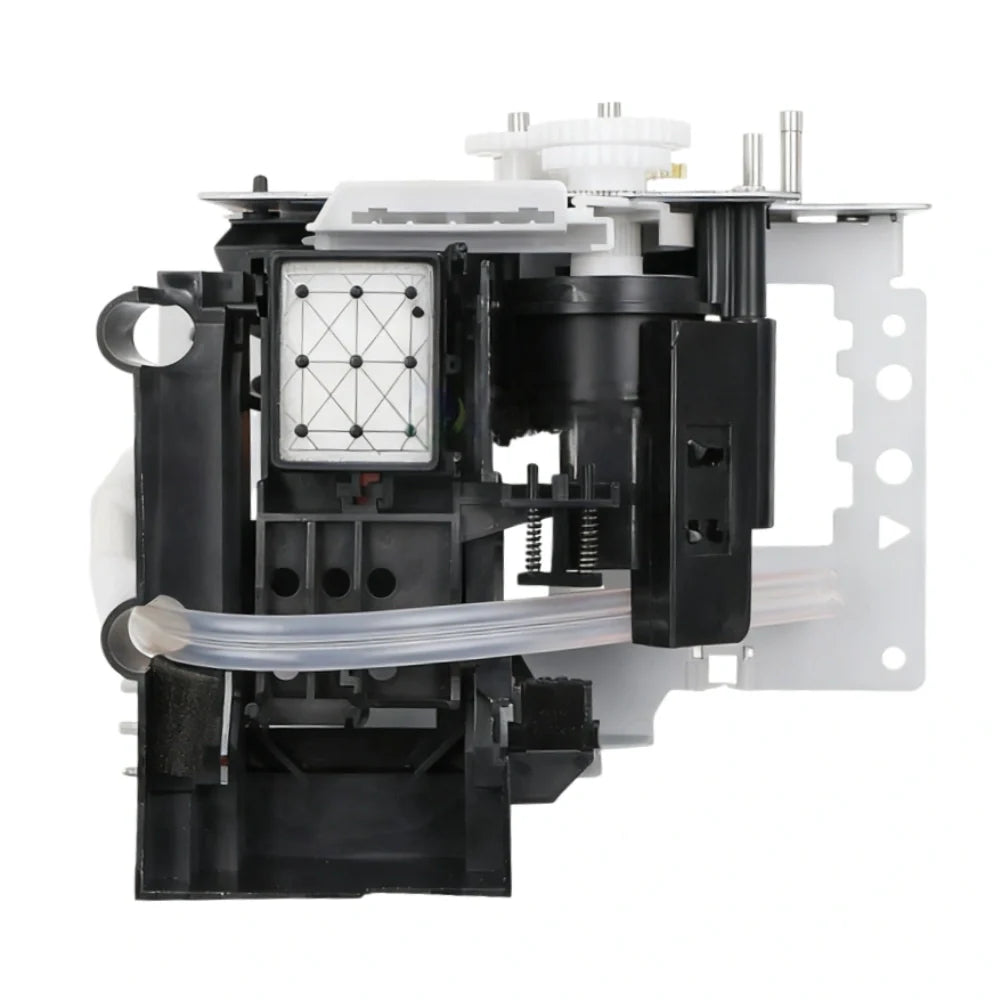

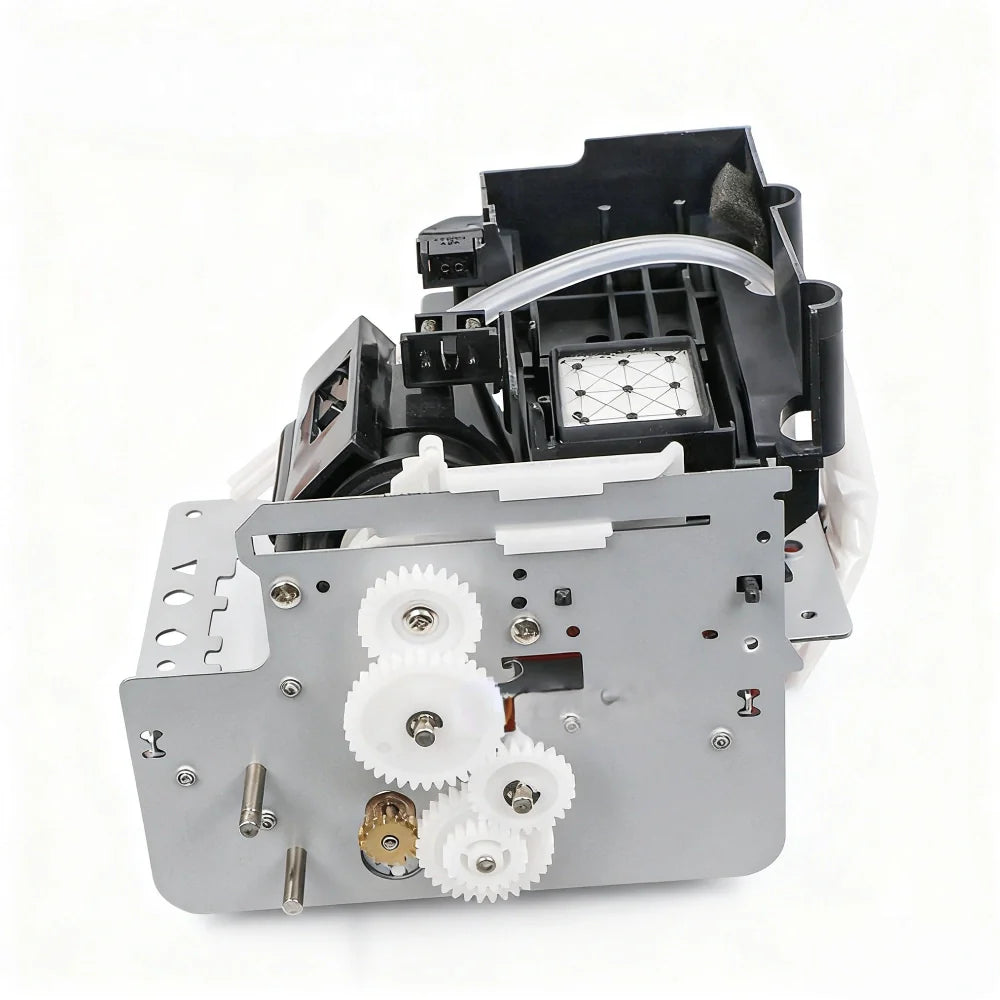

Drafstation Pump Cap Assy - DF-49030

The Mutoh DF-49030 Pump Cap Assembly is an Mutoh maintenance component designed for Drafstation printers. It combines the suction pump and capping station into one integrated assembly, ensuring efficient ink extraction and printhead protection.

Key Features

• Mutoh DF-49030 complete pump cap assembly
• Combines suction pump and capping unit in a single system
• Ensures consistent nozzle cleaning and ink flow stability
• Prevents ink drying and clogging during printer standby
• Engineered for long-term durability and easy replacement

Description

This Pump Cap Assy is responsible for cleaning and sealing the printhead during printing and idle periods. The cap maintains airtight sealing to prevent ink from drying out on the nozzle surface, while the pump generates suction pressure to pull ink through the printhead during cleaning cycles. Unlike other printer models, the capping unit of the Drafstation series is integrated with this pump assembly and cannot be purchased separately.

Printer Compatibility

Product Specifications

Maintenance Tips

• Clean the cap surface regularly with lint-free wipes to prevent ink buildup.
• Run the cleaning cycle at least once a week to keep the ink system active.
• Replace the pump cap assembly every 6–12 months for optimal suction performance.
• Check for air leaks or dried ink that may affect negative pressure.
