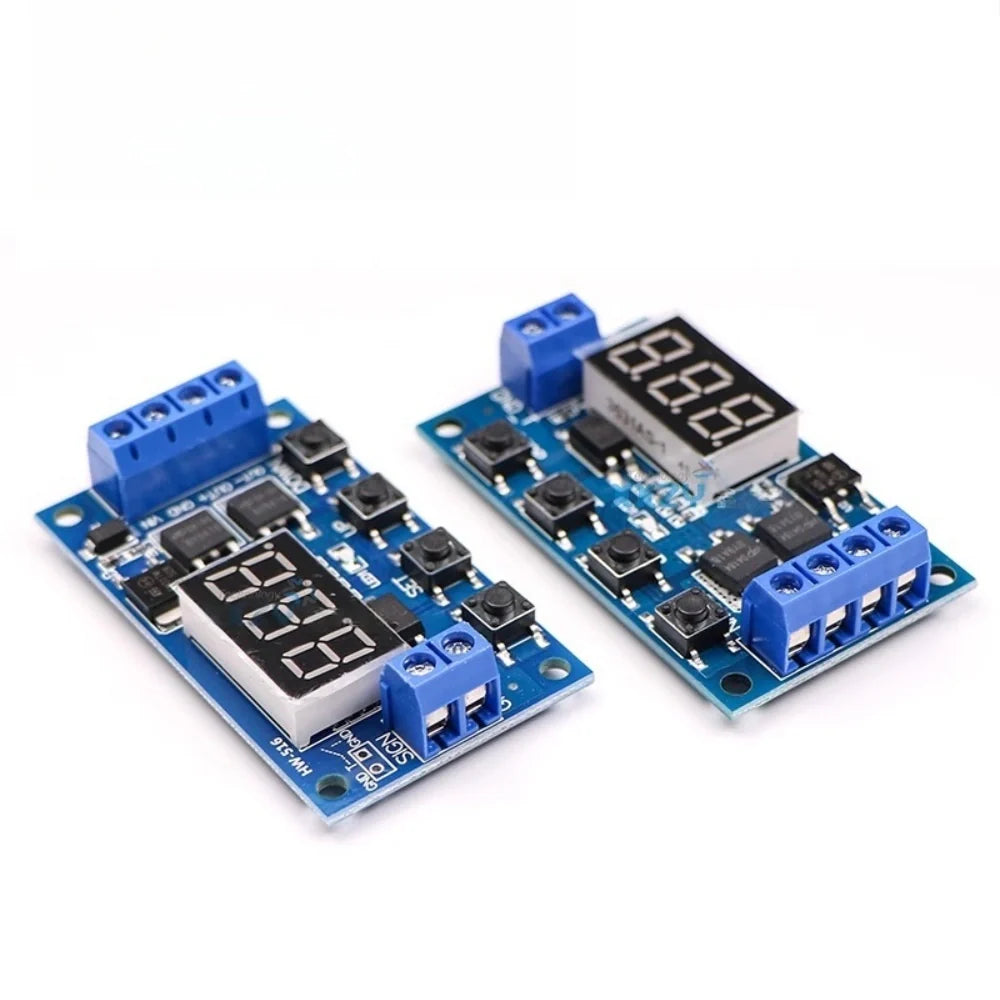

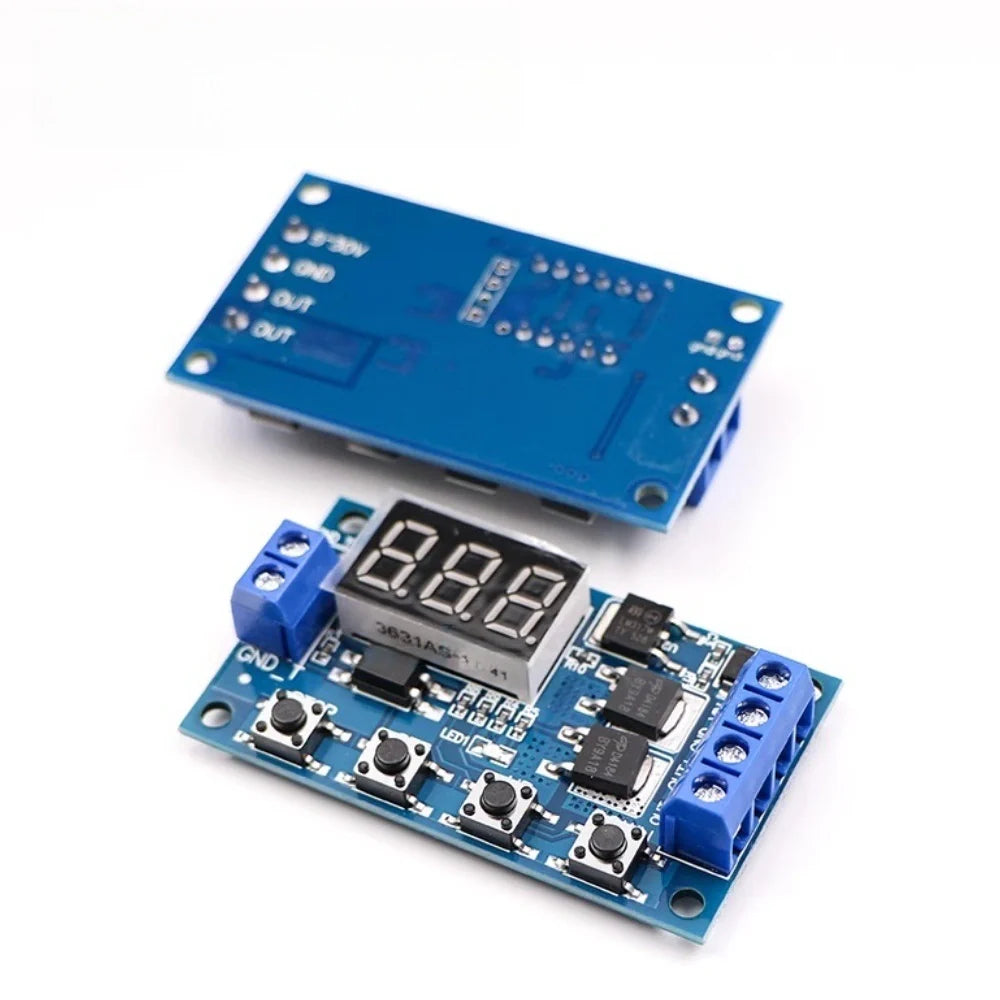

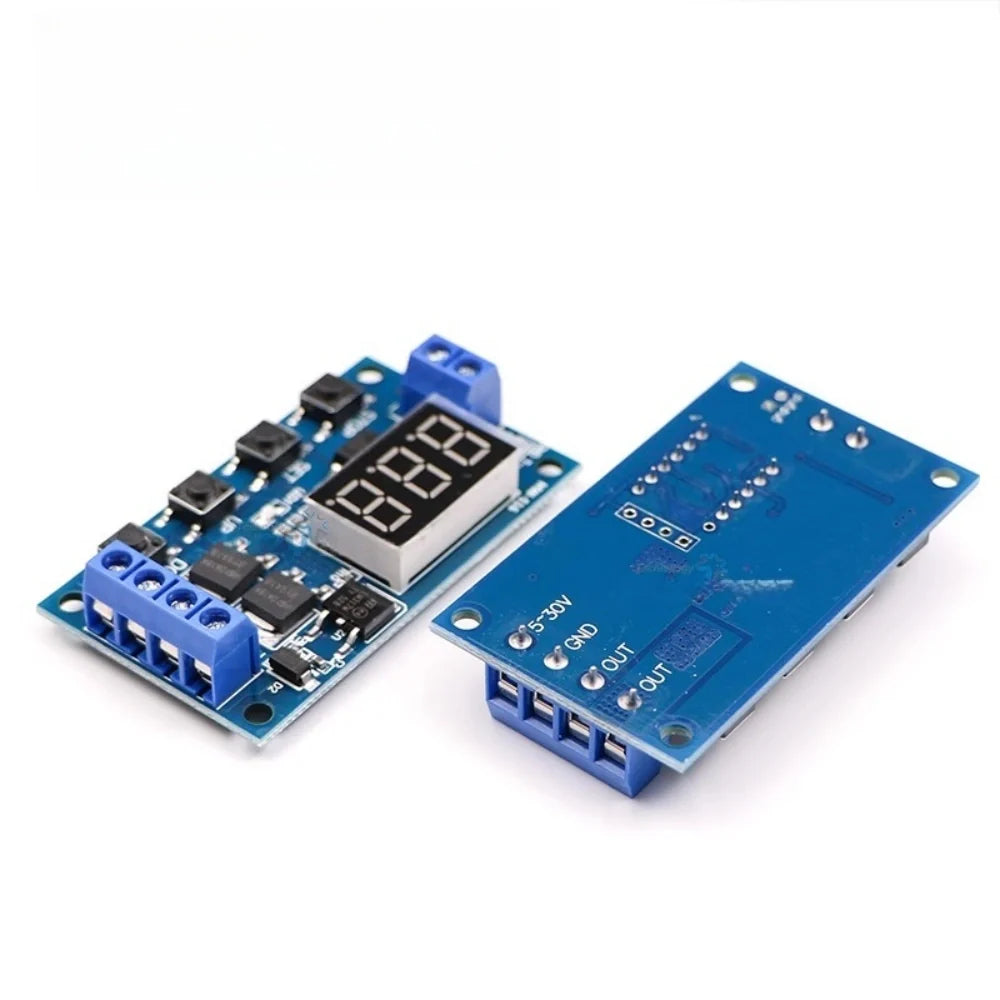

Dual MOS Control Board

This 24V Dual MOS Trigger Delay Timer Module (Model: HW-316) is designed for precise timing control in industrial automation systems. Ideal for UV flatbed printers, laser engraving machines, and wide-format eco-solvent or photo printers, it replaces traditional relay modules with more efficient, contactless switching.

Key Features:

• Dual MOSFET Design: Ensures fast response and long service life with low internal resistance and high current capability.

• Adjustable Timing Range: Supports delay ON/OFF, cyclic timing, and trigger control modes for customized automation.

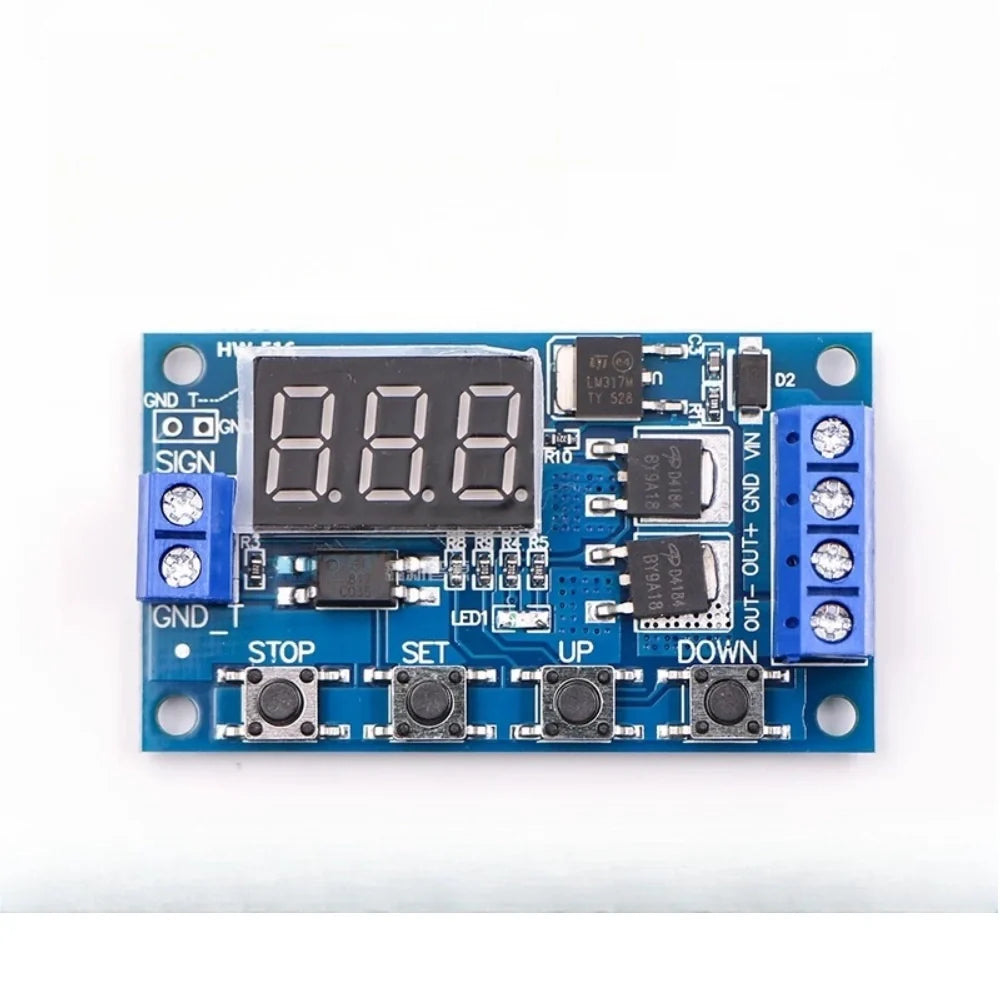

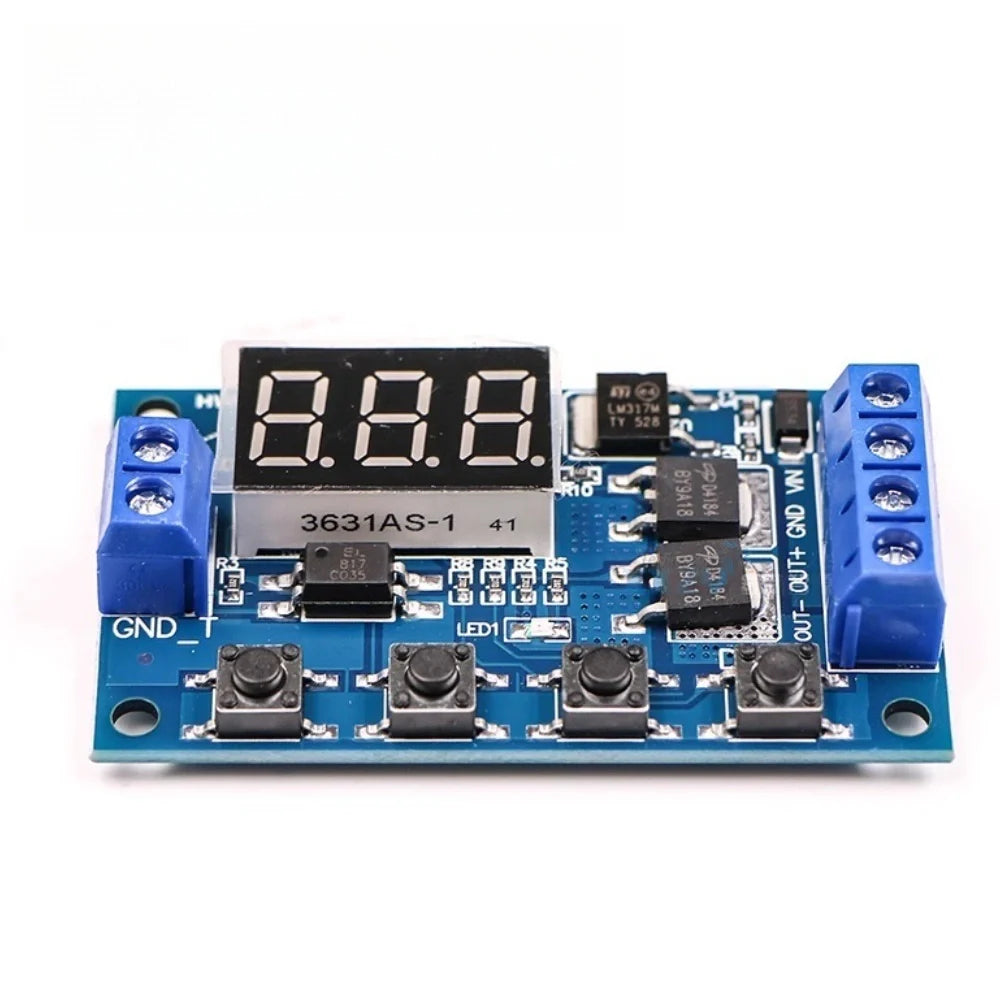

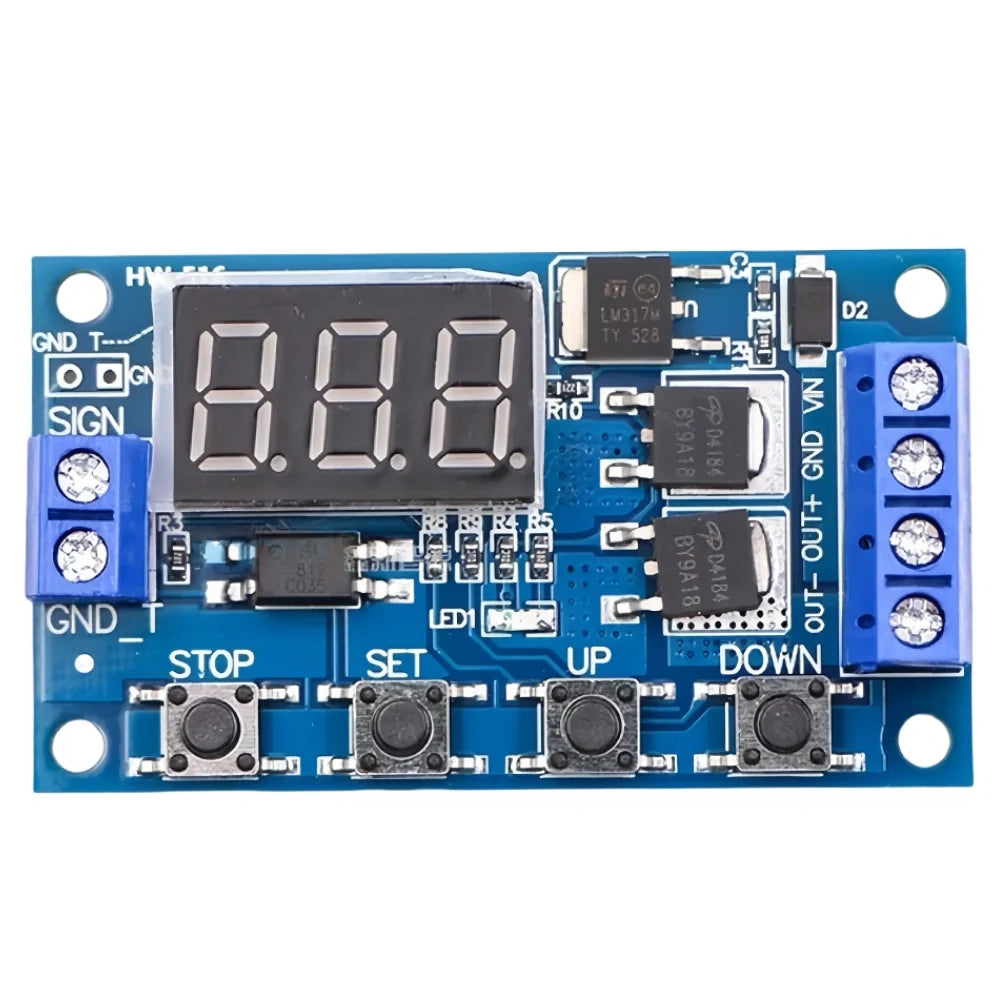

• Digital Display Interface: 3-digit LED display provides accurate time readout and intuitive programming via onboard buttons (STOP, SET, UP, DOWN).

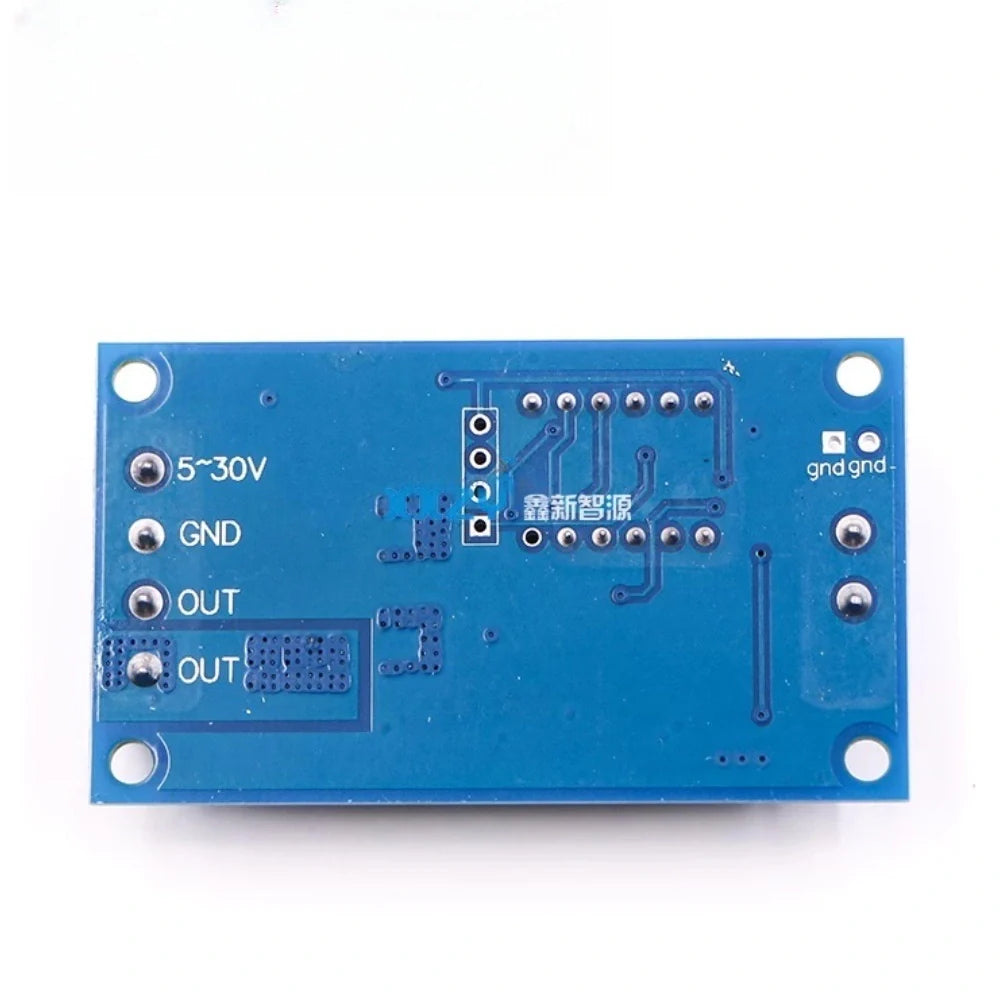

• Wide Voltage Input: Operates on 24V DC, compatible with most industrial printing and cutting equipment.

• Multi-mode Functionality: Includes delay start, delay stop, and cycle timing with memory function after power-off.

Typical Applications:

• Laser cutting/engraving machines

• UV flatbed printers

• Large-format solvent/eco-solvent printers

• Automated mechanical equipment timing circuits

Specifications:

• Input Voltage: DC 24V

• Control Type: Dual N-channel MOS

• Output Load: ≤15A (with heatsink)

• Time Range: 0.1s–999s

• Dimensions: Approx. 64mm x 39mm
