Compatible Replacement DX4 Printhead Ink Flow Damper

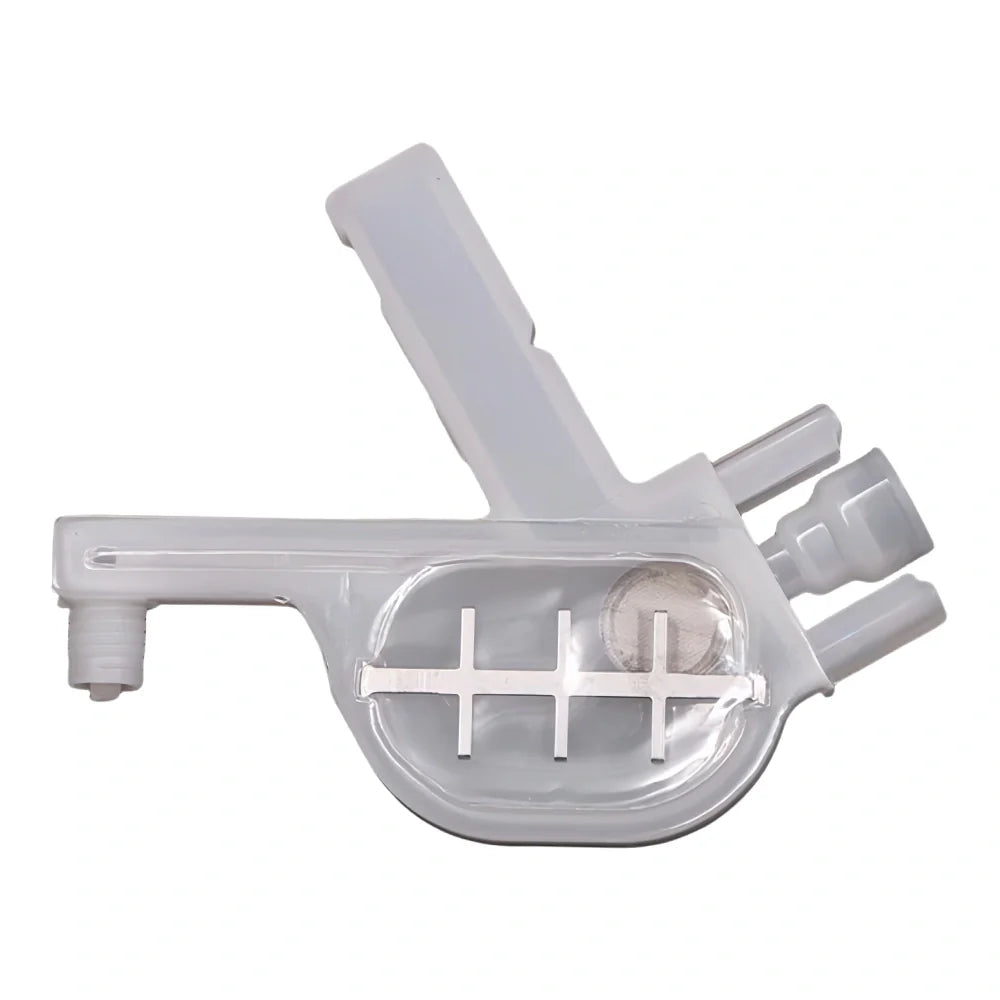

DX4 Printhead Ink Flow Damper

This ink flow damper is designed for Epson DX4 micro-piezo printhead systems. It regulates ink pressure, filters fine particles and air bubbles, and protects the printhead from clogging, backflow, and nozzle drop-out during continuous printing.

Product Features

• Designed specifically for Epson DX4 printhead ink flow control
• Maintains stable negative pressure for consistent droplet formation
• Integrated 5 µm stainless mesh filter blocks pigment and debris
• Reduces banding, color shift, and nozzle starvation
• Chemical-resistant housing for long-term industrial use

Compatibility

• Epson Stylus Pro 7600 Printer
• Epson Stylus Pro 9600 Printer
• DX4-based wide-format printers and retrofit ink systems

Technical Specifications

Application

Widely used in Epson DX4-based printers where stable ink flow and printhead protection are critical for long production runs and consistent image quality.

Use Position & Function

• The damper is normally installed between the ink supply path and the printhead to stabilize pressure and reduce bubbles.
• It helps support smoother ink delivery and can also assist with filtering fine particles before ink reaches the printhead.
• Damper performance has a direct effect on ink stability, especially on multi-channel or high-speed printers.

fitment details

• Confirm your machine model before ordering.
• Referenced printheads: DX4.
• Suitable for solvent use when the connector type, orientation, and sealing method match the reference damper.

When Buyers Replace This Part

• Replace when ink flow becomes unstable, bubbles increase, colors drop out, or the damper body becomes contaminated or deformed.
• Compare the reference part number, connection layout, and mounting direction before ordering.
• For best maintenance results, buyers often inspect cap tops, tubing, and ink filters at the same time.

Common Replacement Scenarios

• Replace when colors intermittently drop out, bubbles appear repeatedly, or the printhead side shows unstable ink feeding.
• Inspect this part when the damper body becomes stained, swollen, cracked, or no longer seals reliably.
• On printers with multiple channels, one weak damper can affect daily color consistency even if the printhead is still usable.

Fitment Checklist

• Confirm the exact printer model before ordering.
• Referenced printheads: DX4.
• Check joint style, filter structure, connector direction, sealing method, and manufacturer reference before final purchase.

Service Pairing Suggestions

• Many buyers inspect cap tops, ink tubes, pumps, and filters at the same time when damper problems appear.
• Use this damper only when the solvent ink path, connector style, and physical size match the reference assembly.
• Professional installation is recommended when the printer uses a sealed manifold or tightly packed multi-channel head carriage.
