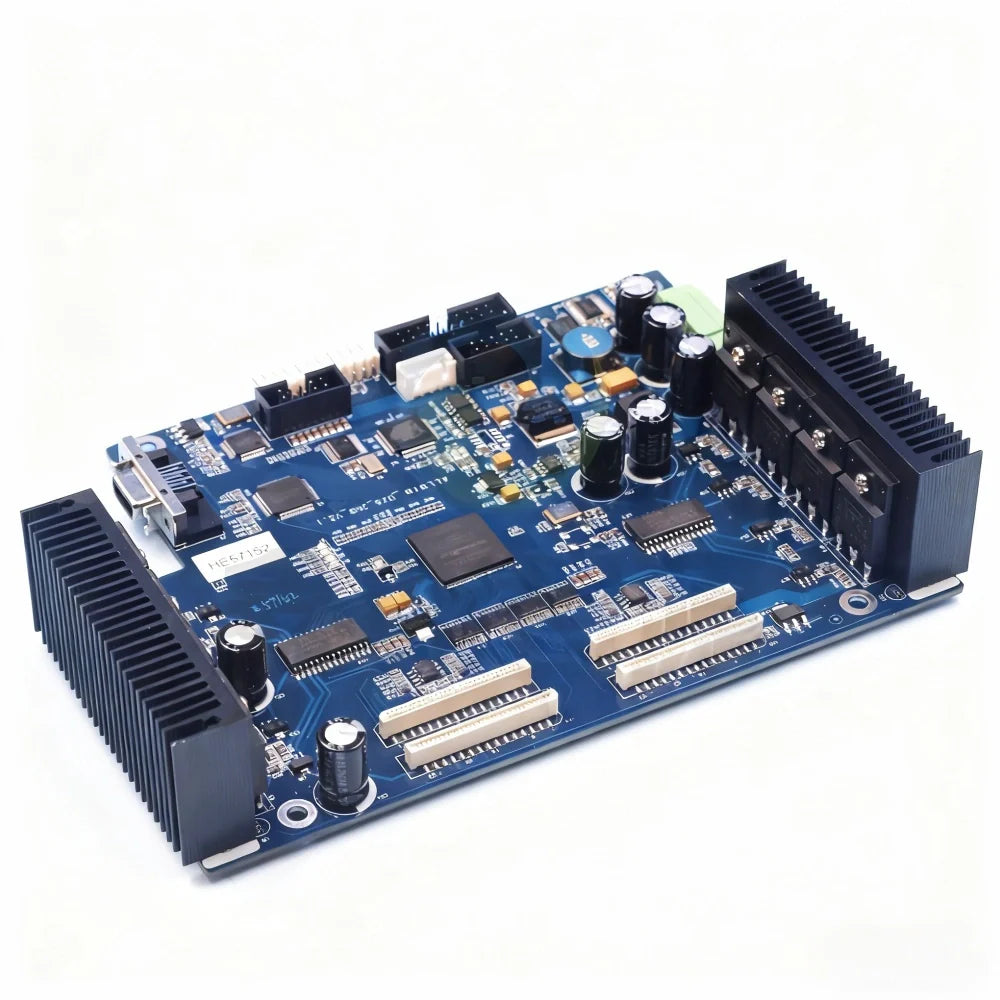

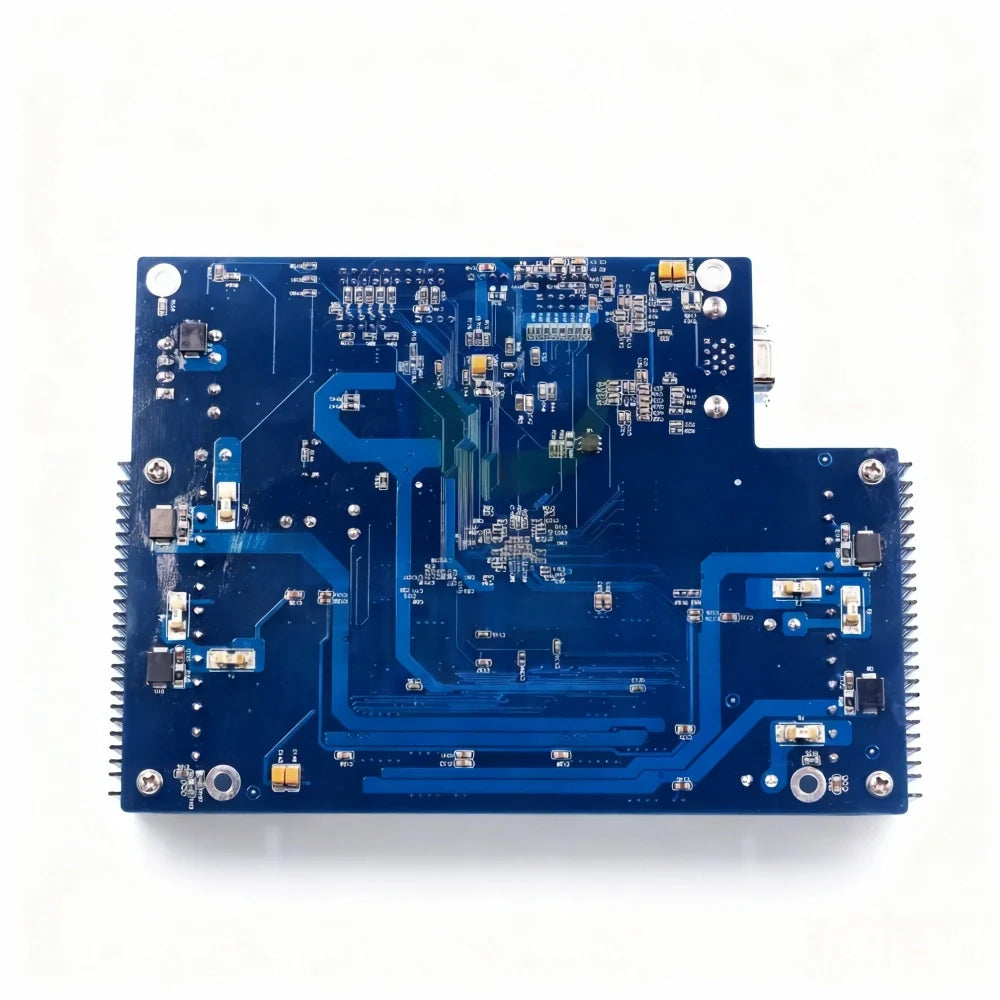

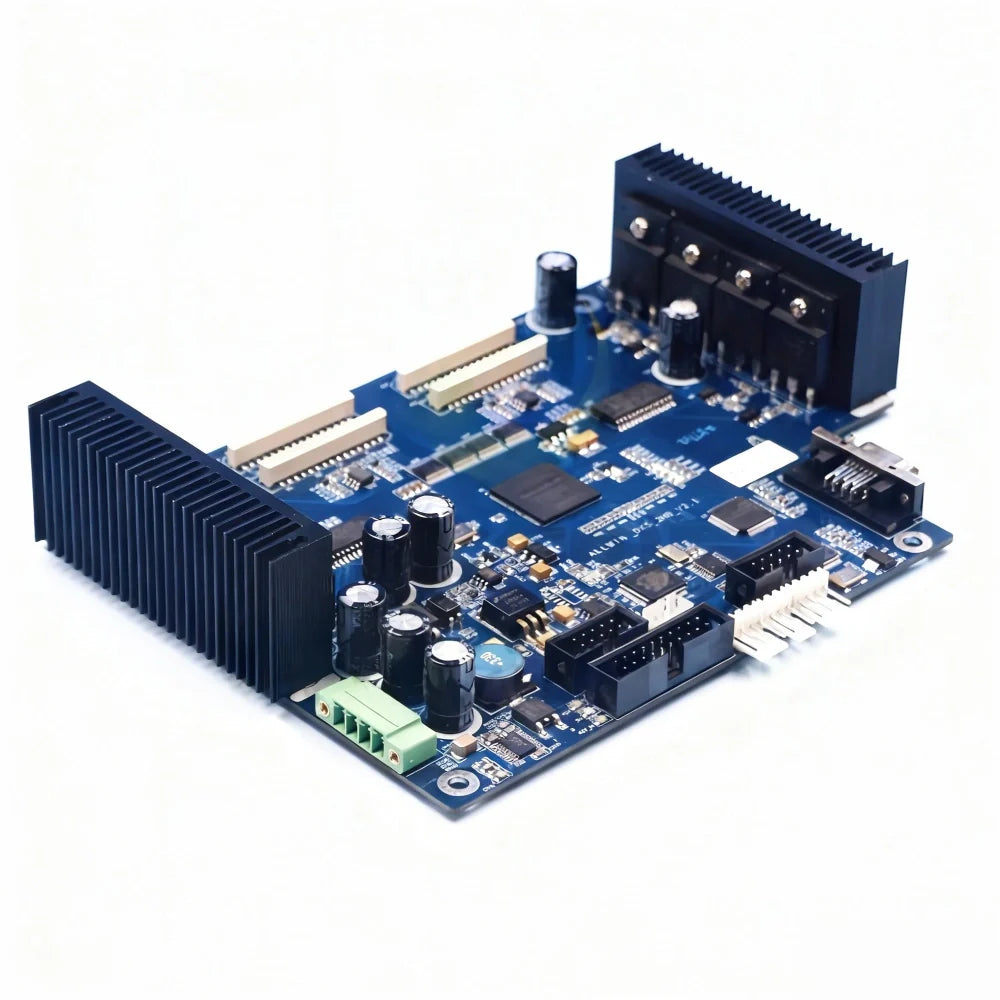

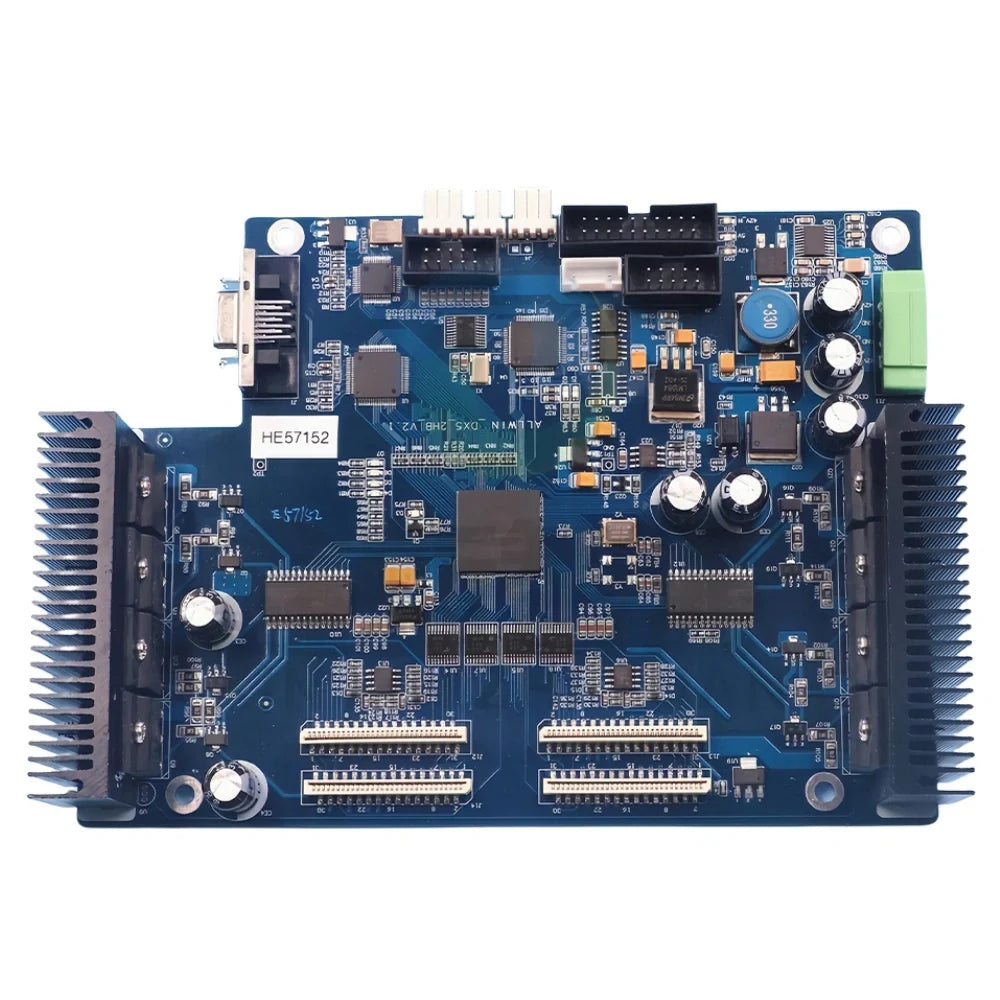

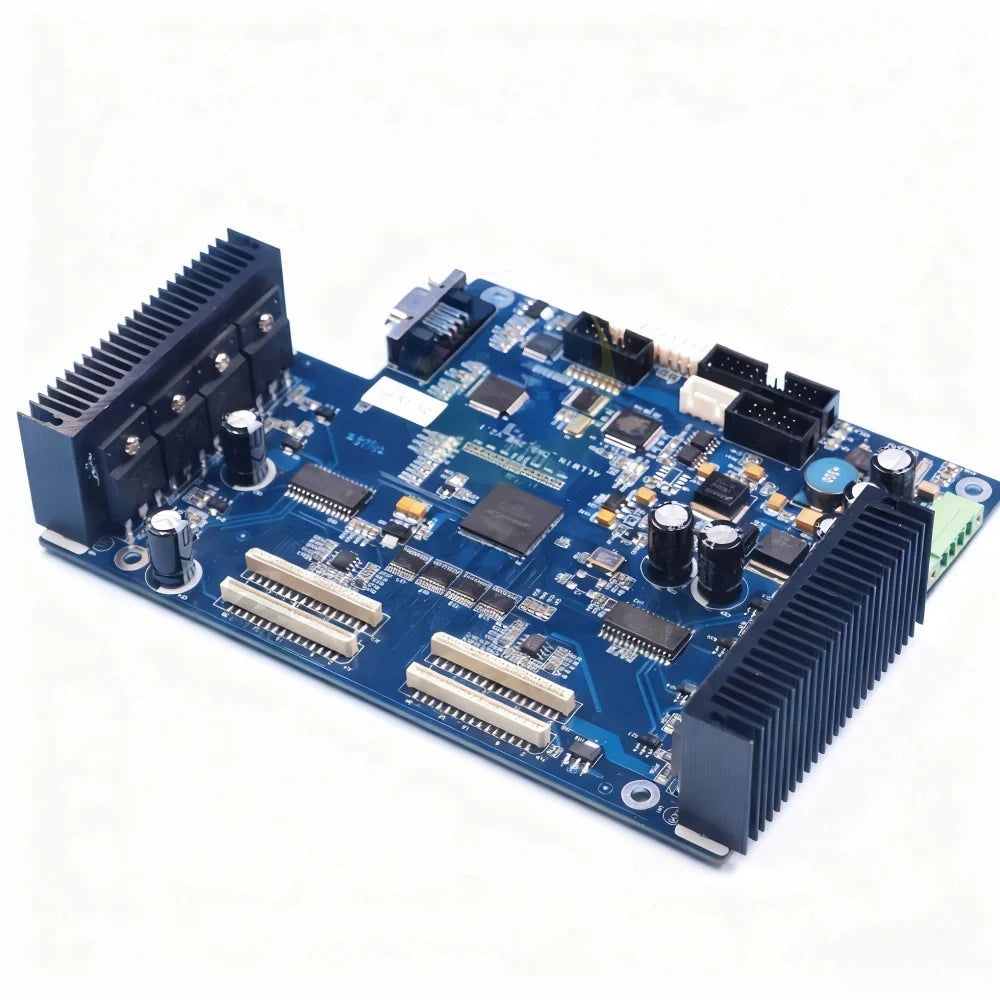

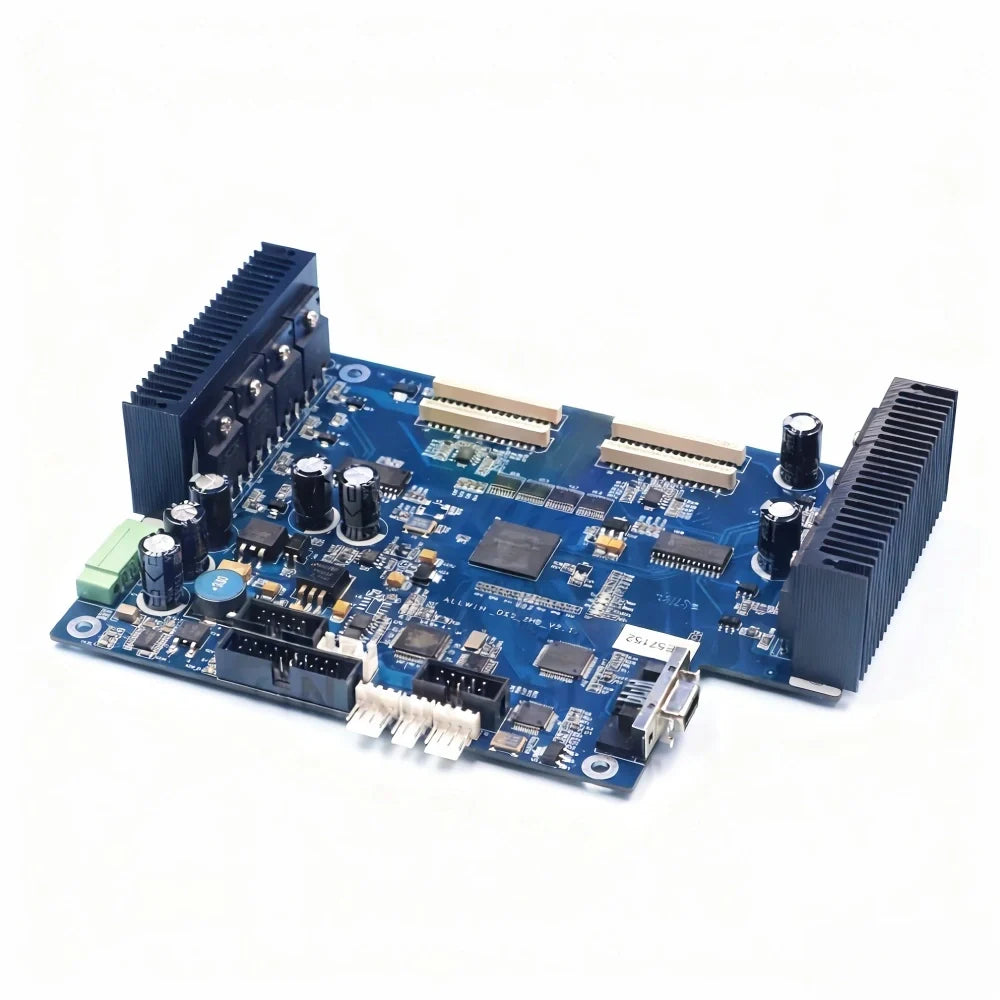

DX5/DX7 Dual Head - Carriage Board

This 5th-Gen Dual-Head Carriage Board is specially developed for Xuli eco-solvent and photo printers equipped with Epson DX5 or DX7 printheads. Designed for high-speed, high-precision printing, the board supports dual-head output with stable signal control and efficient inkjet waveform management. Featuring robust power handling, heat dissipation fins, and reliable components, it is ideal for continuous production and industrial-grade inkjet applications. Compatible with Xuli and other brands of large-format printers.

Key Features:

• Supports 2 Epson DX5 / DX7 printheads

• Compatible with Xuli eco-solvent/photo printers

• Dual-head grayscale control with excellent waveform stability

• High-performance FPGA chip and voltage management circuitry

• Dual aluminum heat sinks for efficient cooling and long operation

• Stable signal output ensures precise ink droplet control

• Suitable for high-speed photo printers and solvent machines

DX5/DX7 Dual Head - Carriage Board is offered as a replacement control board for compatible printer maintenance and spare-parts replacement. It is intended for buyers who need to match the correct machine configuration, connector type, and manufacturer part number before installation.

Compatibility

• Confirm the printer model, part number, connector layout, size, and use position before ordering when compatibility is uncertain.
• Related printhead / head family: DX5, DX7
• If your machine has multiple revisions, compare the model-reference part number, connector layout, and mounting position before ordering.

Function and Use Position

• Handles signal, IO, display, or control functions inside the printer electronics system
• Should be matched carefully with the correct machine revision and cable layout
• Recommended for replacement when the reference board is faulty or damaged

Key Details

Ordering Notes

• Replacement status: Replacement.
• Please confirm the manufacturer part number before ordering.
• If your machine model is not listed in the title, confirm compatibility with the model-reference part number and connector layout.
• Related printhead or head-family reference: DX5, DX7.
• For electronic parts, motion parts, and fluid-system parts, professional installation is recommended.

Package Includes: 1 × DX5/DX7 Dual Head - Carriage Board
