Compatible Replacement DX5 Ink Cap Pads for Mutoh VJ-1604
- $17.10
Prices are displayed in USD. Available payment methods and shipping options are shown at checkout based on destination and order details.
Secure payments
Order issue support
Product Details
xOrdering help: For model-specific products, contact us if you need compatibility or fitment help before ordering. Product price and availability are shown on this page, and shipping options and charges available for the entered destination are shown at checkout.

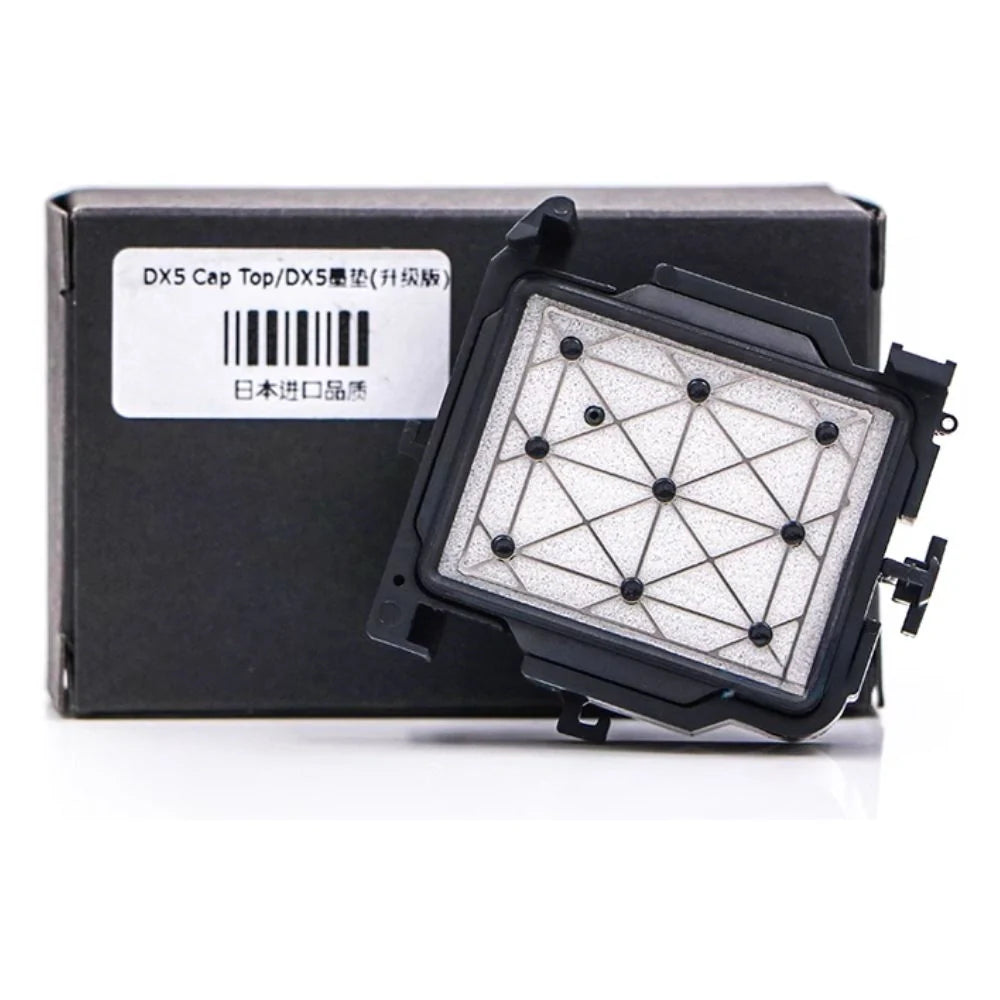

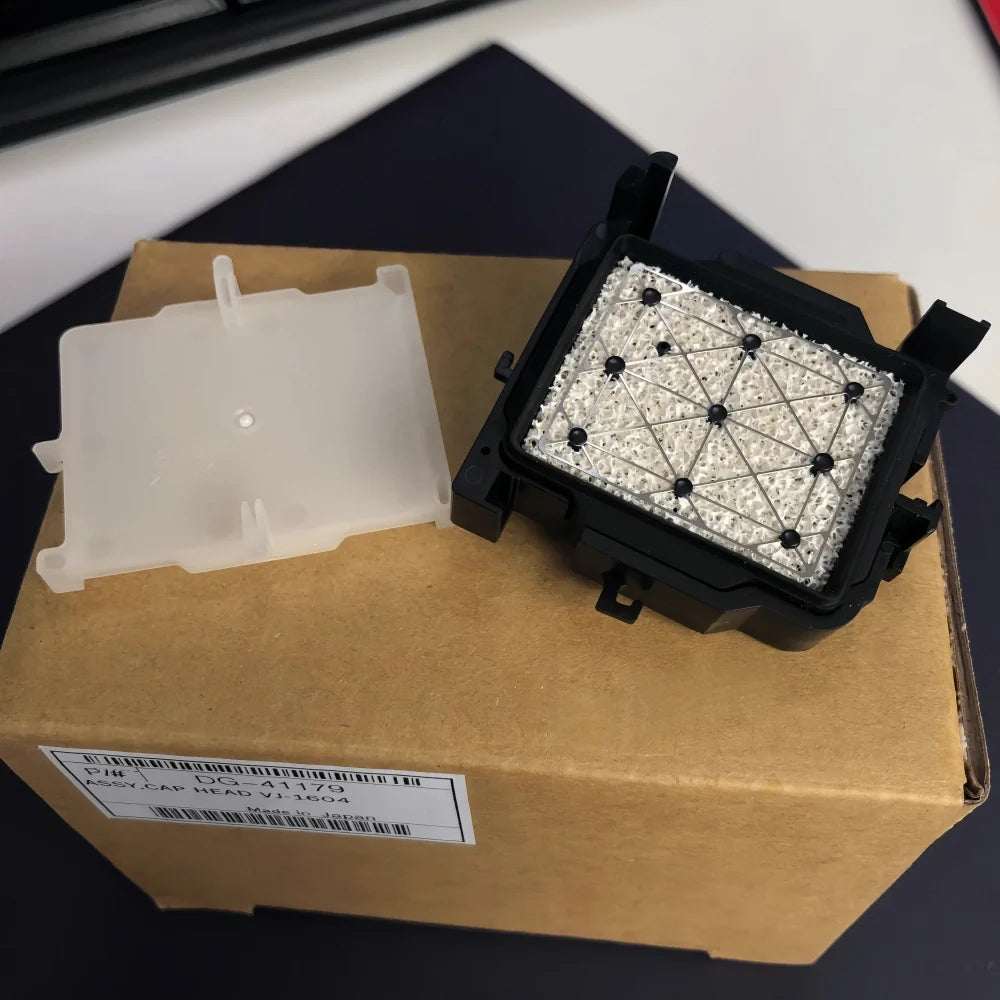

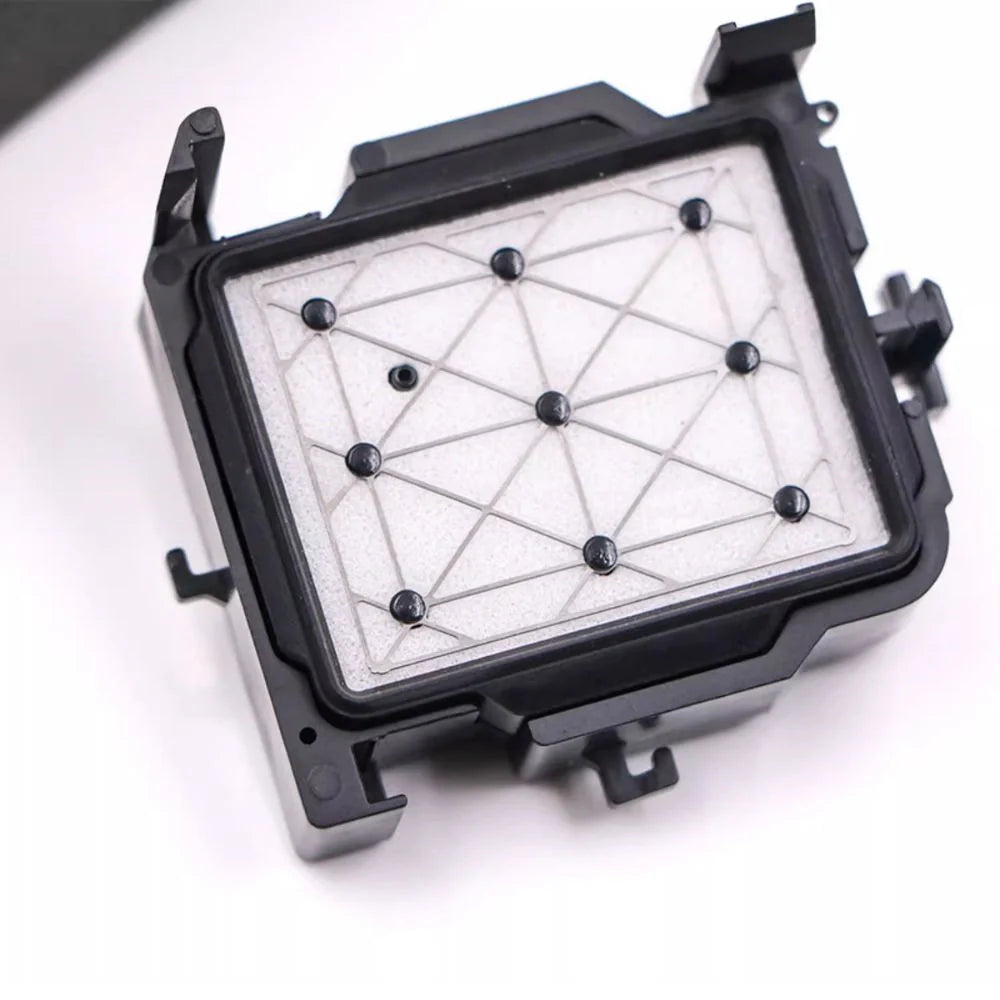

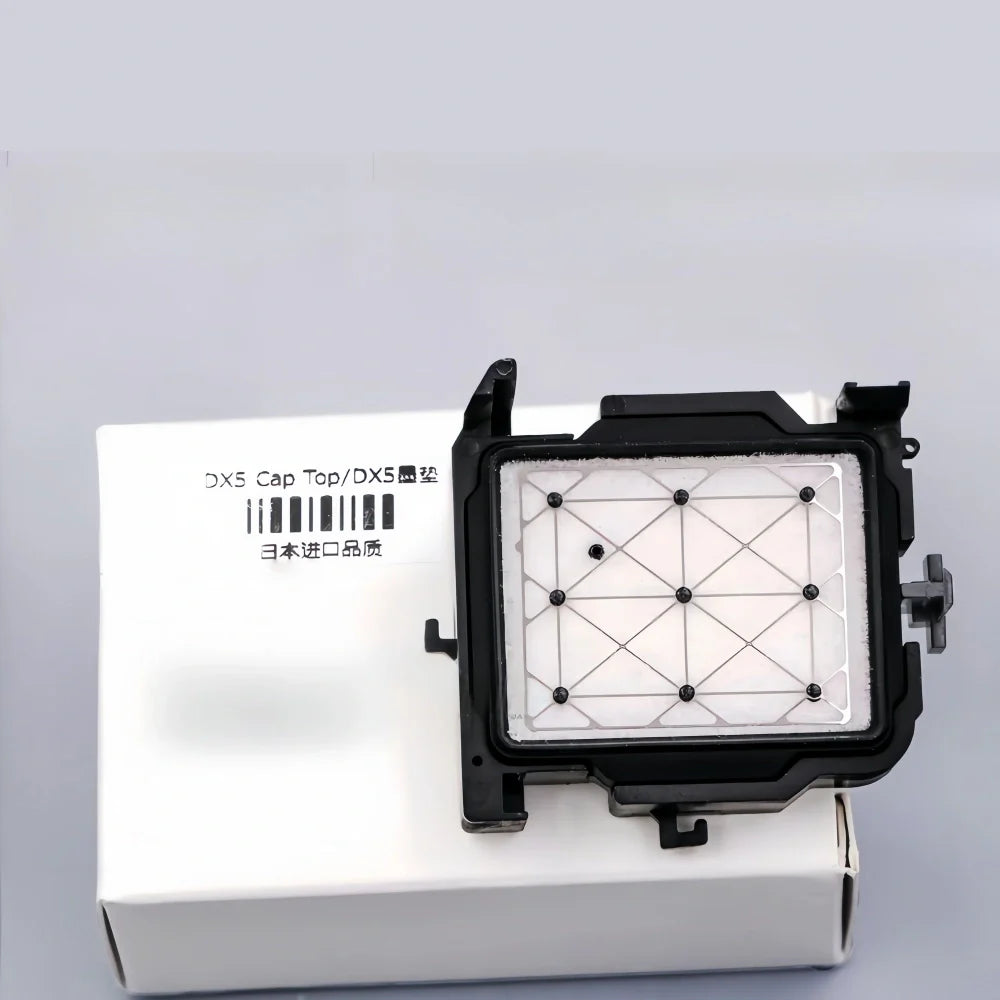

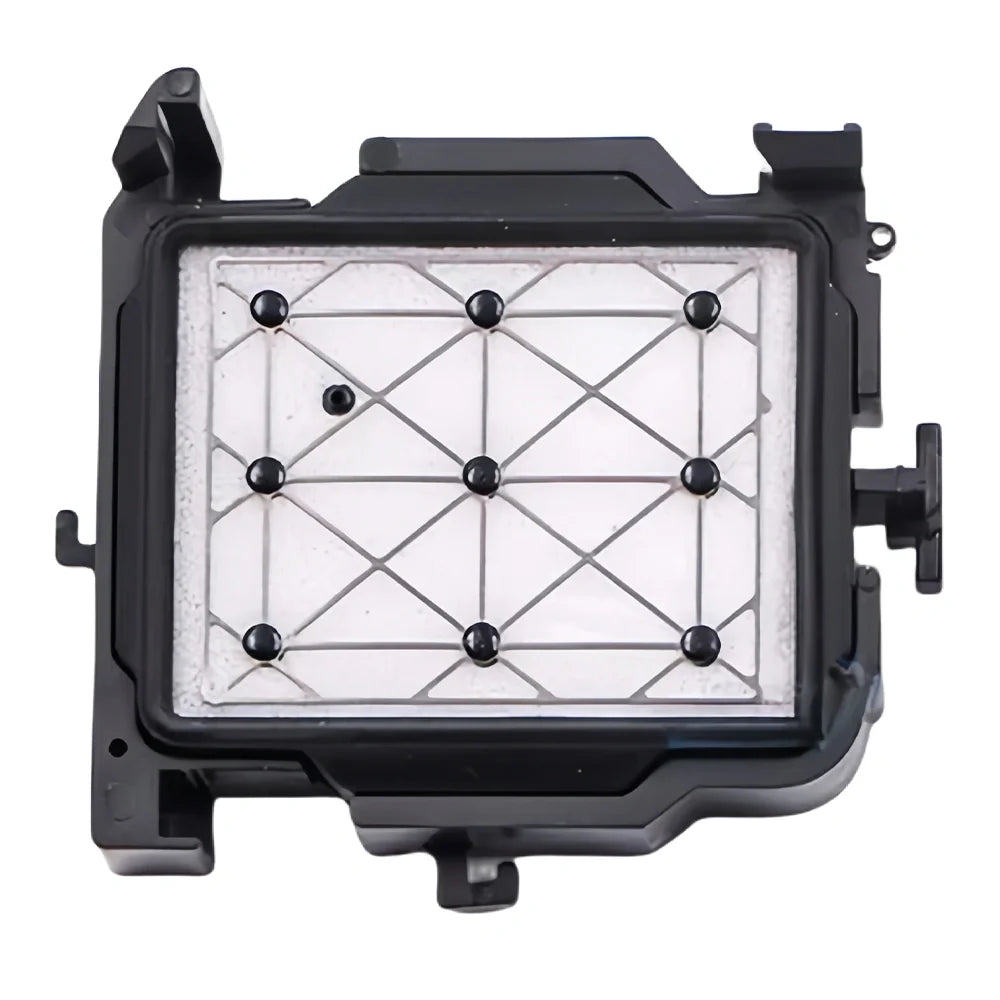

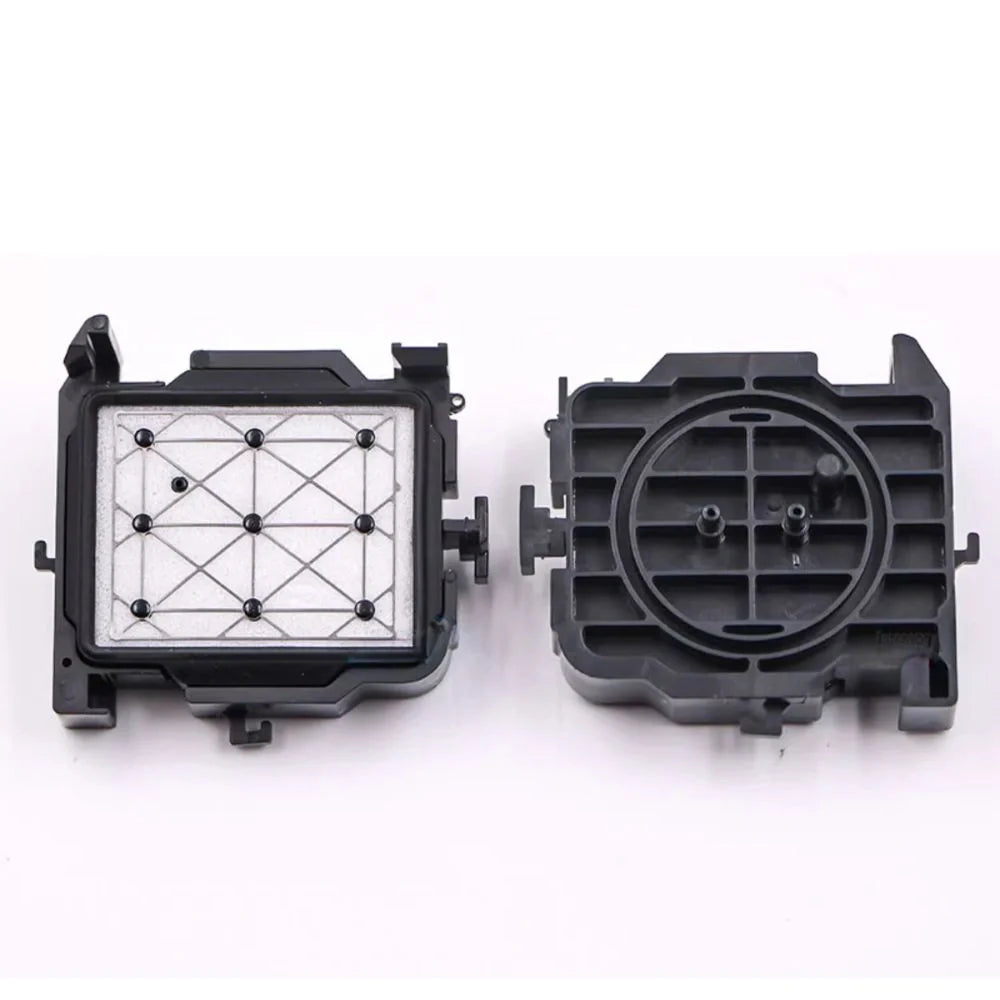

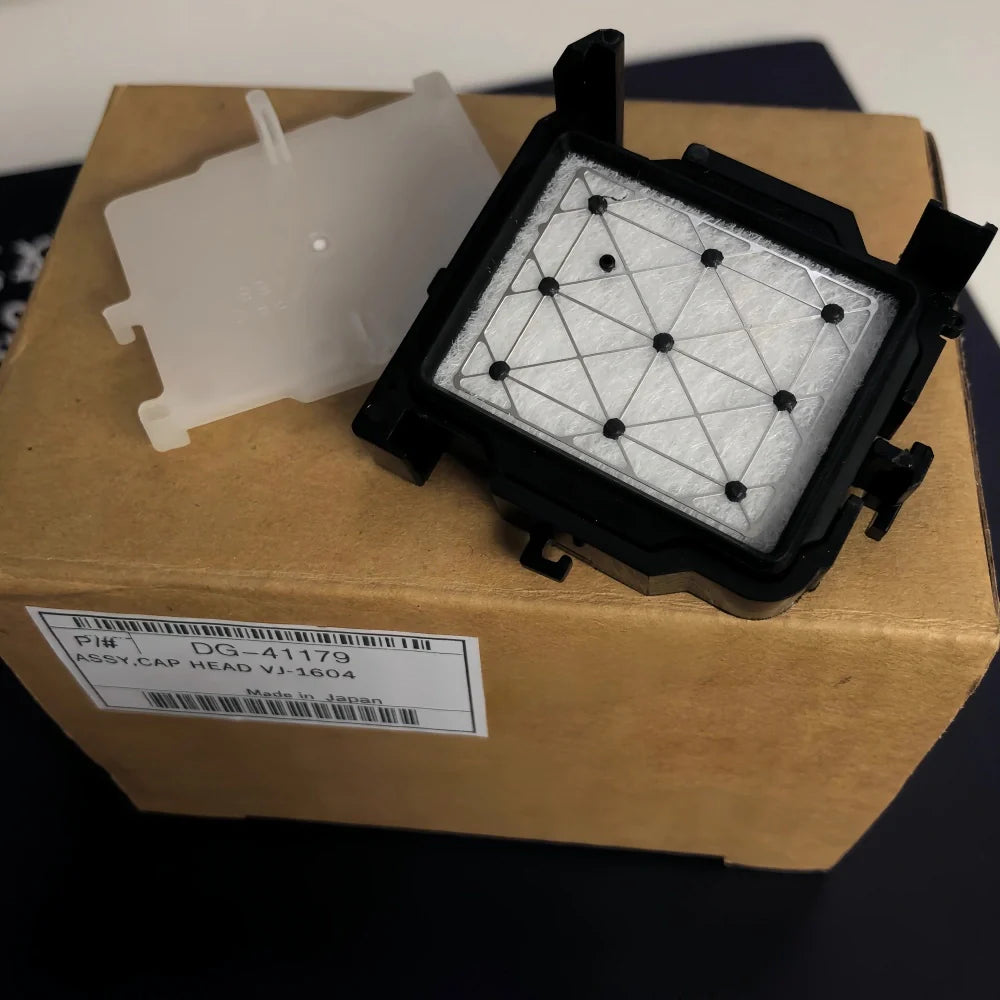

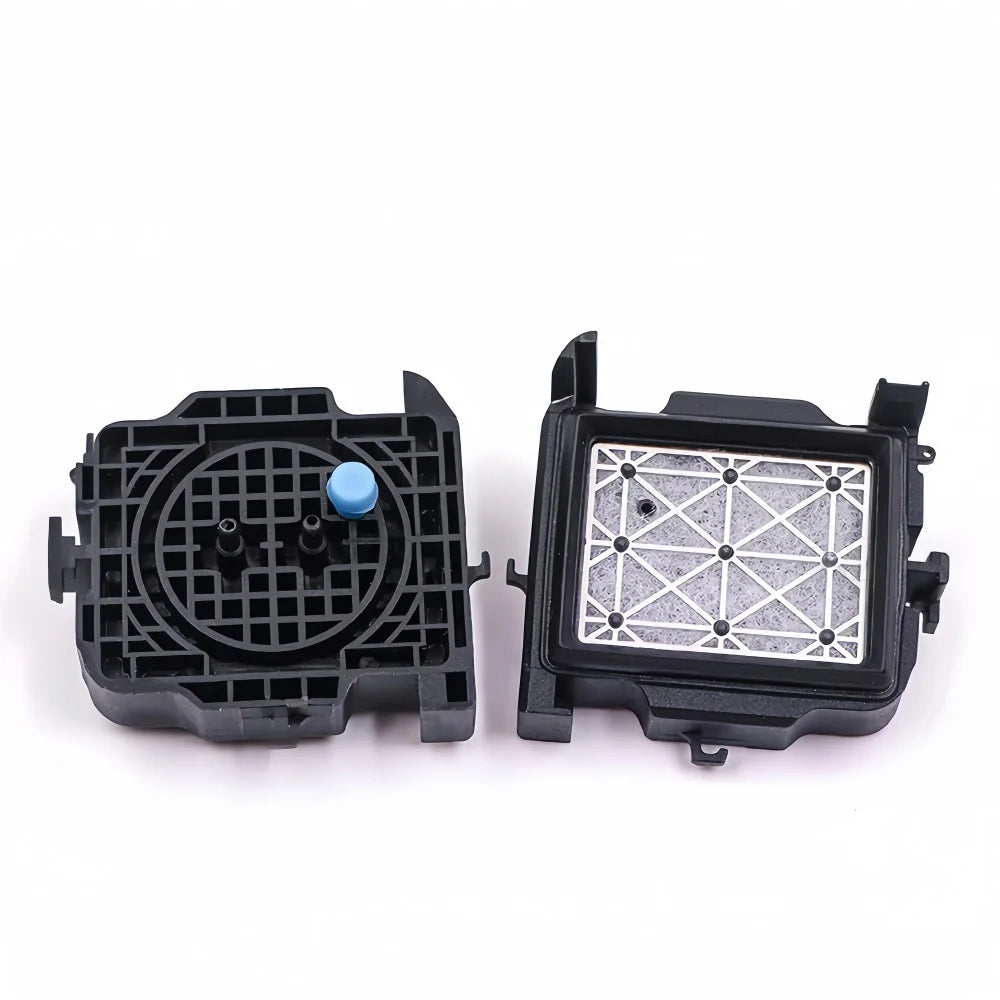

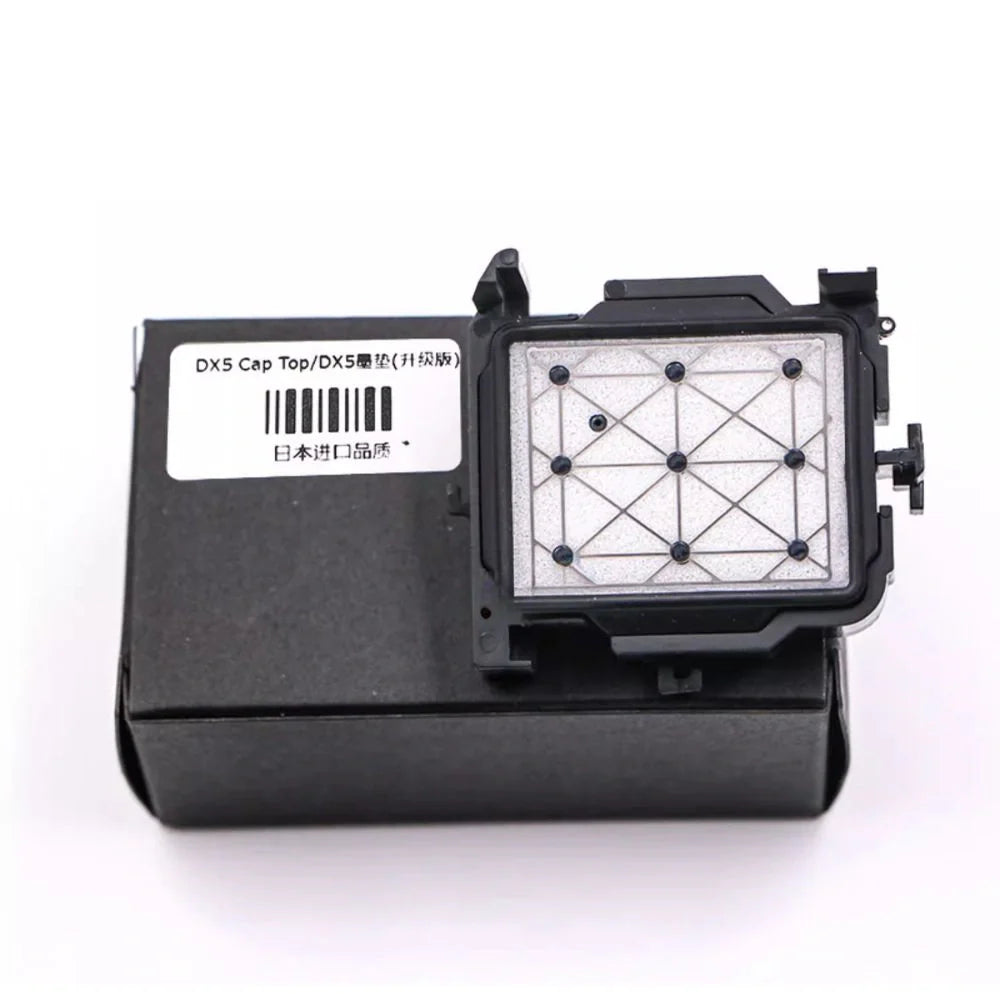

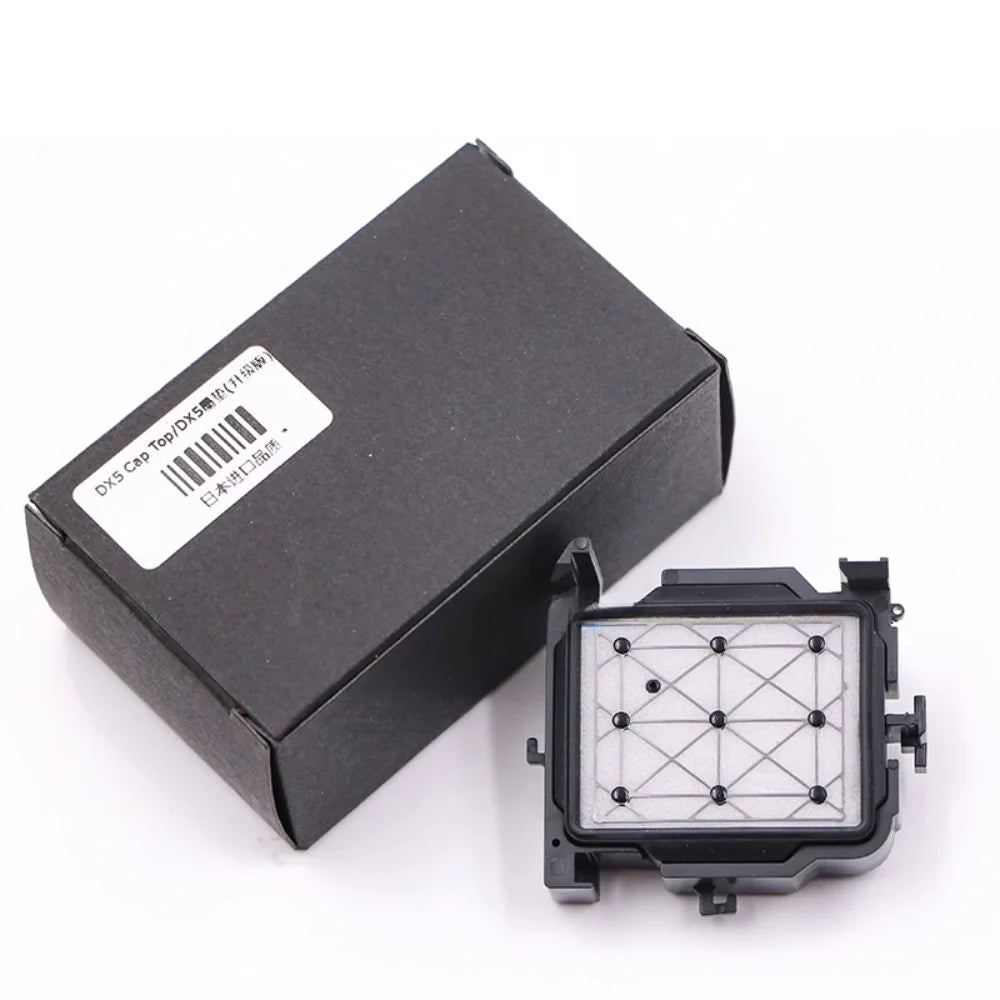

These ink cap pads (cap top) are designed for DX5 printhead maintenance systems used on Mutoh VJ series wide-format printers. They provide stable ink suction and tight nozzle sealing during cleaning and standby cycles, helping reduce nozzle drying, clogging, and air leakage.
Built with corrosion-resistant housing, upgraded sponge options, and improved sealing structures, this cap pad supports smooth ink absorption and consistent negative pressure control for eco-solvent and solvent printing environments.
Available Variants (5 Options)
| Variant | Material / Structure | Recommended Use |
|---|---|---|
| Old Imported Quality | Imported-grade materials with stable sealing and sponge structure | For users who prefer classic imported-quality replacement |

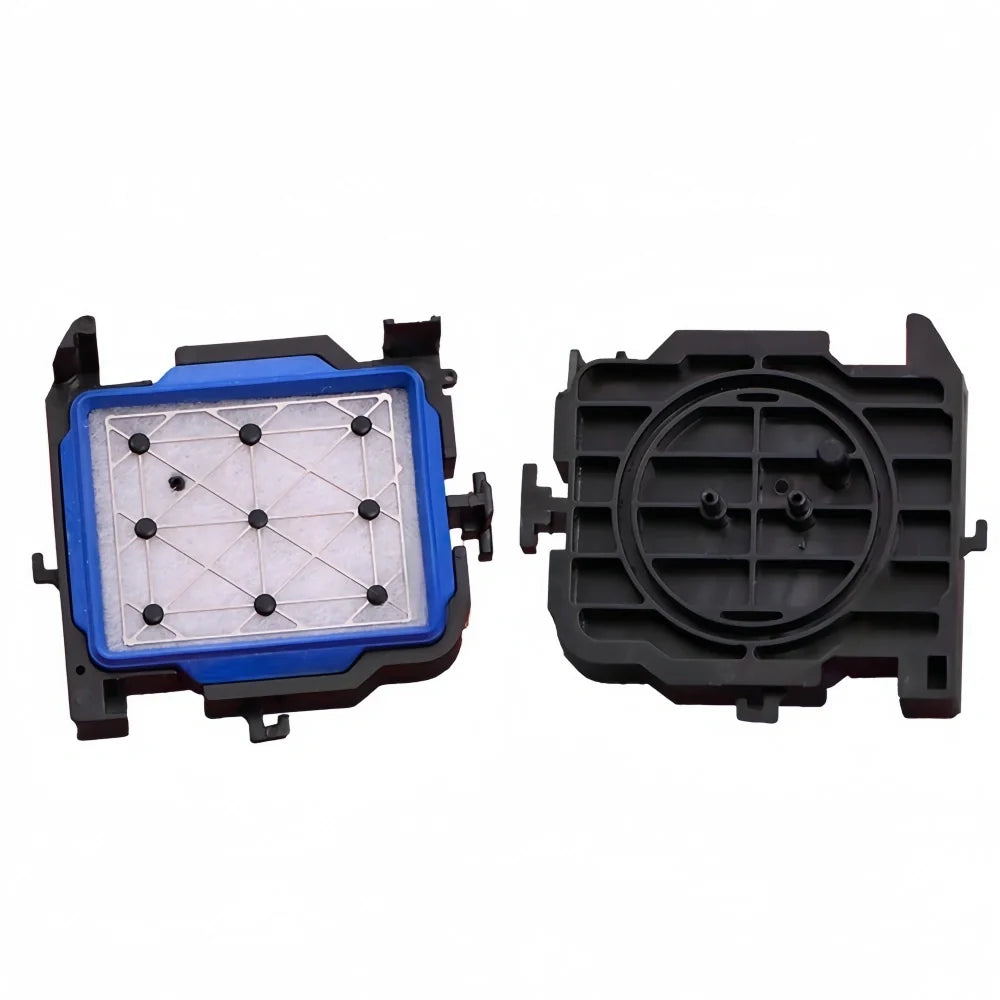

| Upgraded Imported Model (Blue Rubber Special With Imported Tube) | Enhanced blue rubber seal + imported tube option for improved sealing | For heavy-duty printing and stronger anti-leak performance |
| Domestic Compatible | Cost-effective compatible build with reliable suction performance | For routine maintenance and budget-friendly replacement |
| Standard Sponge Model | Reference-style sponge structure for standard suction behavior | For matching older machine configurations and maintenance habits |
| Upgraded Model | Reference-grade upgraded sponge + sealing structure for better stability | For long-run stability and improved cleaning-cycle consistency |
Technical Specifications
| Compatible Printhead | DX5 |
|---|---|
| Applicable Printer Models | Mutoh VJ-1204 / 1304 / 1604 / 1618 / 1624 / 1638 / 1924 / 1938 / 2628 / 2638 |
| Ink Tube Size | 3 × 2 mm |
| Filters | Solvent ink, Eco-solvent ink |
| Main Function | Nozzle sealing, ink suction, negative pressure stability for cleaning |
Key Features
- Stable suction performance for cleaning and standby cycles
- Helps prevent nozzle drying, clogging, and air intrusion
- Corrosion-resistant housing for service life that depends on installation, workload, fluid, environment, and maintenance
- Multiple variant options to match different maintenance needs
- Direct replacement design for easy installation
Use Position & Maintenance Role
- This maintenance pad or absorber is typically installed in the capping or waste-ink area to absorb ink, support sealing, or keep the maintenance station cleaner.
- A healthy pad helps maintain cleaner maintenance cycles and printhead maintenance in the confirmed setup.
- Saturated, hardened, or contaminated pads should be replaced to avoid poor sealing or unstable cleaning results.
Fitment Check
- Referenced machine models: VJ-1604, VJ-1204.
- Referenced printheads: DX5.
- Match the part shape, dimensions, and maintenance-station position with the reference component.
Recommended Replacement Timing
- Replace when the pad is ink-saturated, deformed, torn, or no longer supports clean maintenance cycles.
- Many buyers replace pads together with cap tops, wipers, or other maintenance-station consumables.
- If the machine shows poor capping, excess ink buildup, or inconsistent cleaning performance, inspect this item first.
