DX5 - Mainboard

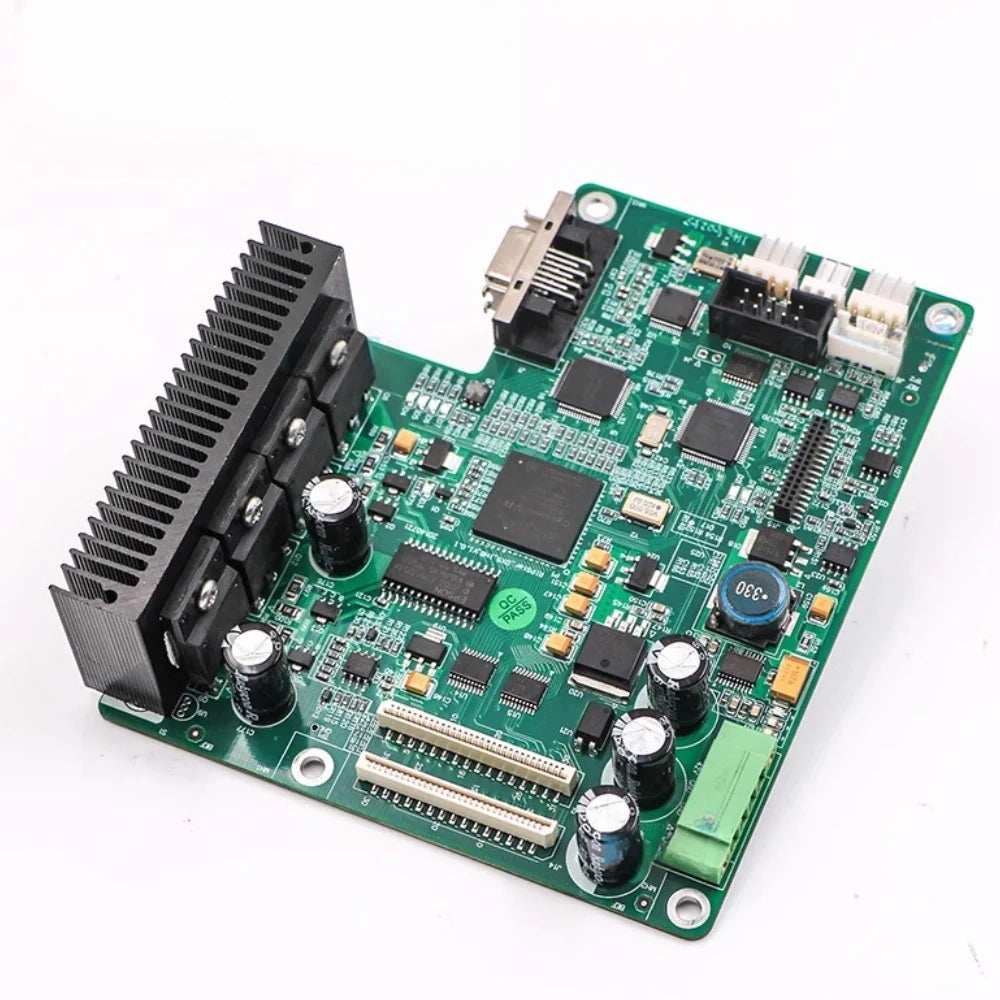

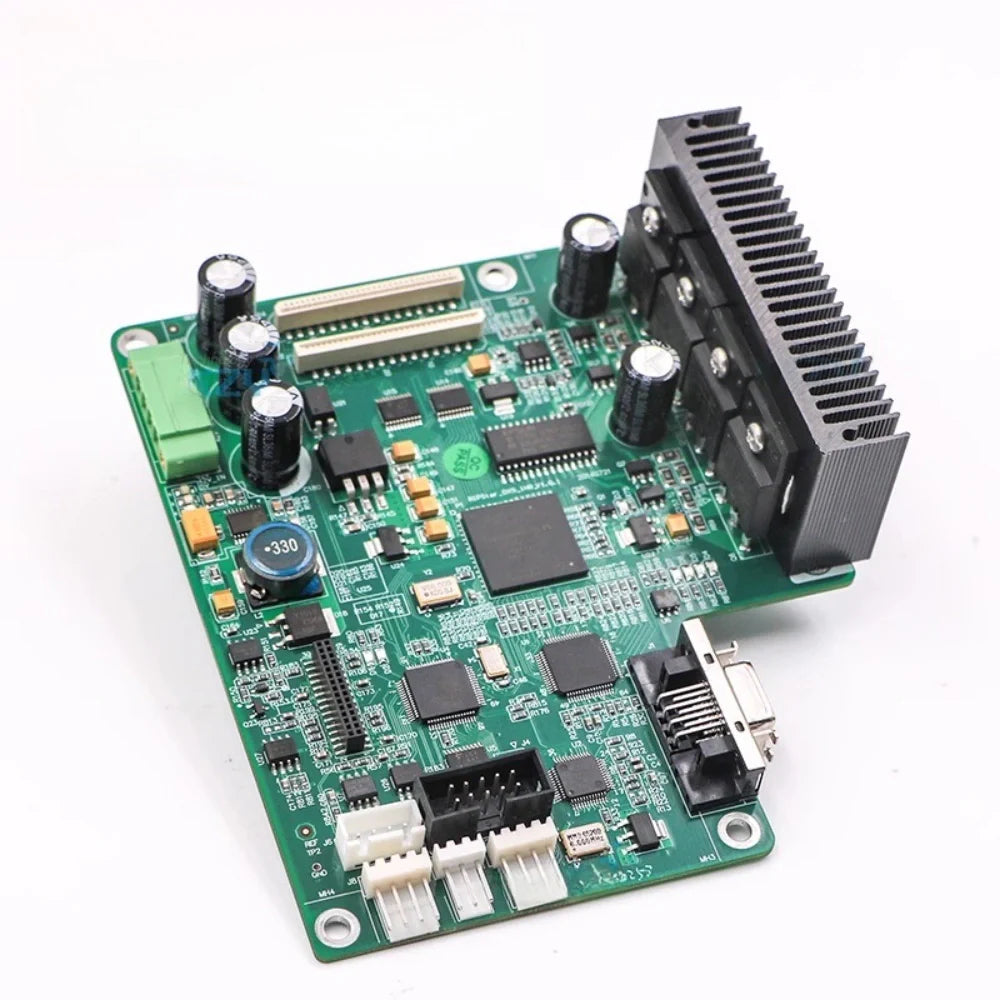

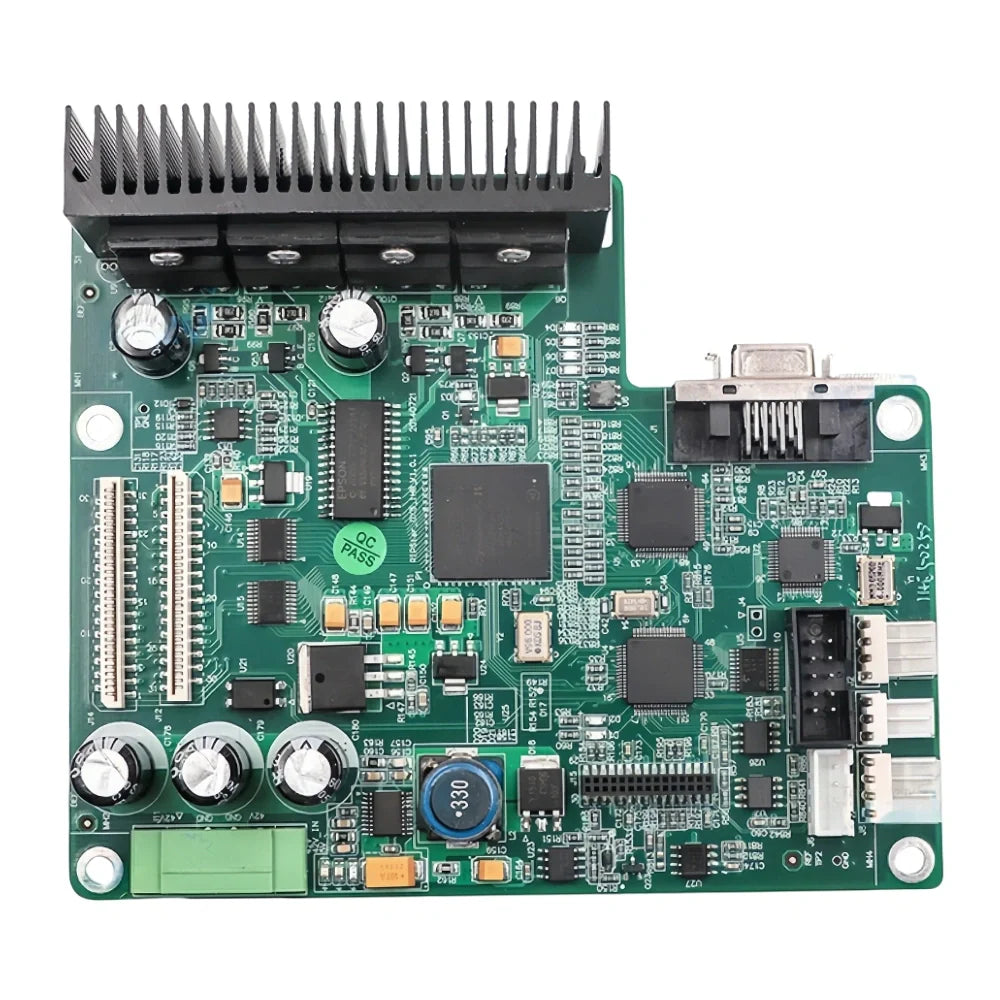

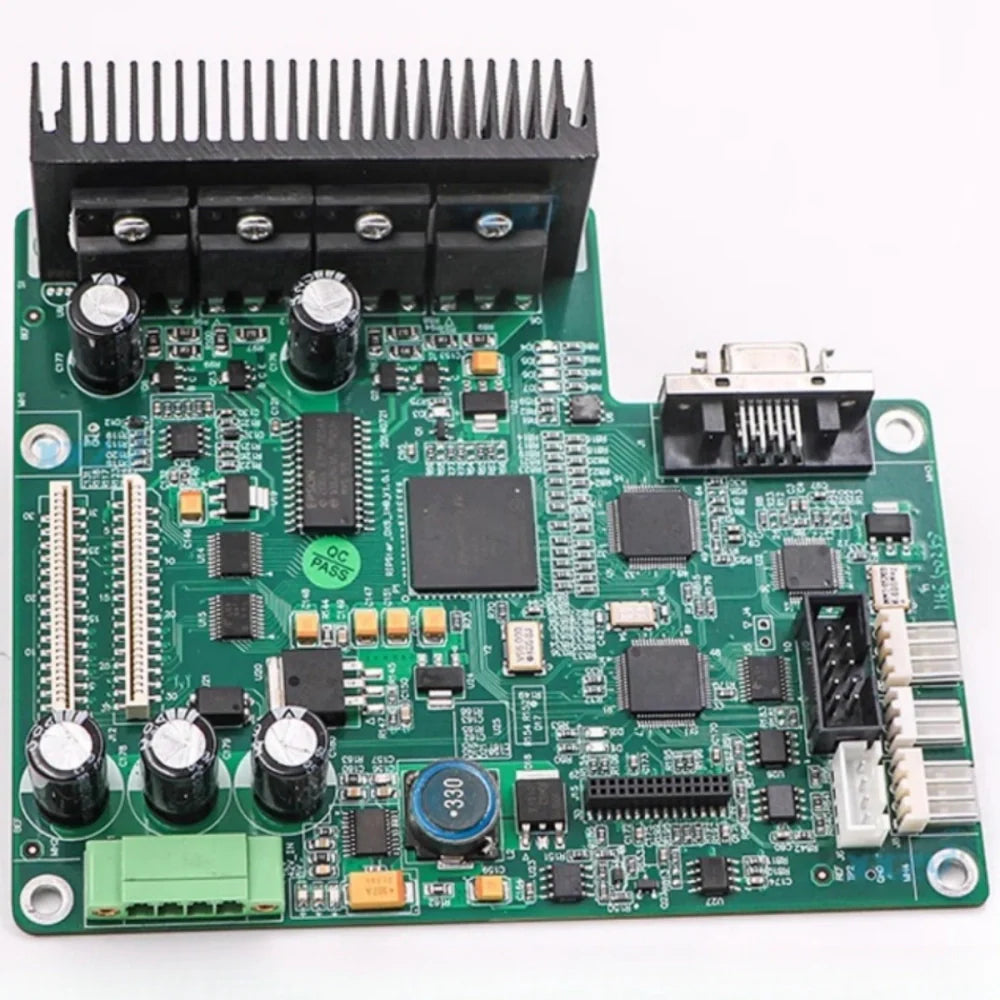

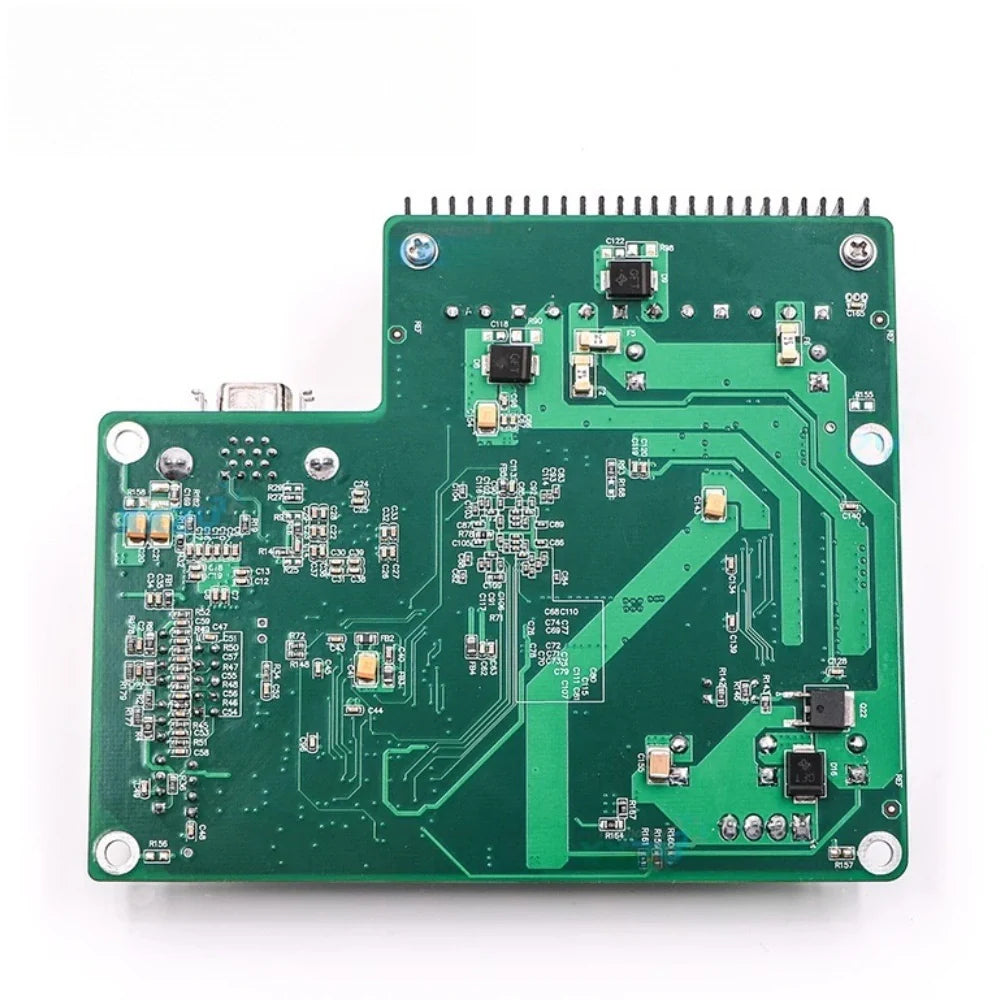

This DX5 Single-Head Carriage Board is designed specifically for wide-format photo printers using Epson DX5 printheads. Engineered for high precision and stability, it serves as the core driving board for controlling one DX5 printhead. Its integrated heat sink enhances thermal dissipation, and the high-quality capacitors ensure reliable signal transmission. Ideal for eco-solvent and water-based ink systems, the board supports accurate grayscale output and long-term operation in demanding printing environments.

Key Features:

• Compatible with Epson DX5 printhead (F186000/F187000/F1440 etc.)

• Single-head control board with strong anti-interference capability

• Integrated high-efficiency heat sink for extended lifespan

• Stable voltage regulation and signal processing

• Supports eco-solvent and water-based ink applications

• Commonly used in photo printers, banner machines, and digital textile printers

DX5 - Mainboard is offered as a replacement control board for compatible printer maintenance and spare-parts replacement. It is intended for buyers who need to match the correct machine configuration, connector type, and manufacturer part number before installation.

Compatibility

• Confirm the printer model, part number, connector layout, size, and use position before ordering when compatibility is uncertain.
• Related printhead / head family: DX5
• If your machine has multiple revisions, compare the model-reference part number, connector layout, and mounting position before ordering.

Function and Use Position

• Handles signal, IO, display, or control functions inside the printer electronics system
• Should be matched carefully with the correct machine revision and cable layout
• Recommended for replacement when the reference board is faulty or damaged

Key Details

Ordering Notes

• Replacement status: Replacement.
• Please confirm the manufacturer part number before ordering.
• If your machine model is not listed in the title, confirm compatibility with the model-reference part number and connector layout.
• Related printhead or head-family reference: DX5.
• For electronic parts, motion parts, and fluid-system parts, professional installation is recommended.

Package Includes: 1 × DX5 - Mainboard
