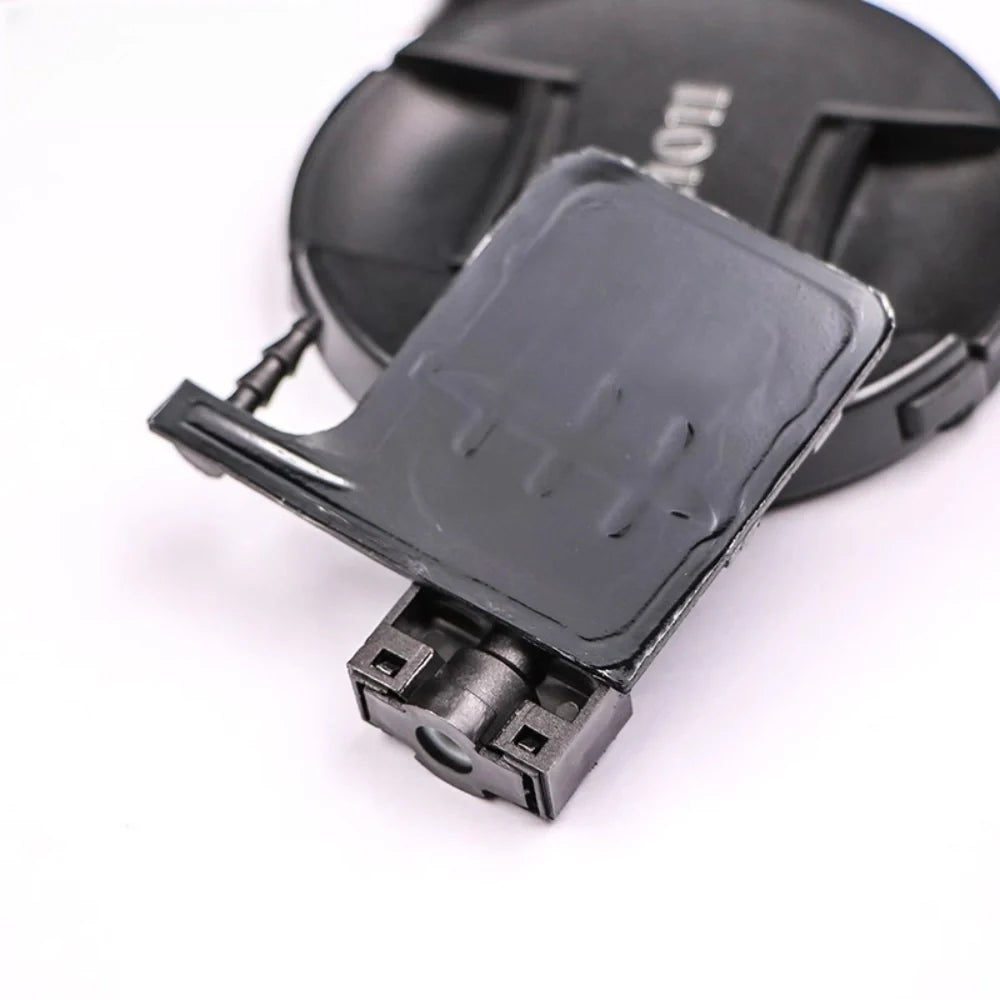

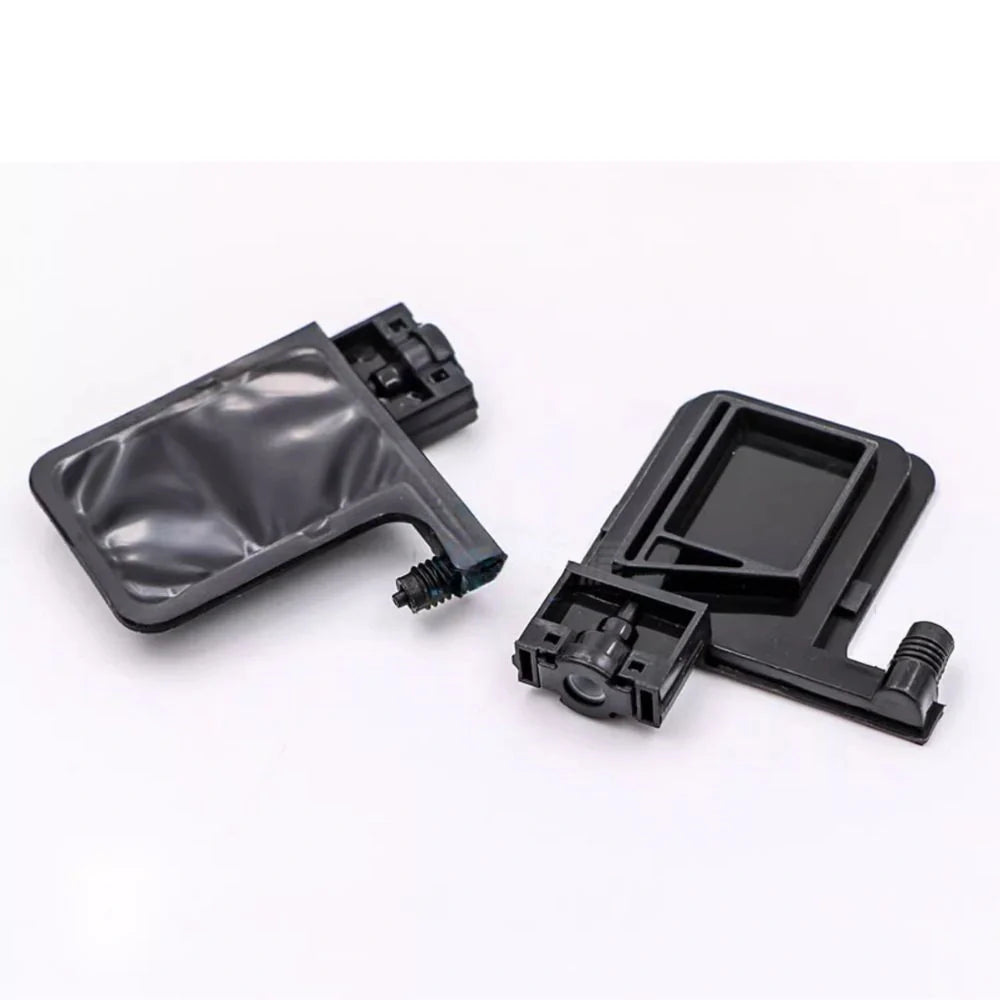

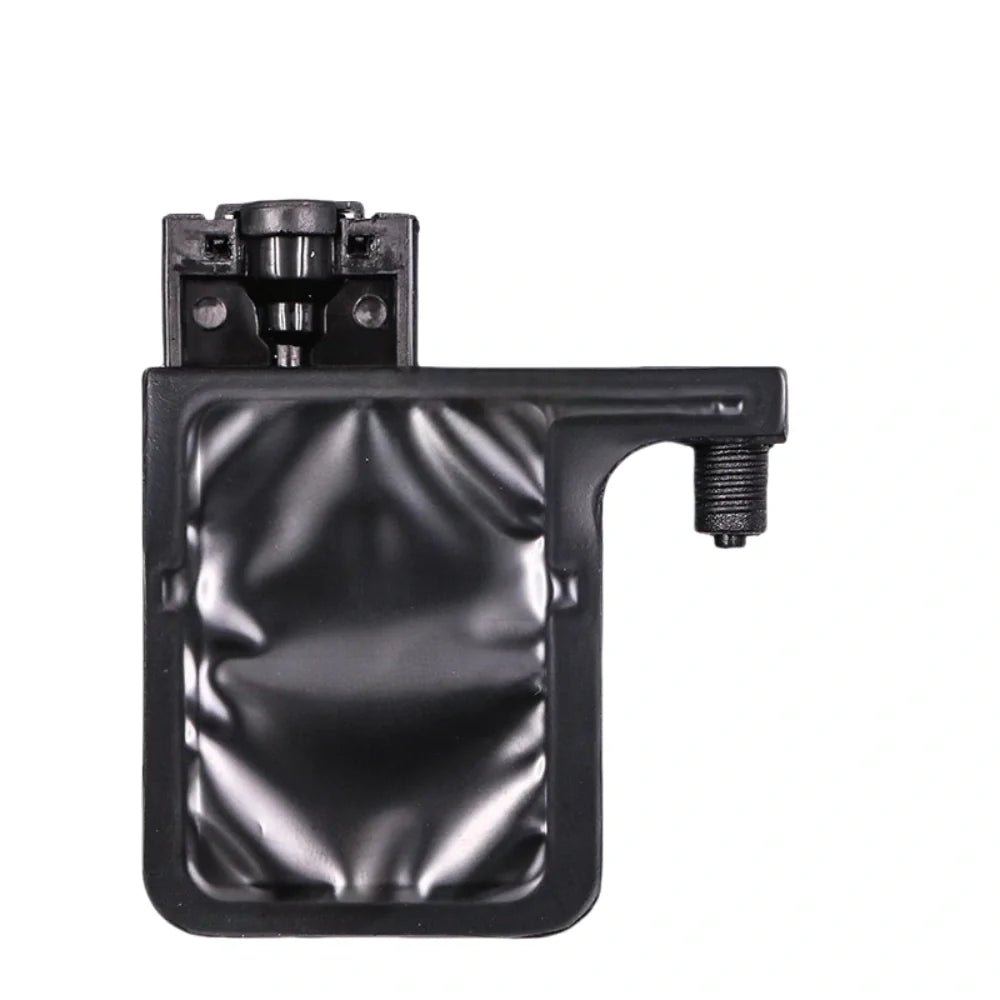

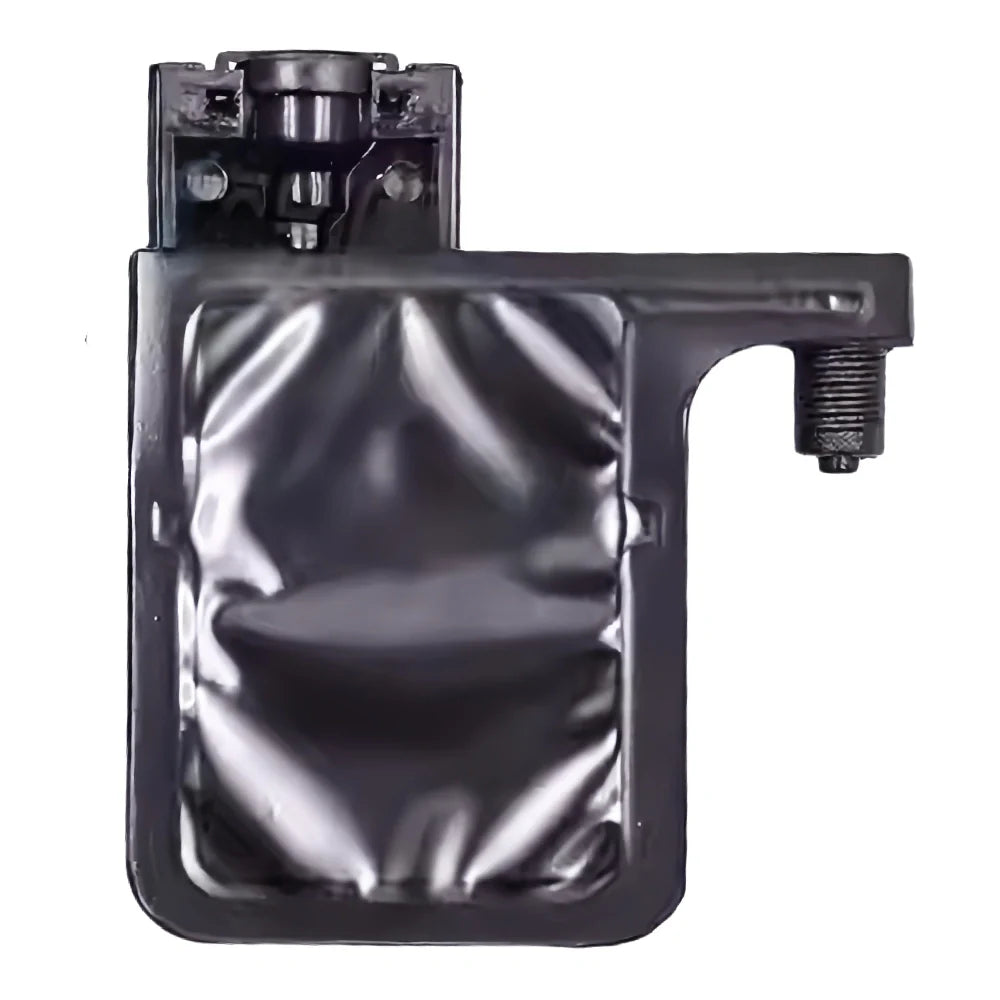

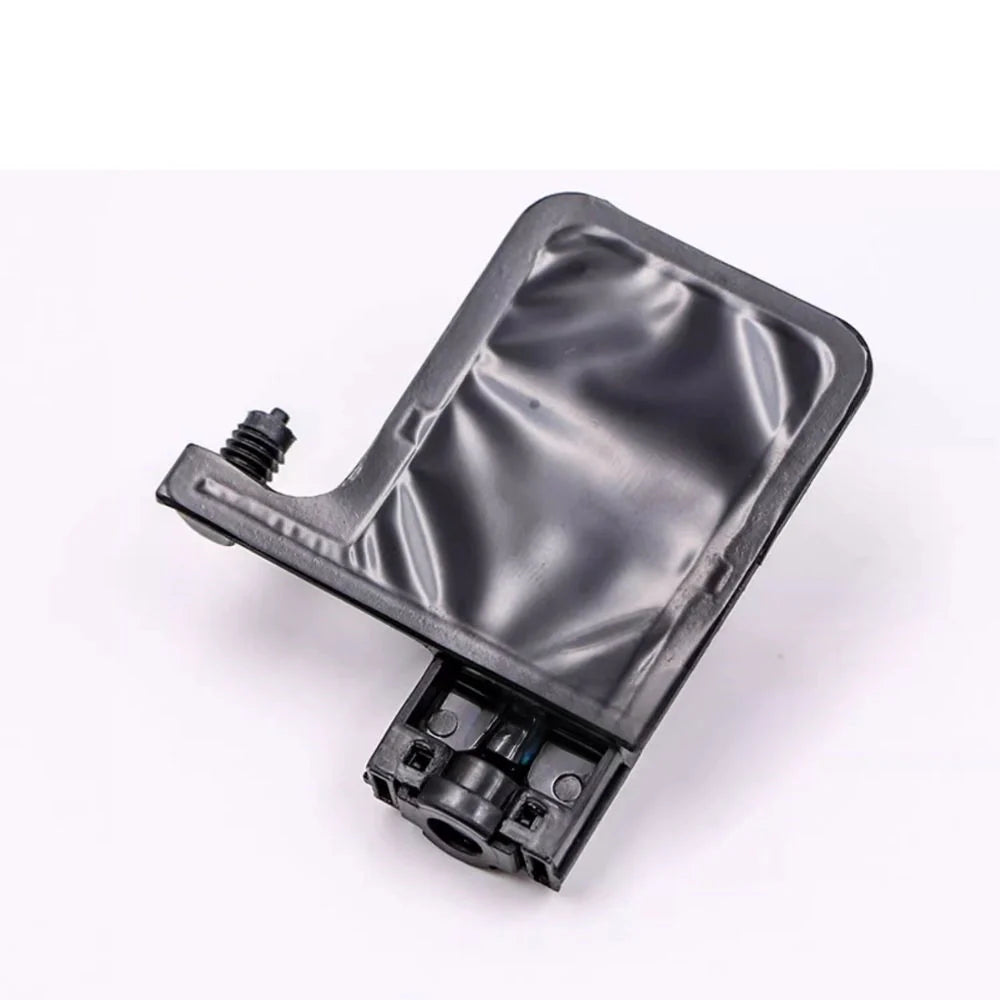

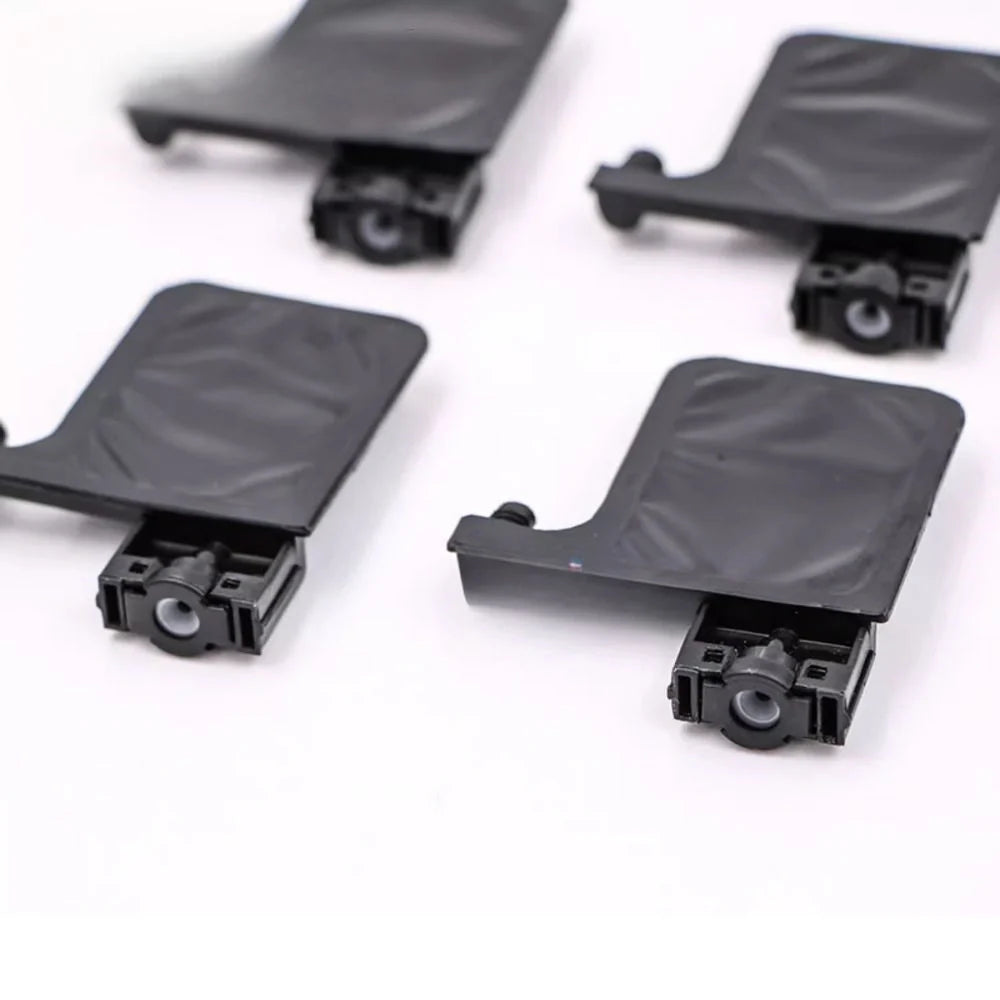

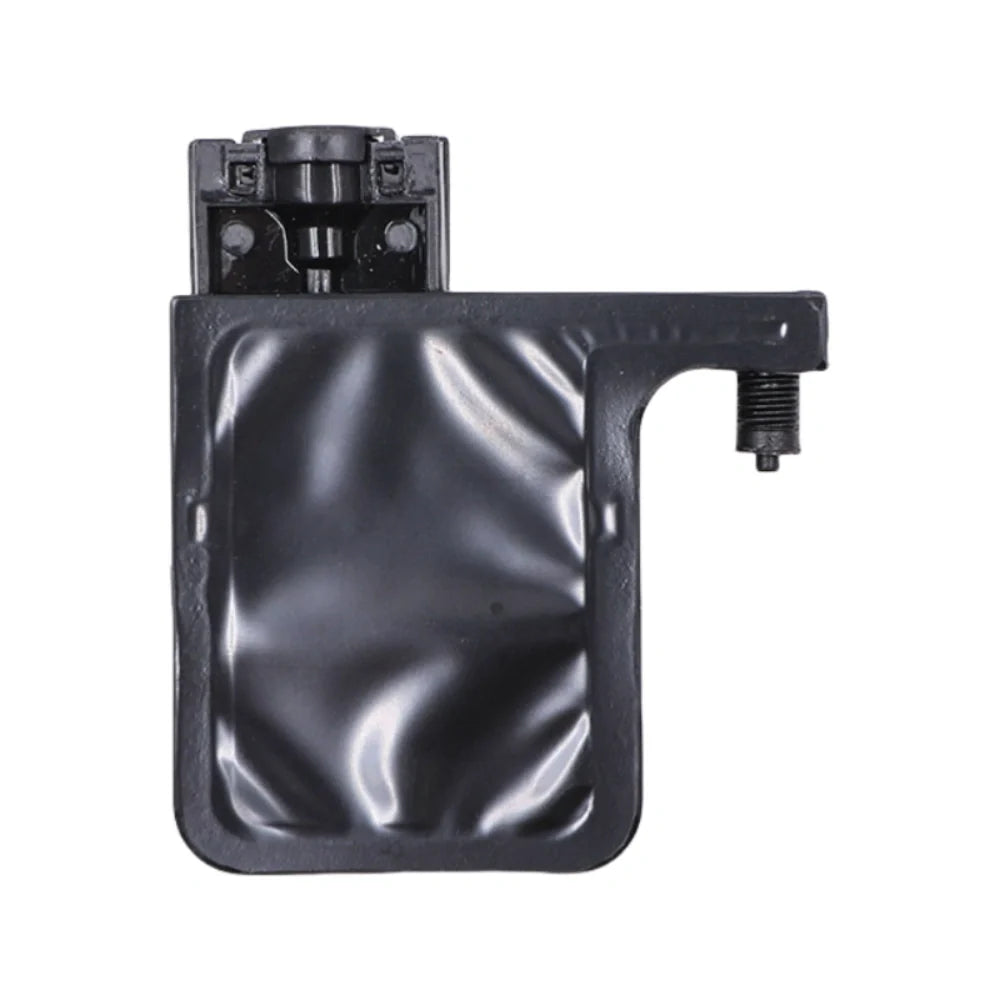

DX5 Printhead Ink Damper

The DX5 Printhead Ink Damper is used in Epson DX5 ink supply systems to stabilize ink pressure, smooth ink delivery, and reduce common printing defects caused by air intake or pressure fluctuation. It is suitable for UV-curable and solvent-based ink environments where stable jetting and consistent output are required.

This damper assembly works as a buffer between the ink tube and the printhead, helping maintain a steady meniscus at the nozzle plate. A stable meniscus improves dot consistency and helps reduce banding, ghosting, and nozzle dropouts during high-speed or long-run printing.

Key Features

• Designed for Epson DX5 printhead ink delivery systems
• Helps stabilize ink pressure and smooth ink flow
• Built-in filtration helps reduce particles and micro air bubbles
• Direct replacement design for routine maintenance

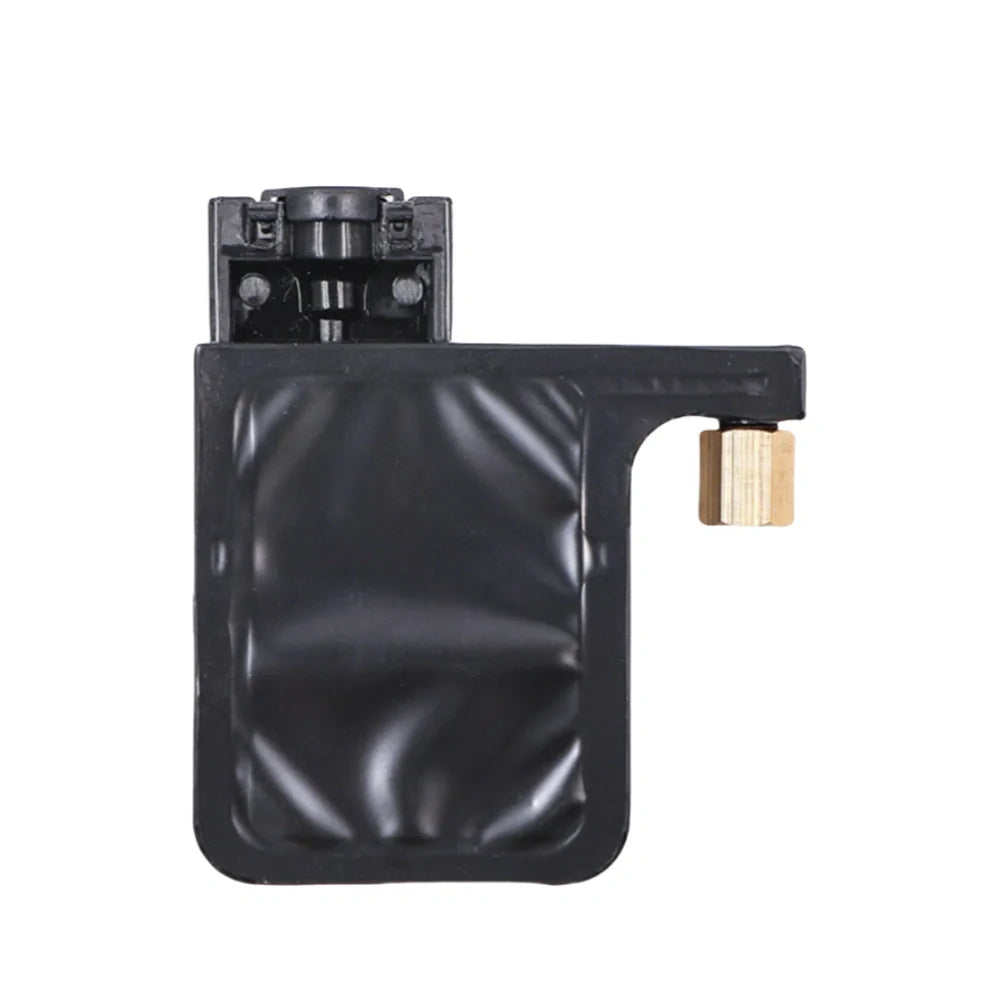

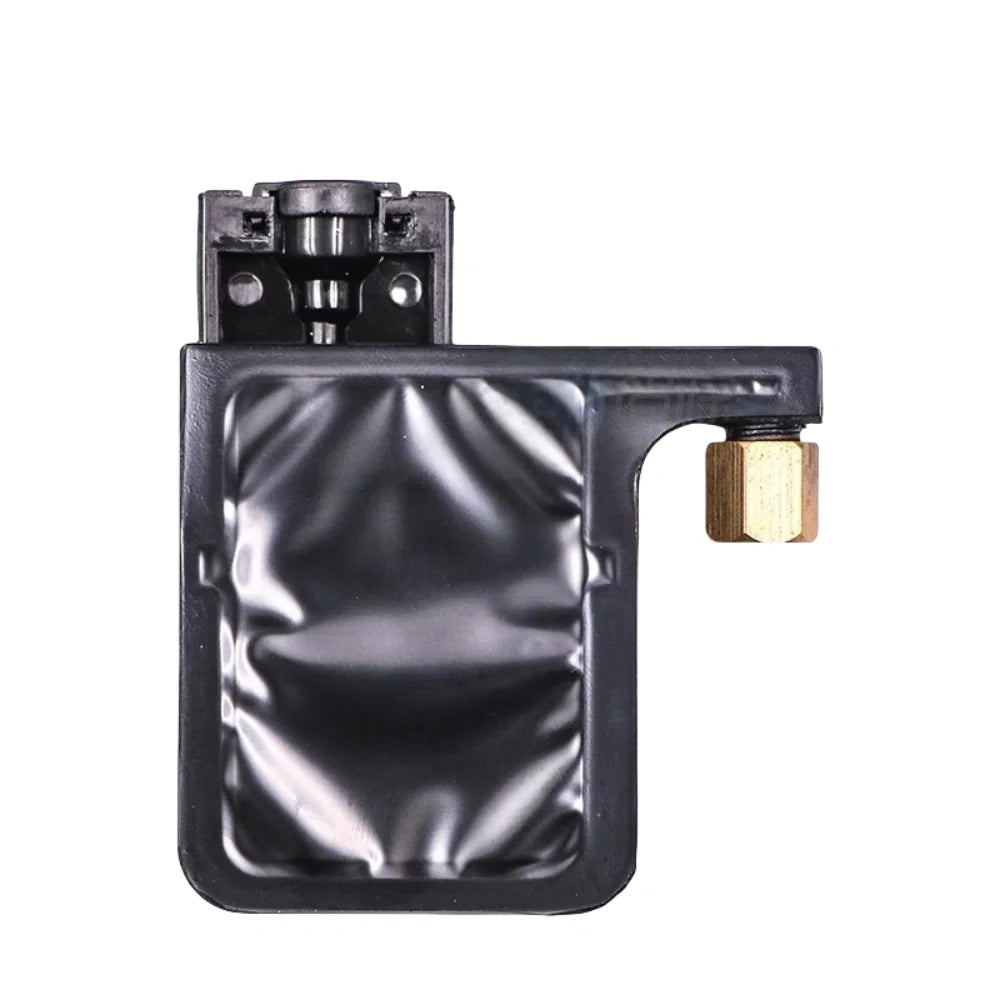

• Multiple ink cap/connector options to match different ink lines

Available Ink Cap Options

Please choose the correct option based on your ink tube size and installation method. If you are unsure, send us a photo of your current ink cap and tube size for matching.

Ink Compatibility

• Compatible: UV-curable ink, eco-solvent ink, mild-solvent ink, pigment ink systems
• Not recommended: aqueous / water-based ink systems

Application

Suitable for UV flatbed printers, UV roll-to-roll printers, and wide-format solvent printers using Epson DX5 printheads. Recommended for routine servicing, damper replacement, and troubleshooting unstable ink flow.

Use Position & Function

• The damper is normally installed between the ink supply path and the printhead to stabilize pressure and reduce bubbles.
• It helps support smoother ink delivery and can also assist with filtering fine particles before ink reaches the printhead.
• Damper performance has a direct effect on ink stability, especially on multi-channel or high-speed printers.

Compatibility Reference

• Confirm your machine model before ordering.
• Referenced printheads: DX5.
• Suitable for water-based use when the connector type, orientation, and sealing method match the reference damper.

When Buyers Replace This Part

• Replace when ink flow becomes unstable, bubbles increase, colors drop out, or the damper body becomes contaminated or deformed.
• Compare the manufacturer part number, connection layout, and mounting direction before ordering.
• For best maintenance results, buyers often inspect cap tops, tubing, and ink filters at the same time.

Common Replacement Scenarios

• Replace when colors intermittently drop out, bubbles appear repeatedly, or the printhead side shows unstable ink feeding.
• Inspect this part when the damper body becomes stained, swollen, cracked, or no longer seals reliably.
• On printers with multiple channels, one weak damper can affect daily color consistency even if the printhead is still usable.

Fitment Checklist

• Confirm the exact printer model before ordering.
• Referenced printheads: DX5.
• Check joint style, filter structure, connector direction, sealing method, and manufacturer reference before final purchase.

Service Pairing Suggestions

• Many buyers inspect cap tops, ink tubes, pumps, and filters at the same time when damper problems appear.
• Use this damper only when the water-based ink path, connector style, and physical size match the reference assembly.
• Professional installation is recommended when the printer uses a sealed manifold or tightly packed multi-channel head carriage.
