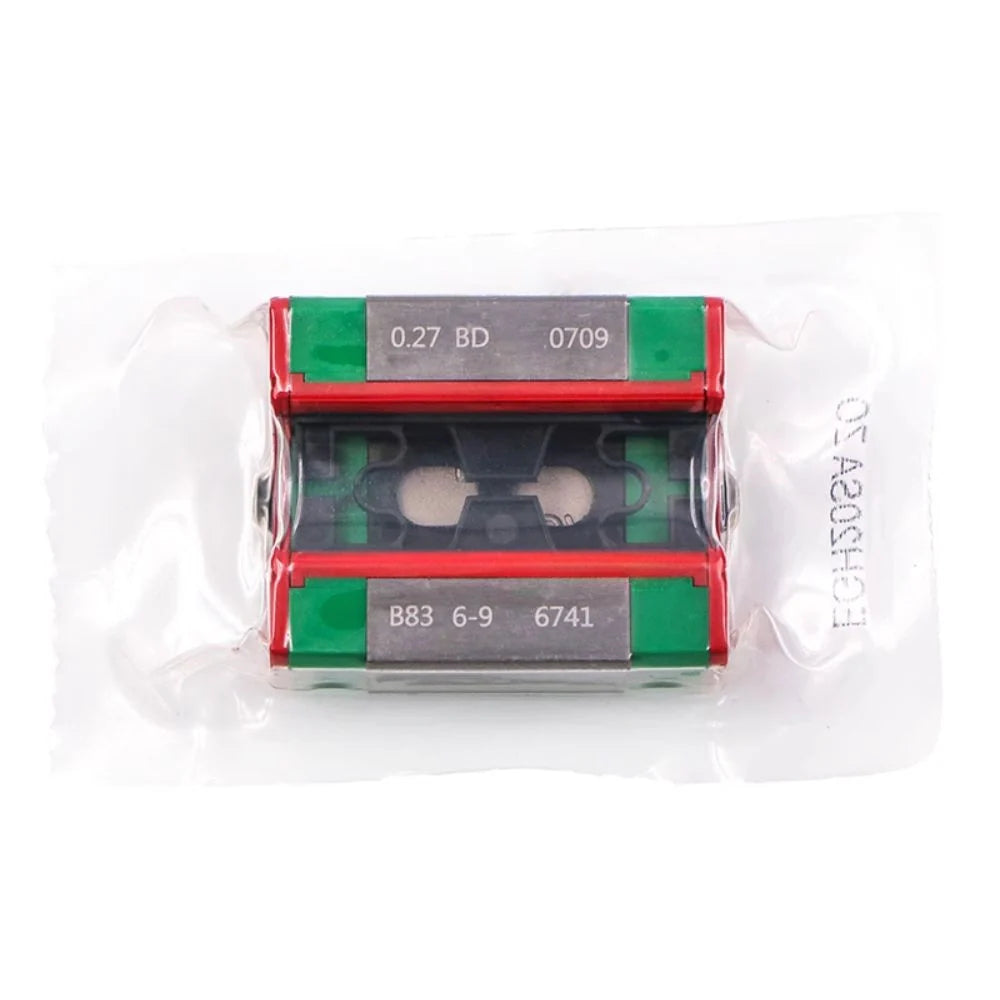

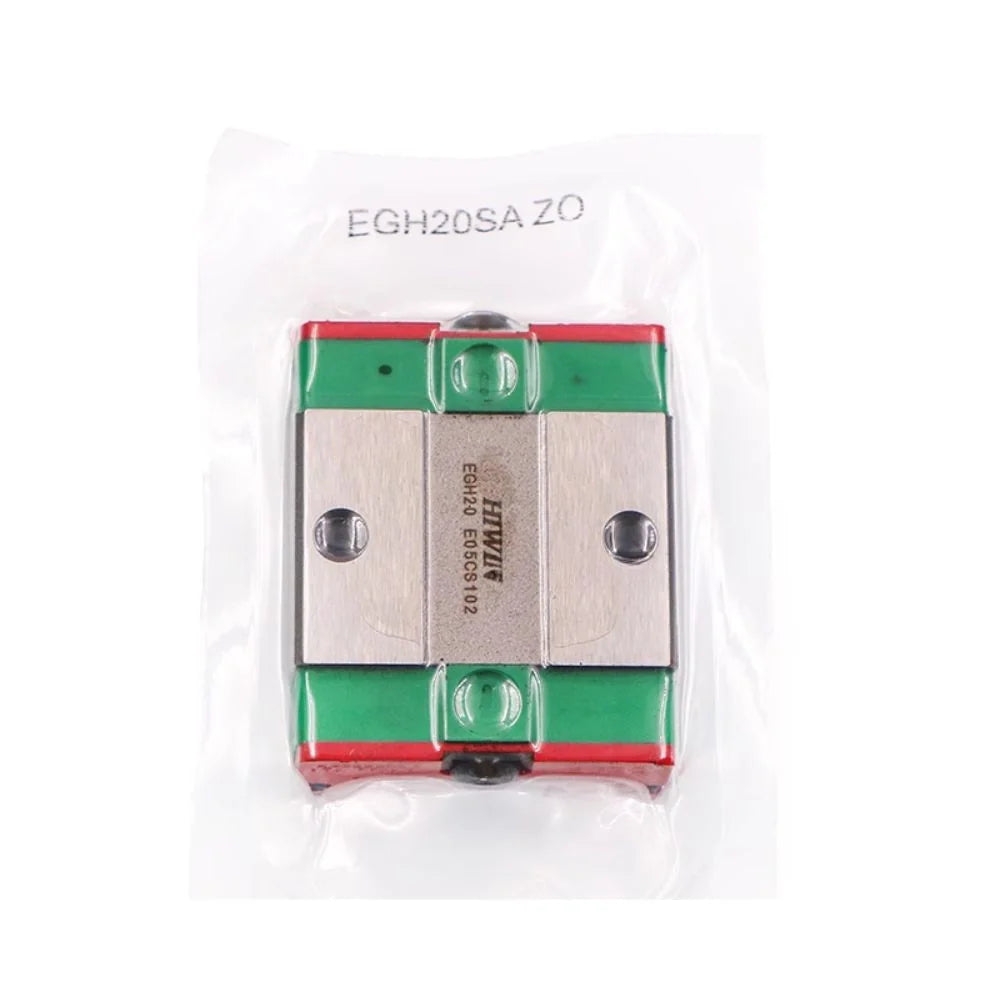

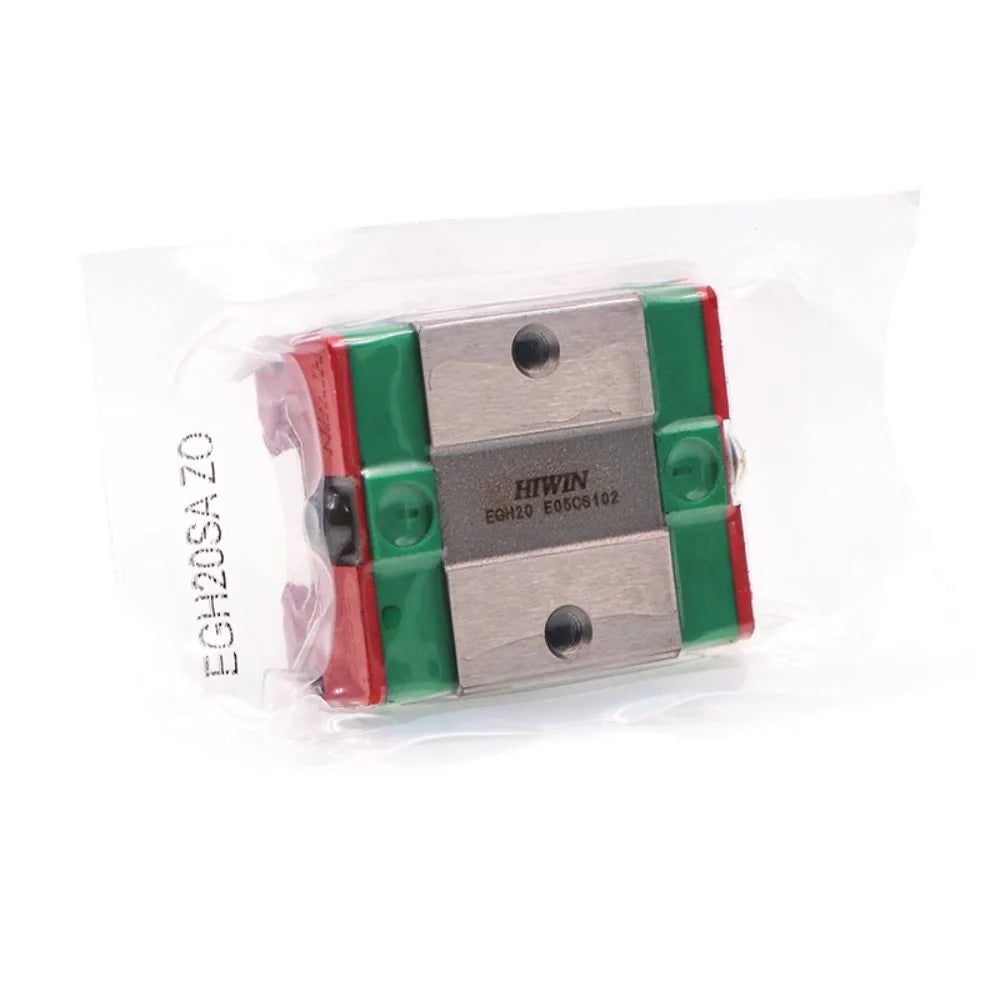

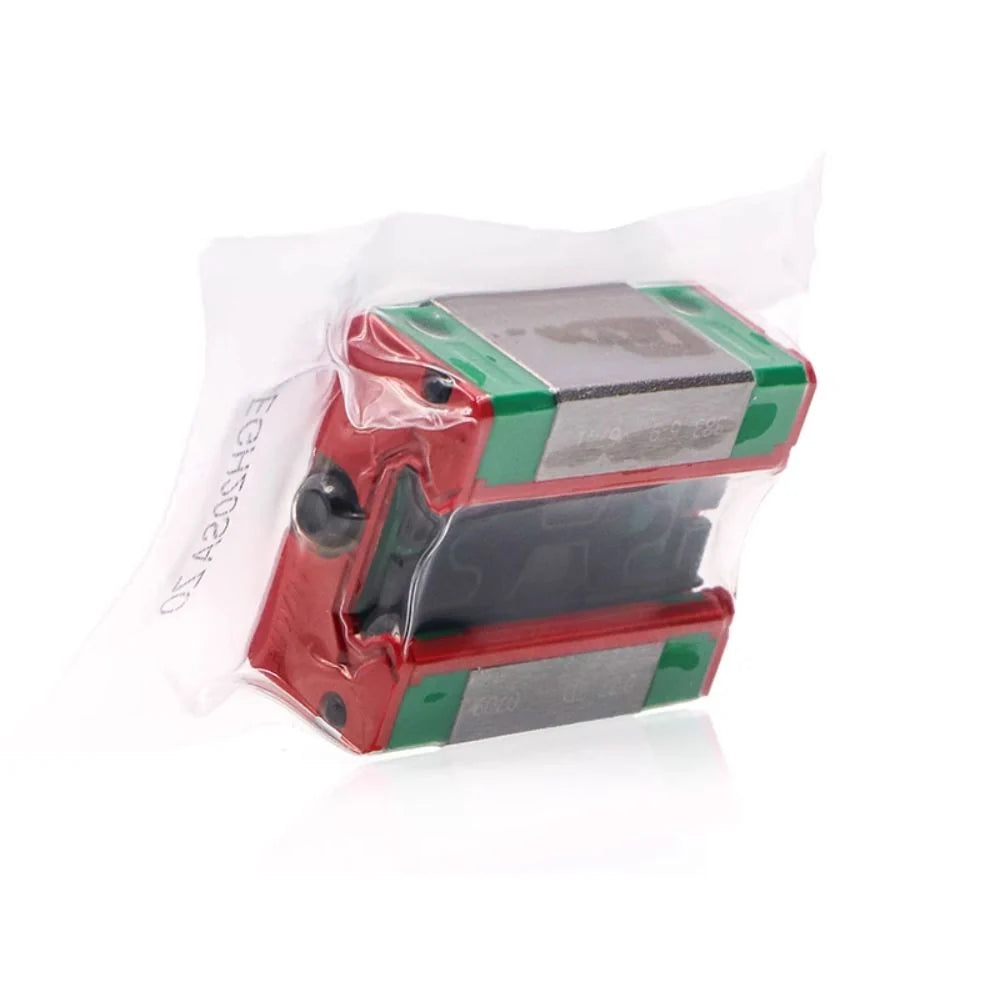

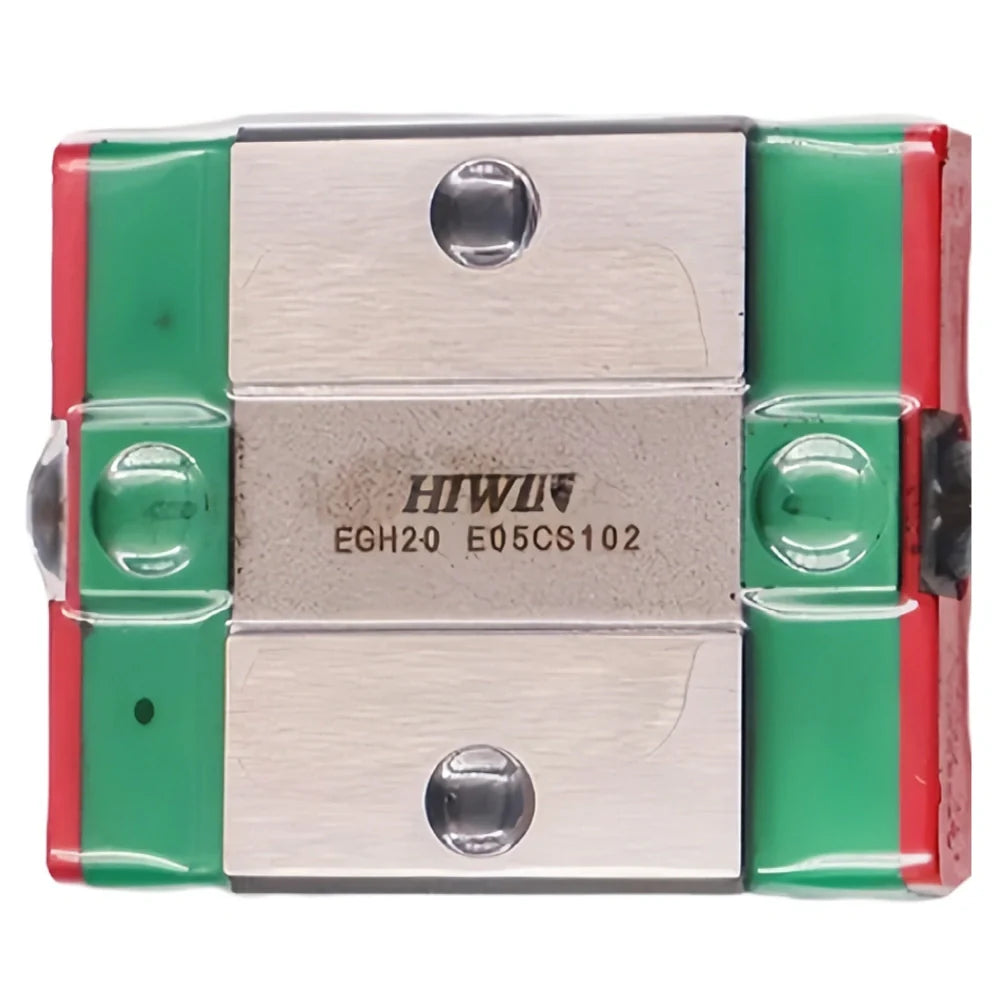

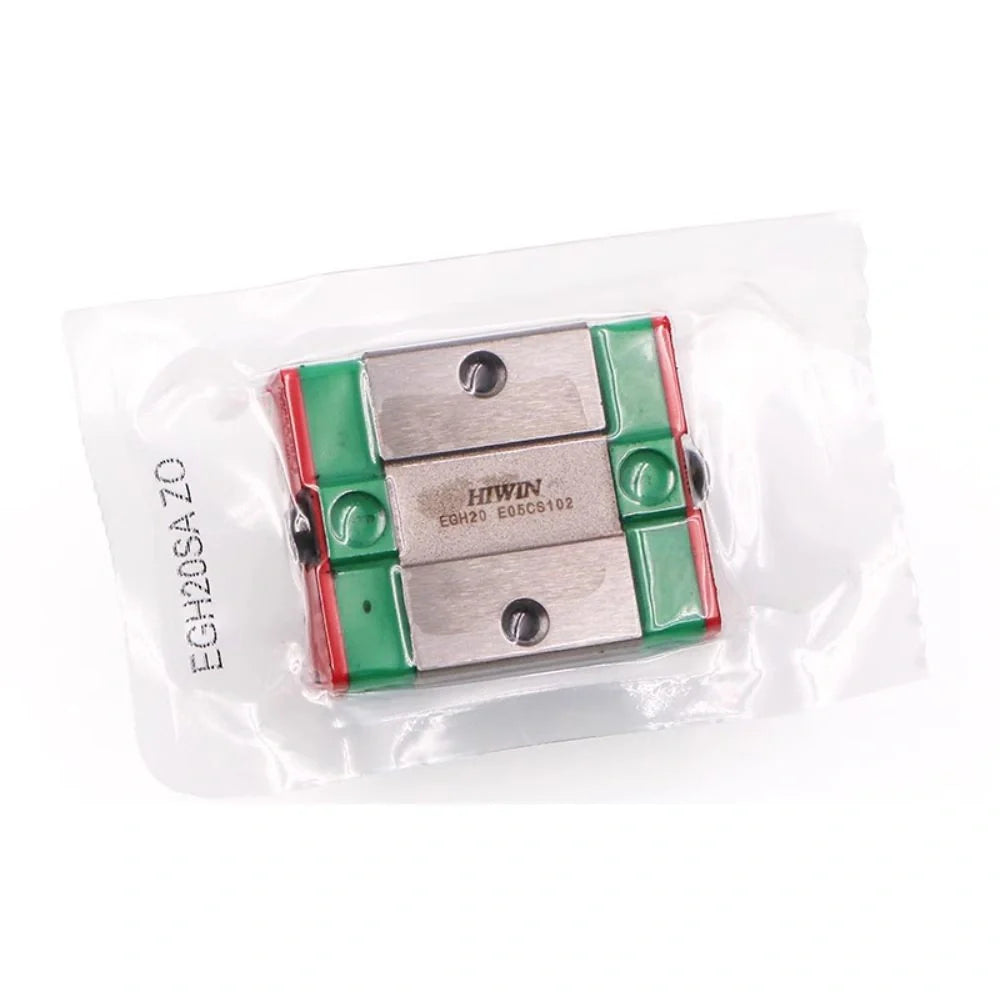

EGH20SA Low-Profile Printer Motion Block

The EGH20SA low-profile printer motion block is developed for printing systems where compact structure and motion accuracy are equally important. It is commonly used in carriage assemblies that require stable movement within restricted space.

This motion block features a two-point contact structure that balances rigidity and smooth travel. Its low-noise operation supports continuous printing while maintaining precise alignment and repeatable motion.

Model Overview

Why Choose This Motion Block

• Optimized for space-saving printer designs
• Maintains accurate carriage alignment
• Reduces vibration during high-speed movement
• Long service life with minimal maintenance

Typical Uses

• UV flatbed printers
• Photo plotters and imaging machines
• Lightweight wide-format printers

Note: Compatible with 20 mm rail systems. Please confirm dimensions before purchase.

Compatibility Check

• Referenced machine models: EGH20SA.
• Compare the connector layout, mounting position, and dimensions with the model-reference part.
• Part number reference found in current product data: EGH20SA.

Buying Notes

• This part should be selected by machine revision, connection style, and physical fit, not by title similarity alone.
• If your printer has multiple board, cable, or motor revisions, compare the old part directly before ordering.
• For critical electronics or motion parts, professional installation is recommended after fitment is confirmed.
