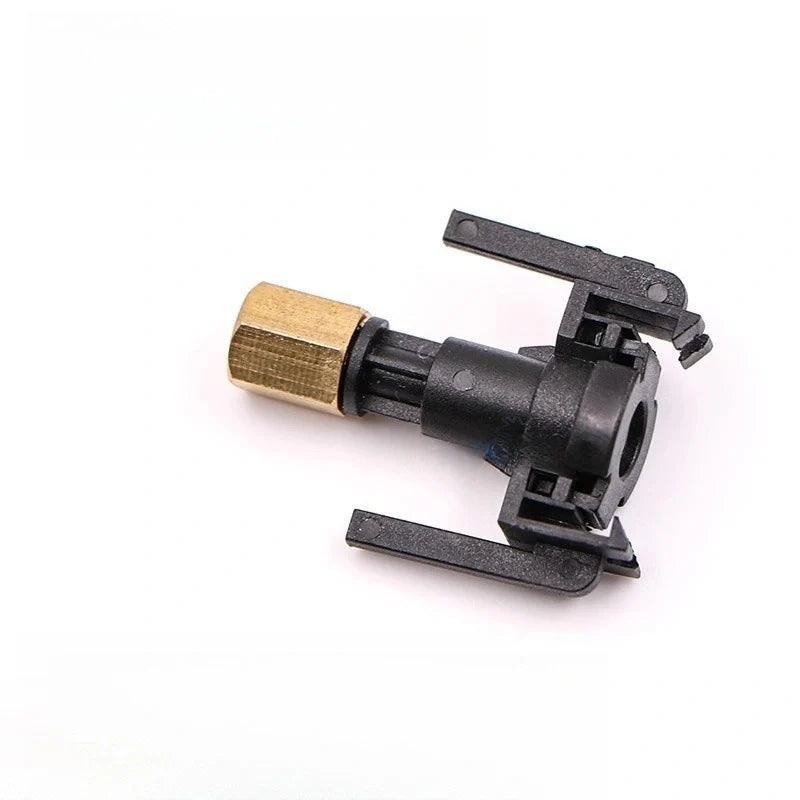

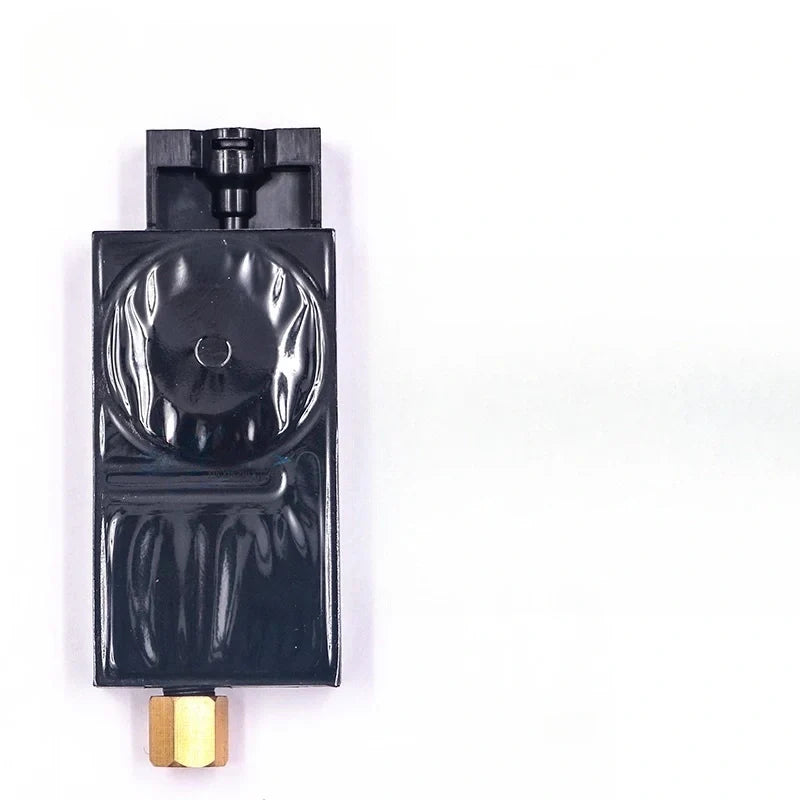

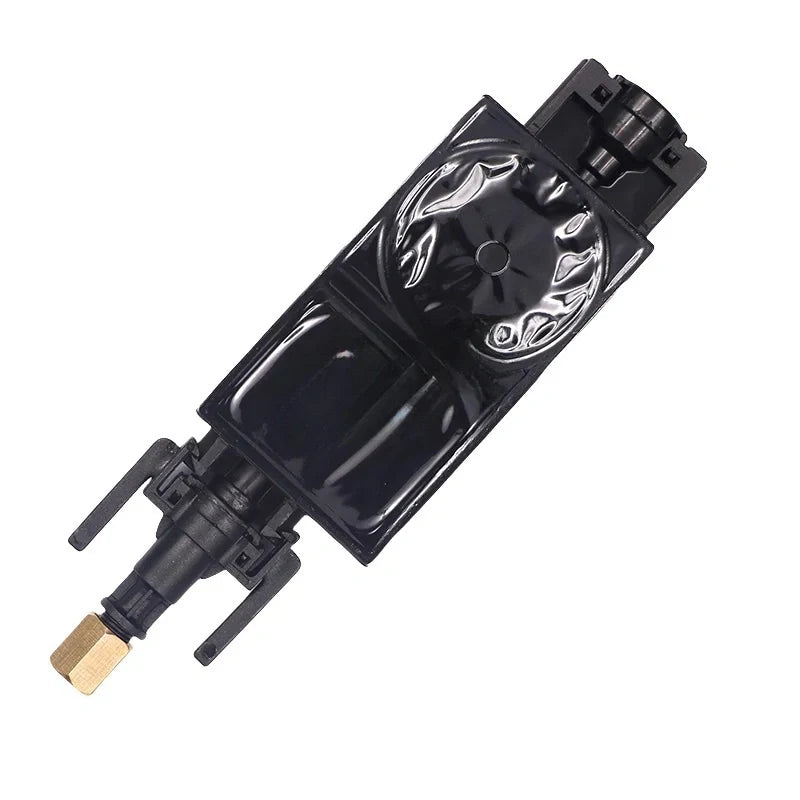

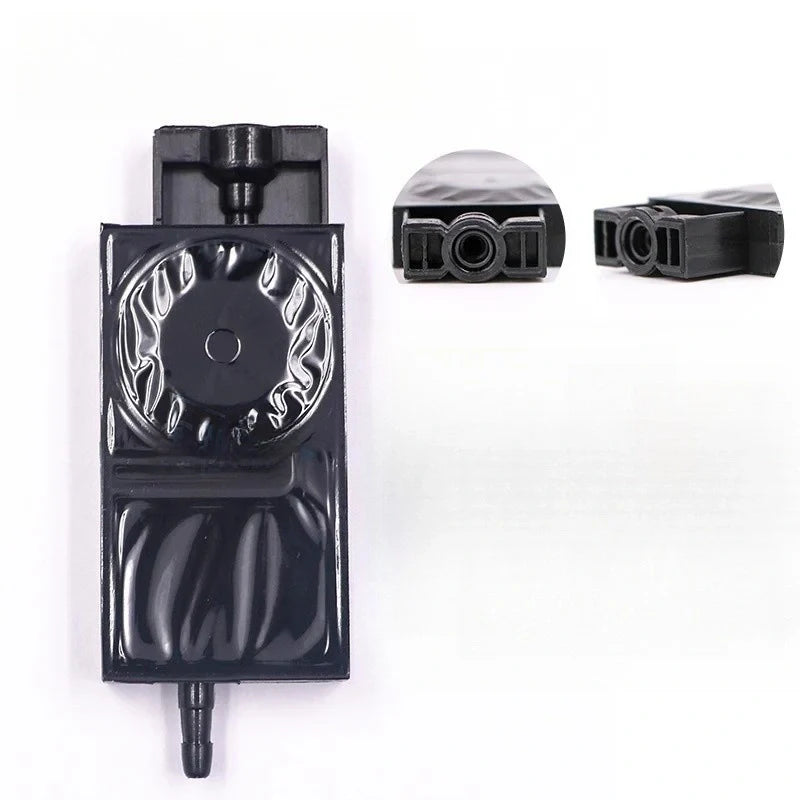

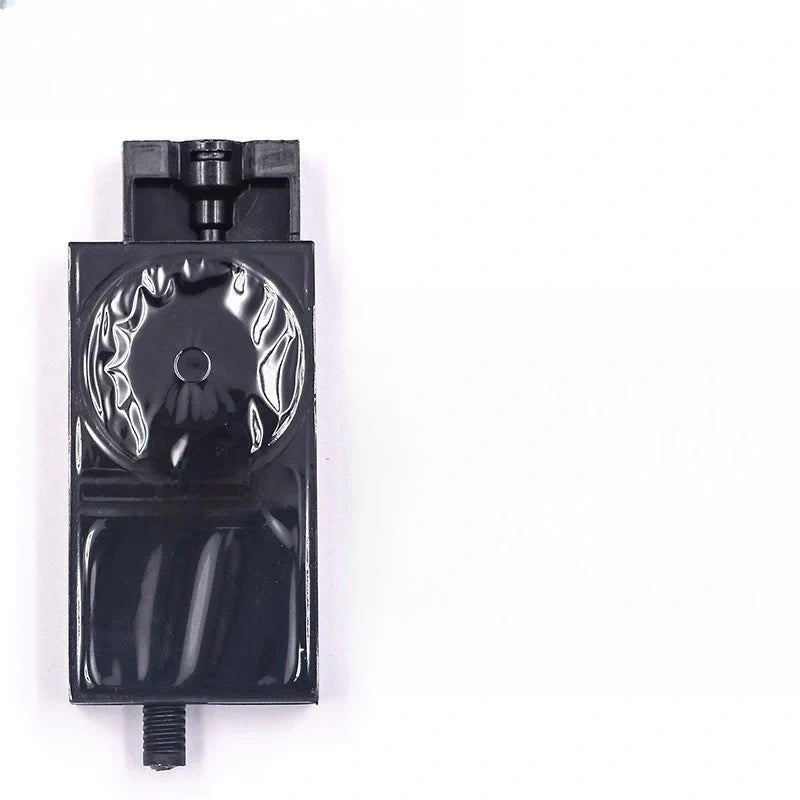

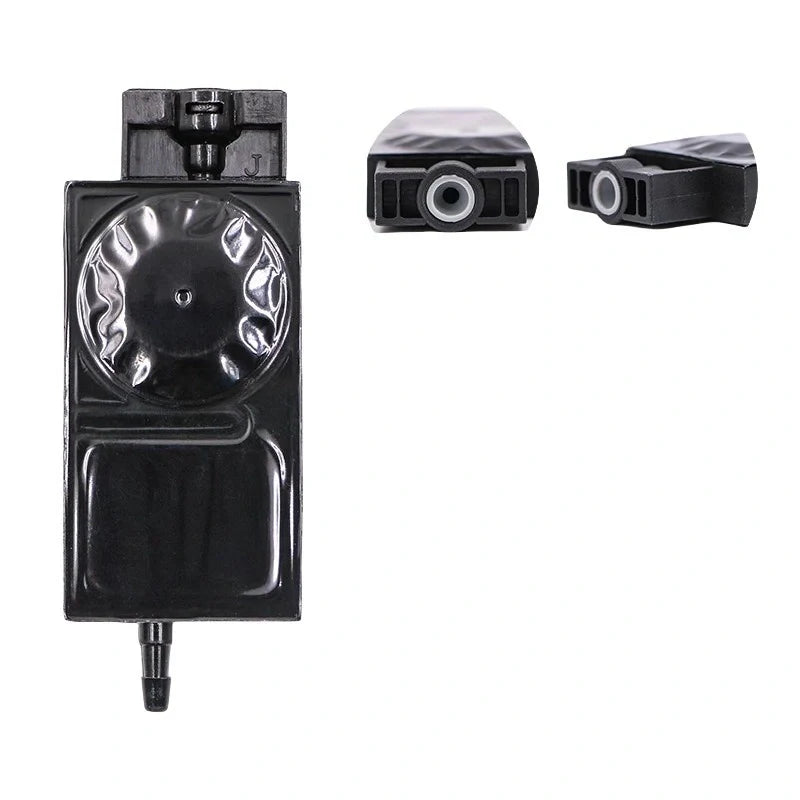

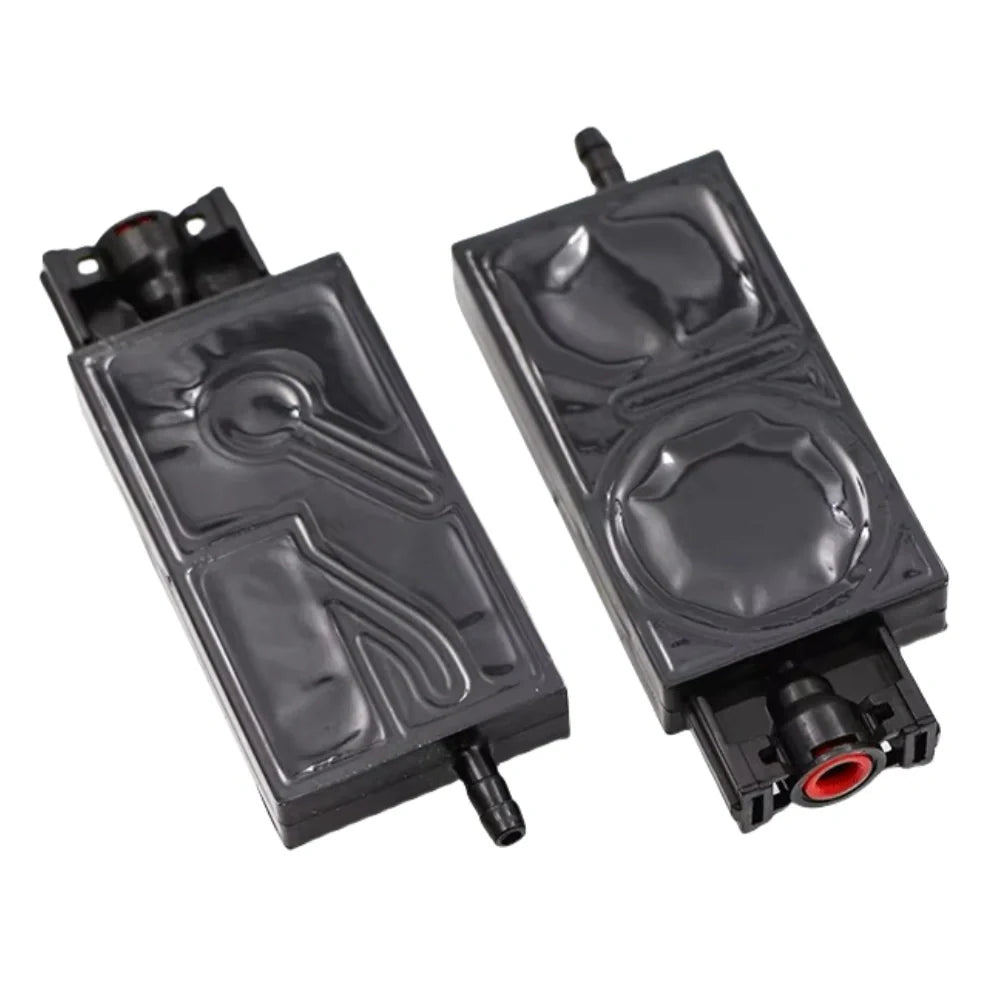

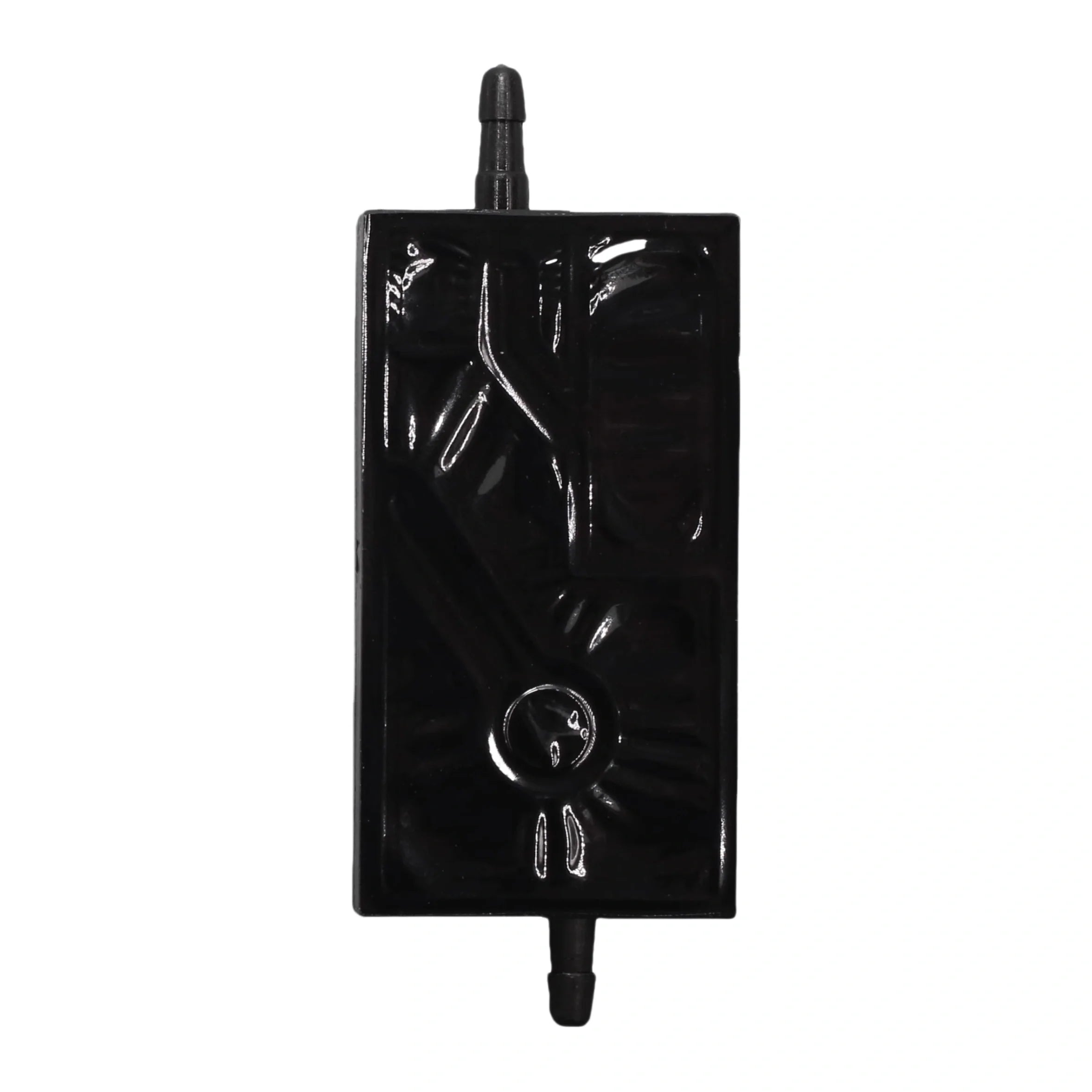

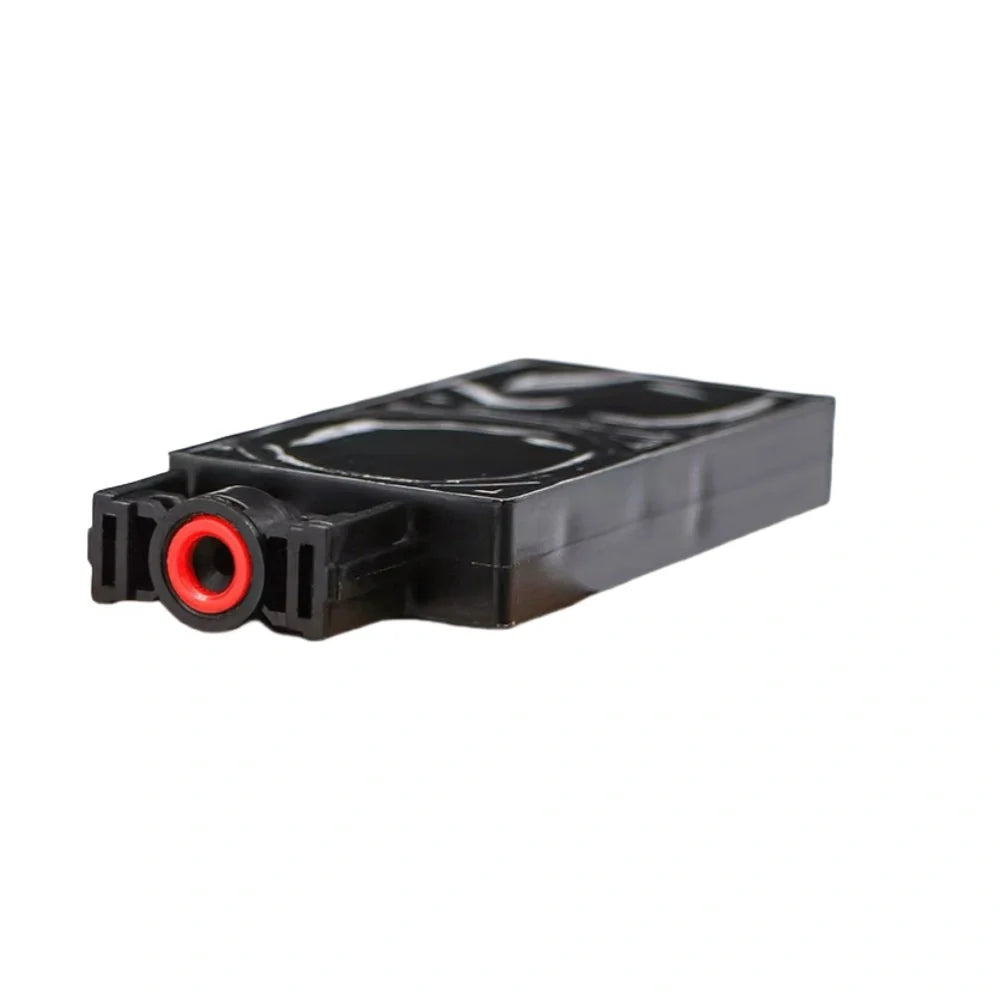

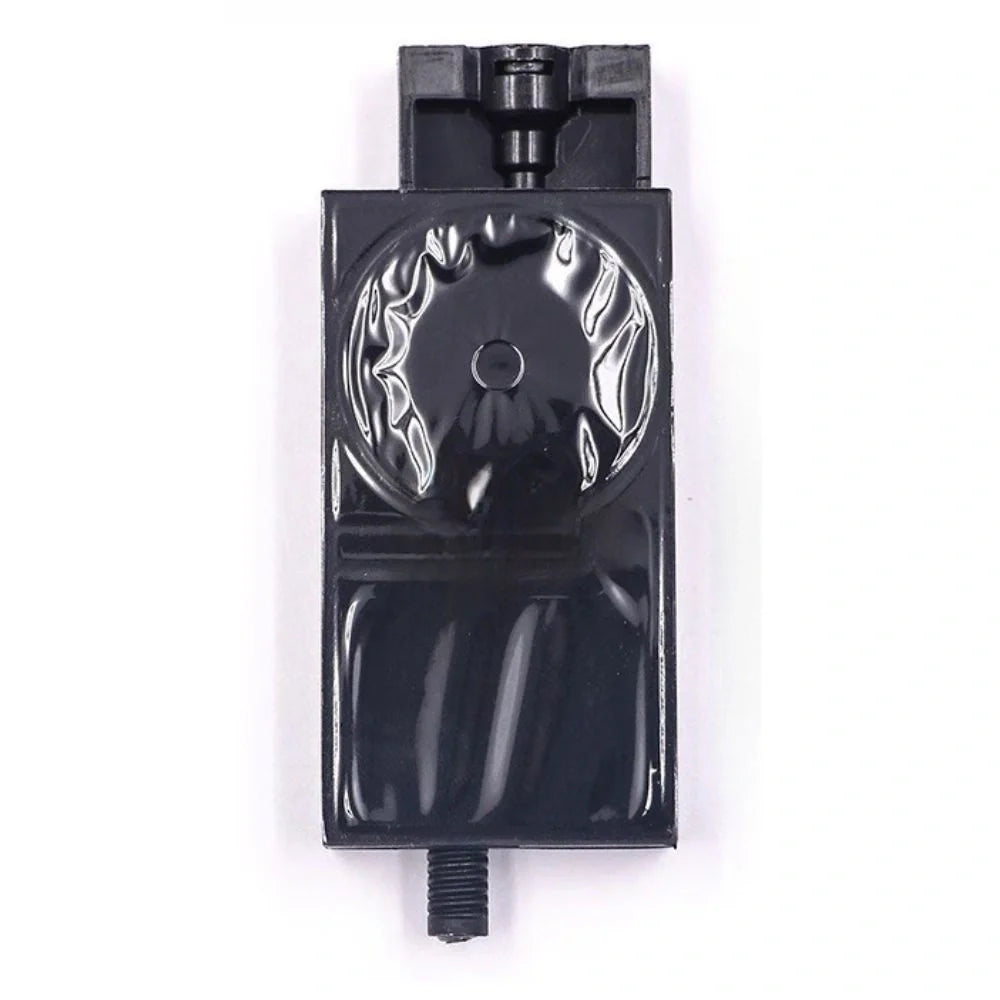

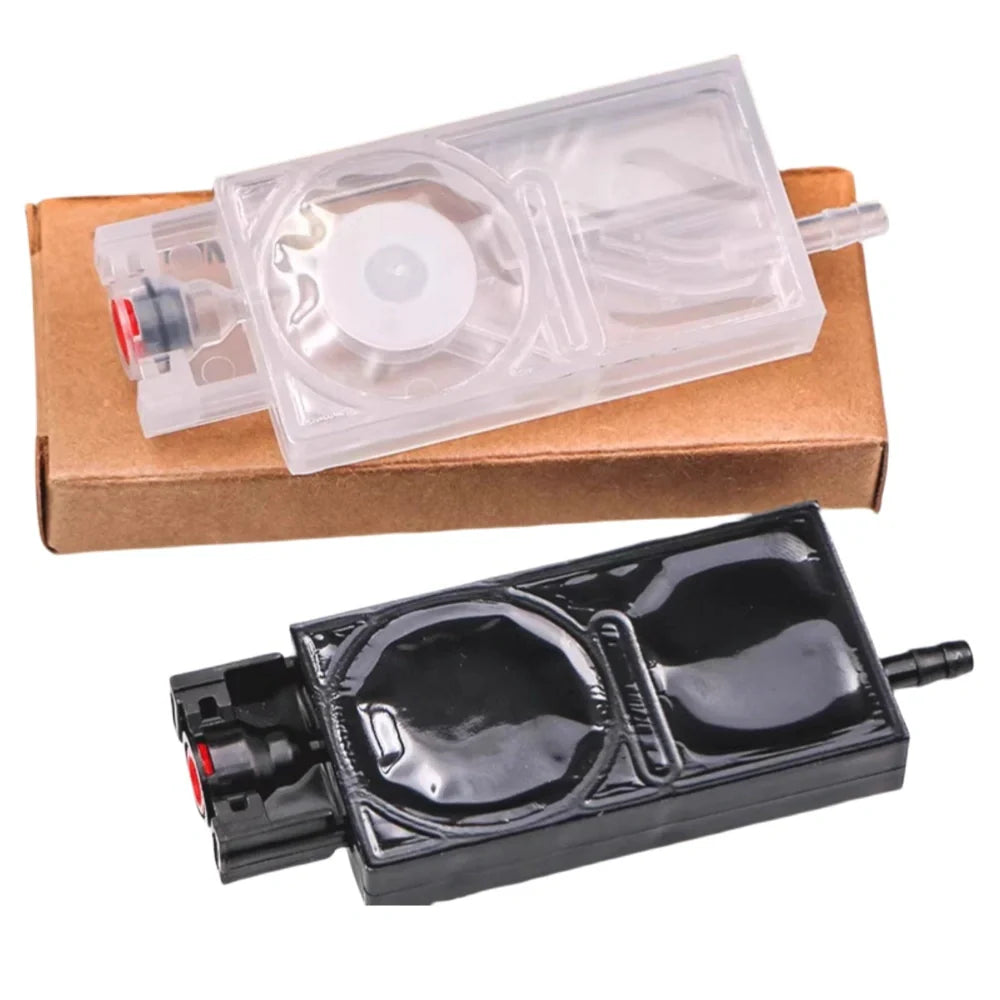

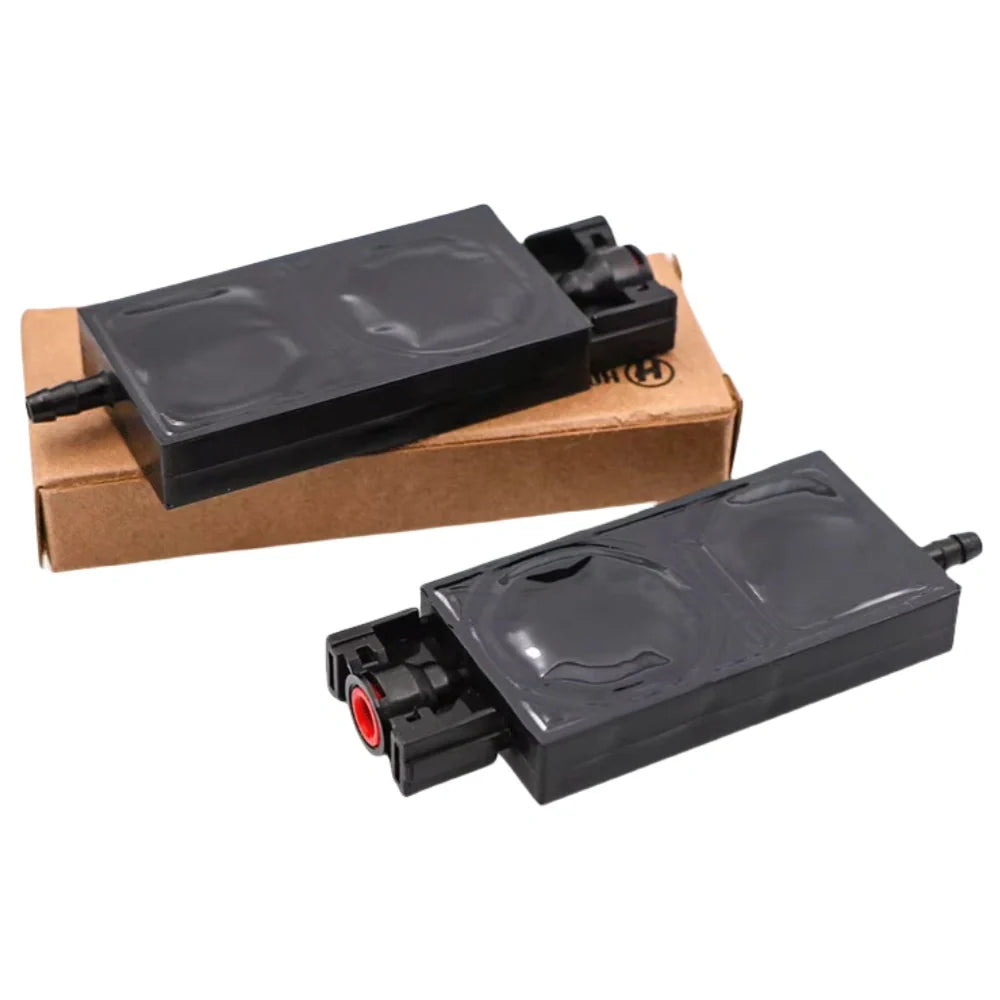

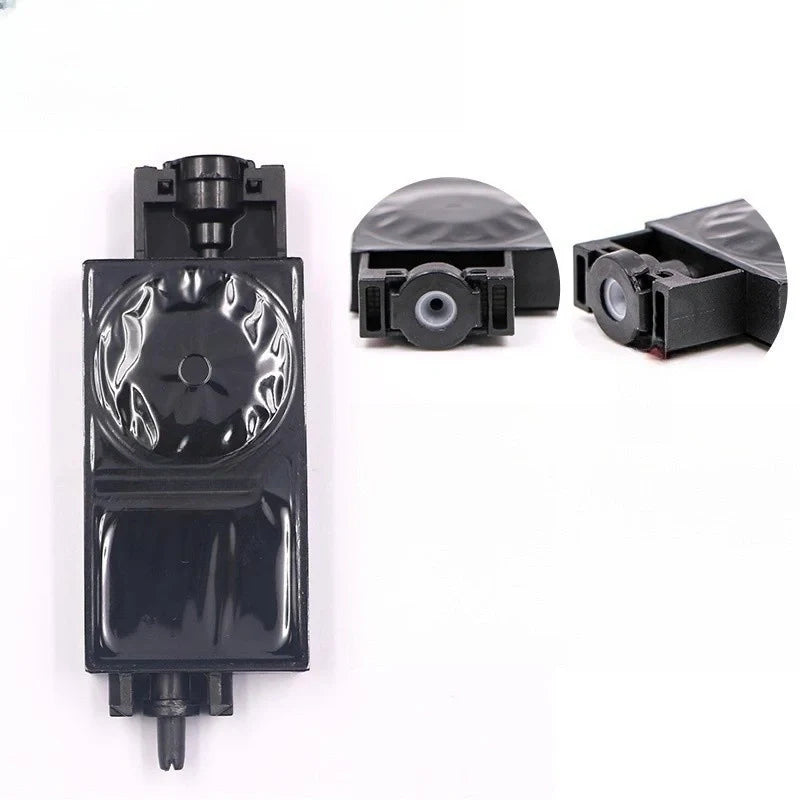

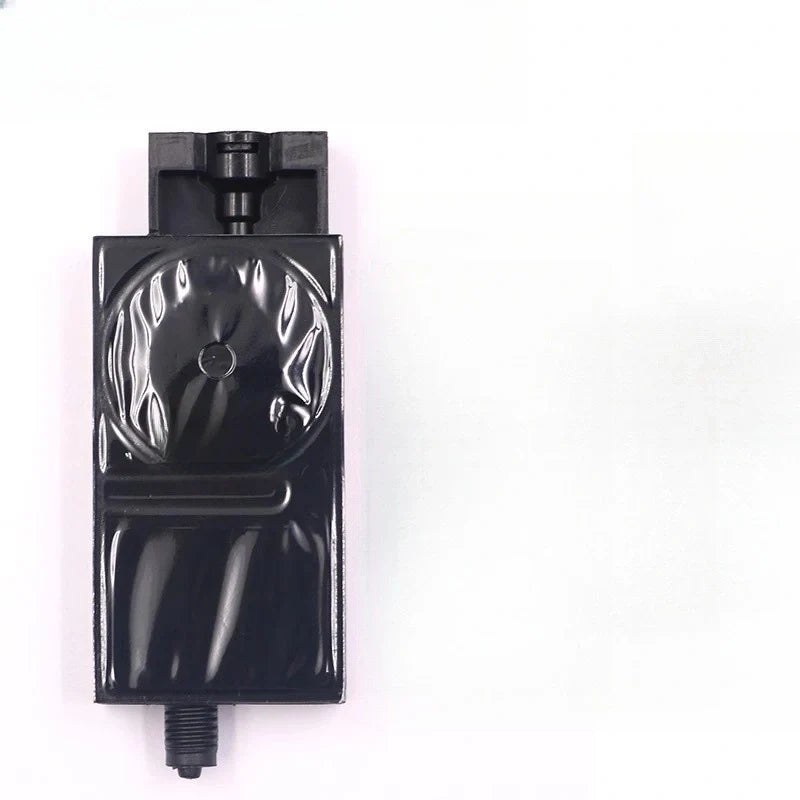

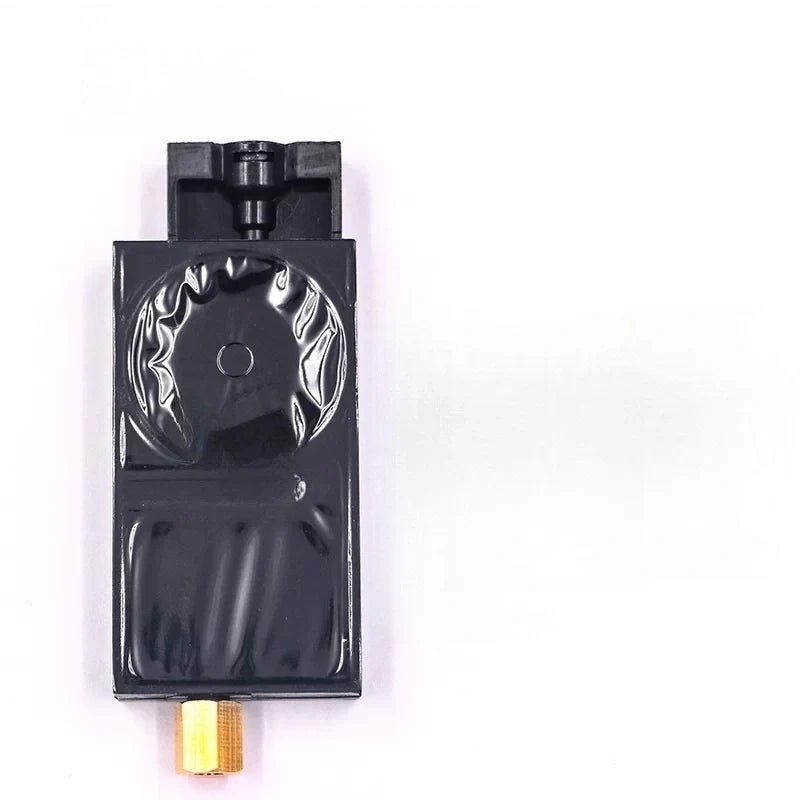

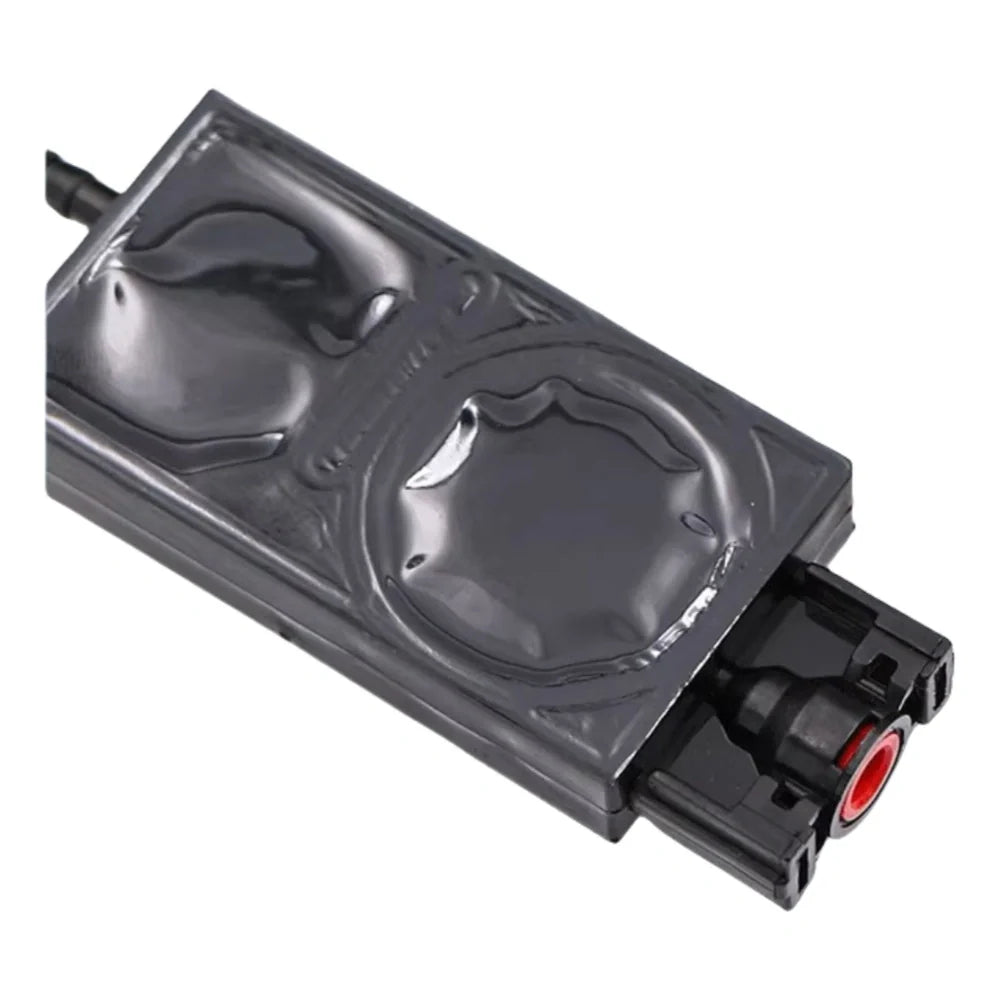

Epson 4720 UV Ink Damper Assembly

This ink damper assembly is engineered for Epson 4720 printhead applications where stable negative pressure and clean ink delivery are essential. It supports a wide range of ink system structures used in UV, eco-solvent and DTF printers.

Main Advantages

• Maintains stable back pressure during continuous printing
• Helps reduce ink starvation, air bubbles and nozzle drop-out
• Compatible with both old and new ink cap configurations
• Multiple connection styles to match different printer designs

Model Configuration Guide

Application Scope

Used in wide-format UV printers, flatbed printers and roll-to-roll machines equipped with Epson 4720 and compatible printheads.

Usage Tips

• Always match damper type with ink tube size and ink cap structure
• Replace dampers periodically for consistent ink performance
• Check for air accumulation after installation

Use Position & Function

• The damper is normally installed between the ink supply path and the printhead to stabilize pressure and reduce bubbles.
• It helps support smoother ink delivery and can also assist with filtering fine particles before ink reaches the printhead.
• Damper performance has a direct effect on ink stability, especially on multi-channel or high-speed printers.

Compatibility Reference

• Referenced machine models: I3200, XP600, TX800.
• Referenced printheads: DX5, I3200, XP600, TX800.
• Suitable for solvent use when the connector type, orientation, and sealing method match the reference damper.

When Buyers Replace This Part

• Replace when ink flow becomes unstable, bubbles increase, colors drop out, or the damper body becomes contaminated or deformed.
• Compare the manufacturer part number, connection layout, and mounting direction before ordering.
• For best maintenance results, buyers often inspect cap tops, tubing, and ink filters at the same time.

Common Replacement Scenarios

• Replace when colors intermittently drop out, bubbles appear repeatedly, or the printhead side shows unstable ink feeding.
• Inspect this part when the damper body becomes stained, swollen, cracked, or no longer seals reliably.
• On printers with multiple channels, one weak damper can affect daily color consistency even if the printhead is still usable.

Fitment Checklist

• Referenced machine models: I3200, XP600, TX800.
• Referenced printheads: DX5, I3200, XP600, TX800.
• Check joint style, filter structure, connector direction, sealing method, and manufacturer reference before final purchase.

Service Pairing Suggestions

• Many buyers inspect cap tops, ink tubes, pumps, and filters at the same time when damper problems appear.
• Use this damper only when the solvent ink path, connector style, and physical size match the reference assembly.
• Professional installation is recommended when the printer uses a sealed manifold or tightly packed multi-channel head carriage.
