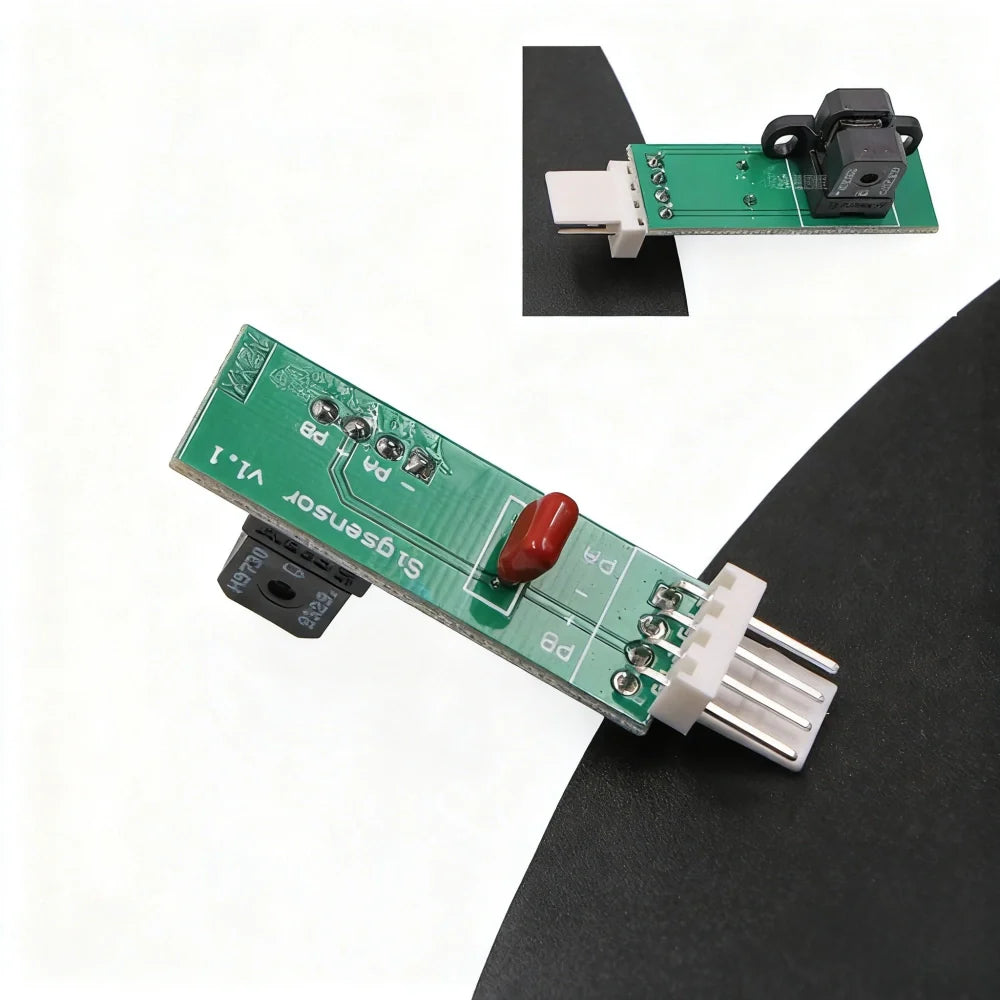

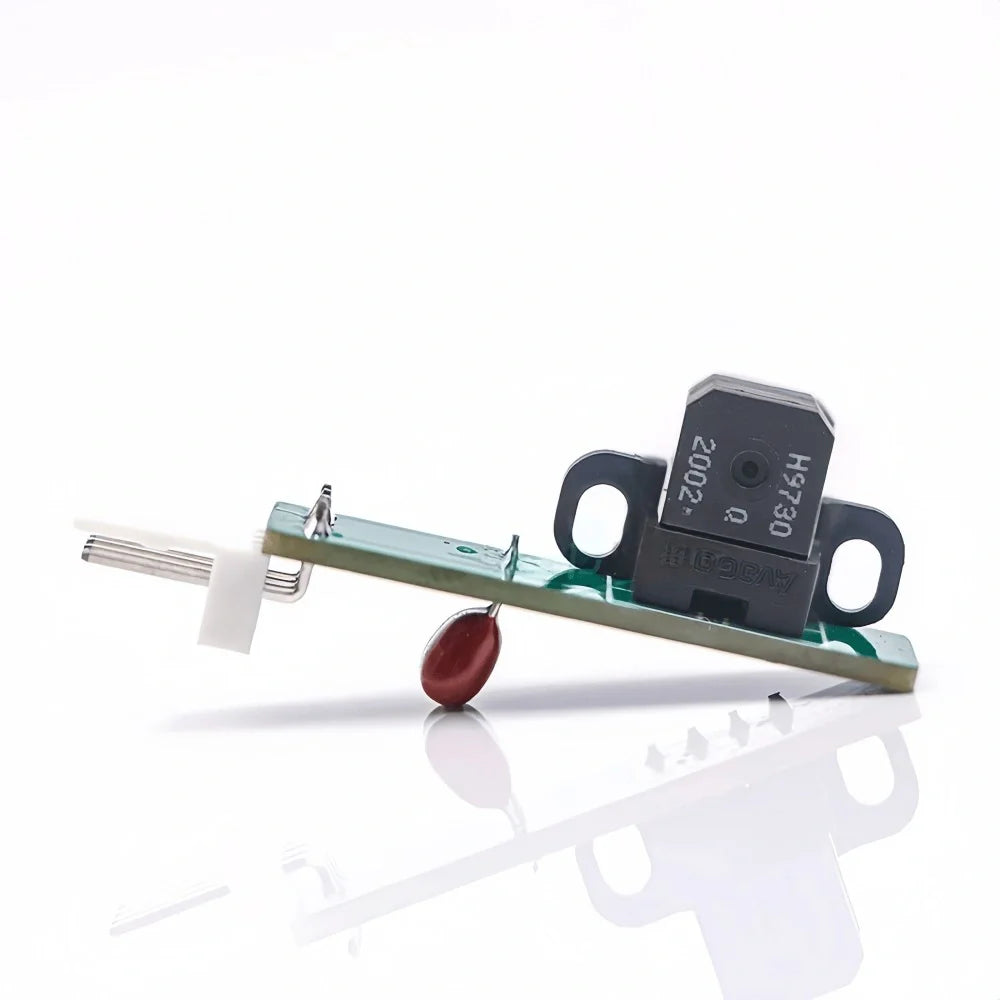

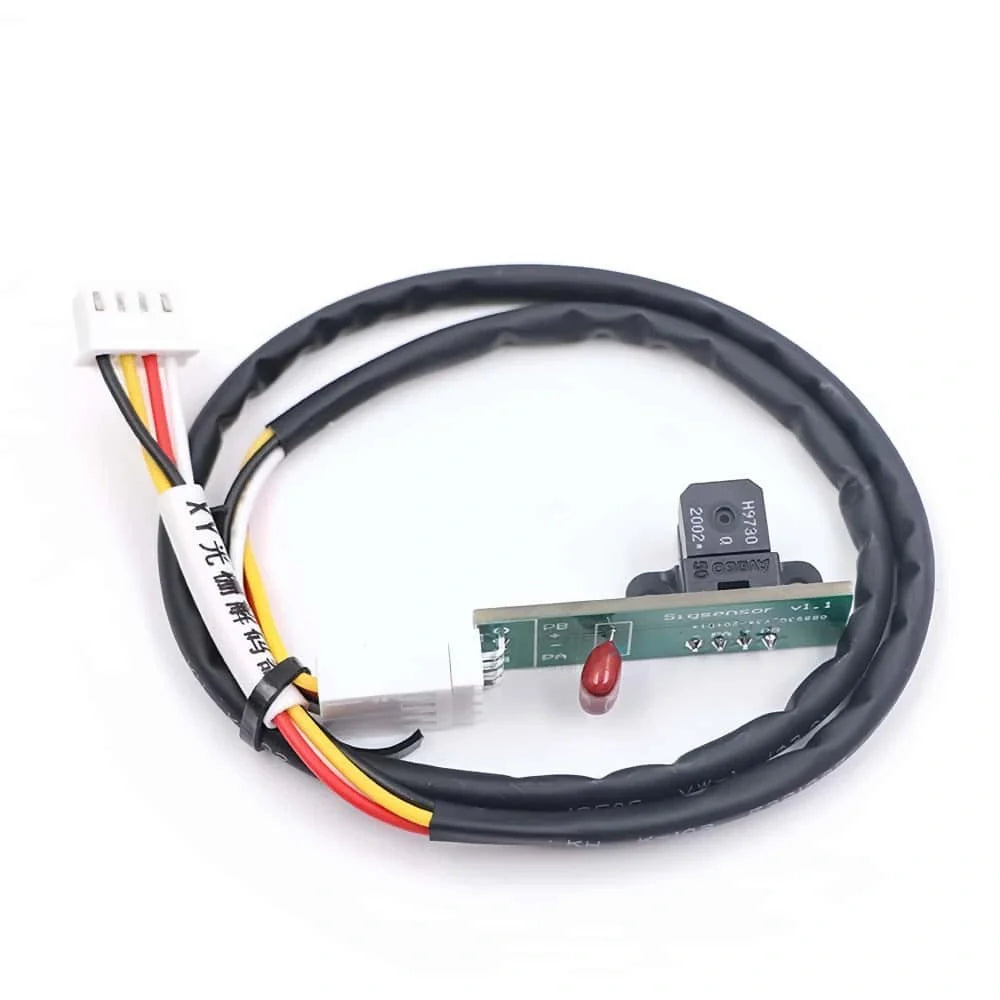

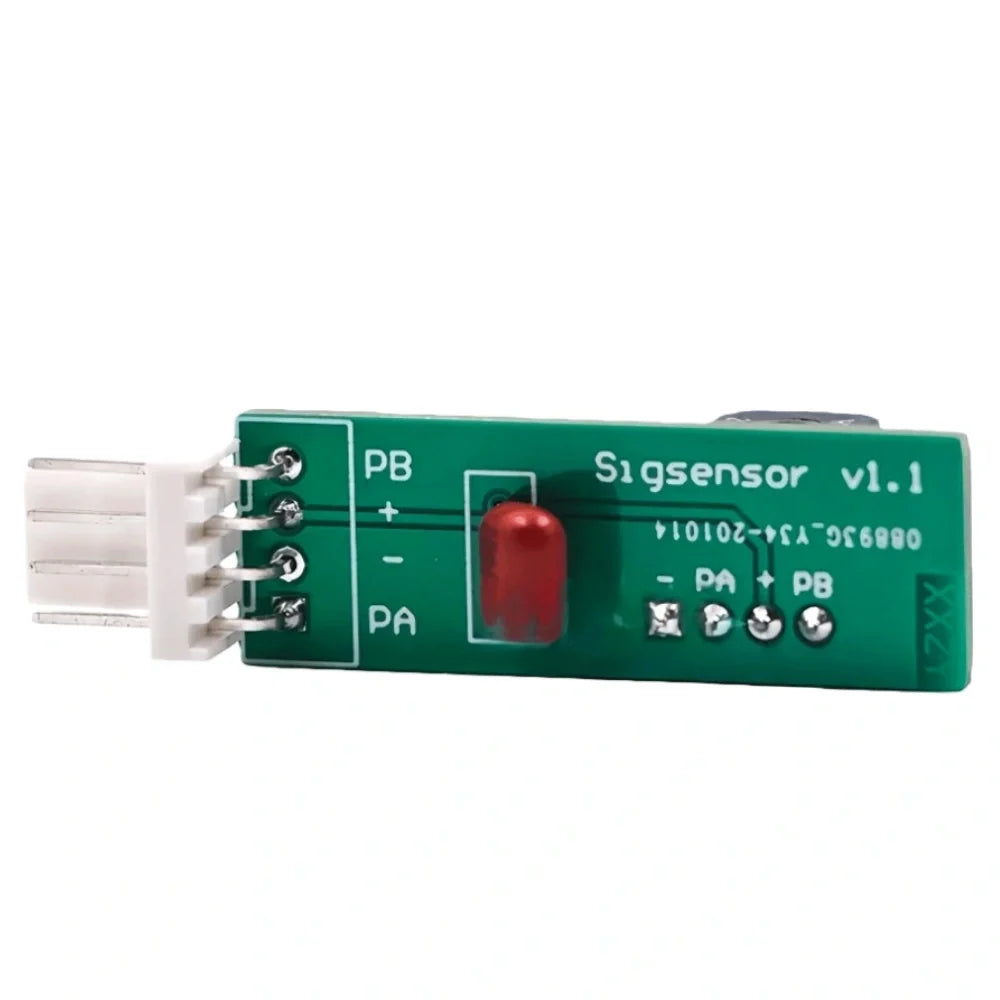

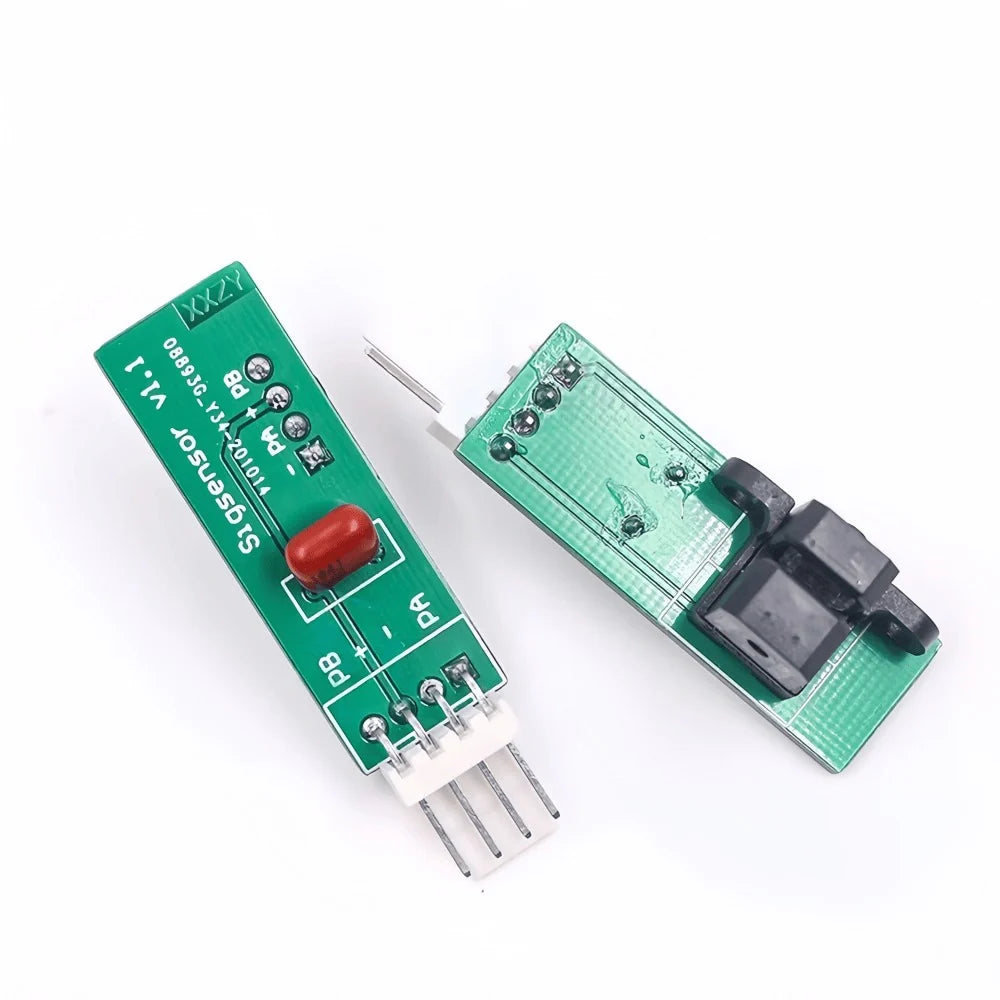

H9730 (2002) Optical Encoder Sensor for UV Flatbed Printers

H9730 (2002) Optical Encoder Sensor for UV Flatbed Printers is built for buyers who need help restoring accurate carriage positioning, reduce ghosting or offset, and recover stable optical encoder / printer decoder signal feedback so the printer can return to normal production faster.

This page is designed to help you judge three things quickly: whether this product is relevant to your current fault, which option you should choose, and what technical information should be checked before you place the order.

Why Buyers Choose This Decoder

• Restore accurate positioning and reduce ghosting or offset risk
• Support more stable signal feedback during carriage movement
• Lower buying risk with compatibility review before shipment

Need a fast compatibility check before ordering? Send your printer model, mainboard photo, and old part photo. We will help you confirm the right decoder option.

Ask Compatibility Request Quote Request Sample Send Printer Model

Common Fault Scenarios This Part Helps Address

• Print shifting, double image, or repeated offset appears because the carriage loses accurate positioning
• Carriage shaking, encoder error, or signal instability interrupts normal printing and motion control
• You need to replace the printer decoder or optical encoder first before checking board, cable, or strip condition

Choose The Right Option Before You Order

Choose the option based on what you actually need to replace, not only by product title. If you are uncertain, send your old part photo and connector view before payment.

Technical Specifications

Compatibility Checkpoints

• Referenced printer models: H9730, H9720.
• Typical equipment range: UV flatbed and UV hybrid printers; Large-format and roll-to-roll printers.
• Mainboard system such as Hoson, BYHX, or similar controller should be confirmed by machine model or board photo before payment.
• If your machine uses a specific encoder-strip resolution, send the reference strip or service note for confirmation.
• Matched encoder strip or reading standard: Confirm strip specification by machine.
• If you are not sure, send the printer model, the carriage photo, and the old part photo so we can help confirm fit before shipment.

Best practice: send your printer model, mainboard system, connector photo, and old part number. That makes compatibility confirmation much faster and lowers wrong-order risk.

Need a fast compatibility check before ordering? Send your printer model, mainboard photo, and old part photo. We will help you confirm the right decoder option.

Ask Compatibility Request Quote Request Sample Send Printer Model

Installation And Use Notes

• Turn off the machine before installation and align the decoder with the encoder strip or motion path correctly.
• Keep the sensor window and encoder strip clean, and avoid touching the optical reading area with bare fingers.
• Check cable routing, connector direction, and mounting position before powering the printer back on.
• Before final startup, make sure the line is connected correctly and the strip-to-sensor gap is consistent.
• After replacement, test carriage travel and confirm the machine no longer shows print shifting, double image, carriage shaking, encoder error, or signal instability.

Support And Buying Confidence

• Compatibility confirmation before shipment helps reduce wrong-part risk.
• Support is available for model review, connector check, and basic replacement questions.
• Many products support multiple printer models, but industrial printer parts often have multiple revisions, so part-number and photo confirmation is strongly recommended.
• Fast response is available for quotation, sample discussion, and export-order questions.
• If needed, you can send your printer model or machine photo before ordering and we will help review fit first.

Need Help Before Ordering?

Send us your printer model, the old decoder photo, the connector view, and any error description you see on the machine. We will help you confirm whether this is the correct replacement path.

Need a fast compatibility check before ordering? Send your printer model, mainboard photo, and old part photo. We will help you confirm the right decoder option.

Ask Compatibility Request Quote Request Sample Send Printer Model
