Description
Description
x

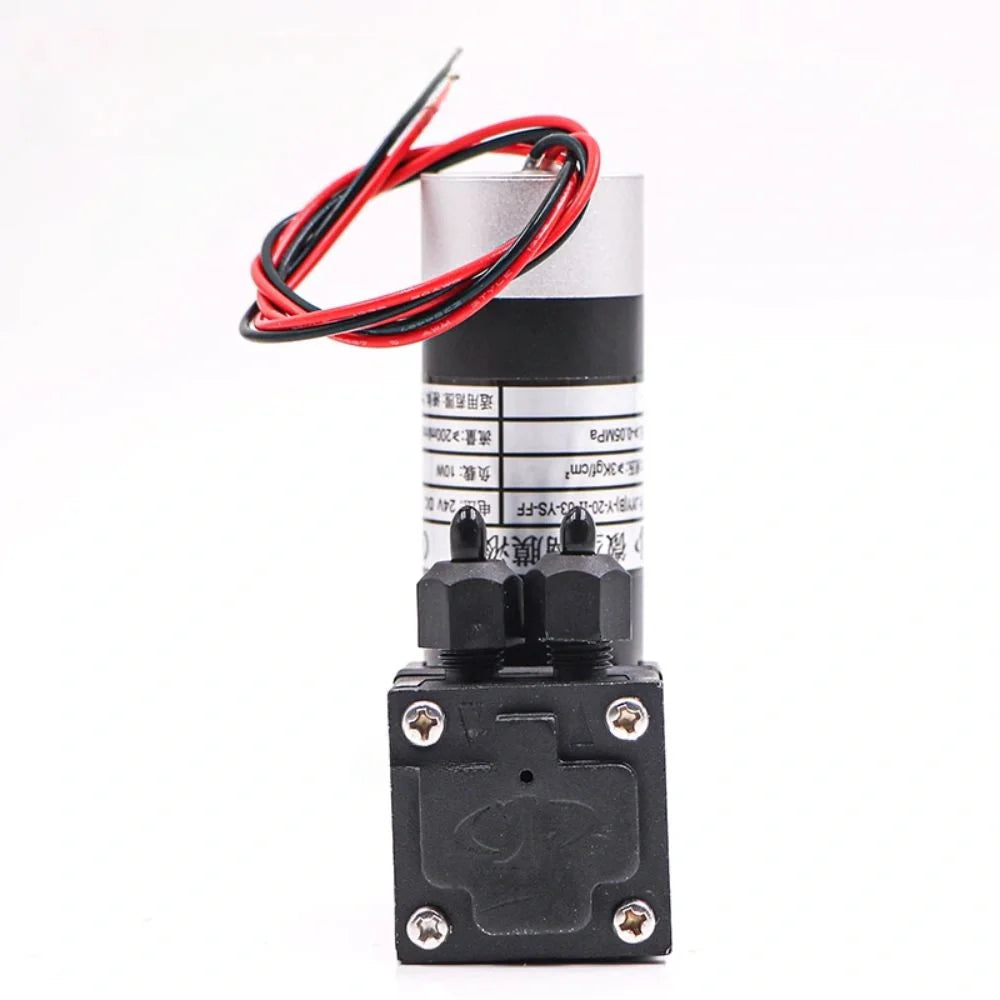

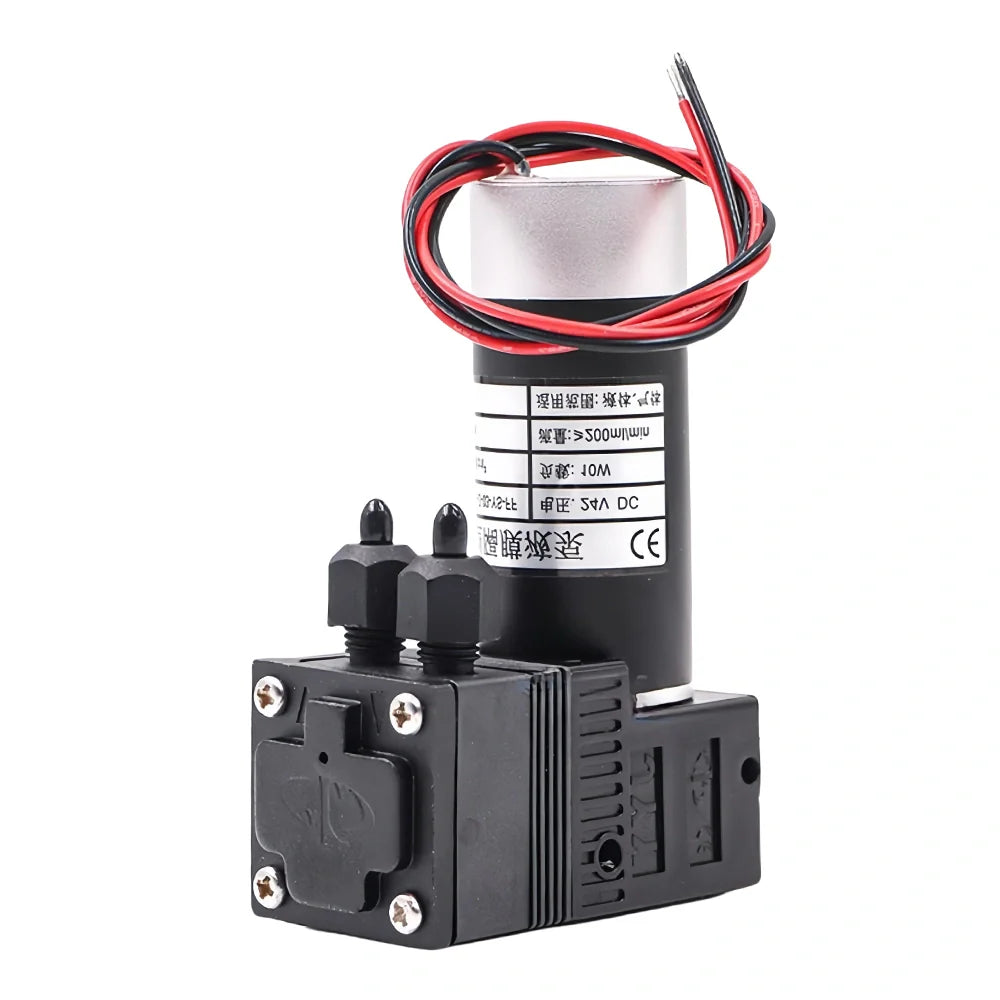

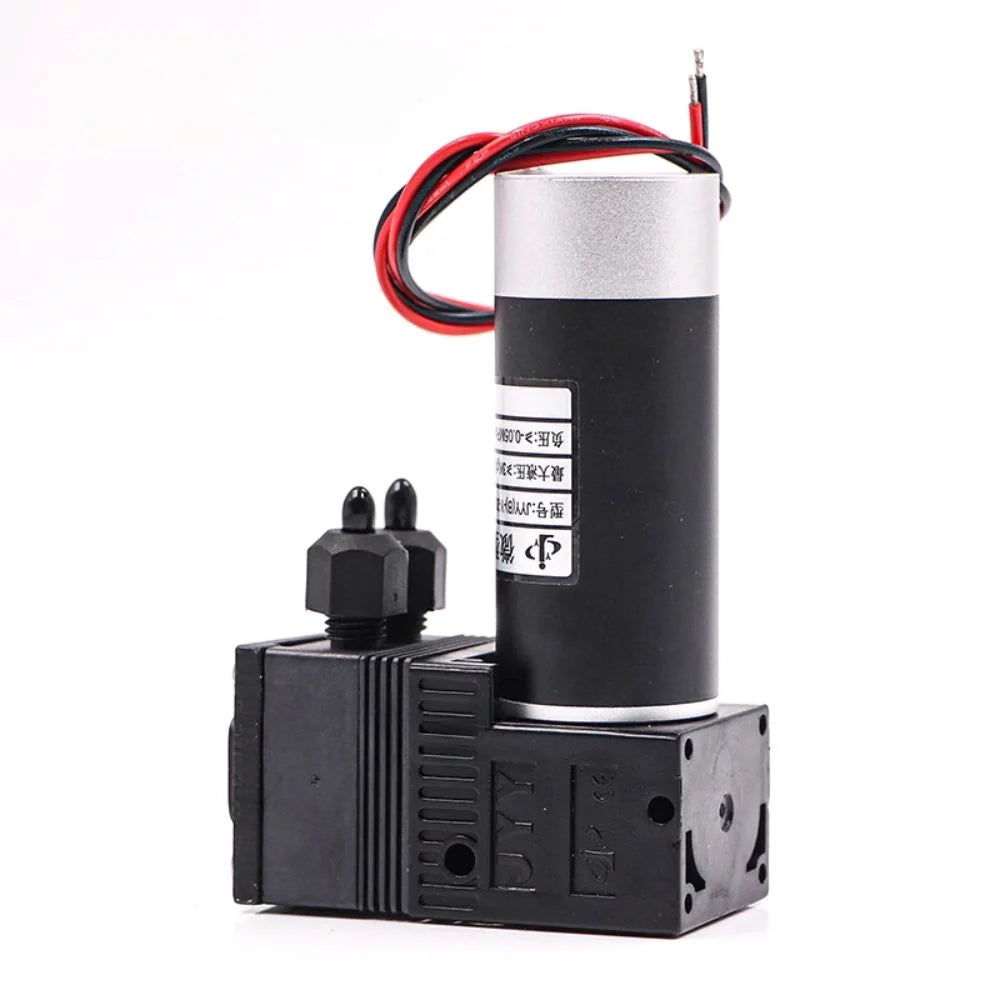

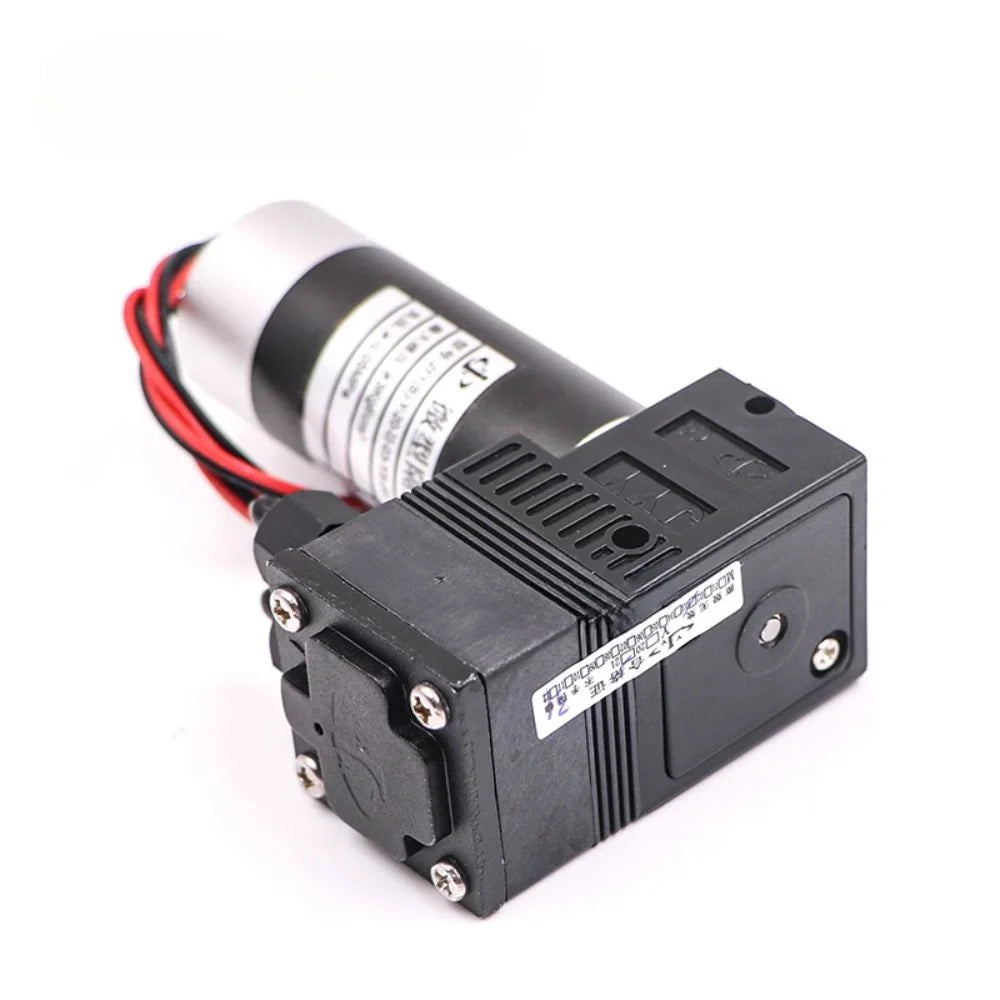

The JYY(B)-Y-20-II-03-YS-FF is a high-pressure micro diaphragm ink pump engineered for precision ink delivery and air transfer in industrial coding machines, UV flatbed printers, and high-viscosity ink systems. It is especially suitable for applications that require reliable pressure output, such as white UV ink circulation and ceramic ink delivery.

Powered by DC 24V with a strong 10W motor, this pump provides a stable liquid flow rate of ≥200 ml/min and supports working pressure of ≥3 kgf/cm². The reinforced pump head, sealed diaphragm construction, and dual-port design help ensure durable performance under continuous, high-load operation.

Key Performance

  • High-pressure output: supports ≥3 kgf/cm² for demanding ink delivery
  • Stable flow: ≥200 ml/min for continuous circulation and transfer
  • Viscous ink ready: suitable for UV white ink / ceramic ink applications
  • Dual-use media: supports both liquid and air transfer

Technical Specifications

Model JYY(B)-Y-20-II-03-YS-FF
Operating Voltage DC 24V
Rated Power 10W
Flow Rate ≥200 ml/min
Pressure Capability ≥3 kgf/cm²
Pump Type High-pressure micro diaphragm pump
Supported Media UV ink, ceramic ink, solvent, water, air
Port Design Dual inlet / outlet

Applications

  • UV flatbed printers: white ink circulation and pressurized ink supply
  • Ceramic ink delivery systems requiring stable pressure and flow
  • Industrial coding/marking machines: ink transfer and recovery lines
  • Hybrid liquid + air pumping systems (vacuum assist / exhaust / suction)

Installation Notes

  • Confirm voltage (DC 24V) and wiring before installation.
  • Match tubing size and ensure correct IN/OUT direction to avoid reverse flow.
  • For white ink or ceramic ink systems, keep circulation running as recommended to reduce sediment risks.

If you need help matching the correct variant, please send your printer model, ink type, and the required pressure/flow range for a quick recommendation.
