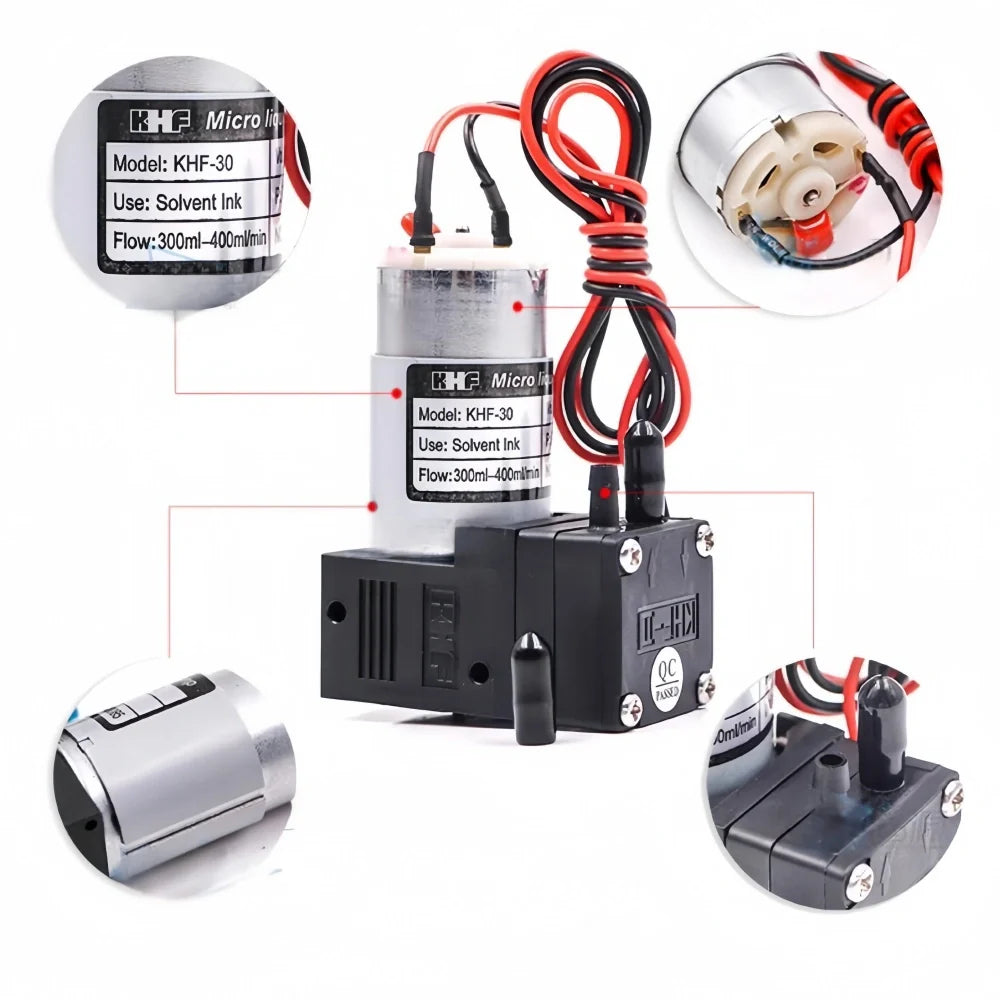

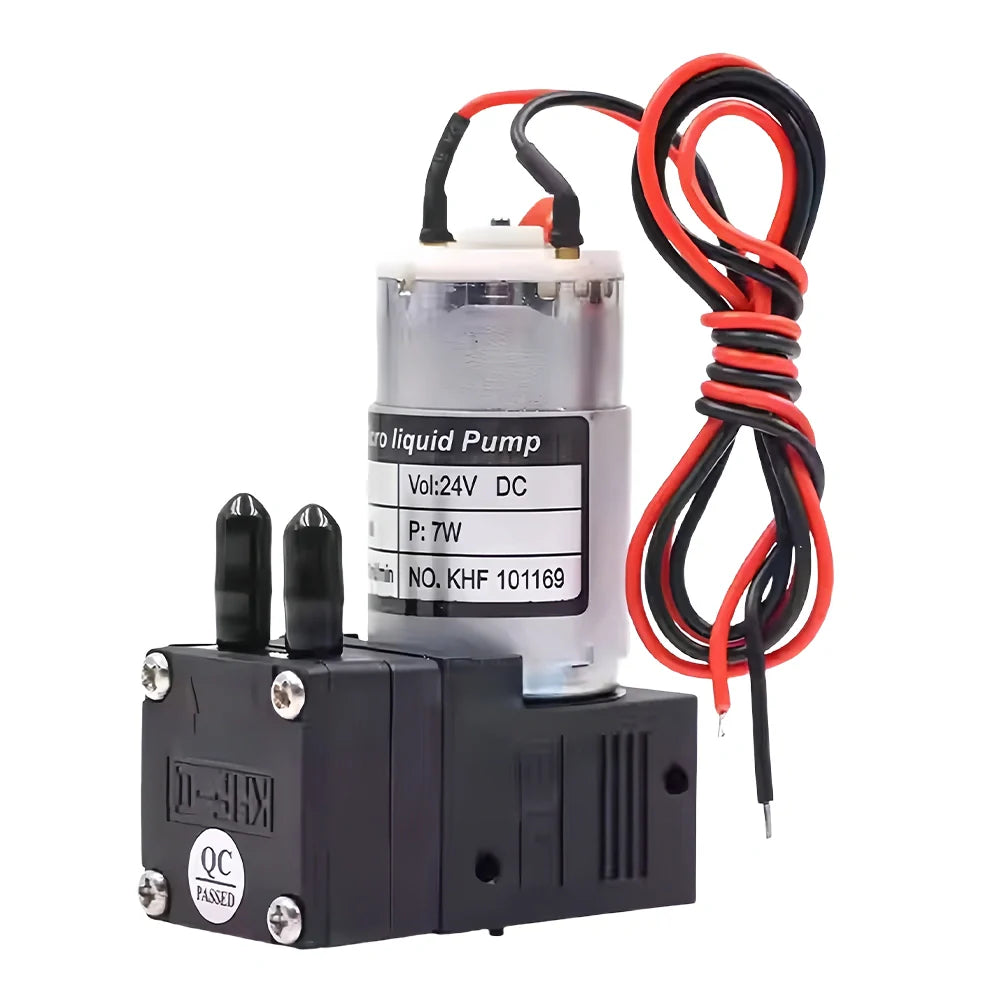

KHF-30 Solvent Ink Diaphragm Pump

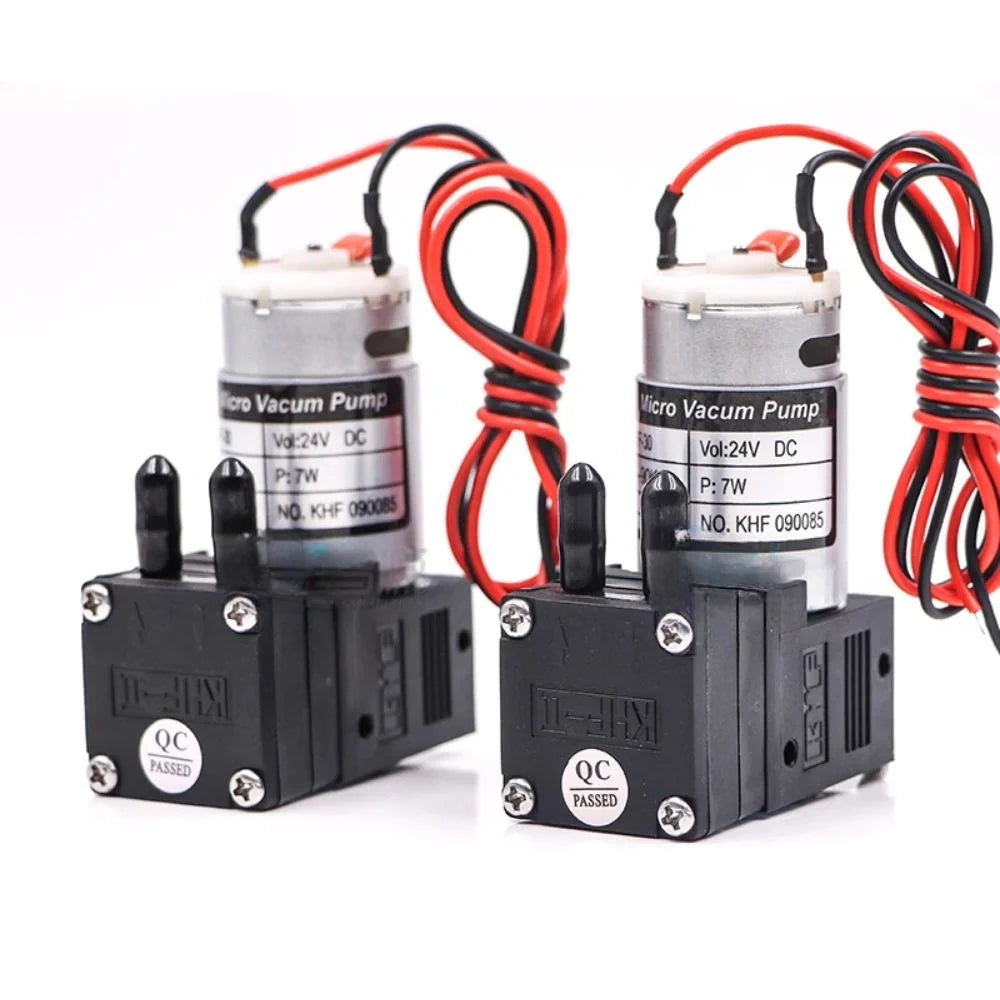

The KHF-30 is a high-flow micro diaphragm pump developed for solvent ink circulation in industrial inkjet printing systems. Operating at 24V DC with a 7W motor, it provides stable ink delivery with a flow rate of 300–400ml/min, making it suitable for high-speed and continuous printing environments.

Designed with solvent-resistant internal components, the KHF-30 supports both liquid and air transmission. Its compact structure, low noise output, and stable vacuum performance help maintain consistent ink flow and reduce printing downtime.

The pump housing features an aluminum heat-dissipation structure, improving thermal stability during long-term operation. Integrated ink pipe ports and solderable power terminals allow quick and secure installation in various printer systems.

Key Features

• Optimized for solvent ink circulation and air transfer
• Stable diaphragm structure with strong vacuum performance
• Low-noise operation for industrial printing environments
• Heat-dissipating aluminum housing for continuous use
• Compact design for easy system integration

Technical Specifications

Connection Details

• Integrated ink pipe ports for direct hose connection
• Soldering terminals for stable electrical connection
• Aluminum shell improves heat dissipation

The KHF-30 is an ideal choice for solvent-based ink systems requiring reliable circulation, strong suction, and long-term operational stability.
