Konica Minolta REVO-H Inkjet Printhead

Konica Minolta REVO-H Printhead

Konica Minolta REVO-H Printhead is supplied for professional printing systems that need stable output, precise droplet placement, and lower downtime risk.

• Model-reference printhead
• Stable printing and lower clogging risk when matched with the correct ink system
• Compatible with UV-curable inks
• shipping details confirmed before payment shipping and compatibility support before order

Not sure if it fits your printer? Contact us with your printer model, printhead model, and ink type before you order.

Ask Compatibility Request Current Quote Request Test Video

Before You Order

• Confirm printer model
• Confirm printhead model
• Confirm ink type (UV-curable inks)
• Contact us if you are not sure

Why Choose Us

• Model-reference printhead
• Model and appearance check before shipment
• Real product photos available on request
• Anti-static packing with foam protection
• After-sales support for compatibility questions

Technical Specifications

Applications

• Textile Printing Systems
• Packaging Printing
• Signage & Graphics
• UV Flatbed Printing
• Industrial Product Decoration

Compatibility note: Printhead fit depends on printer design, ink type, cable setup, and board configuration. Please confirm these details before purchase to reduce ordering mistakes.

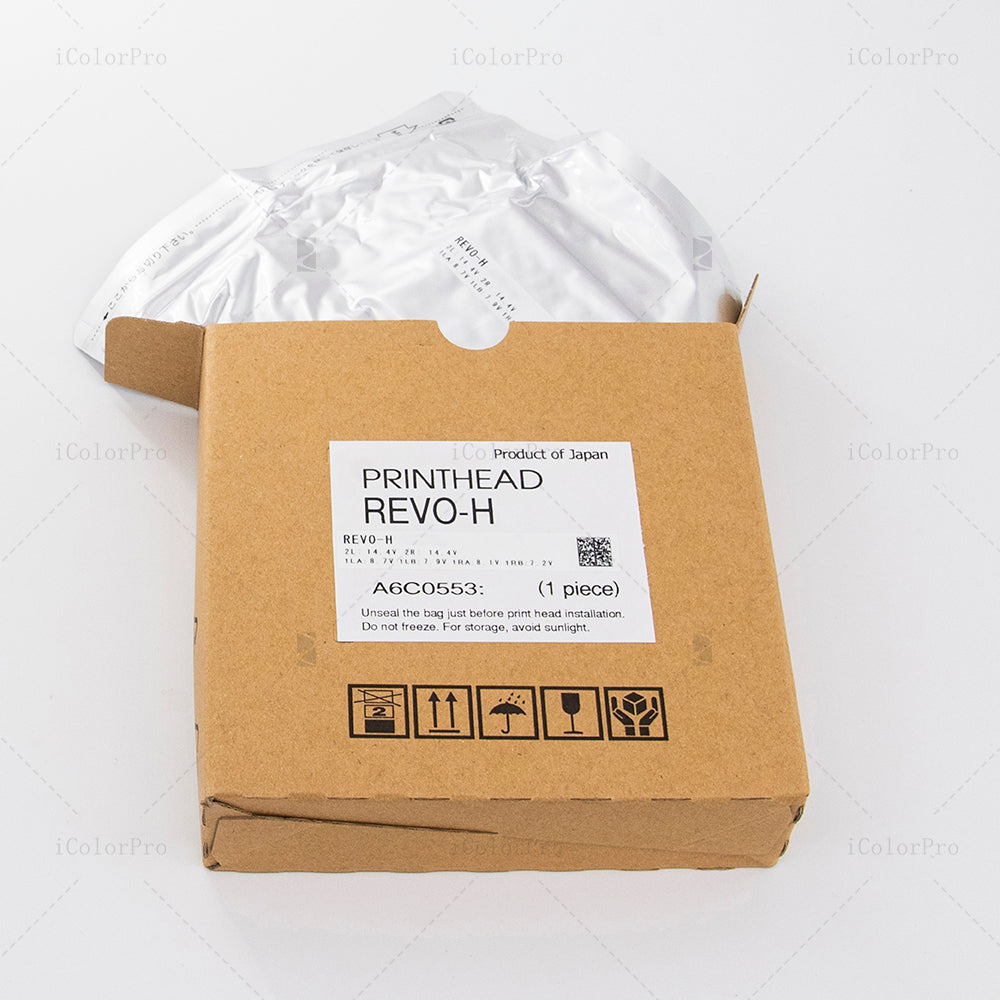

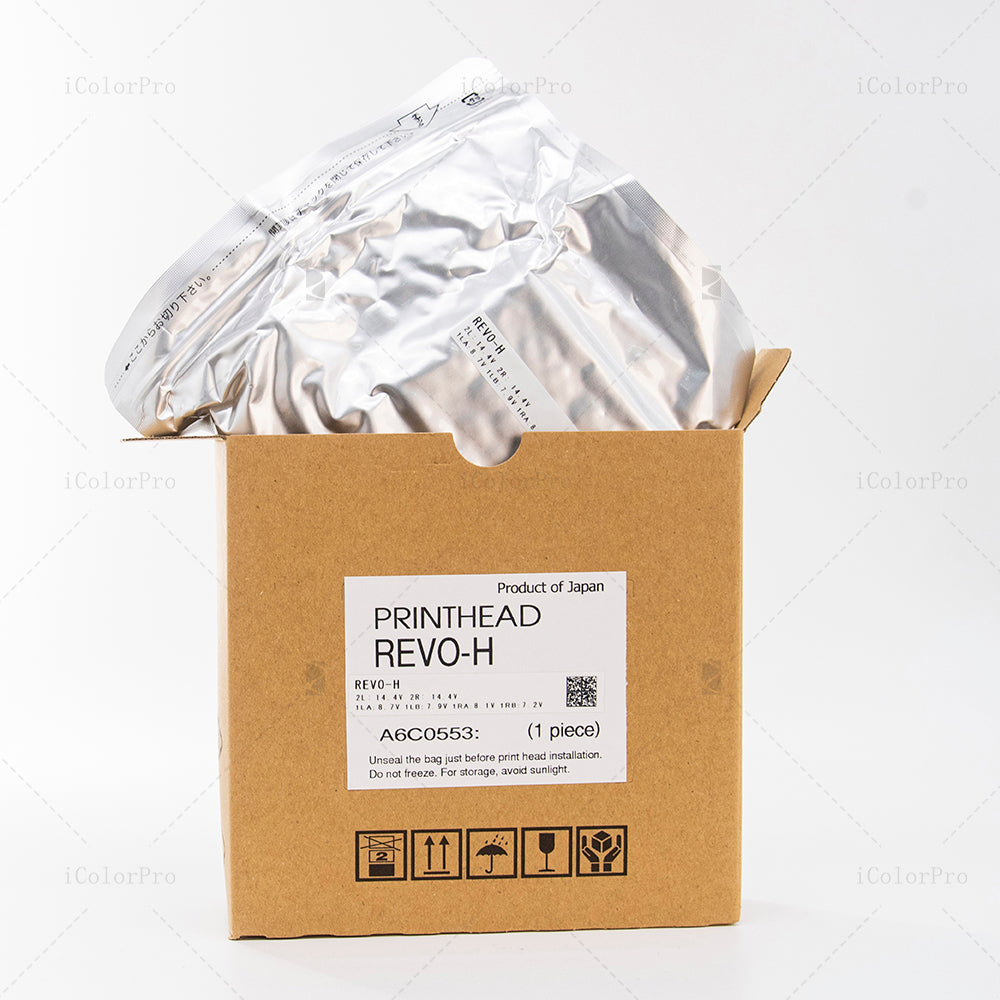

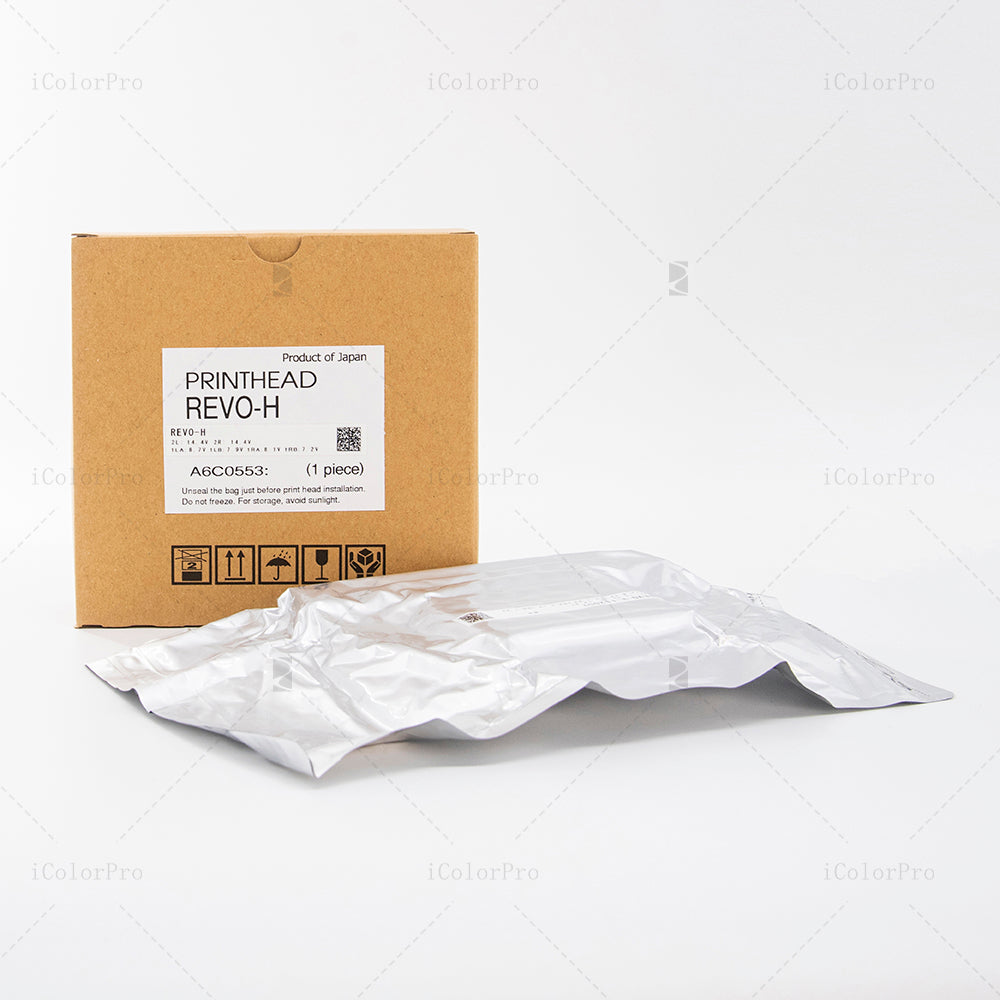

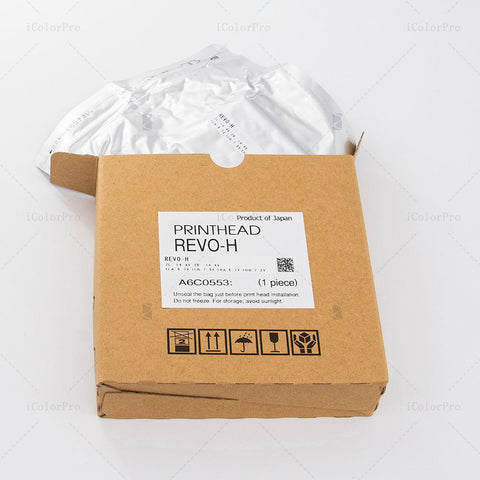

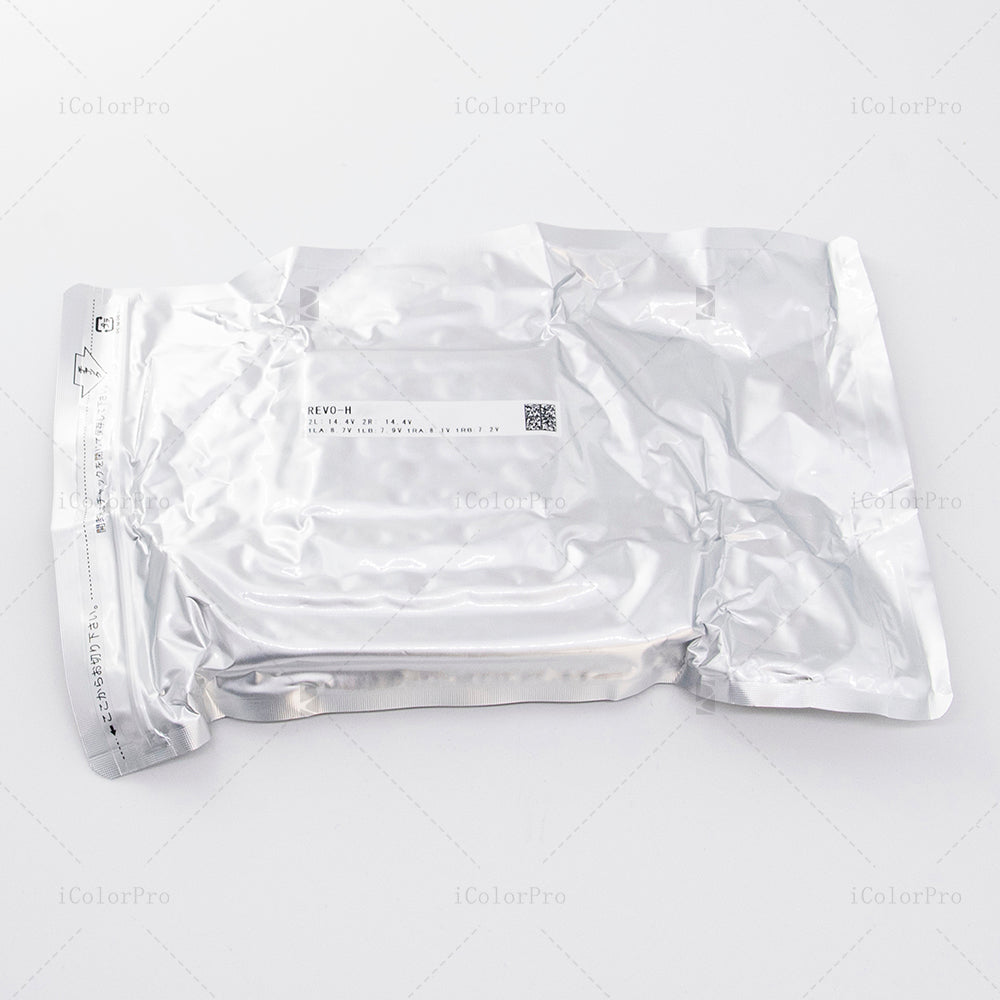

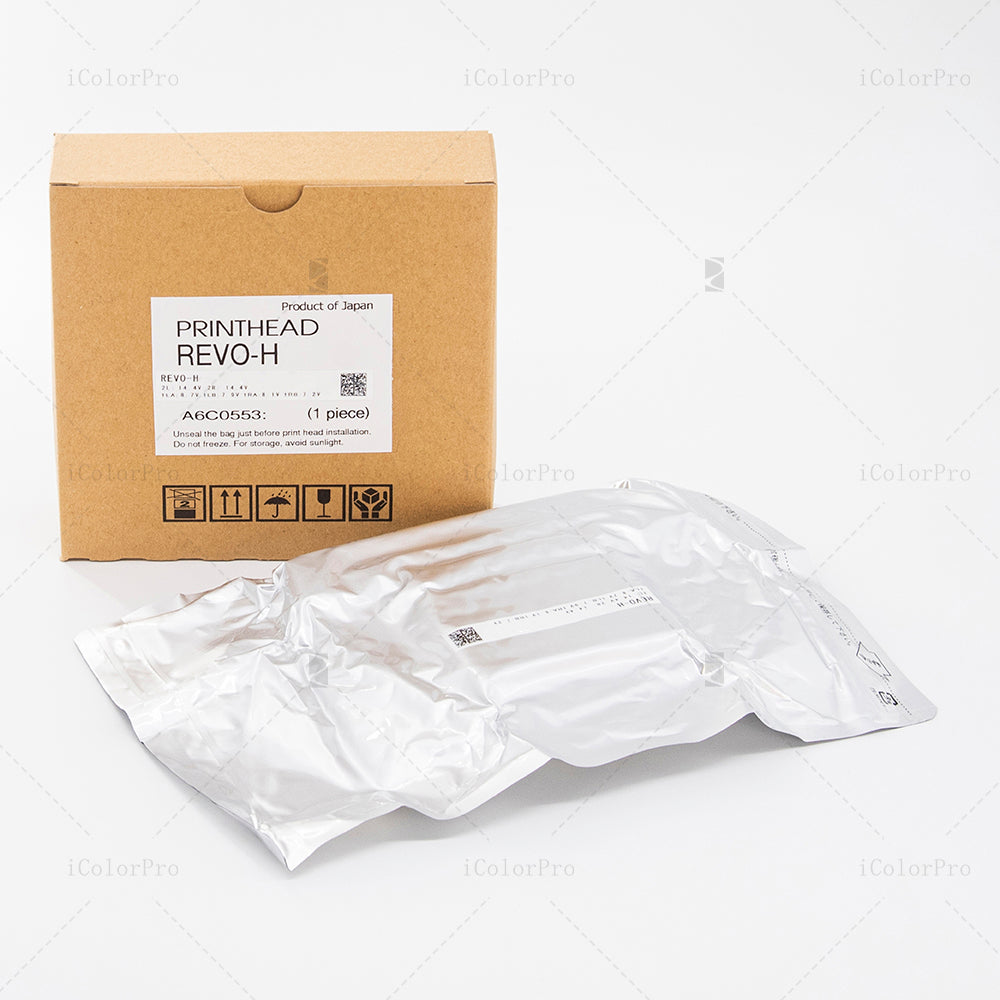

Packing & Shipping

• Anti-static packing
• Foam protection
• Safe export shipping
• shipping details confirmed before payment delivery options available

Technical Overview

The Konica Minolta REVO-H is a next-generation industrial inkjet printhead developed for high-viscosity UV inkjet applications. Engineered as a direct upgrade to earlier high-end platforms, it delivers improved jetting stability, higher throughput, and precise image reproduction in demanding production environments. Printhead Architecture The REVO-H adopts a high-density nozzle configuration with 2,560 nozzles arranged in a 4 × 640 layout. With a native resolution of 600 dpi, this architecture supports accurate droplet placement and consistent output across wide printing widths in single-pass systems. Droplet Control & Image Quality Supporting variable droplet sizes from 3 to 13 picoliters with 4-level grayscale capability, the REVO-H enables smooth tonal transitions, sharp text, and controlled ink density. This level of droplet control ensures stable image quality even at elevated production speeds. Ink Compatibility High-viscosity UV-curable inks Performance & Reliability Manufactured using Konica Minolta’s advanced MEMS fabrication process, the REVO-H offers enhanced mechanical strength and consistent jetting behavior. Its design supports high firing frequency operation while maintaining long-term reliability under continuous industrial workloads. Upgrade Compatibility Designed as a direct replacement for Konica Minolta 6988H and KM1024i MHE-D printheads, the REVO-H provides OEMs with a seamless upgrade path to higher productivity and modern UV ink systems. Typical Applications Decorative surface printing Packaging and industrial graphics Electronics and functional printing High-speed single-pass UV printing platforms

FAQ

Is this reference?

Please confirm the exact model and supply type with our team before order. Model-reference printhead support is available for this page.

How do I confirm compatibility?

Send your printer model, current printhead model, and ink type. We will help review fit before you order.

Do you test before shipping?

Visual and model checks can be arranged before shipment, and real product photos or confirmation can be provided on request.

Need help before ordering? Send us your printer model, printhead model, ink type, and destination country. We will help you confirm compatibility before you buy.
