KVP04-1.1-24 Brushless Diaphragm Ink Pump
- $75.20
Prices are displayed in USD. Available payment methods and shipping options are shown at checkout based on destination and order details.
Secure payments
Order issue support
Product Details
xOrdering help: For model-specific products, contact us if you need compatibility or fitment help before ordering. Product price and availability are shown on this page, and shipping options and charges available for the entered destination are shown at checkout.
Compatibility and maintenance note: This item is used for compatible printer ink-line maintenance. Please confirm size, connector type, fluid path, material requirement, and printer configuration before ordering. Actual performance depends on installation, ink/fluid type, machine condition, and operating environment.

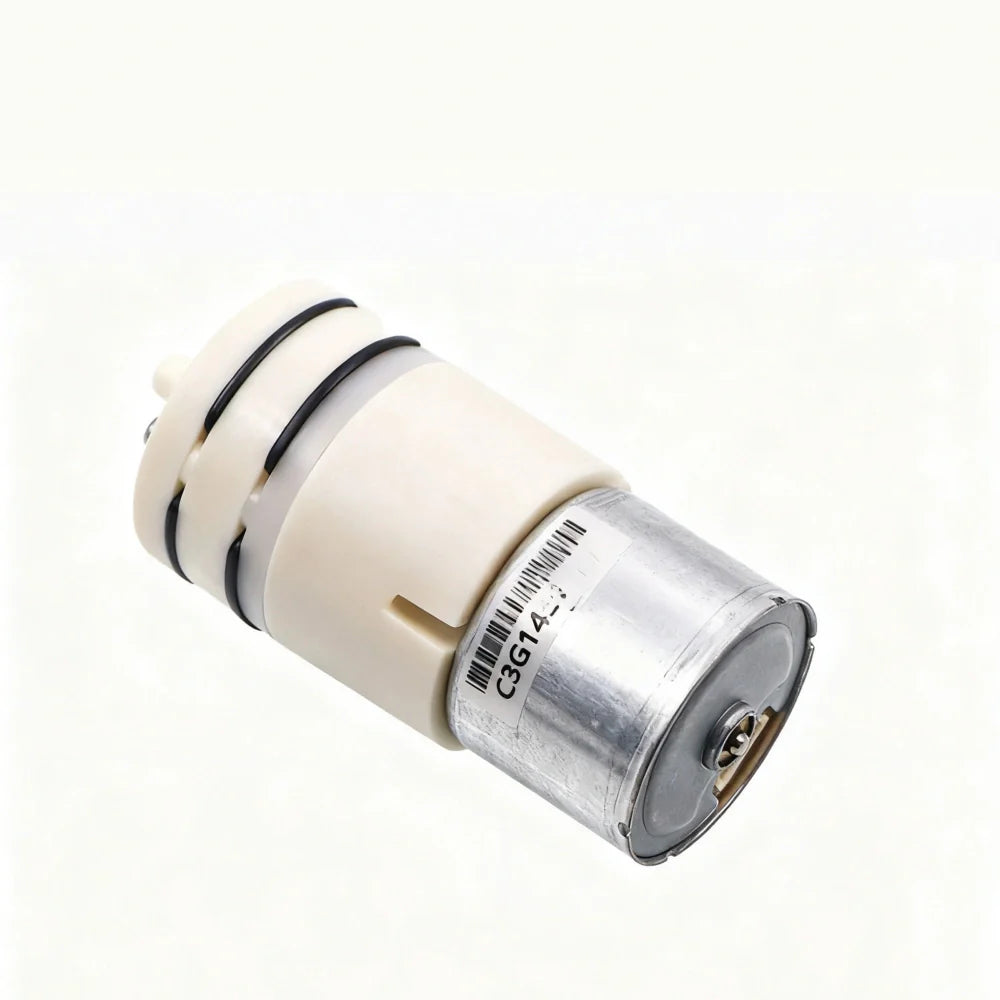

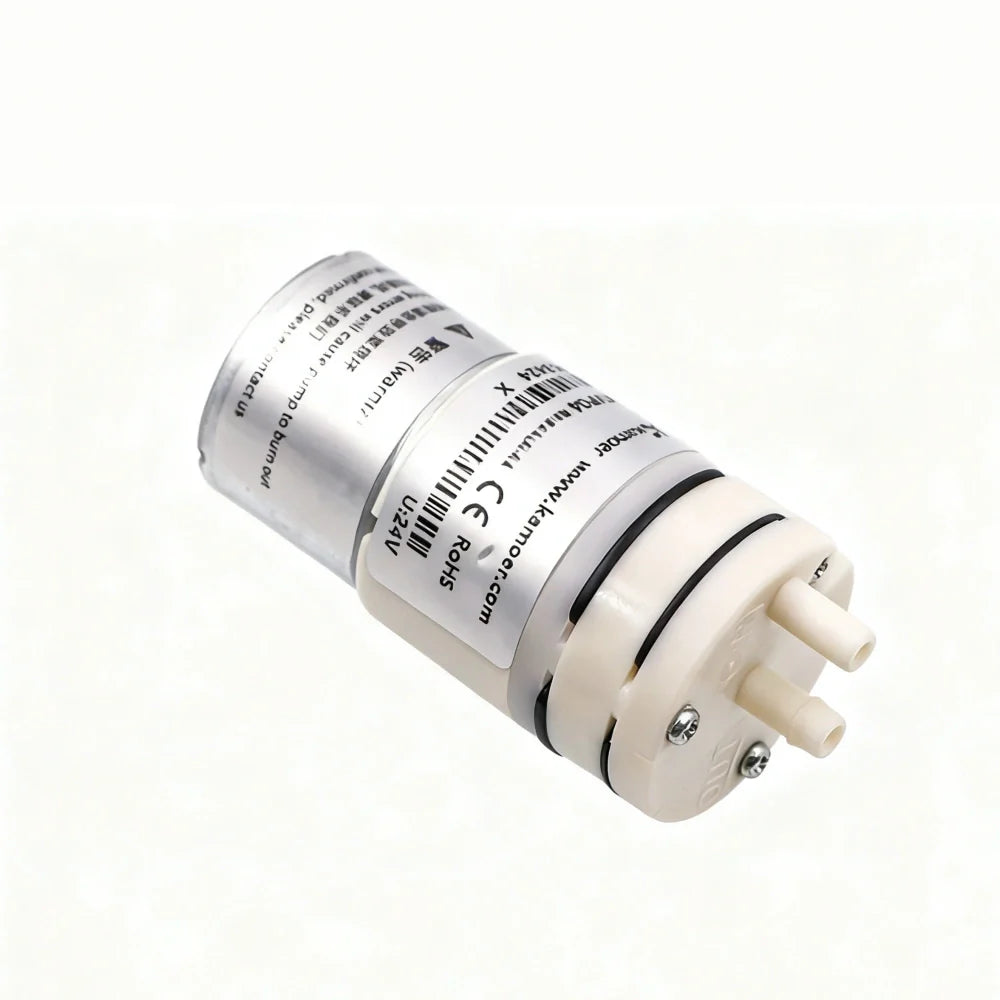

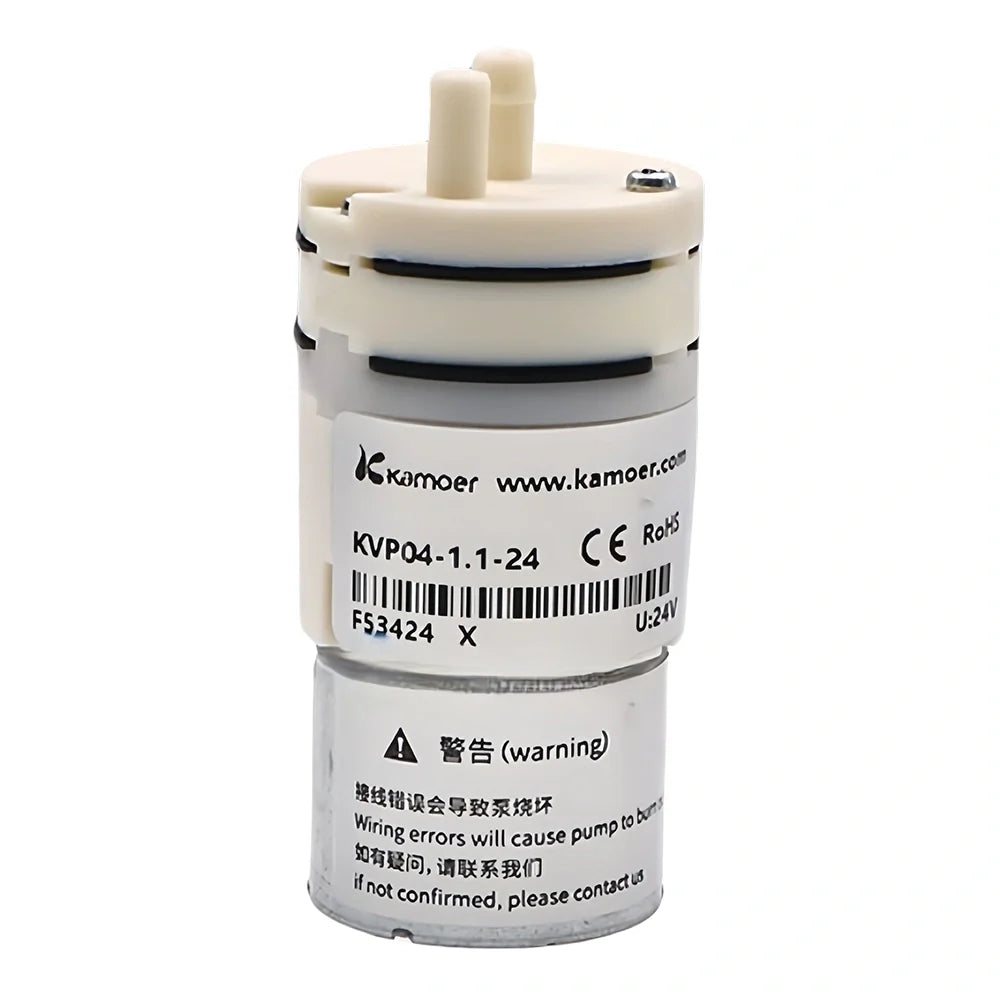

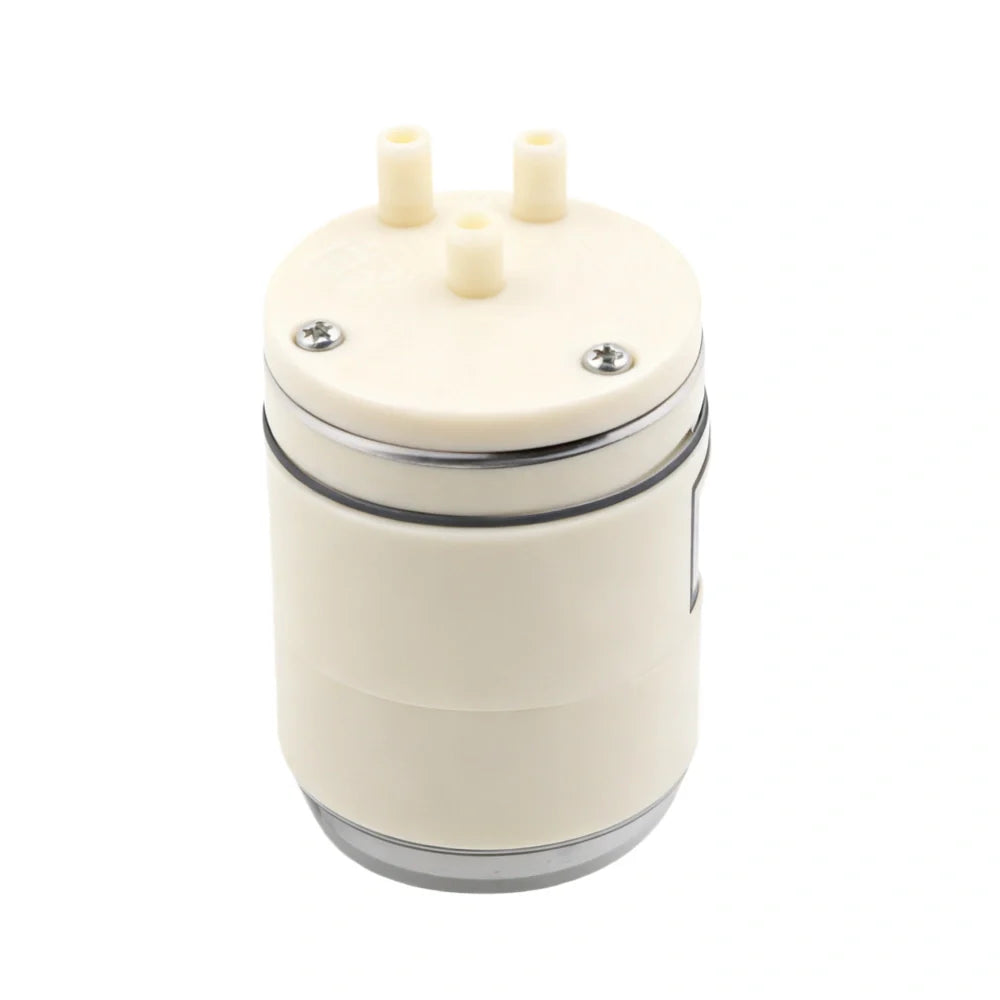

The KVP04-1.1-24 is a compact brushless diaphragm ink pump designed for precision fluid handling in digital printing and industrial ink systems. With stable negative pressure performance and a maximum flow rate of 1.1L/min, it provides application-dependent ink recovery and pressure control in continuous operating environments.

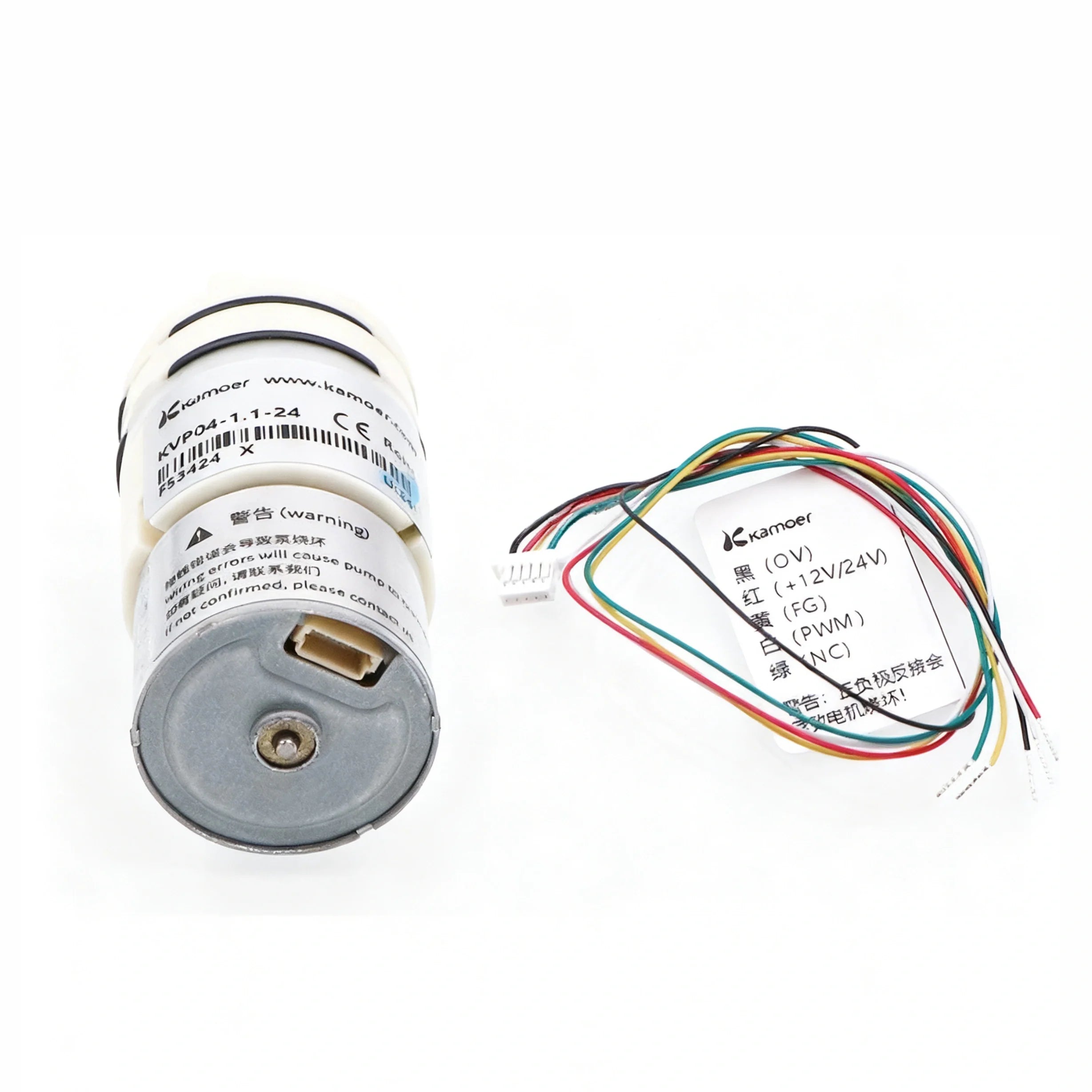

Equipped with a 24V DC brushless motor, this pump delivers silent operation, minimal vibration, and extended service life. The brushless structure eliminates mechanical wear caused by carbon brushes, making it suitable for long-term, maintenance-sensitive applications.
The internal EPDM diaphragm offers application-specific resistance to UV inks, solvent inks, and water-based inks. Clearly marked inlet and outlet ports allow quick and error-free installation in inkjet printers, coding machines, and air-assisted ink systems.
Key Features
- Brushless motor for quiet and stable operation
- Maximum flow rate up to 1.1L/min
- Strong negative pressure performance for ink recovery
- EPDM diaphragm with high chemical resistance
- Compact size for flexible installation
Technical Specifications
| Model | KVP04-1.1-24 |
| Operating Voltage | DC 24V |
| Motor Type | Brushless DC motor |
| Max Flow Rate | 1.1 L/min |
| Positive Pressure | ≥ 0.09 MPa |
| Negative Pressure | ≥ -0.04 MPa |
| Diaphragm Material | EPDM |
| Service Life | ≥ 3000 hours (tested) |
| Applications | Inkjet printers, coding machines, UV printers |
The KVP04-1.1-24 is an ideal choice for systems requiring stable vacuum performance, low noise, and long-term reliability in ink circulation or recovery applications.
