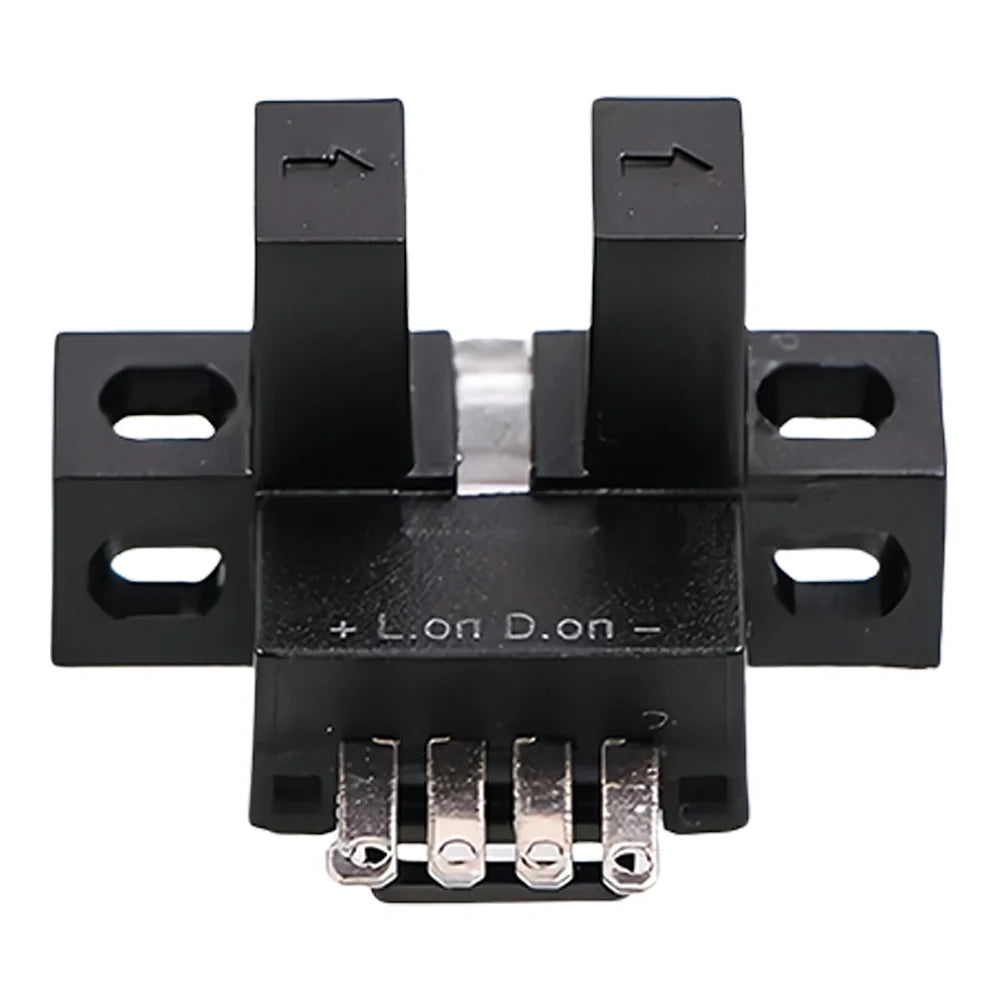

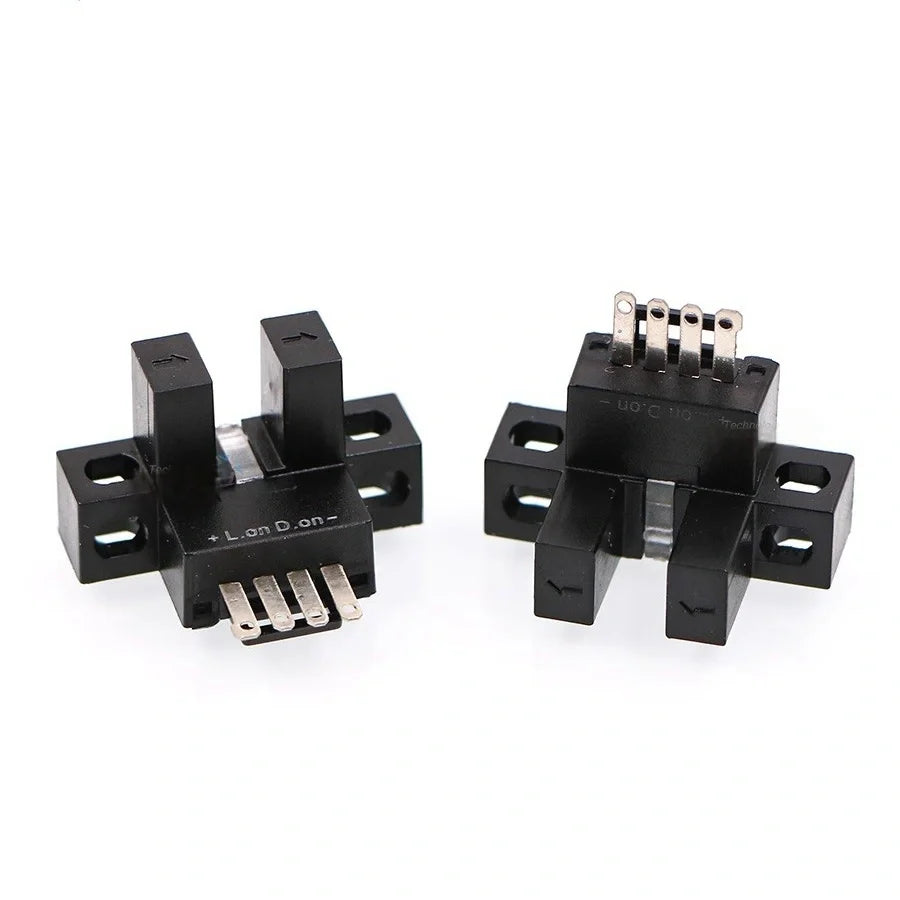

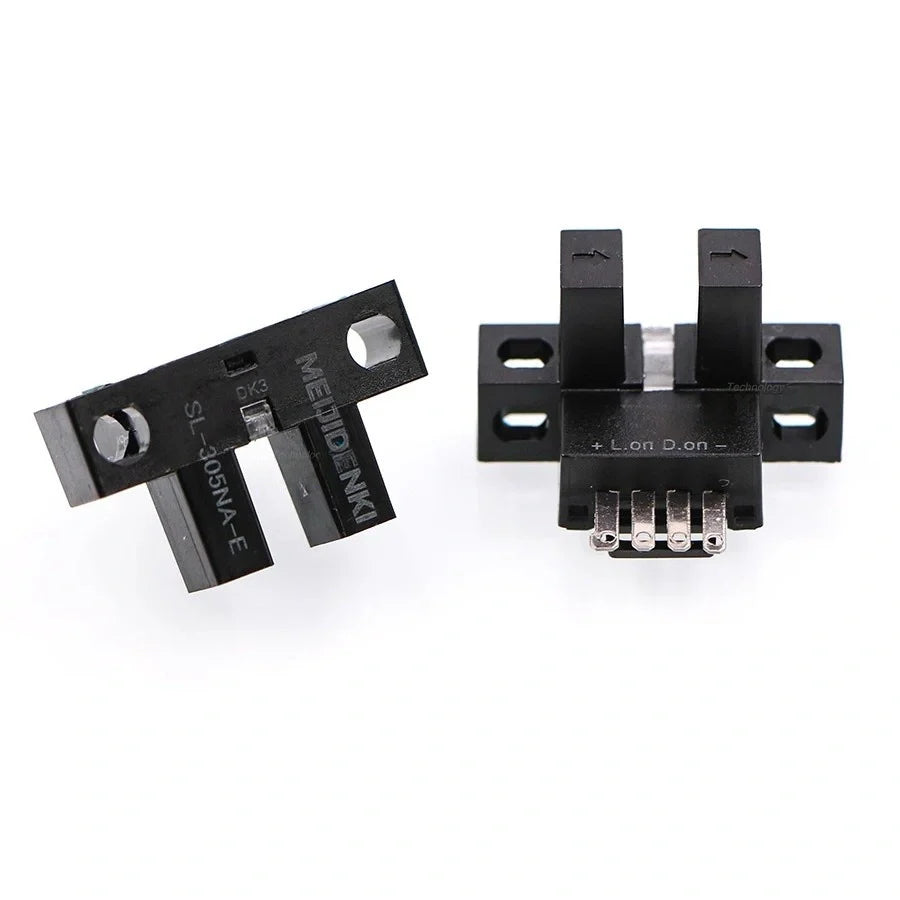

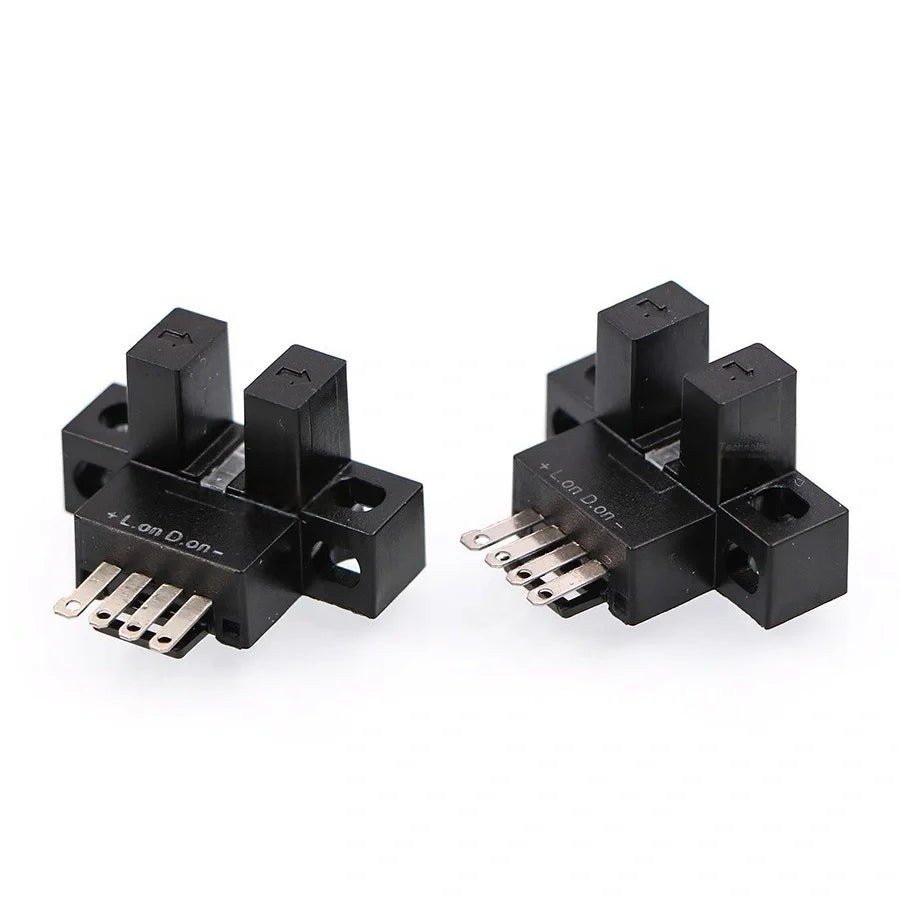

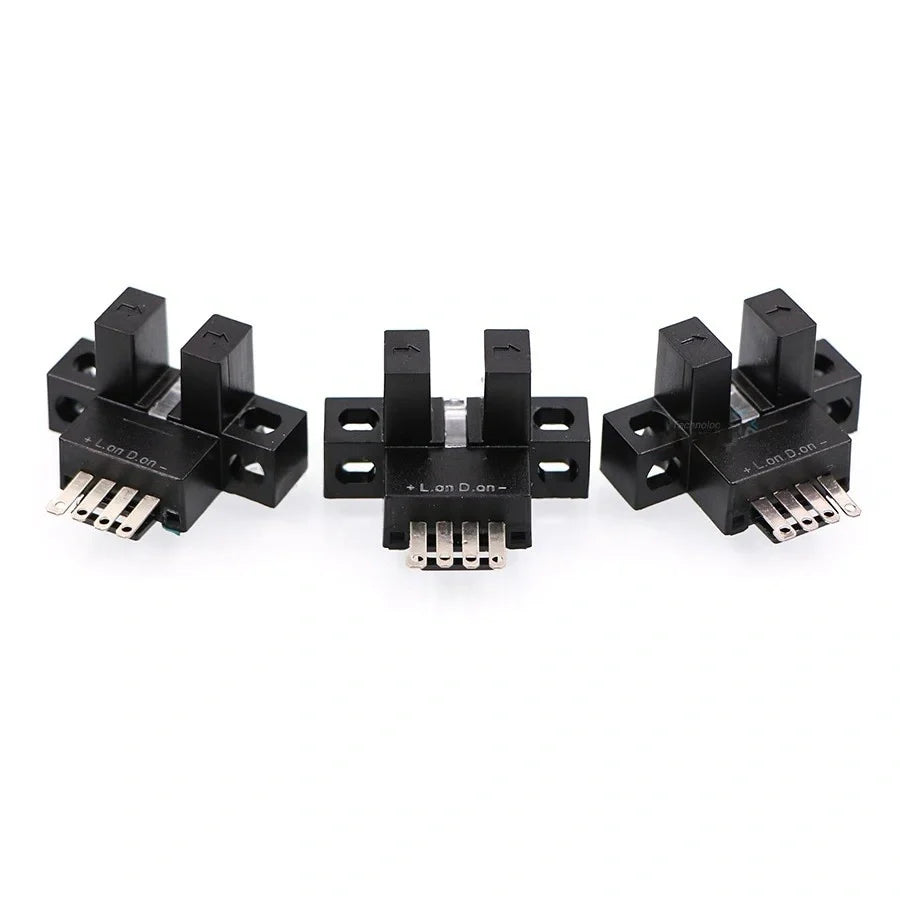

Limit Switch SL-305NA-E Optical Sensor 5-Pin
SL-305NA-E Optical Limit Switch The SL-305NA-E is a compact and high-precision photointerrupter sensor designed for UV, inkjet, and large-format printers. It provides accurate carriage positioning and stable digital signal output...
SKU:
Limit Switches - 018
- $15.20
- $15.20
- Unit price
- per
All prices are in USD. Available payment methods and shipping options are shown at checkout based on destination and order details.
Review the product details, model notes, destination, and checkout information before ordering. Contact us if you need fitment help.
Secure payments
Checkout is processed through Shopify and available payment providers using their security measures and verification processes.
Order issue support
Please contact us promptly if your order arrives damaged, incorrect, or incomplete so we can review the case.
Description
xSL-305NA-E Optical Limit Switch
The SL-305NA-E is a compact and high-precision photointerrupter sensor designed for UV, inkjet, and large-format printers. It provides accurate carriage positioning and stable digital signal output to ensure smooth and reliable printer operation.
Key Features
- High-precision infrared optical sensing
- Fast response time with stable ON/OFF output
- Compact and durable housing design
- Excellent anti-interference performance
- Reliable operation in continuous printing environments
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SL-305NA-E |
| Type | Optical Limit / Photointerrupter Sensor |
| Detection Method | Infrared beam interruption |
| Output Signal | Digital (ON/OFF) |
| Power Supply | DC 5V |
| Connector | 5-pin plug interface |
| Mounting | Screw-hole installation |
| Material | High-strength plastic housing |
Applications
- UV flatbed printers
- Inkjet and eco-solvent printers
- Large-format printing equipment
- Automation and positioning systems
Installation Notes
- Power off the printer before installation.
- Align the optical slot with the carriage trigger.
- Secure mounting screws firmly.
- Connect the 5-pin interface correctly to the mainboard.
- Test signal detection before normal operation.
Package Includes: 1 × SL-305NA-E Optical Limit Switch
Reminder: Confirm voltage and connector compatibility before ordering.
