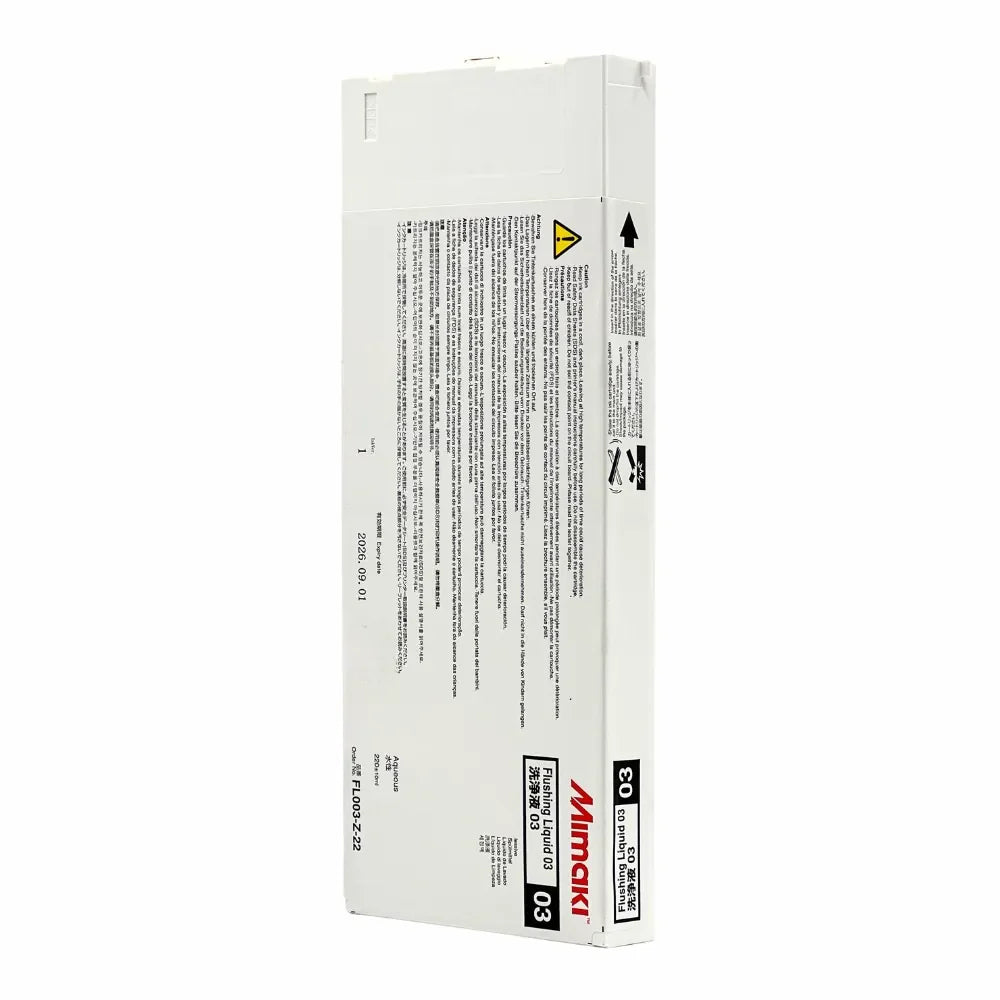

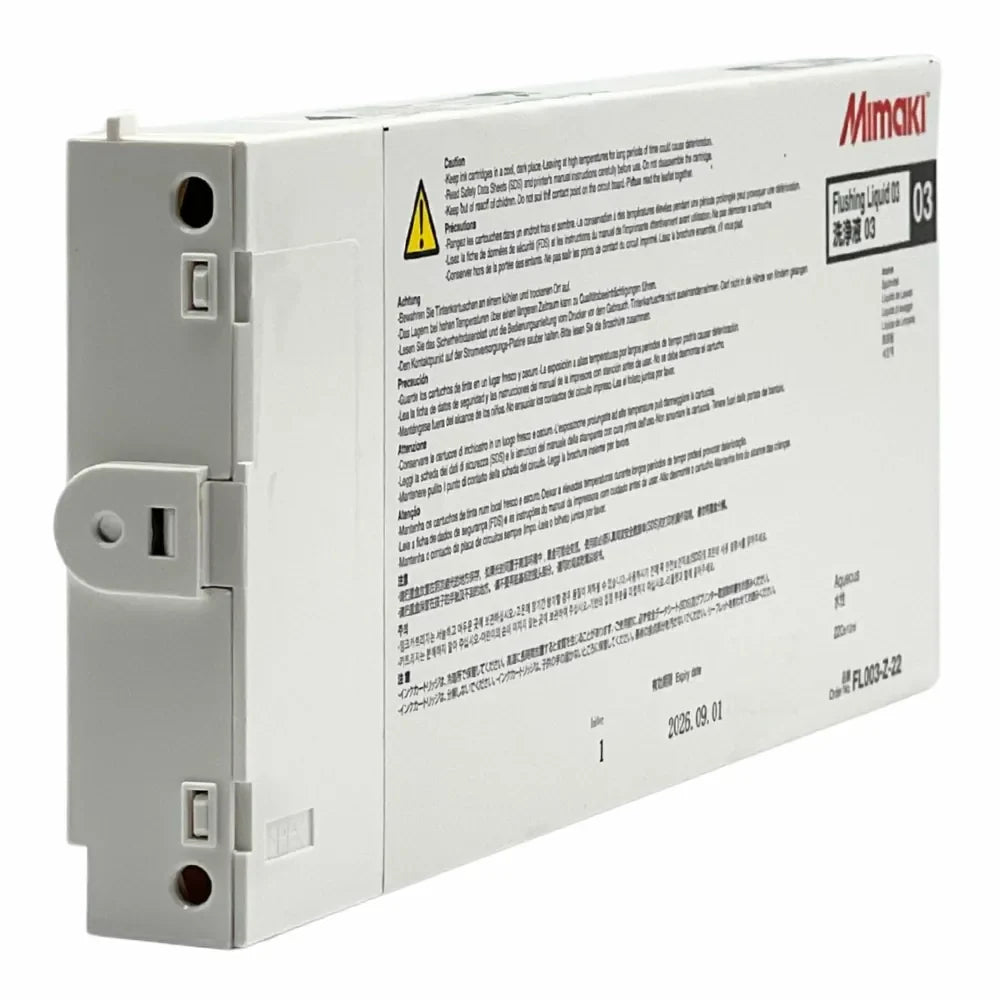

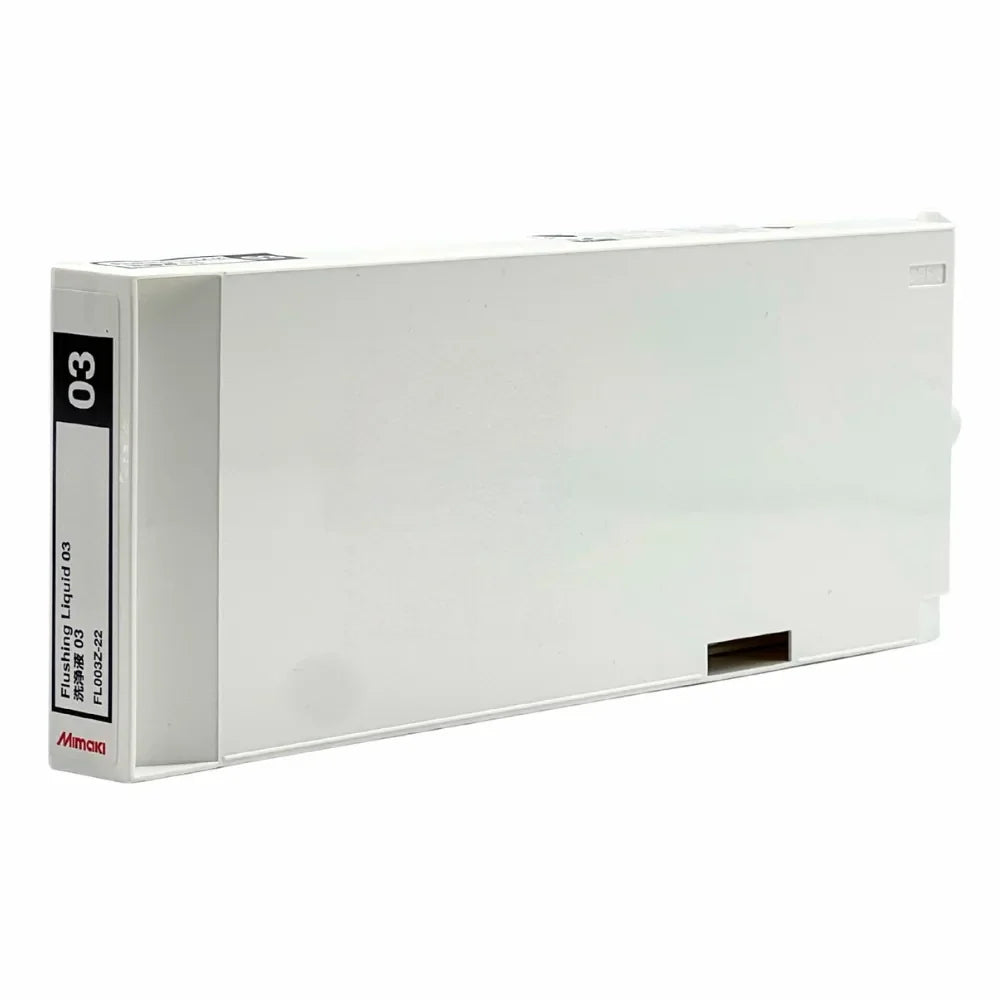

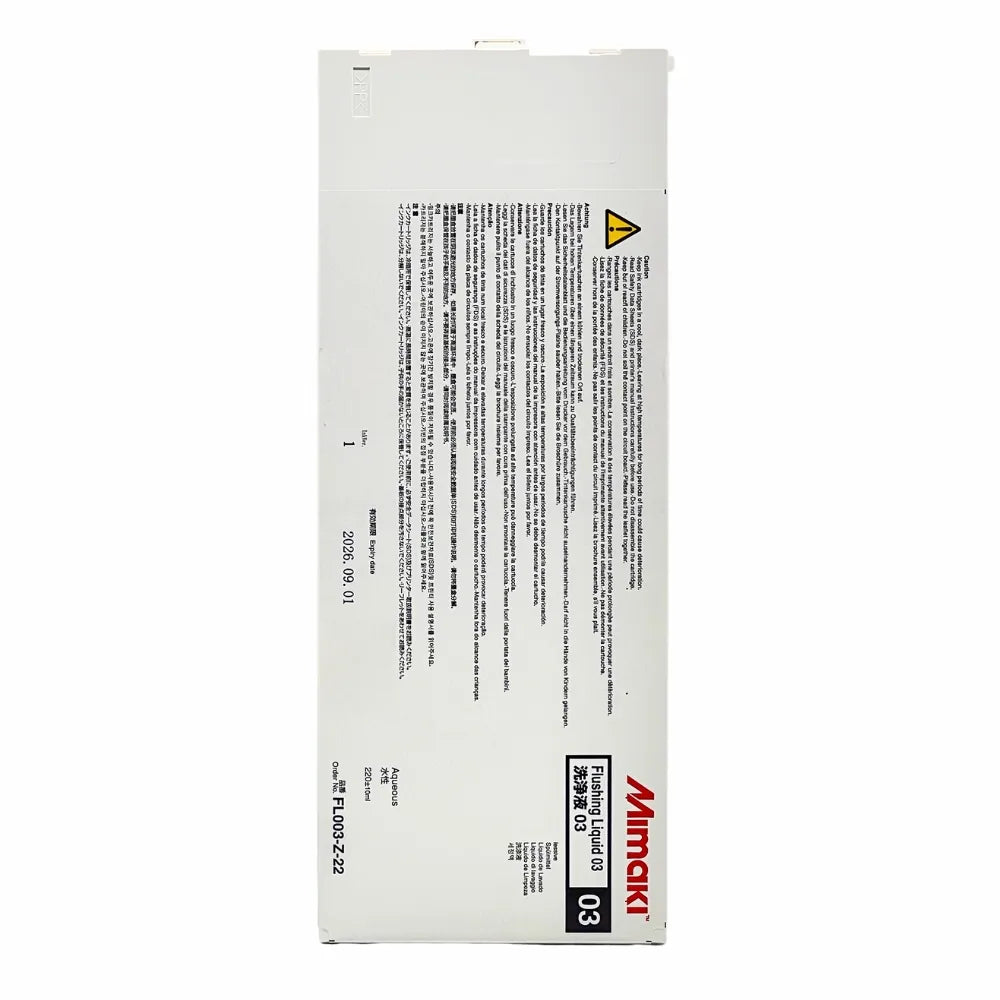

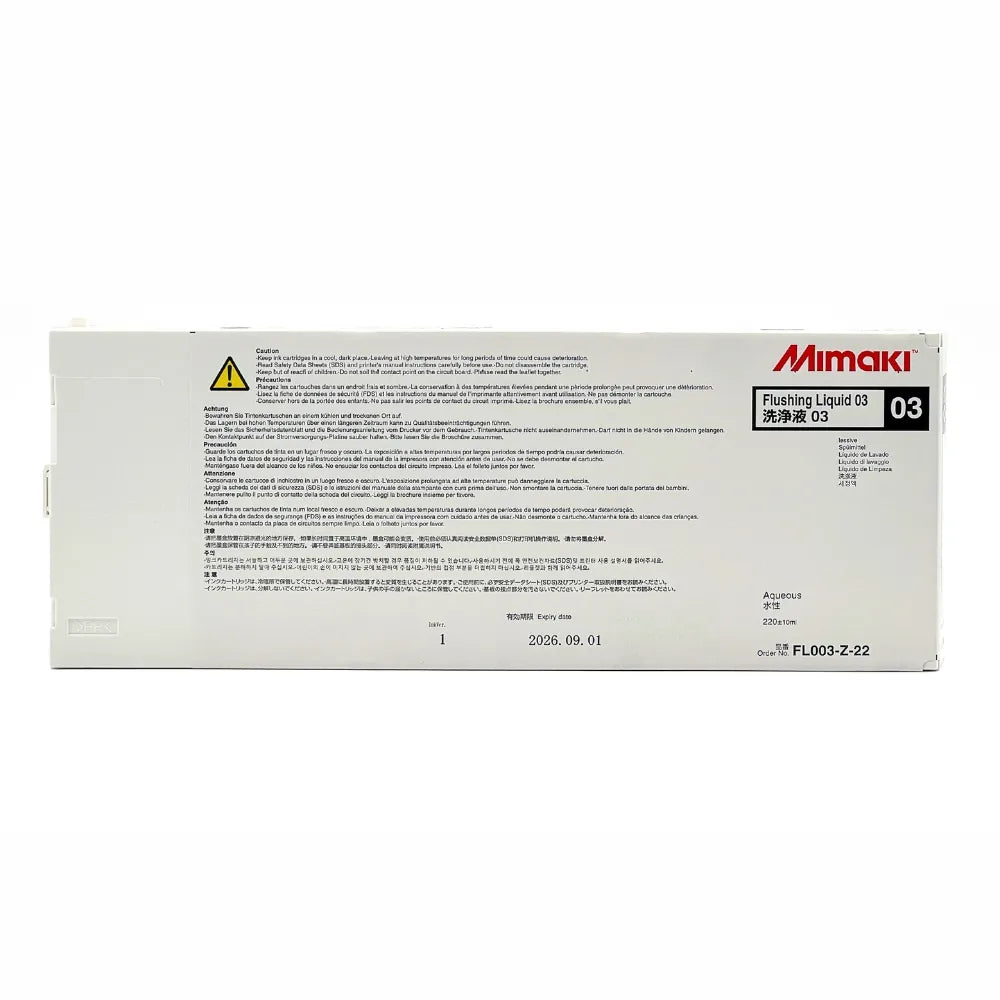

FL003-Z-22 - Mimaki Liquid 03 Cartridge

Compatibility Check

• Referenced machine models: LX100, LX101, CJV150-75, CJV300-130, JV33-130, JV34-260, JV150-130, JV300-130, JV400-130LX, TPC-1000, TS30-1300, TS55-1800, TS100-1600, TS300P-1800, TS330-1600, TX300P-1800, TX500-1800, TXF150-75, TXF300-75, AC400, DD400, PHT50, RC400, SB210.
• Compare the connector layout, mounting position, and dimensions with the model-reference part.
• Part number reference found in current product data: FL003-Z-22.

Buying Notes

• This part should be selected by machine revision, connection style, and physical fit, not by title similarity alone.
• If your printer has multiple board, cable, or motor revisions, compare the old part directly before ordering.
• For critical electronics or motion parts, professional installation is recommended after fitment is confirmed.

Installed Position In The Ink Path

• This cartridge or sub-tank is normally installed between the main ink source and the printhead-side ink path to buffer supply and support more stable feeding.
• It is commonly used in bulk-ink, negative-pressure, or local sub-ink systems where stable ink level control matters.
• Correct port layout and valve structure are important for pressure balance, priming behavior, and daily service reliability.

Best-Fit Workflows

• Bulk-ink or continuous-ink systems used on eco-solvent and solvent printers.
• Shops that want more stable local ink buffering between the cartridge area and the printhead path.
• Printer rebuild or maintenance projects where bottle style, tubing layout, and pressure behavior must match the reference setup.

Fitment Checklist

• Confirm the matching printhead family or local ink-system layout before ordering.
• Part number references found in current product data: FL003-Z-22.
• Before payment, confirm valve quantity, port direction, mounting points, and tubing connection size against the reference assembly.
