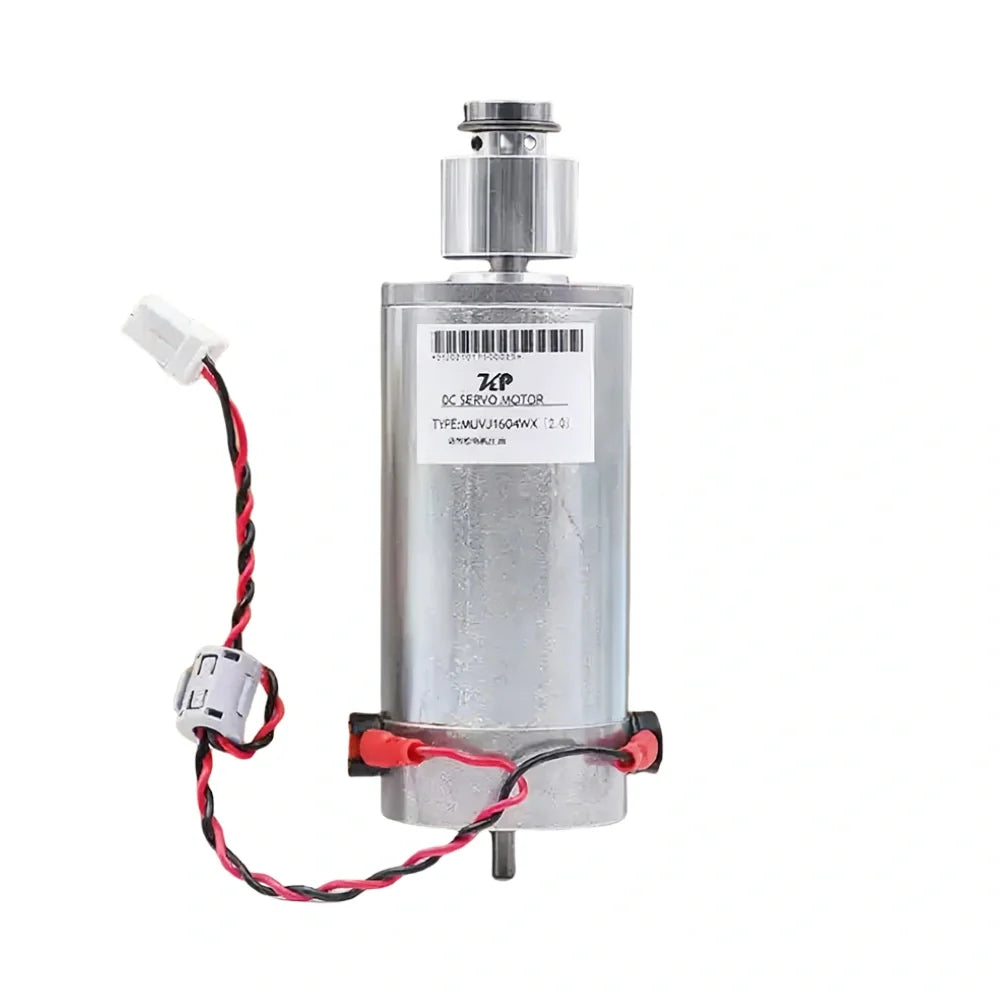

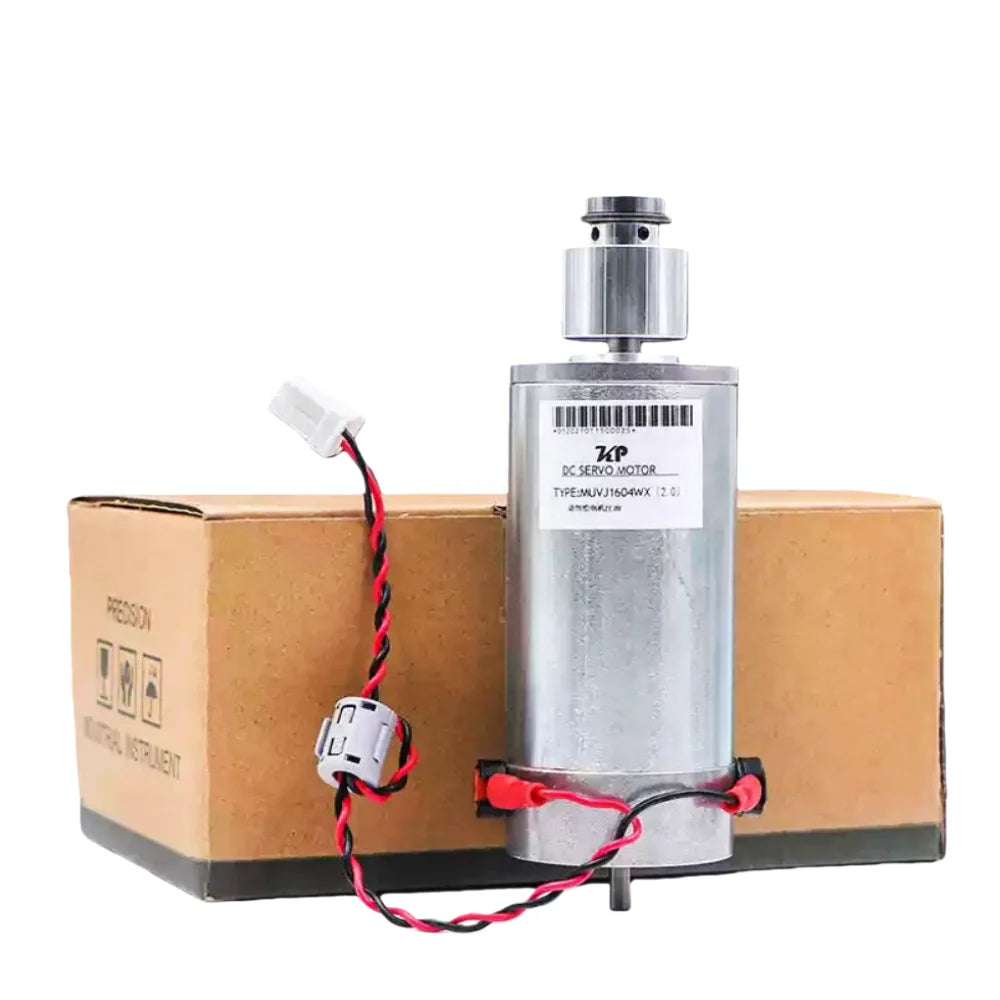

MUJVJ1604WX Carriage Servo Motor

Model: MUJVJ1604WX (2.0) — This carriage servo motor is specifically designed for the MUTOH VJ-1604WX large-format printer and functions as the CR (carriage return) axis drive motor. It controls printhead scanning movement and supports accurate, stable printing performance.

The motor adopts a brushed DC drive structure combined with a precision coupling system, delivering strong torque output and smooth mechanical transmission. This design helps maintain consistent carriage motion during high-speed printing while minimizing vibration and noise.

Factory-installed wiring and coupling components enable plug-and-play replacement, allowing fast installation without modification to the printer’s reference electrical system. The durable motor housing provides excellent resistance to corrosion and long-term wear.

Key Features

• Carriage servo motor model: MUJVJ1604WX (2.0)
• Designed for MUTOH VJ-1604WX printers
• CR-axis motor for printhead carriage scanning
• Brushed DC motor with precision coupling
• Rated voltage: 30V
• Low noise operation with stable torque output
• Pre-installed wiring for easy replacement

Working Function

During printing, the motor drives the carriage assembly along the guide rail and maintains controlled scanning movement across the print width. Stable motor output helps ensure accurate positioning and consistent print quality.

Application

Suitable for maintenance, servicing, or replacement of carriage scan motors in MUTOH VJ-1604WX eco-solvent large-format printing systems.
