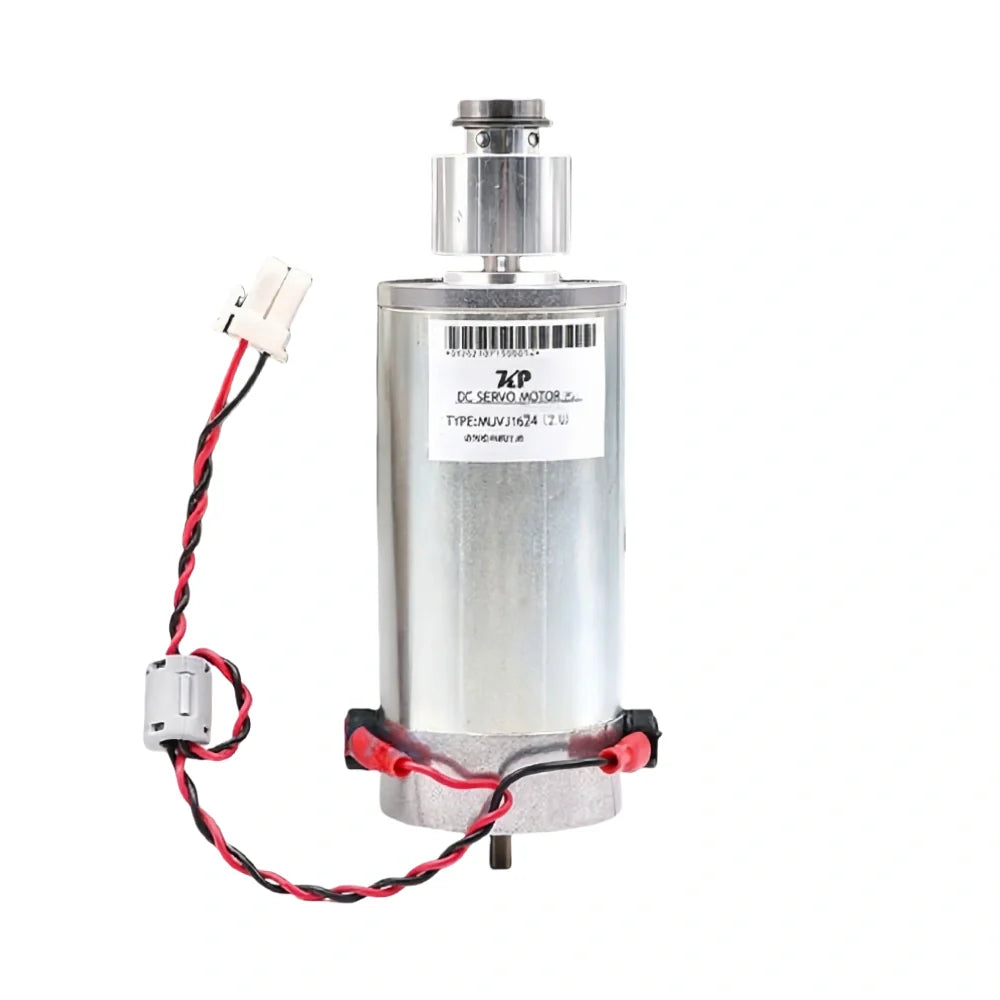

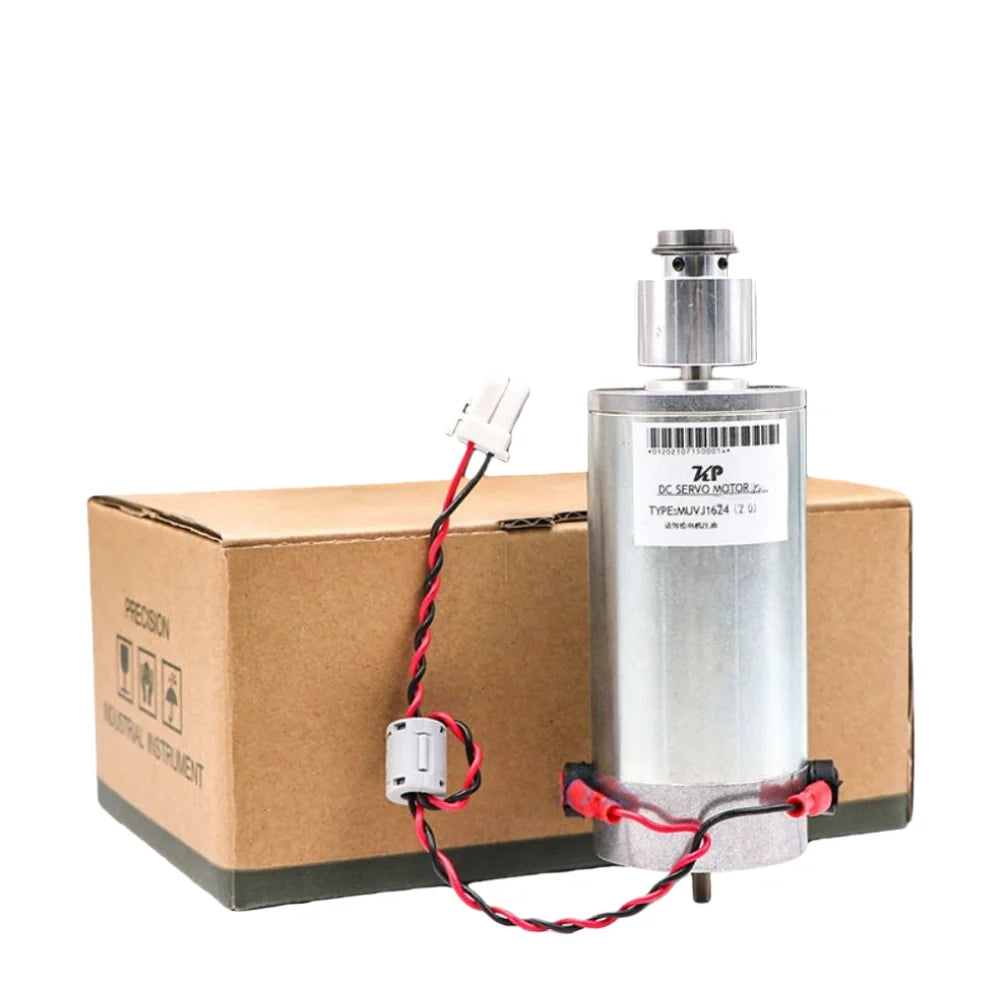

MUJVJ1624 Carriage Servo Motor

Model: MUJVJ1624 (2.0) — This carriage servo motor is specifically designed for MUTOH VJ-1624 eco-solvent printers and serves as the CR (carriage return) axis drive motor. It controls the scanning movement of the printhead carriage and supports accurate, stable printing operation.

The motor uses a brushed DC drive structure combined with a precision metal coupling shaft, delivering consistent torque output and smooth mechanical transmission. This design helps maintain steady carriage motion while reducing vibration and operating noise during high-speed printing.

Factory-installed wiring and connectors enable plug-and-play replacement, allowing quick installation without modification to the printer’s reference electrical system. The durable motor housing offers excellent resistance to wear and corrosion for long-term use.

Key Features

• Carriage servo motor model: MUJVJ1624 (2.0)
• Designed for MUTOH VJ-1624 printers
• CR-axis motor for printhead carriage movement
• Brushed DC motor with metal coupling shaft
• Rated voltage: 30V
• Low noise operation with stable torque output
• Pre-wired connectors for easy installation

Working Function

During printing, the motor drives the carriage assembly along the guide rail and maintains controlled scanning movement across the print width. Stable motor output helps ensure accurate positioning and consistent print quality.

Application

Suitable for maintenance, servicing, or replacement of carriage scan motors in MUTOH VJ-1624 large-format eco-solvent printing systems.
