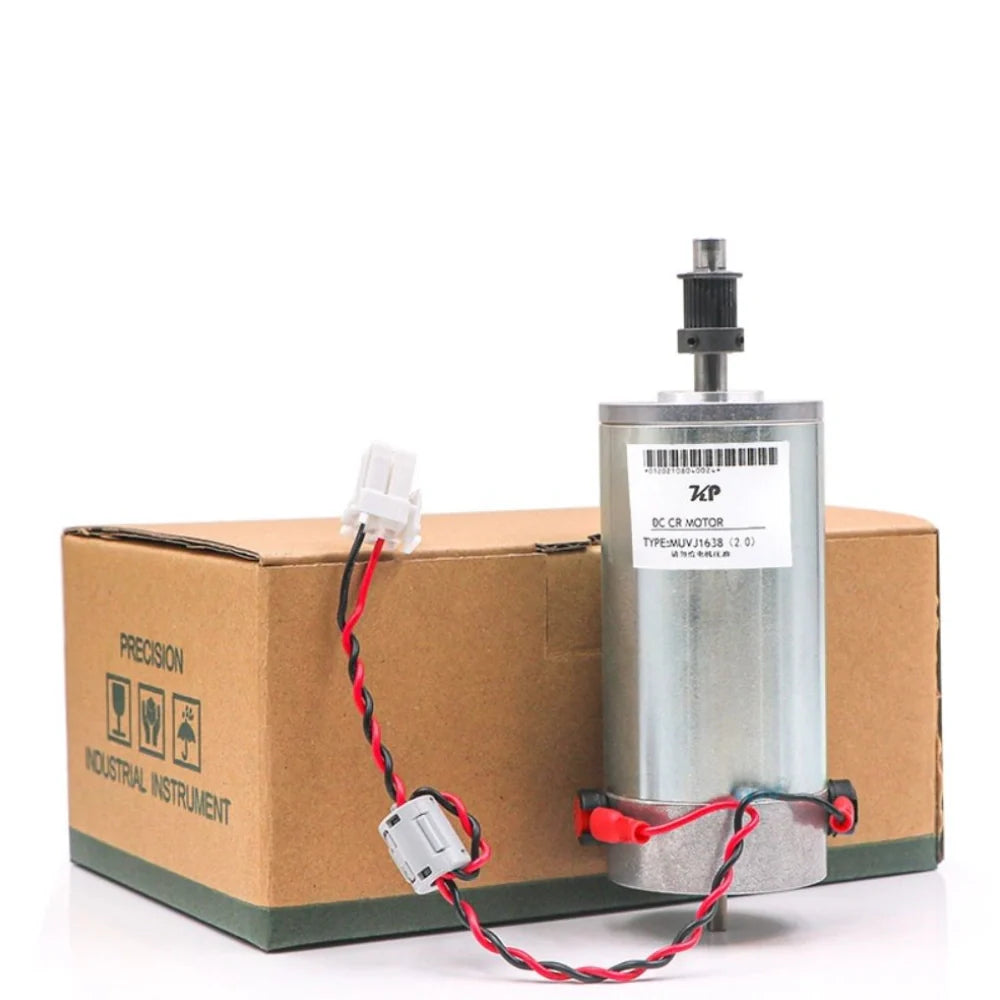

MUJVJ1638 Carriage Servo Motor

Model: MUJVJ1638 (2.0) — This carriage servo motor is specifically designed for MUTOH VJ-1638 eco-solvent printers and functions as the CR (carriage return) axis drive motor. It controls the scanning movement of the printhead assembly and supports accurate bidirectional printing.

The motor adopts a brushed DC drive structure combined with a gear-driven output shaft, delivering stable torque and smooth mechanical transmission. This design helps maintain consistent carriage motion during high-speed printing while reducing vibration and noise.

Factory-installed wiring and connectors allow plug-and-play installation, enabling quick replacement without modification to the printer’s reference electrical system. The durable motor housing provides excellent resistance to corrosion and long-term wear.

Key Features

• Carriage servo motor model: MUJVJ1638 (2.0)
• Designed for MUTOH VJ-1638 printers
• CR-axis motor for printhead scanning movement
• Brushed DC motor with gear-driven shaft
• Rated voltage: 30V
• Low noise operation with stable torque output
• Pre-attached connectors for easy installation

Working Function

During printing, the motor drives the carriage along the guide rail and maintains controlled movement across the print width. Stable motor output helps ensure accurate positioning and consistent print quality.

Application

Suitable for maintenance, servicing, or replacement of carriage scan motors in MUTOH VJ-1638 large-format eco-solvent printing systems.
