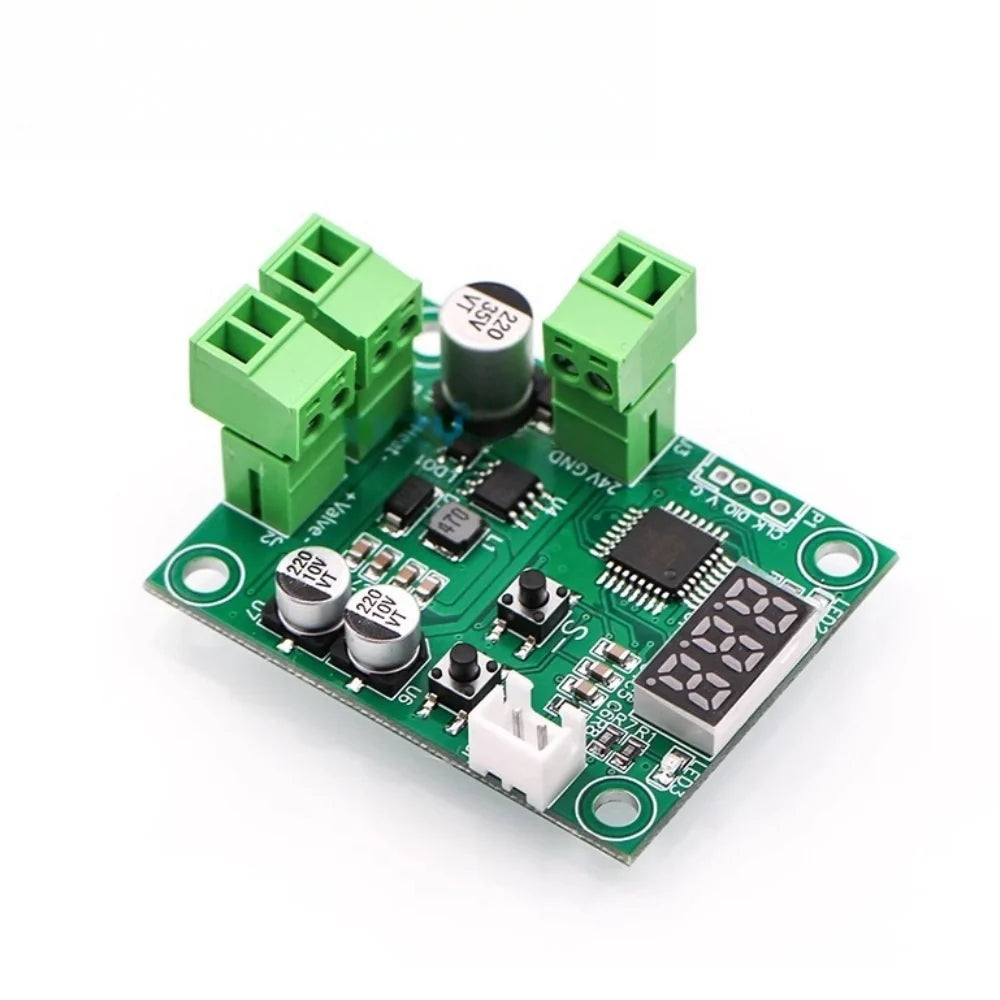

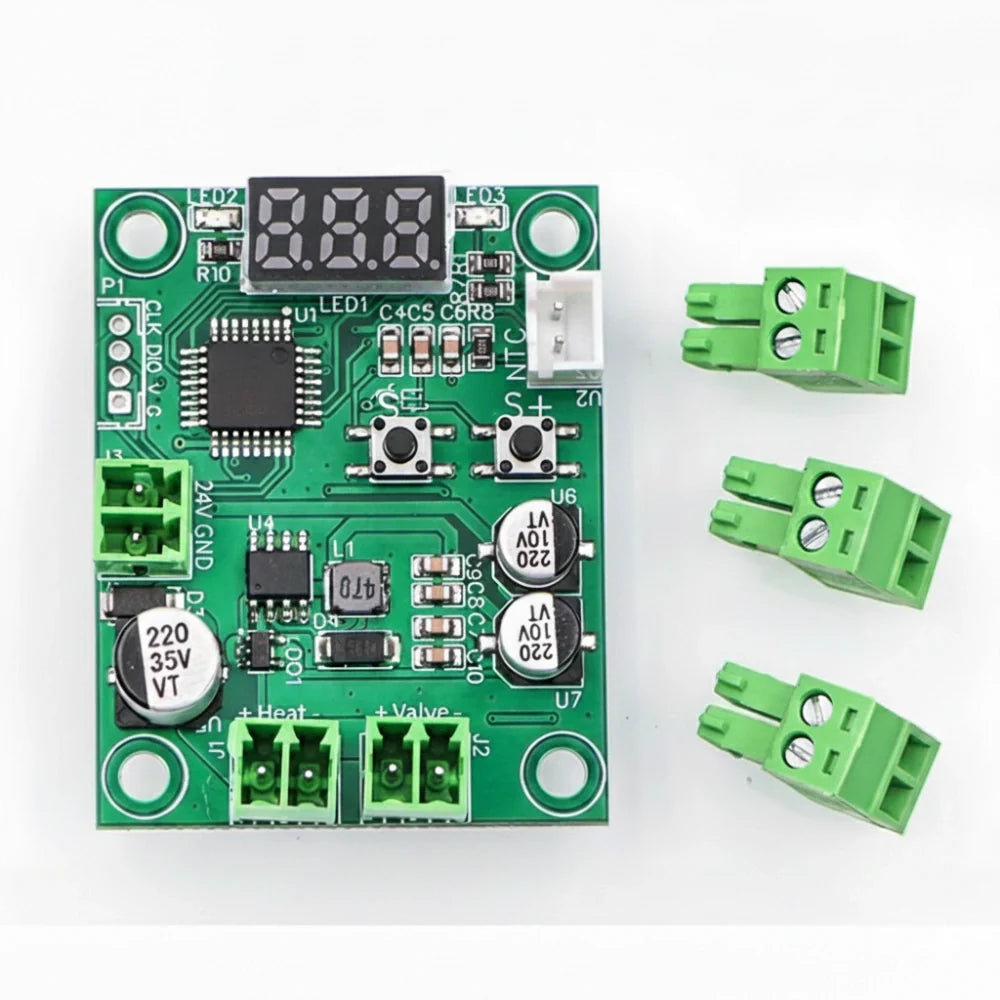

Multi-Function Temperature Control Board
- $29.80
- $29.80
- Unit price
- per
All prices are in USD. Available payment methods and shipping options are shown at checkout based on destination and order details.
Secure payments
Order issue support
Product Details
xBefore payment: Please confirm stock, shipping method, duties, and compatibility with us before payment. Some printer parts, printheads, fluids, and special-order items may require manual confirmation before shipment.
Voltage Reduction Board / Integrated Ink Control Box Board
The Voltage Reduction Board is designed for UV and eco-solvent printers to provide a stable low-voltage power supply to critical components such as ink control boards, solenoid valves, and temperature controllers. It converts 24V DC input into 12V or other regulated voltage levels required for printer subsystems, ensuring reliable and safe operation.
Key Features
- Efficient 24V to 12V DC conversion with output depends on ink system, machine condition, environment, and maintenance.
- Protects electronic modules from voltage fluctuation or overload.
- Compact circuit design for easy installation in ink control boxes.
- Durable components for service life that depends on installation, workload, fluid, environment, and maintenance and high temperature resistance.
- Optional integrated version combines ink control and voltage reduction in one unit.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Voltage Reduction Board / Ink Control Box + Voltage Reduction Board (Integrated) |
| Input Voltage | DC 24V |
| Output Voltage | DC 12V (Adjustable) |
| Application | UV Printers, Eco-Solvent Printers, Ink Supply Systems |
| Protection | Overcurrent / Overload / Overheat Protection |

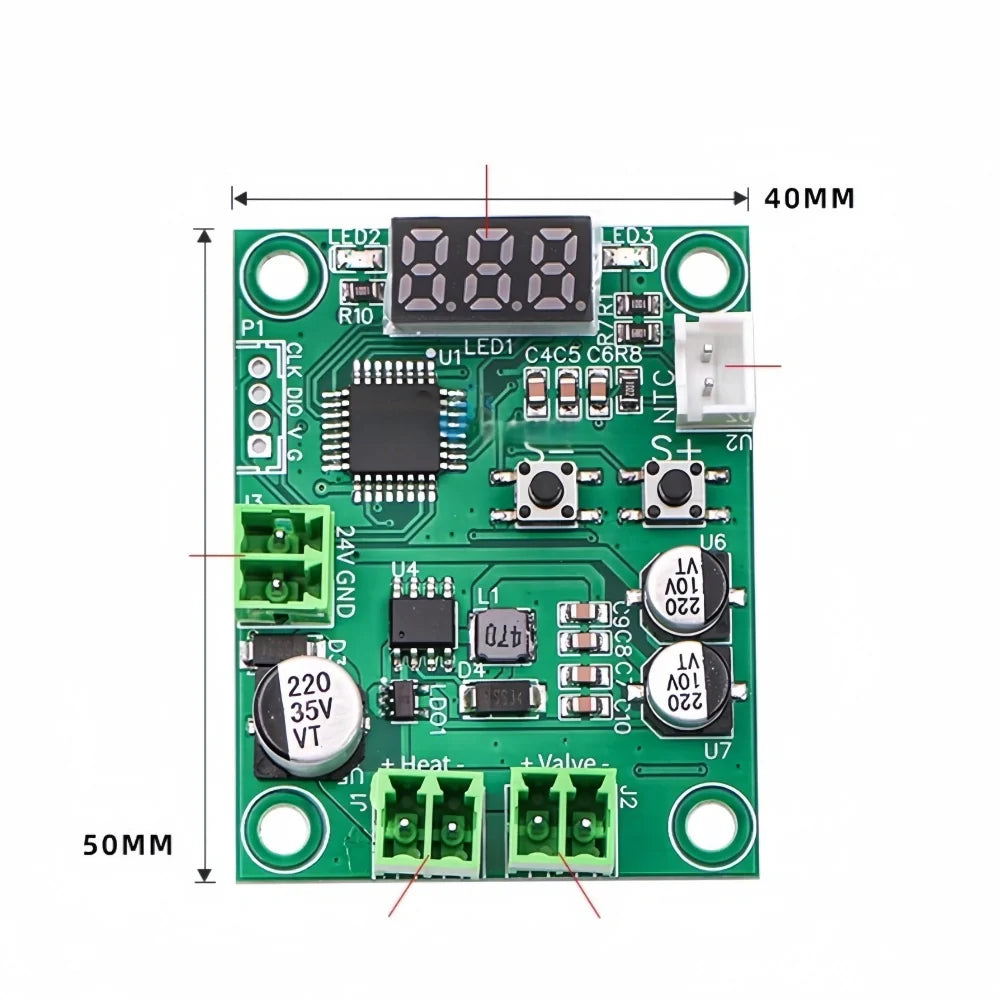

| Dimensions | Approx. 50mm × 40mm |
Available Versions
| Version | Description |
|---|---|
| Voltage Reduction Board | Standard DC-DC converter module used for 24V to 12V step-down applications. |
| Ink Control Box + Voltage Reduction Board (Integrated) | Combines ink control circuit and voltage reduction board into one integrated unit for simplified wiring and stable performance. |
Installation Tips

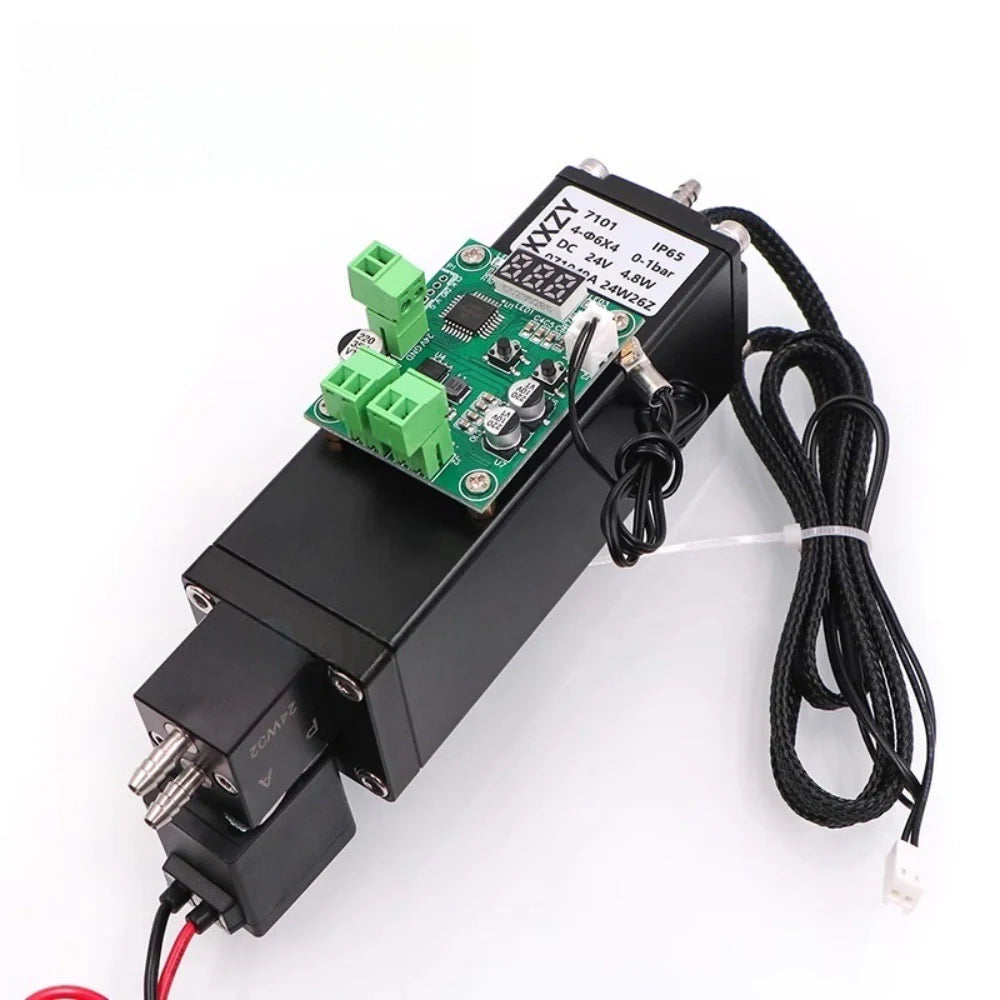

Connect the 24V input to the printer’s power supply and output to the 12V control board or solenoid valve. Ensure correct polarity and avoid short circuits during installation. Suitable for use in ink supply control systems and temperature control modules.
