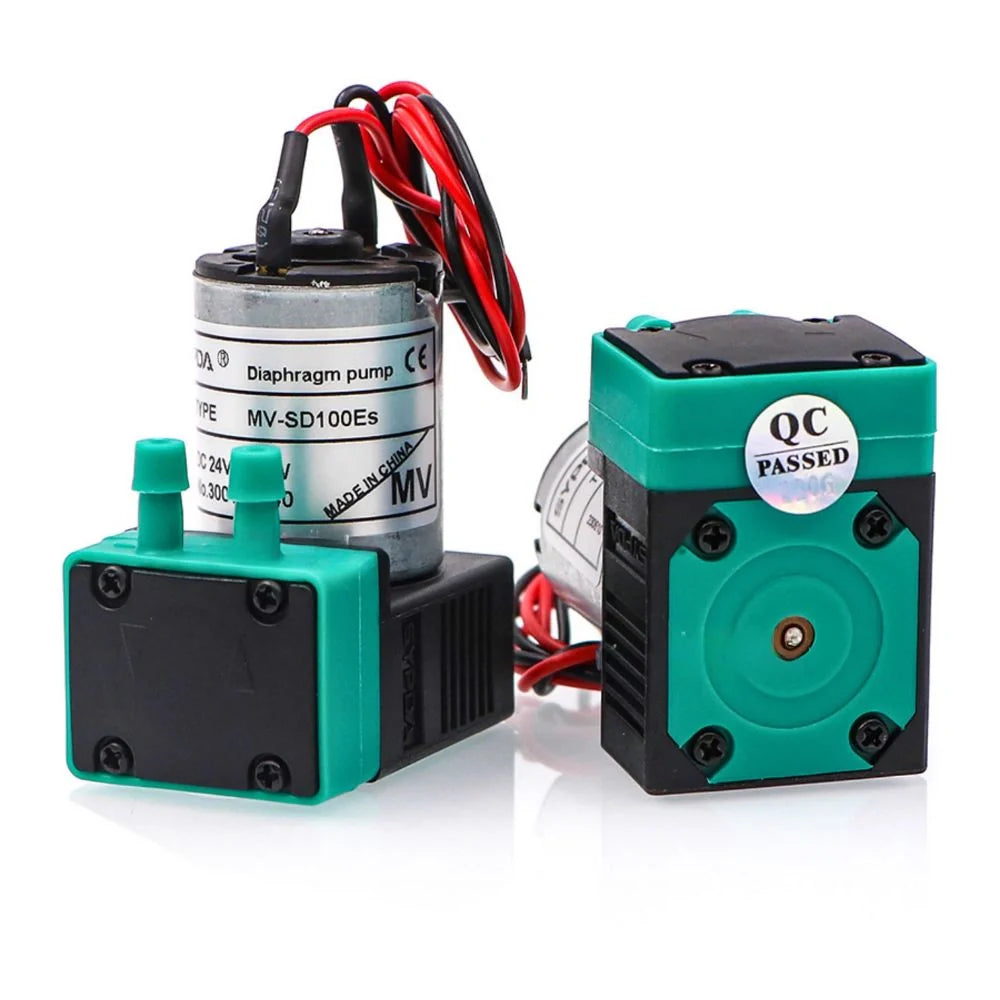

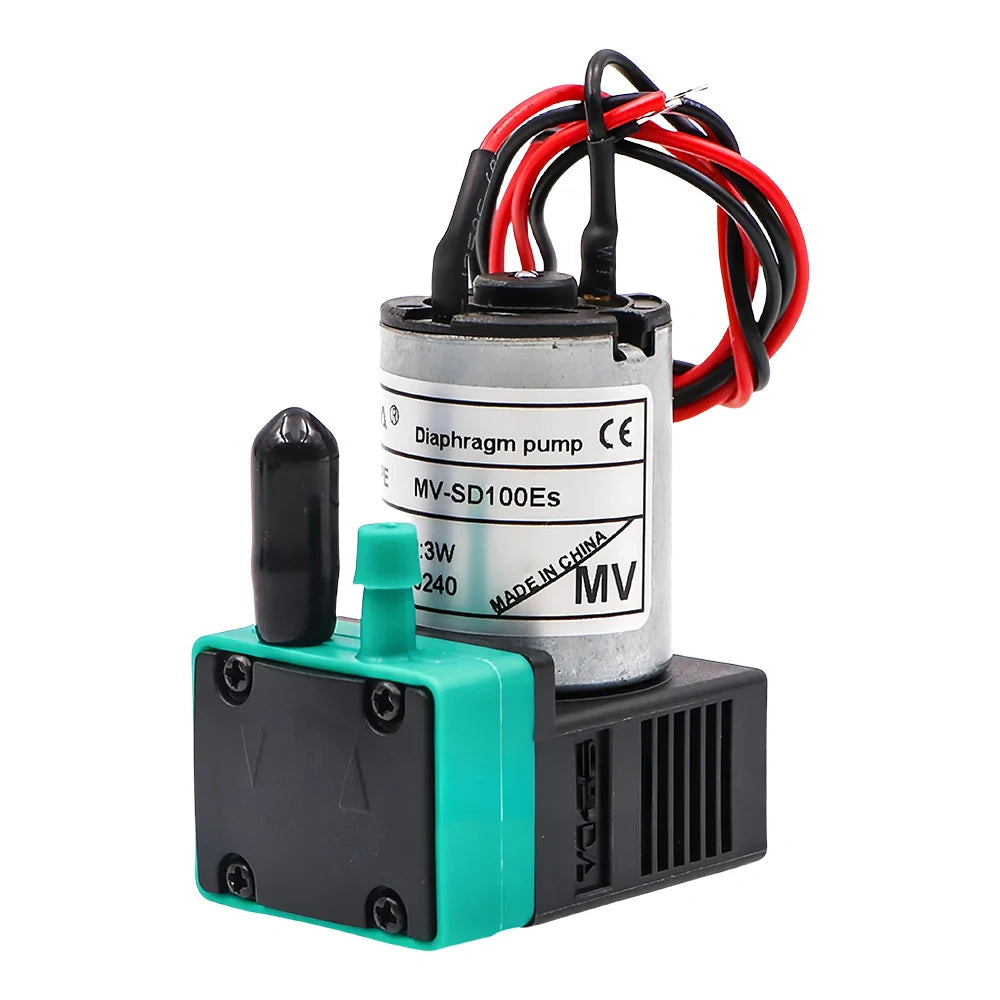

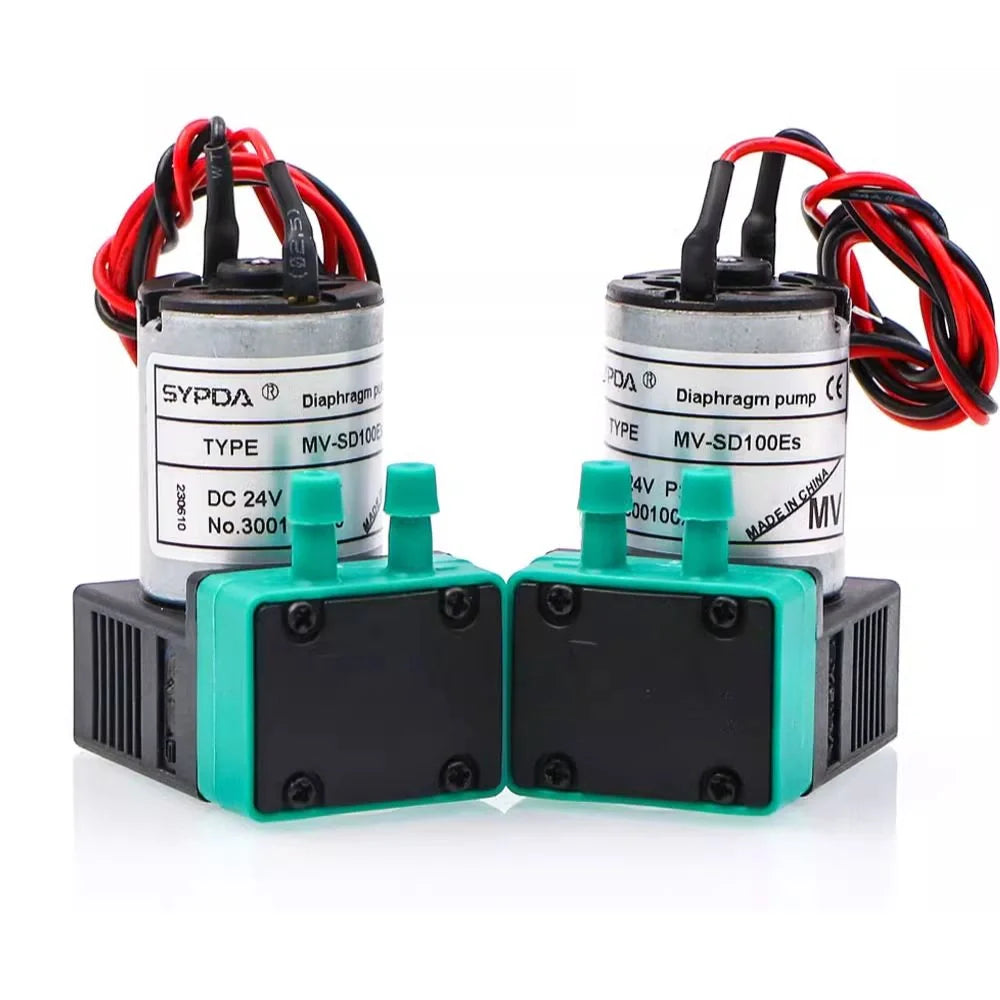

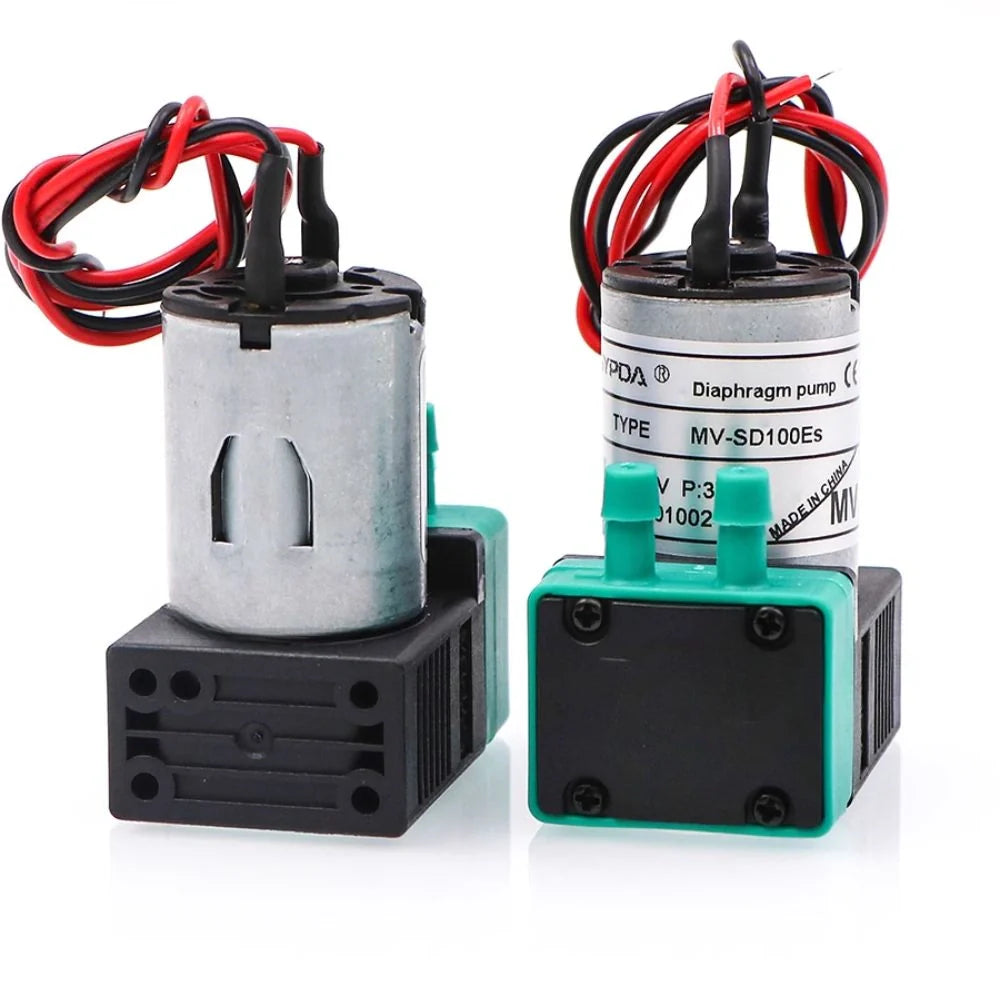

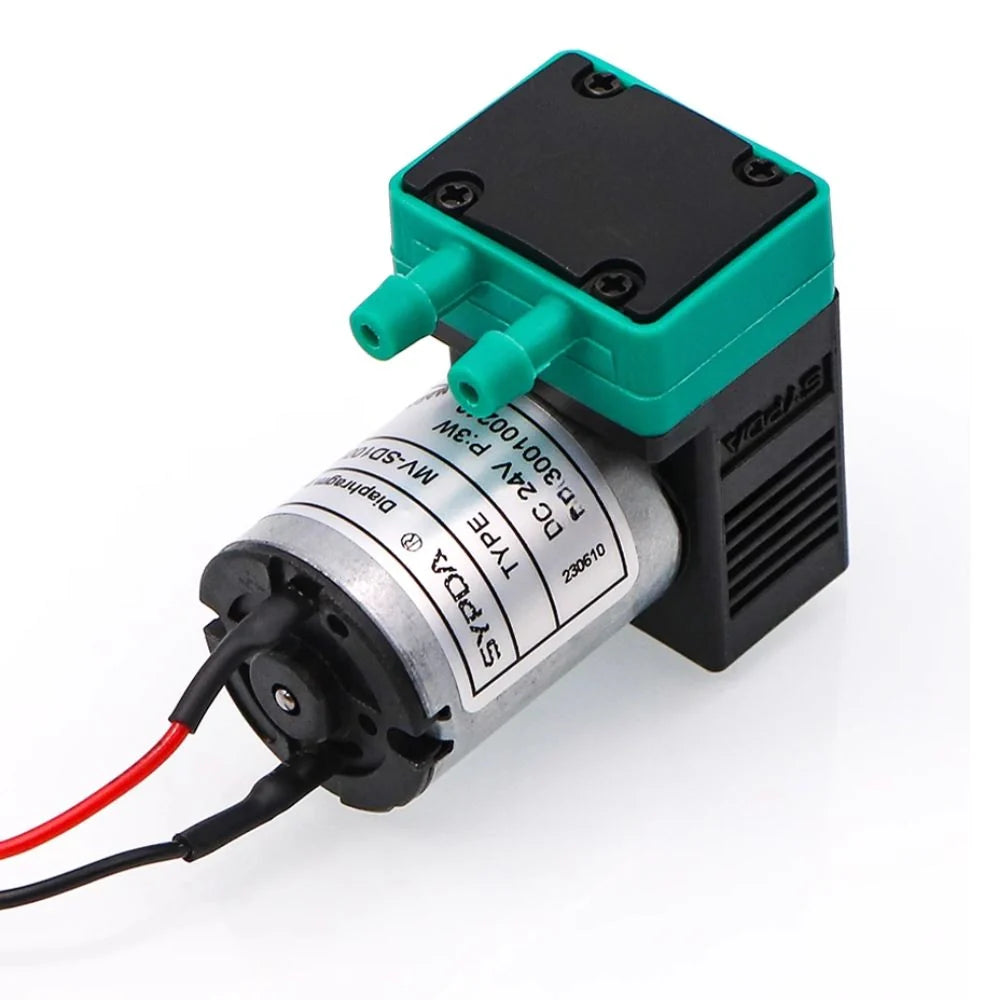

MV-SD100Es Solvent Micro Diaphragm Pump

Compatibility and maintenance note: This item is used for compatible printer ink-line maintenance. Please confirm size, connector type, fluid path, material requirement, and printer configuration before ordering. Actual performance depends on installation, ink/fluid type, machine condition, and operating environment.

The MV-SD100Es is a compact micro diaphragm pump developed for solvent-based and oil-based ink circulation in industrial inkjet systems. Operating at 24V DC with a low-power 3W motor, it delivers a stable flow rate of approximately 100ml/min, supporting controlled ink movement in precision printing environments.

This model is optimized for chemical resistance. Its diaphragm structure and fluid-contact components are engineered to withstand aggressive solvents and ink additives commonly used in coding printers, UV inkjet systems, and small-format digital printers. The design helps help evaluate material degradation and maintains consistent output during long-term operation.

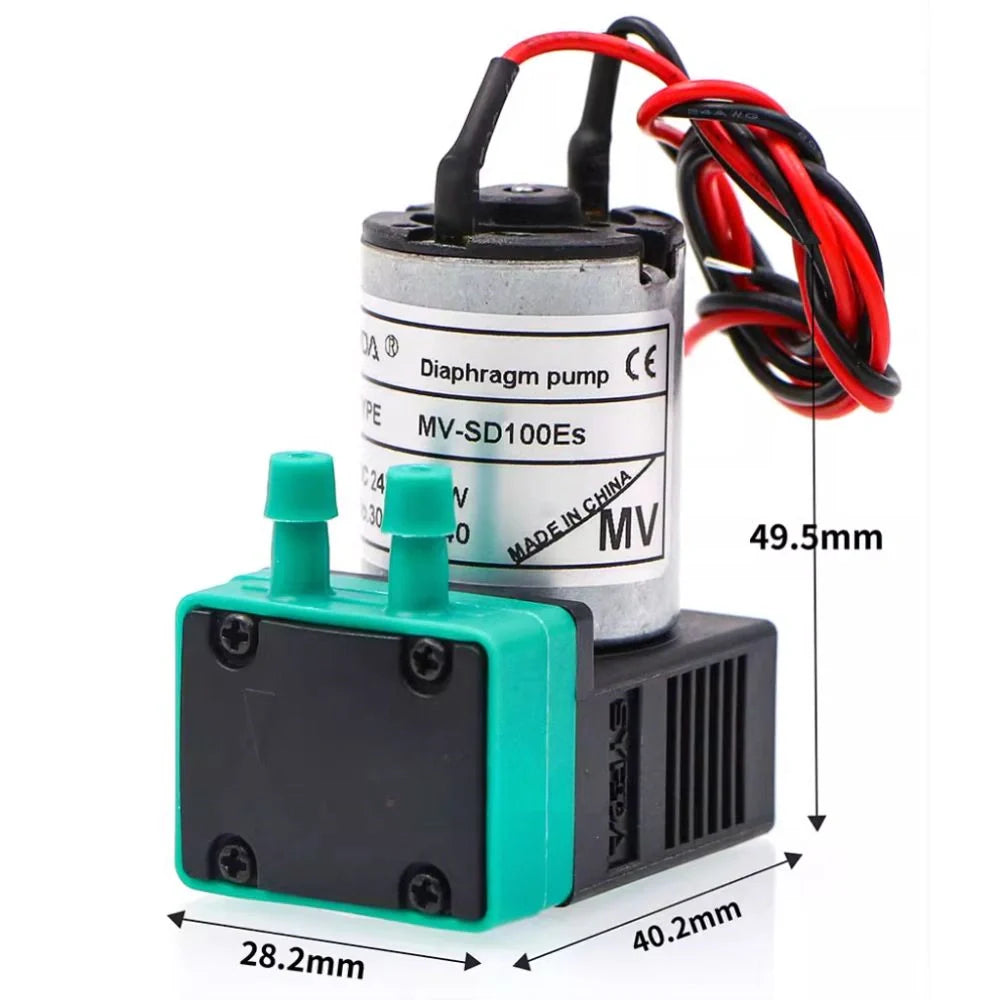

Thanks to its compact dimensions, the MV-SD100Es can be easily integrated into space-limited printer assemblies, auxiliary ink circulation modules, and secondary ink supply systems without structural modification.

Key Features

• Designed specifically for solvent and oil-based ink systems
• Stable 100ml/min flow for controlled ink circulation
• Low-power 3W operation with reduced heat generation
• Durable diaphragm construction with strong chemical resistance
• Low noise output suitable for continuous industrial operation

Technical Specifications

For best performance, ensure proper priming before operation and avoid dry running. Matching tubing material with solvent ink type is recommended to extend system lifespan.
