Compatible Replacement PHFIIB Filter with PHPB / PHPW Buffer Bottle
- $26.30
Prices are displayed in USD. Available payment methods and shipping options are shown at checkout based on destination and order details.
Secure payments
Order issue support
Product Details
xOrdering help: For model-specific products, contact us if you need compatibility or fitment help before ordering. Product price and availability are shown on this page, and shipping options and charges available for the entered destination are shown at checkout.
PHFIIB / PHPB / PHPW Series — Ink Filter & Buffer Bottle
The PHFIIB / PHPB / PHPW series provides high-efficiency inline filtration and ink buffering for wide-format printing systems. The PHFIIB filter uses a stainless-steel mesh element with a heat-welded housing to ensure low pressure drop, smooth ink flow, and consistent filtration. PHPB and PHPW 500 cc buffer bottles stabilize pressure and reduce foaming within the ink supply.
Key Features
- PHFIIB filter rating: 20 µm, housing size 46 × 22 mm.
- Stainless-steel mesh, corrosion-resistant and deformation-proof.
- Heat-welded body ensures strong sealing without adhesive contamination.
- White or black body color options for easy differentiation.
- PHPB/PHPW 500 cc sub-tank bottles balance negative pressure and flow stability.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | PHFIIB / PHPB / PHPW |
| Filter Type | Inline 2-Way (SS Structure) |
| Filter Rating | 20 µm |
| Filter Size | 46 × 22 mm |
| Buffer Capacity | 500 cc (PHPB / PHPW) |
| Material | Stainless-steel mesh, PP body |
| Color Options | White / Black |
| Typical Application | UV, eco-solvent, and water-based printing systems |
Model Variants
| Model | Type | Structure / Capacity | Body Color | Core Specs | Recommended Use |
|---|---|---|---|---|---|

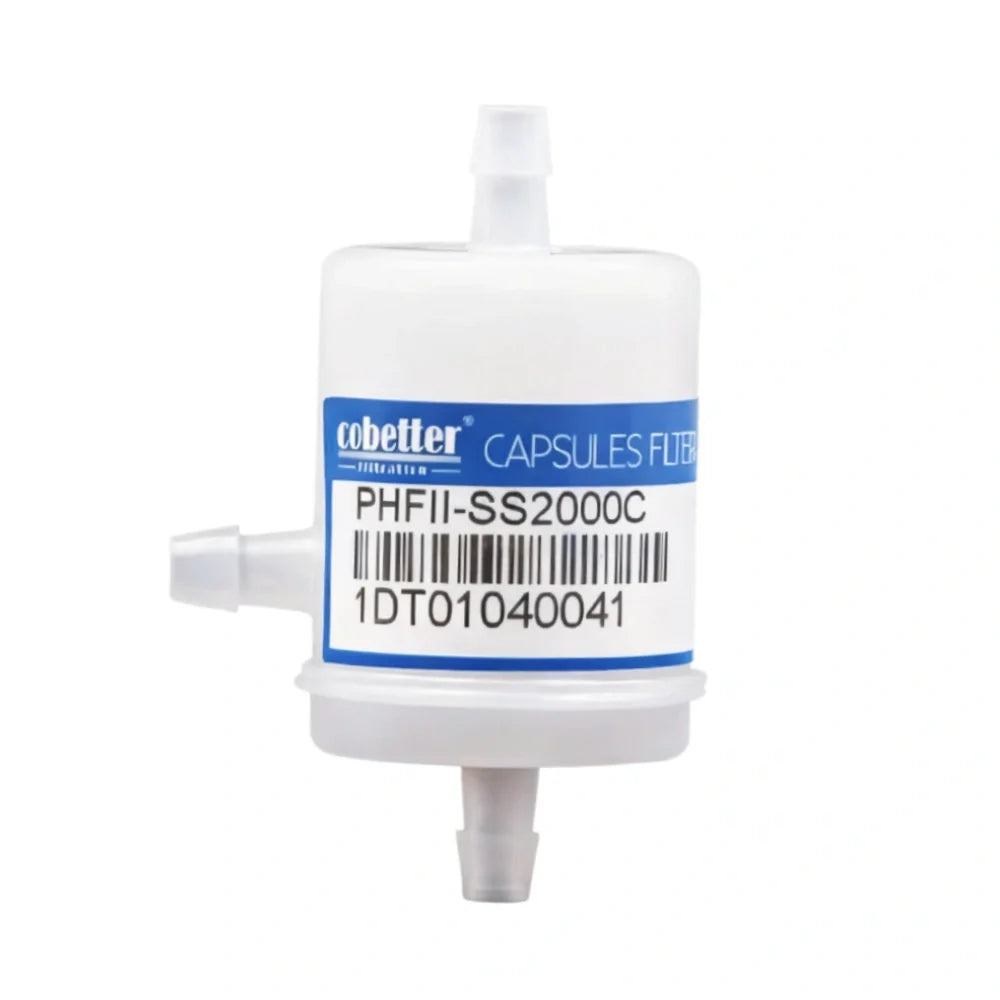

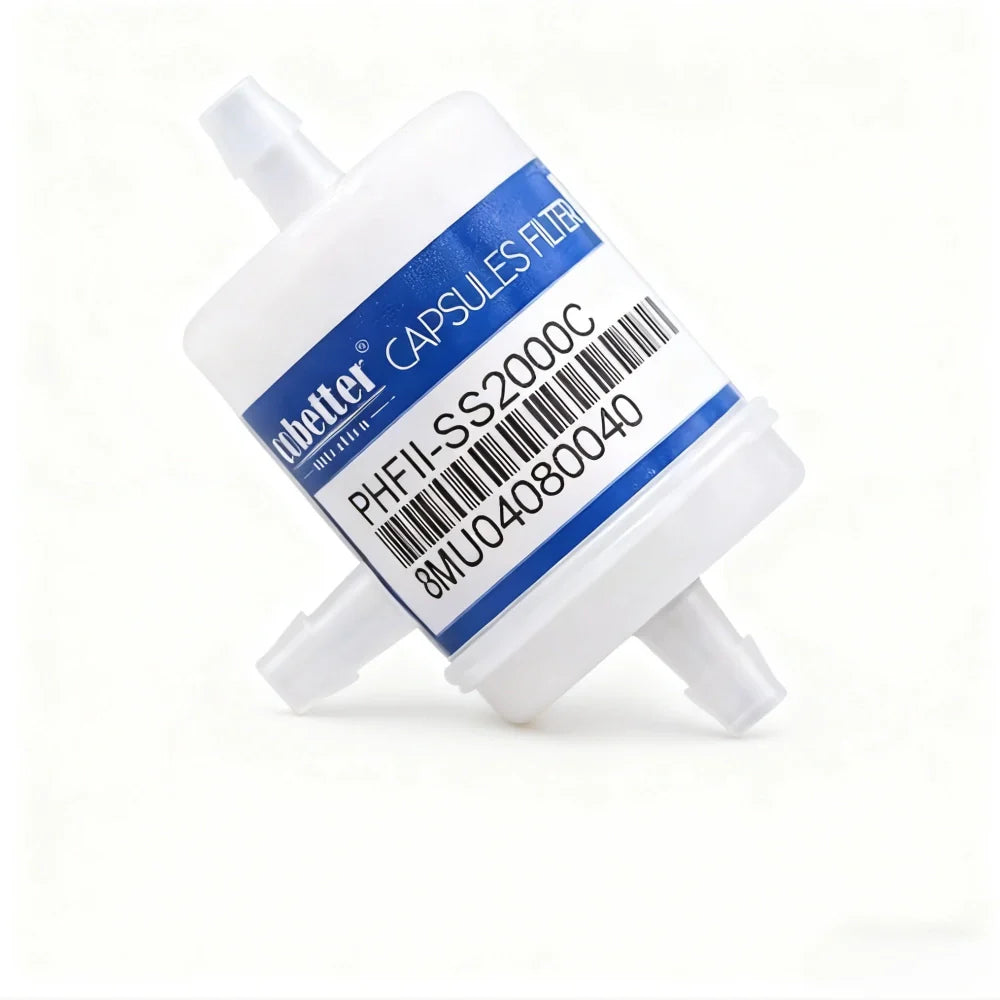

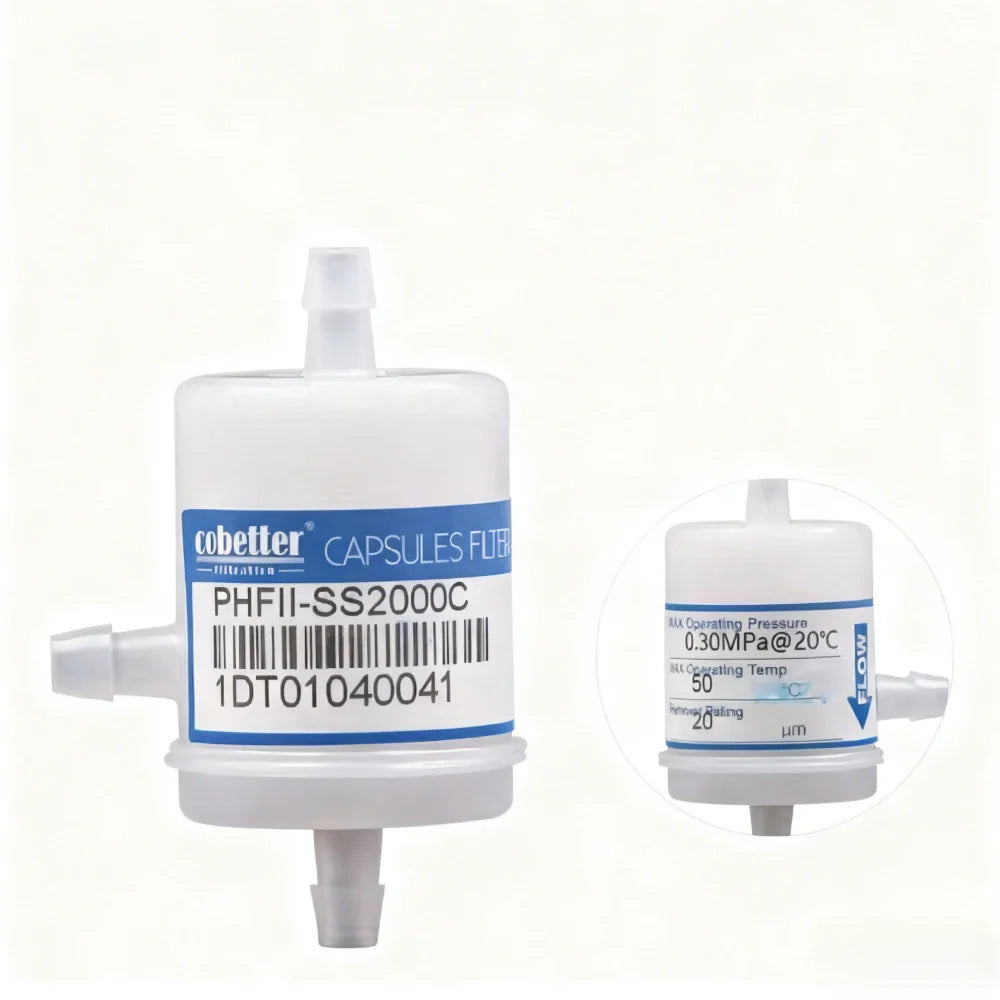

| PHFIIB-SS2000C | Inline Filter | 2-Way (SS) | White / Black | 20 µm; 46 × 22 mm | Pre-head filtration, low pressure drop |
| PHPB-INKPP500CC | Buffer Bottle | 500 cc | Black | Stabilizes ink pressure | Inline or recirculation use |
| PHPW-INKPP500CC | Buffer Bottle | 500 cc | White | Stabilizes ink pressure | Inline or recirculation use |
Compatibility
Suitable for wide-format printers using Ricoh, Epson, Konica, or Toshiba printheads. Compatible with most UV and eco-solvent ink systems, including Mimaki, Mutoh, Roland, and other similar platforms. Verify port size and tubing fit before installation.
- Match tubing inner/outer diameter and ink flow direction before assembly.
- Prime the ink system to remove trapped air for output depends on ink system, machine condition, environment, and maintenance.
- Replace the filter regularly based on ink type and operation hours.
- Ensure the buffer bottle is mounted securely to minimize vibration or backflow.
20 µm Filtration
Low Pressure Drop
500 cc Buffer
Fast Shipping
