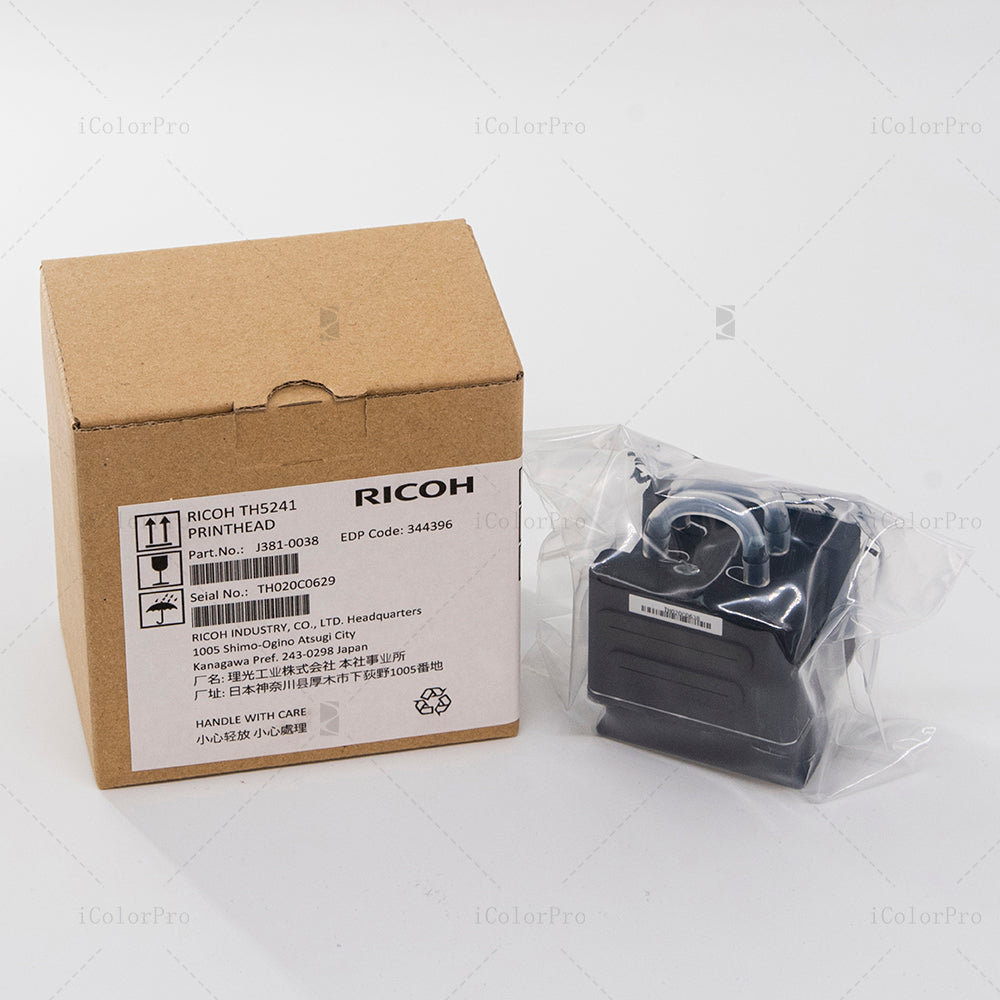

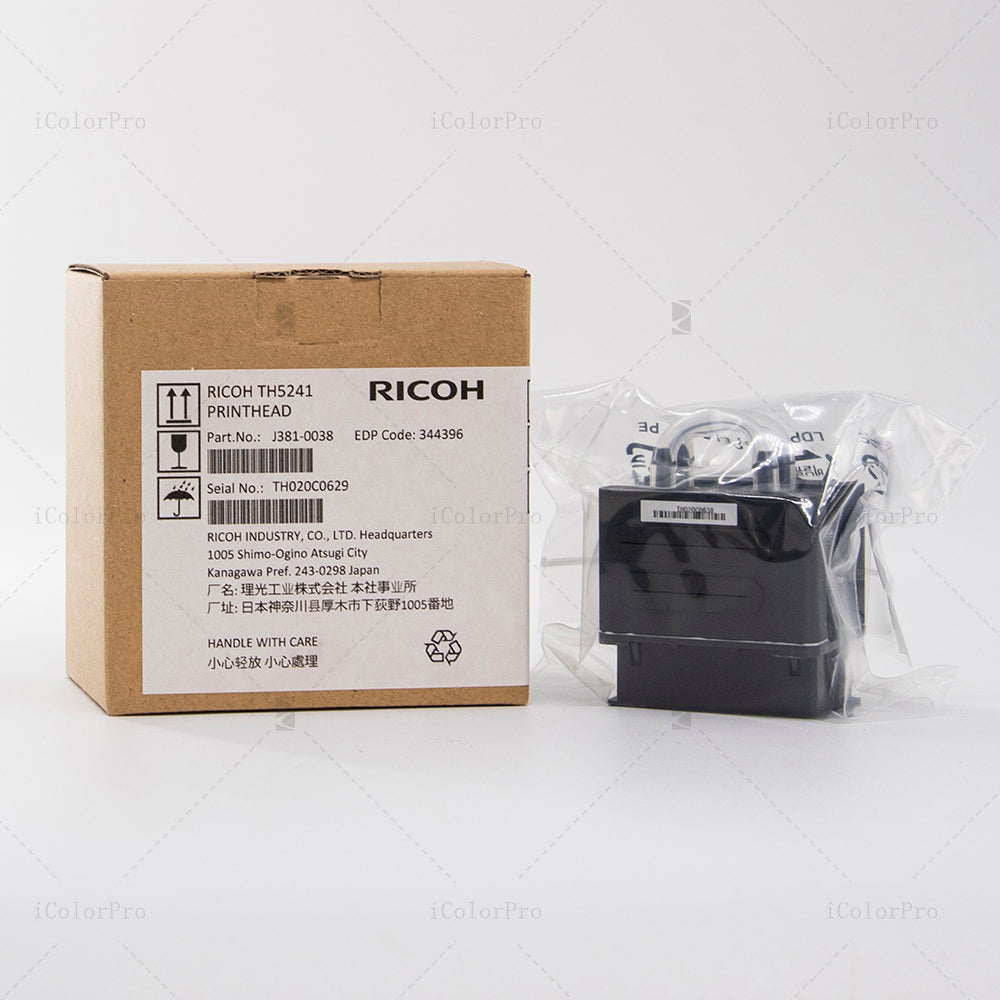

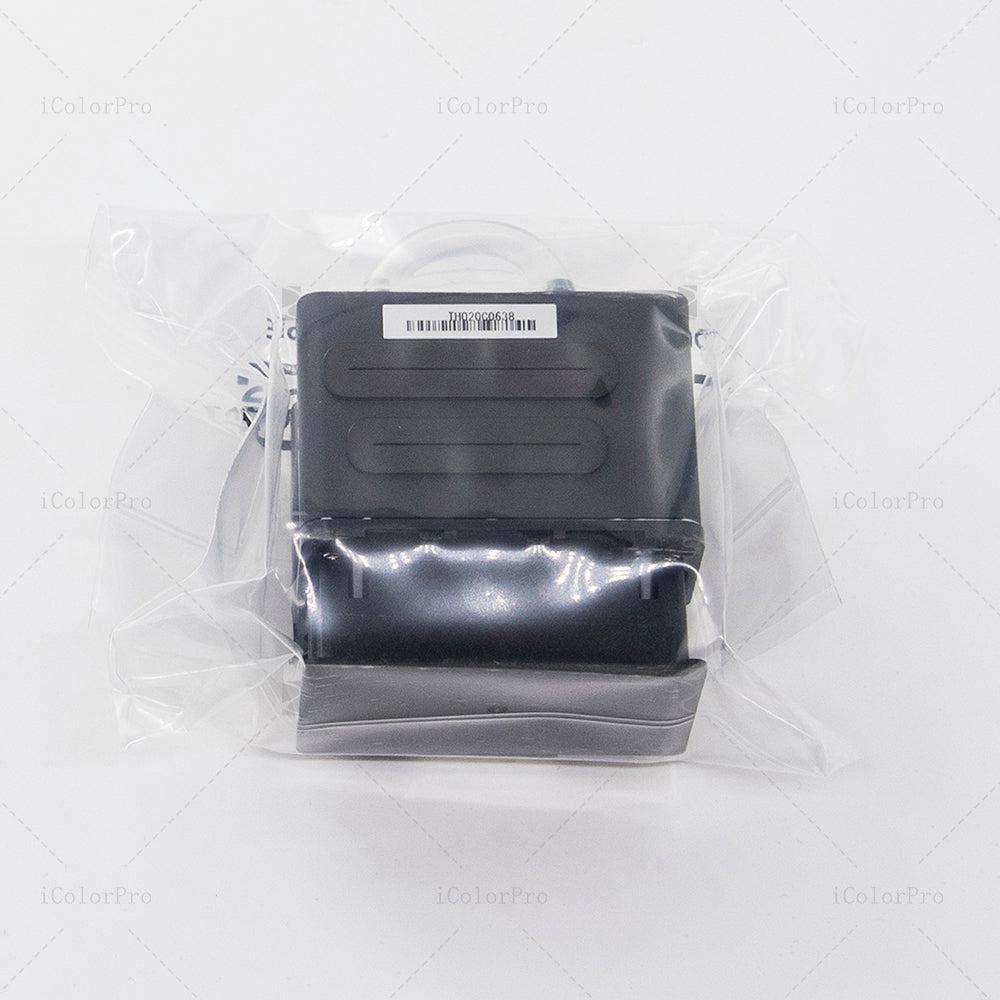

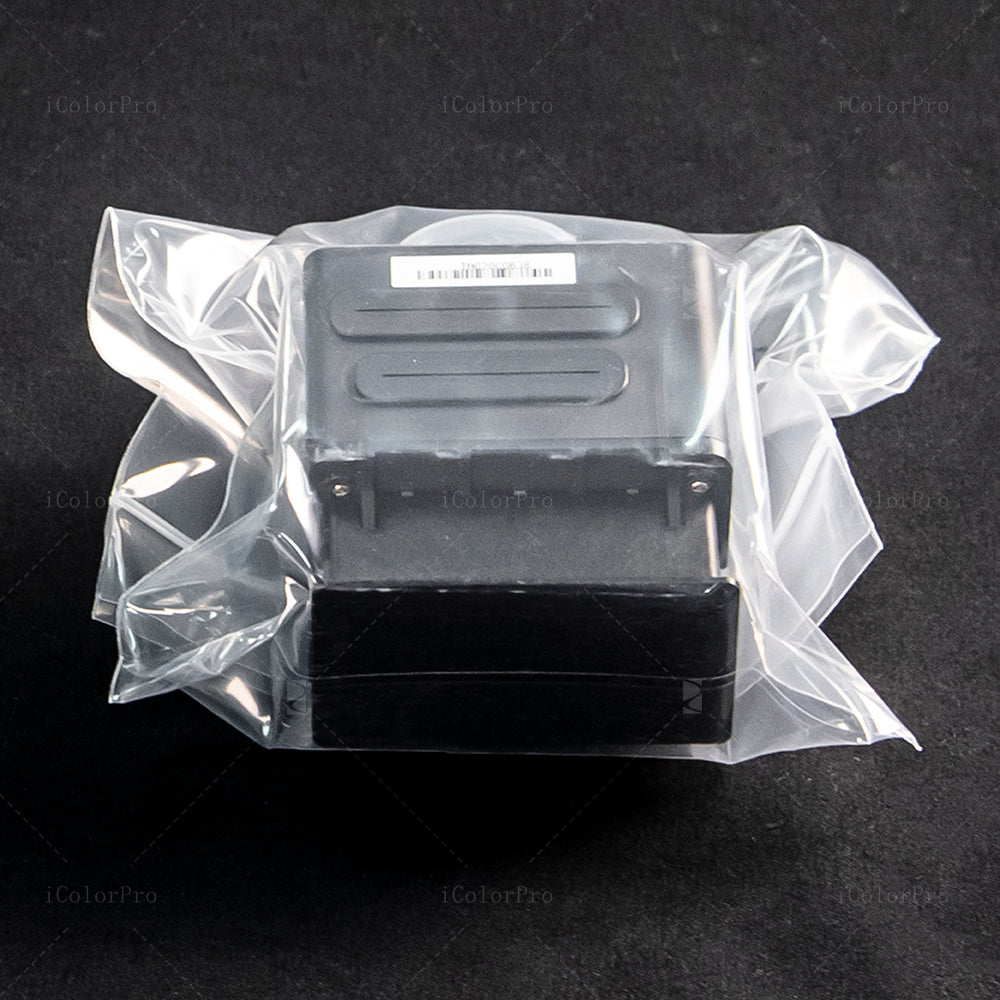

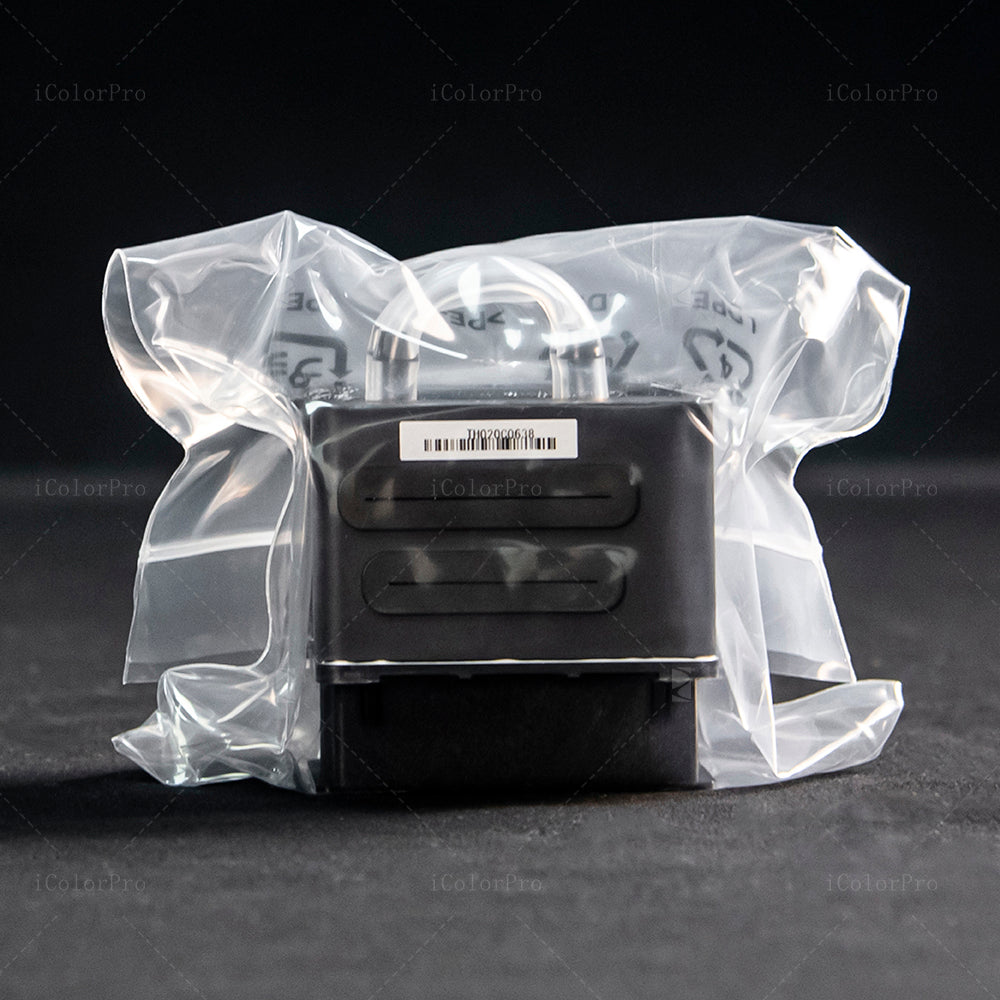

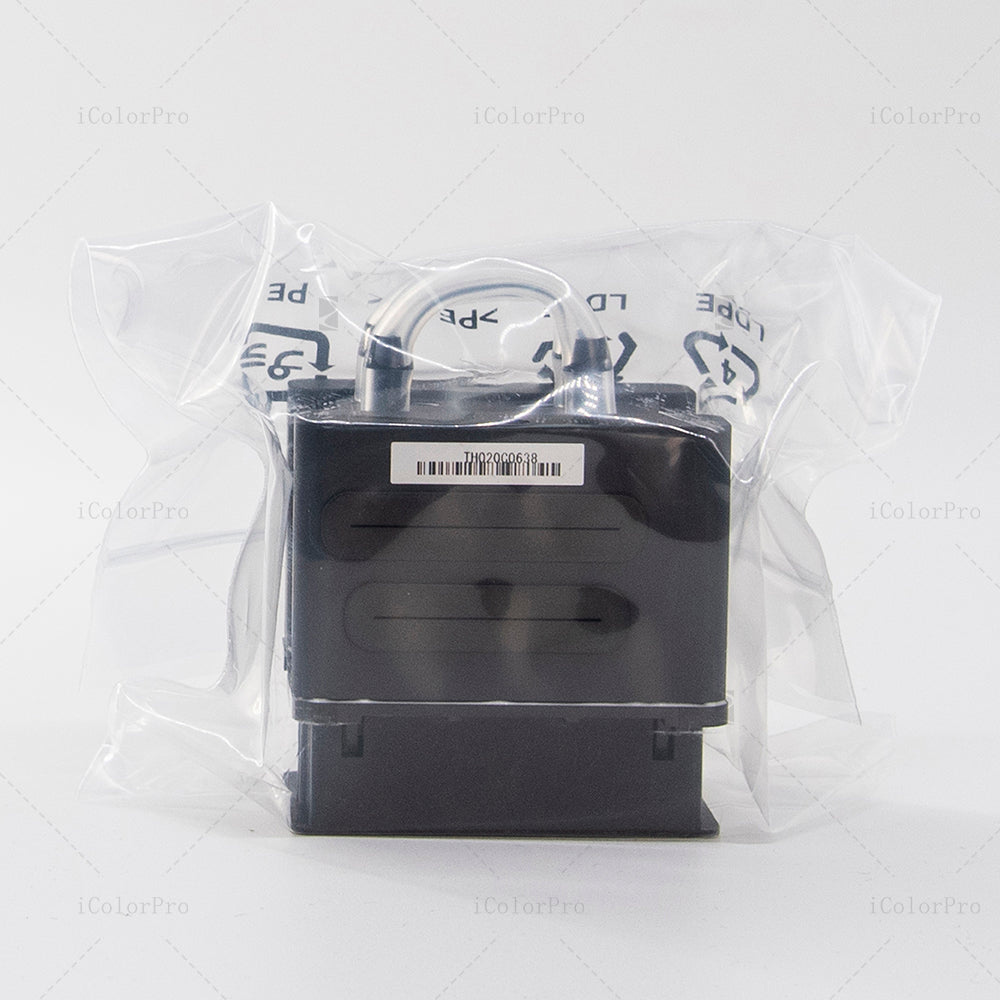

Ricoh Gen5i Inkjet Printhead

Ricoh Gen5i Printhead

Ricoh Gen5i Printhead is supplied for professional printing systems that need stable output, precise droplet placement, and lower downtime risk.

• Model-reference printhead
• Stable printing and lower clogging risk when matched with the correct ink system
• Compatible with UV-curable inks, Solvent inks, Oil-based inks
• shipping details confirmed before payment shipping and compatibility support before order

Not sure if it fits your printer? Contact us with your printer model, printhead model, and ink type before you order.

Ask Compatibility Request Current Quote Request Test Video

Before You Order

• Confirm printer model
• Confirm printhead model
• Confirm ink type (UV-curable inks, Solvent inks, Oil-based inks)
• Contact us if you are not sure

Why Choose Us

• Model-reference printhead
• Model and appearance check before shipment
• Real product photos available on request
• Anti-static packing with foam protection
• After-sales support for compatibility questions

Technical Specifications

Applications

• Textile Printing Systems
• Label Printing
• Packaging Printing
• Signage & Graphics
• UV Flatbed Printing
• Industrial Product Decoration

Compatibility note: Printhead fit depends on printer design, ink type, cable setup, and board configuration. Please confirm these details before purchase to reduce ordering mistakes.

Packing & Shipping

• Anti-static packing
• Foam protection
• Safe export shipping
• shipping details confirmed before payment delivery options available

Technical Overview

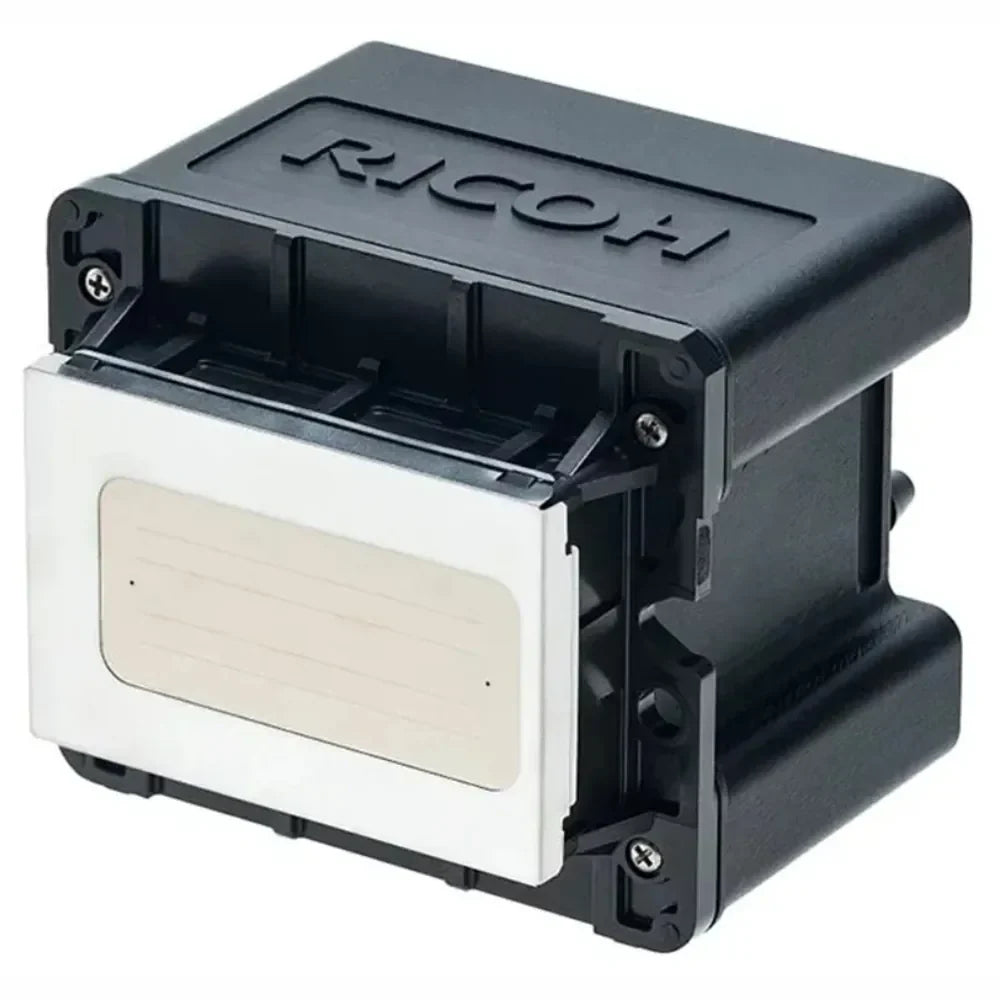

The Ricoh Gen5i is an enhanced industrial inkjet printhead developed on the proven Gen5 platform. It is designed to deliver high-speed, high-precision output while offering improved ink compatibility and long-term operational stability for both scanning and single-pass printing systems. Printhead Architecture This model features a four-row nozzle configuration with a total of 1,280 nozzles arranged as 4 × 320. Operating at a native resolution of 600 dpi, the Gen5i provides accurate droplet placement and consistent image reproduction in demanding industrial environments. Droplet Control & Output Quality The Gen5i supports variable droplet sizes ranging from 7 to 21 picoliters with grayscale capability. This flexible droplet control enables smooth gradients, controlled ink density, and high-quality detail across a wide range of printing speeds and applications. Ink Compatibility UV-curable inks Solvent-based inks Water-based inks Oil-based inks Ink Management & Stability An integrated ink recirculation system helps reduce sedimentation and nozzle clogging, maintaining stable jetting performance during extended operation. This design supports consistent print quality and reduces maintenance requirements in continuous production environments. Typical Applications Label and packaging printing systems Signage and graphic printing Textile and fabric printing Decorative and industrial surface printing Model References Ricoh MH5421F (Gen5i) / Ricoh MH5421 / Gen5i Printer Head / Ricoh Gen5 improved version

FAQ

Is this reference?

Please confirm the exact model and supply type with our team before order. Model-reference printhead support is available for this page.

How do I confirm compatibility?

Send your printer model, current printhead model, and ink type. We will help review fit before you order.

Do you test before shipping?

Visual and model checks can be arranged before shipment, and real product photos or confirmation can be provided on request.

Need help before ordering? Send us your printer model, printhead model, ink type, and destination country. We will help you confirm compatibility before you buy.

Ask Compatibility Request Current Quote Contact Sales
