Compatible Replacement Carriage Motor for Roland SJ1045 Printers
- $216.67
Prices are displayed in USD. Available payment methods and shipping options are shown at checkout based on destination and order details.
Secure payments
Order issue support
Product Details
xOrdering help: For model-specific products, contact us if you need compatibility or fitment help before ordering. Product price and availability are shown on this page, and shipping options and charges available for the entered destination are shown at checkout.

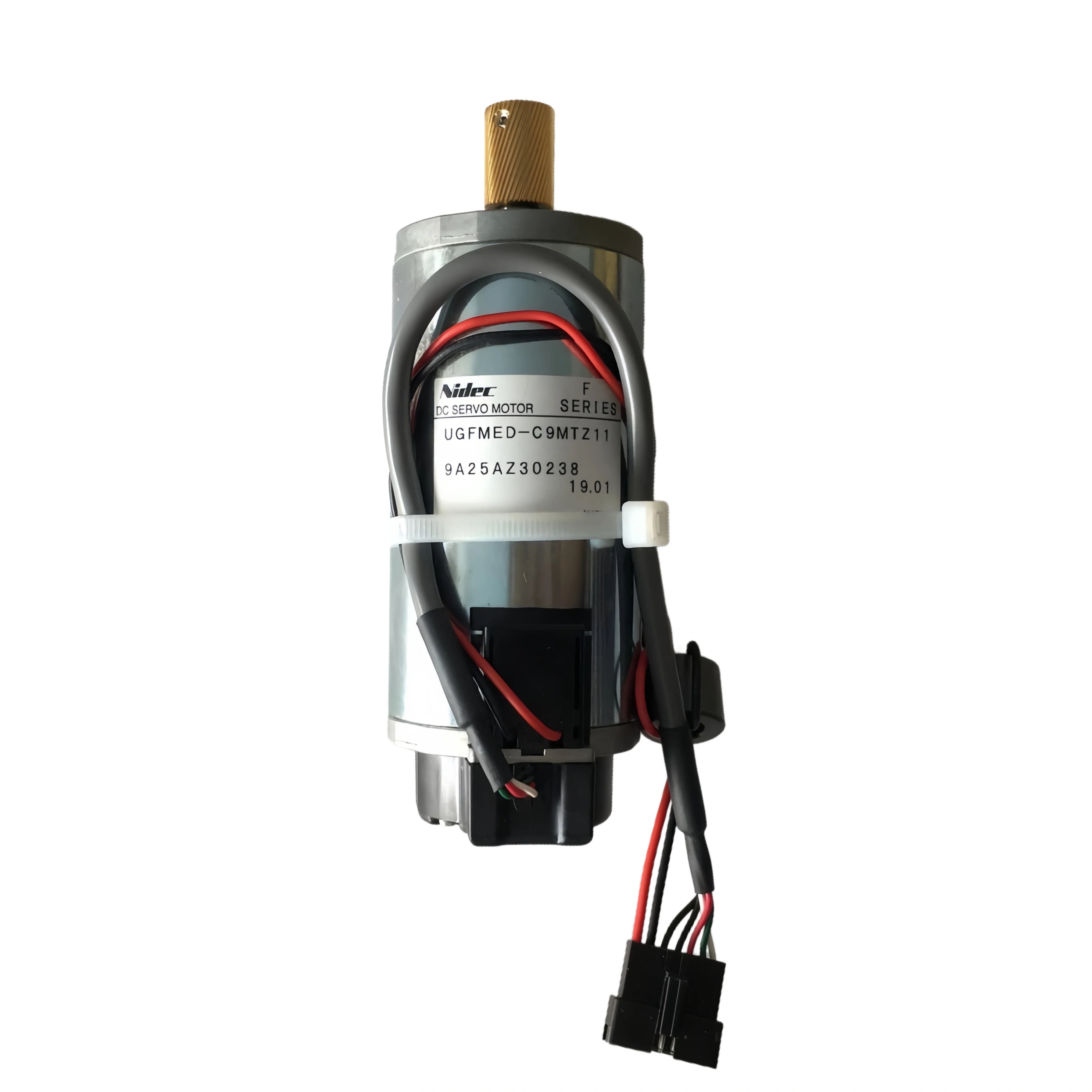

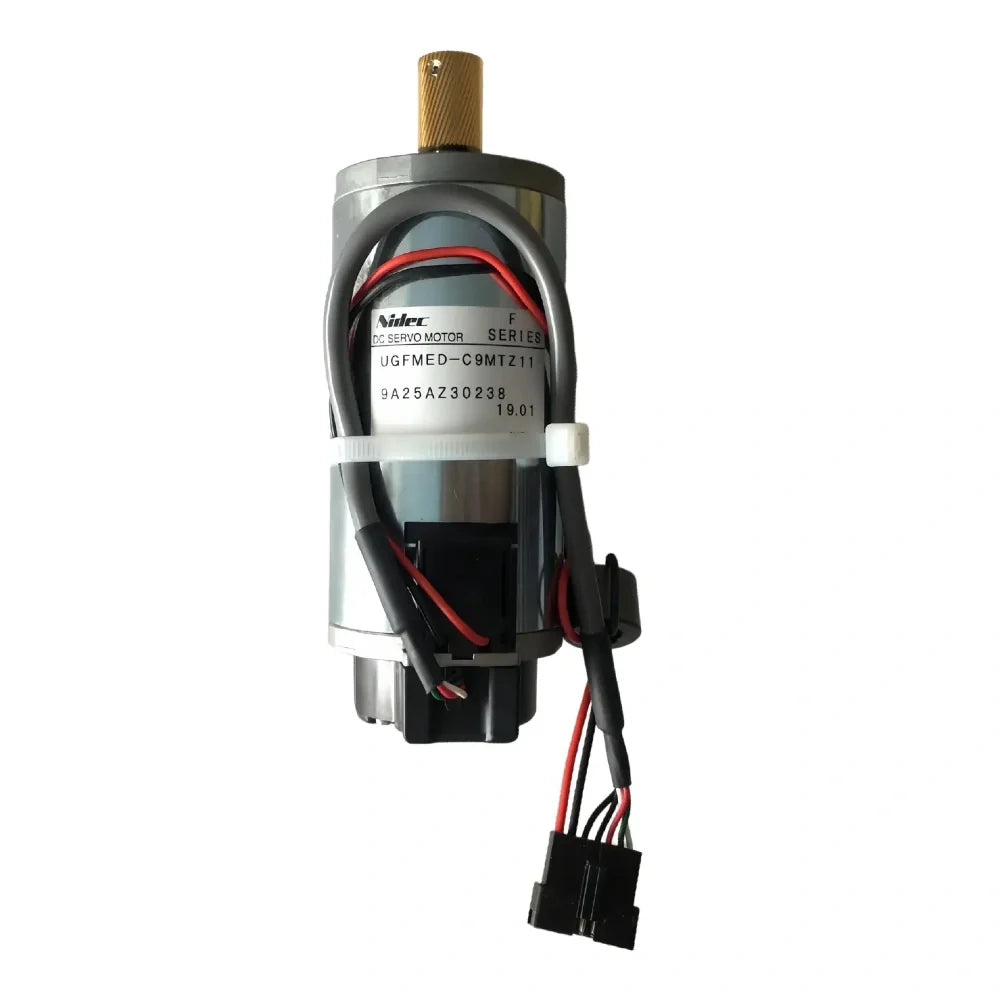

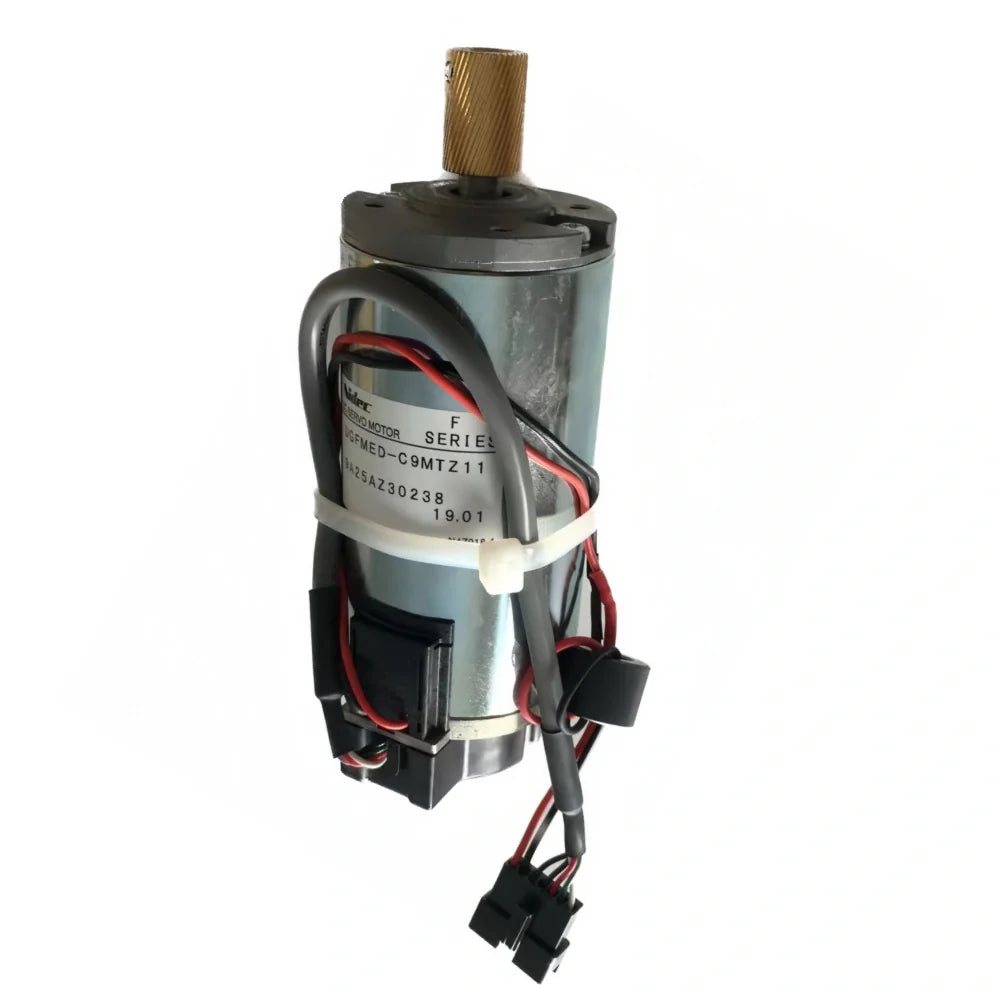

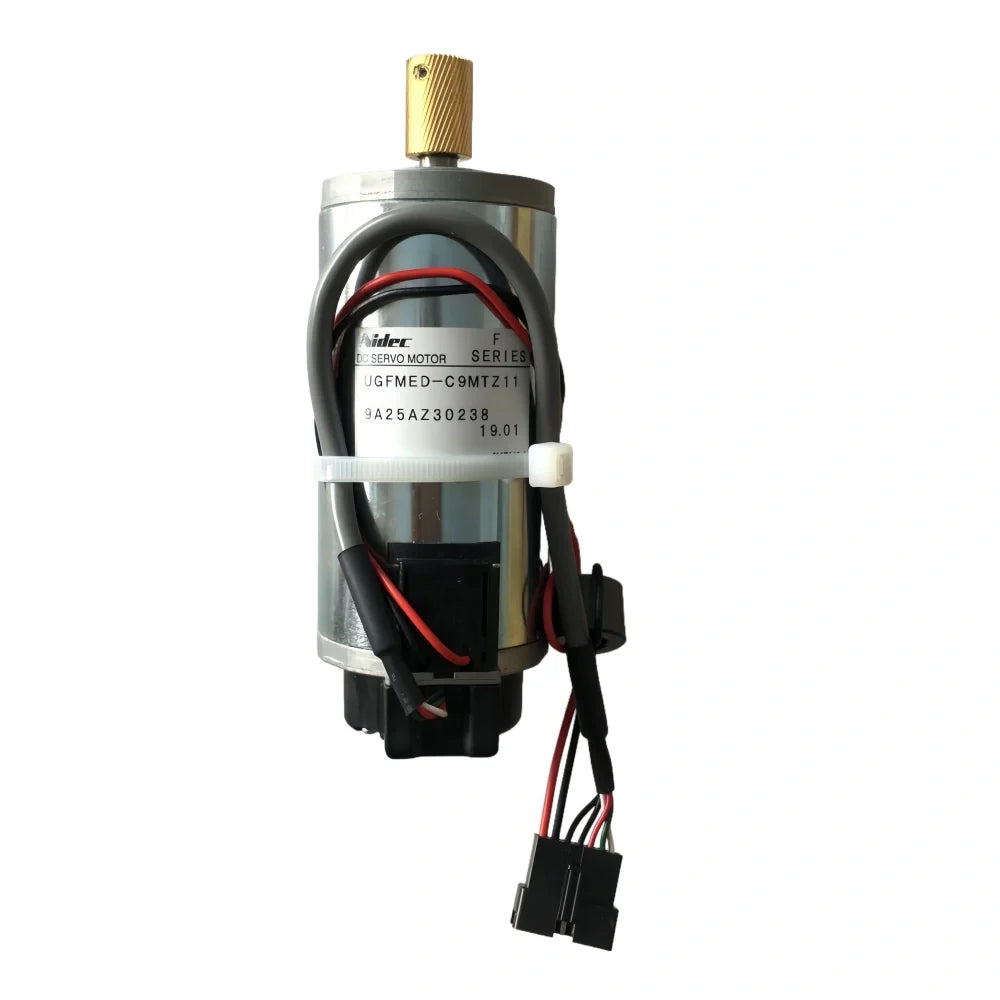

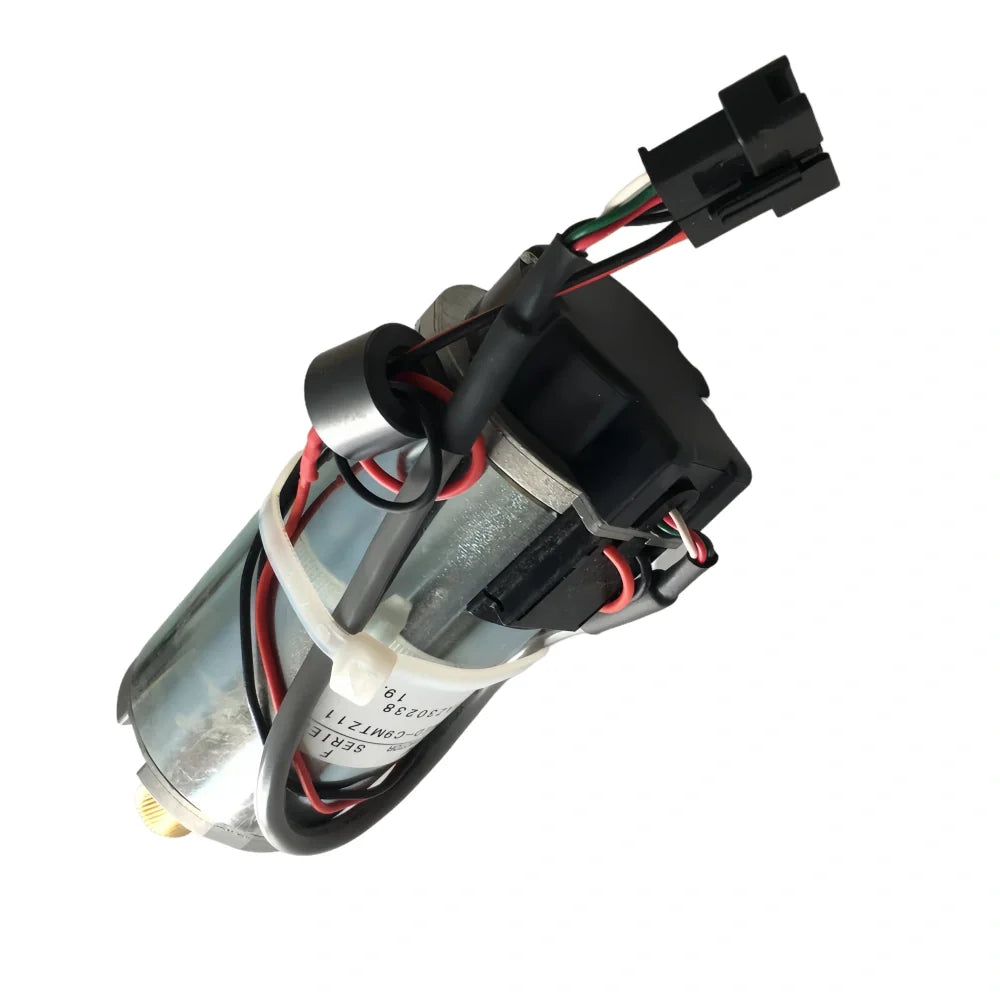

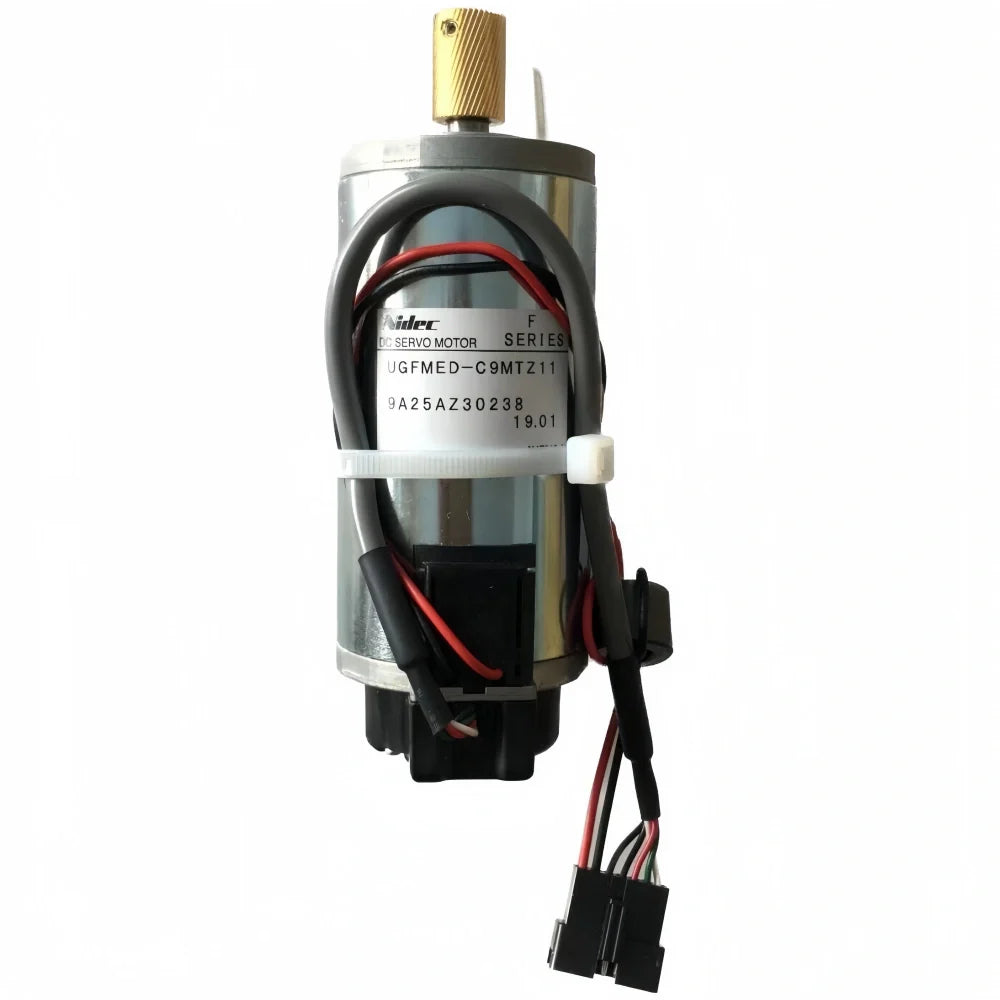

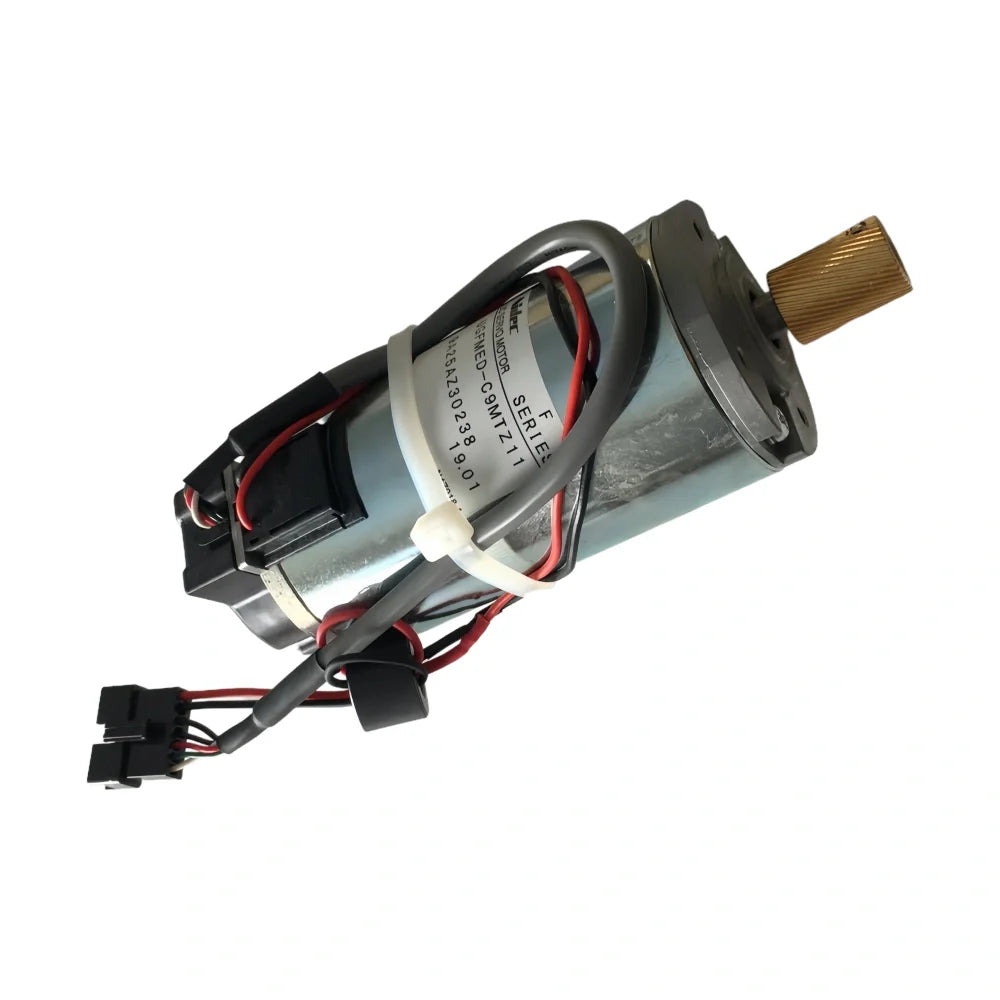

Roland Carriage Motor for SJ-1045 / SJ-1000 / SJ-1045EX / AJ-1000 / AJ-1045
High-quality carriage (scan) motor assembly designed for large-format Roland printers. This motor delivers stable torque and smooth carriage movement for accurate bidirectional printing and reduced banding.
| Item | Details |
|---|---|
| Product Name | Carriage / Scan Servo Motor Assembly |
| Drive Type | DC servo motor with encoder feedback (for precise positioning and speed control) |
| Connector | Factory 2-lead power + encoder plug (ready to install, no splicing required) |
| Application | Moves the printhead carriage along the X-axis; restores correct scan speed and eliminates carriage errors. |
| Typical Symptoms Solved | Carriage “motor error”, erratic speed, banding due to unstable scan, overheating/weak torque, or failure to initialize. |
| Included | 1 × Carriage Motor Assembly (pulley/gear as pictured; mounting bracket and screws reuse from your machine) |
| Compatibility |
Primary: Roland SJ-1045, SJ-1000, SJ-1045EX, AJ-1000, AJ-1045 Also widely used on: AJ-740 / FH-740 / FP-740, LEC-300 / LEJ-640, XC-540, XR-640, XJ-540 / XJ-640 / XJ-740 |
Why choose this motor
- Stable torque for high-speed passes and long prints.
- Integrated encoder delivers accurate positioning and smooth bi-directional printing.
- Pre-terminated harness and keyed connector for fast, drop-in replacement.
- Tested for compatibility with the listed Roland platforms.
Installation Tips
- Power off and unplug the printer. Move the carriage gently to the service side.
- Remove the carriage cover/plate to access the motor bracket.
- Mark belt routing, then release belt tension and disconnect the motor connector.
- Swap the motor, align the pulley, set belt tension, and ensure the carriage moves freely end-to-end.
- Run carriage initialization and a bi-directional calibration after replacement.
Package
1 × Carriage Motor Assembly, safely packed for shipping.
Notes
- Visually match the connector and pulley with your old unit before ordering.
- Professional installation is recommended for best results.
Compatibility Check
- Referenced machine models: SJ1045, SJ-1045, SJ-1000, SJ-1045EX, AJ-1000, AJ-1045, AJ-740, FH-740, FP-740, LEC-300, LEJ-640, XC-540, XR-640, XJ-540, XJ-640, XJ-740.
- Compare the connector layout, mounting position, and dimensions with the model-reference part.
- Part number reference found in current product data: SJ1045.
Buying Notes
- This part should be selected by machine revision, connection style, and physical fit, not by title similarity alone.
- If your printer has multiple board, cable, or motor revisions, compare the old part directly before ordering.
- For critical electronics or motion parts, professional installation is recommended after fitment is confirmed.
