Compatible Dryer for Roland RA640 Printers
- $117.36
Prices are displayed in USD. Available payment methods and shipping options are shown at checkout based on destination and order details.
Secure payments
Order issue support
Product Details
xOrdering help: For model-specific products, contact us if you need compatibility or fitment help before ordering. Product price and availability are shown on this page, and shipping options and charges available for the entered destination are shown at checkout.
Roland IR Heater & Blower Dryer (Print-Synchronous)
Compatible with Roland RA-640 / RE-640 / RF-640 / RF-640A / XF-640. A combined infrared heater + blower system designed for modern high-speed printing, accelerating ink fixation and media drying while keeping output quality stable.
Highlights
- Two sizes available: 1.6 m and 1.8 m.
- Mounting options: hanging bracket or angle-iron floor stand (select as needed).
- Blower module: approx. 80 × 80 × 25 mm footprint.
- IR tube length: ~1690 mm for 1.6 m model.
- Heater and blower can run independently or in combined mode.
- Automatic print-synchronous function: turns on with printing and turns off after job completion.
Thermal & Airflow Design
- High heat-transfer efficiency; reflective panel directs up to ~85% of IR energy toward the media.
- Residual heat is removed by a controlled airflow path to maintain system stability.
- Optimized air ducting provides even, uniform airflow across the print width.
- Surface temperature designed to remain close to ambient for operator safety.
Print-Synchronous Control (GX16 2-pin)
Connector: Aviation plug GX16, 2-core. Wire-1: Red (+), Wire-2: Black (–).
Input: DC 5–24 V, 10–40 mA. (5 V recommended to reduce current.)
Typical signal sources from the printer:
- Print start/stop synchronization output.
- Media/home (origin) sensor.
- Take-up or exhaust fan trigger.
Example (GP1A05 photo-sensor): connect red to Vcc, black to Vo. Other sensors follow similar wiring.
Specifications
| Model Widths | 1.6 m / 1.8 m |
| Power Supply | AC 180–260 V, 50–60 Hz |
| Rated Power | < 2000 W (typical) |

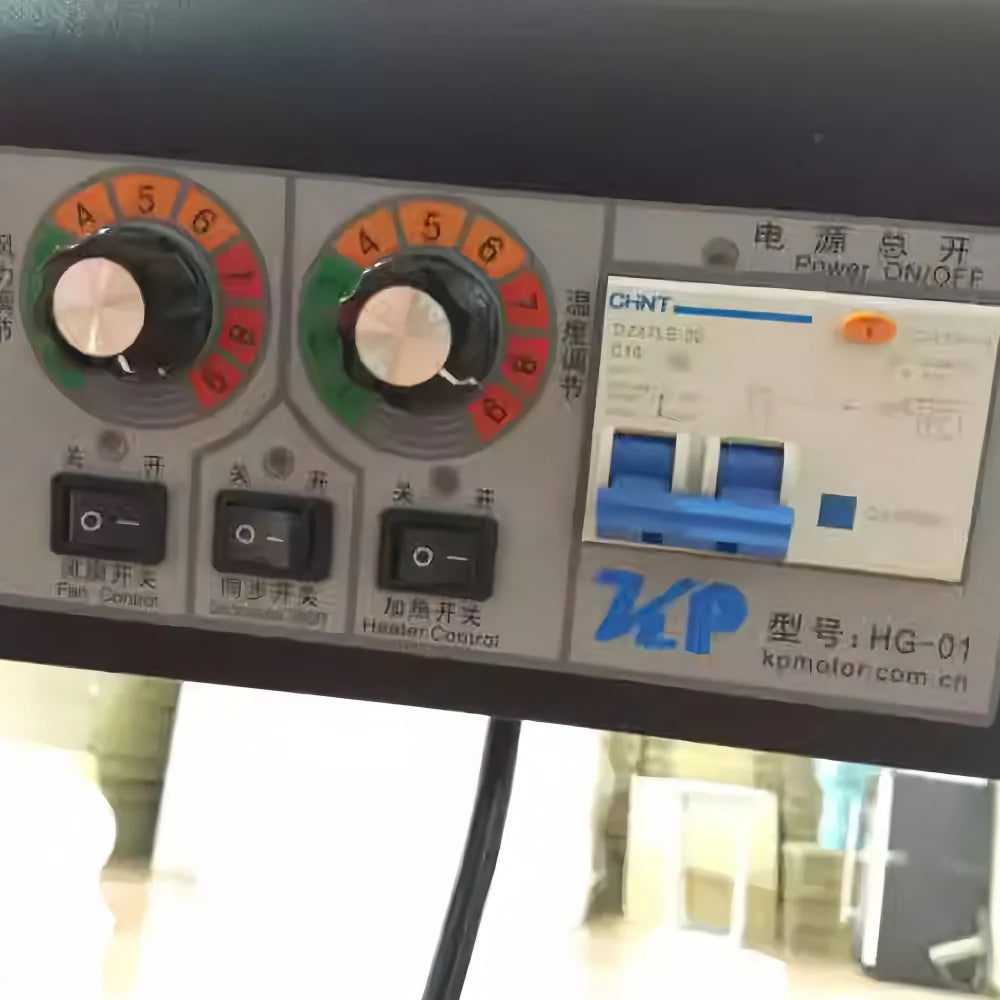

| Control | Print-synchronous auto on/off; manual control panel |
| Mounting | Hanging bracket or floor stand (angle-iron) — choose per installation |
What's Included

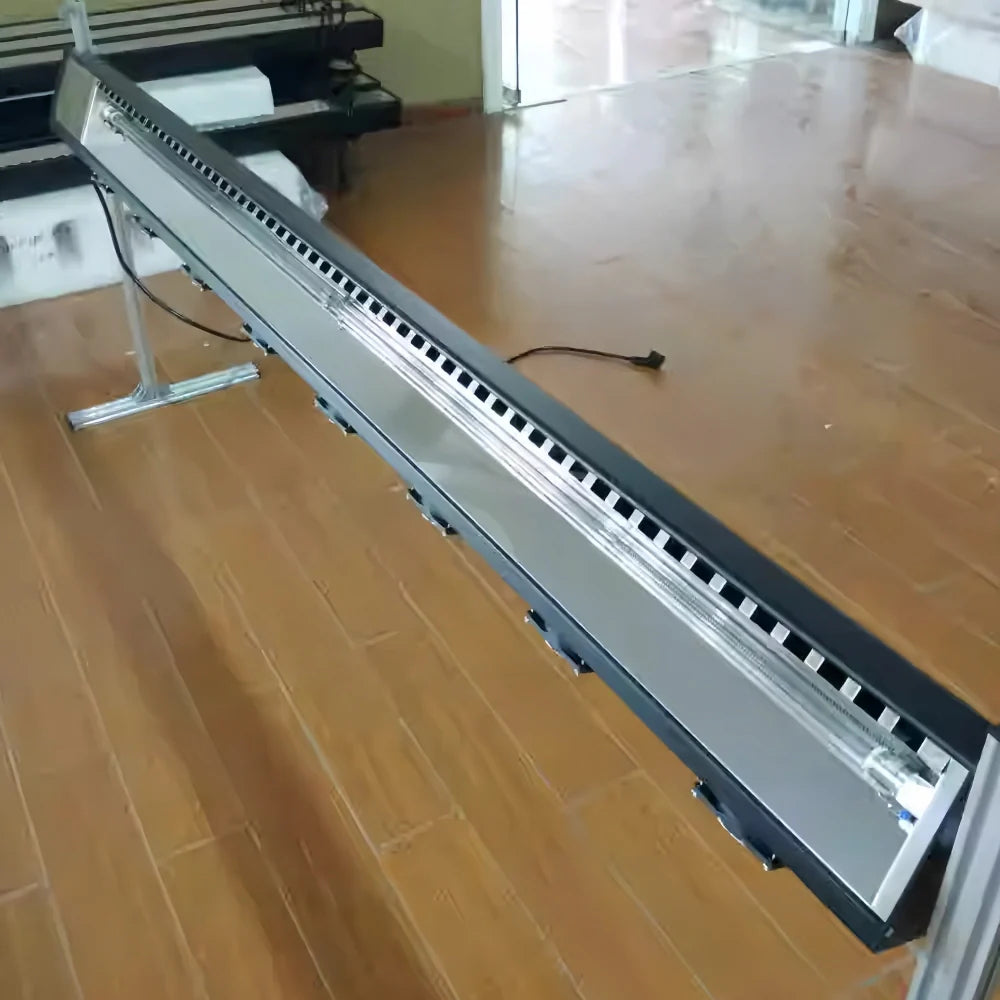

- IR heater assembly with integrated blower

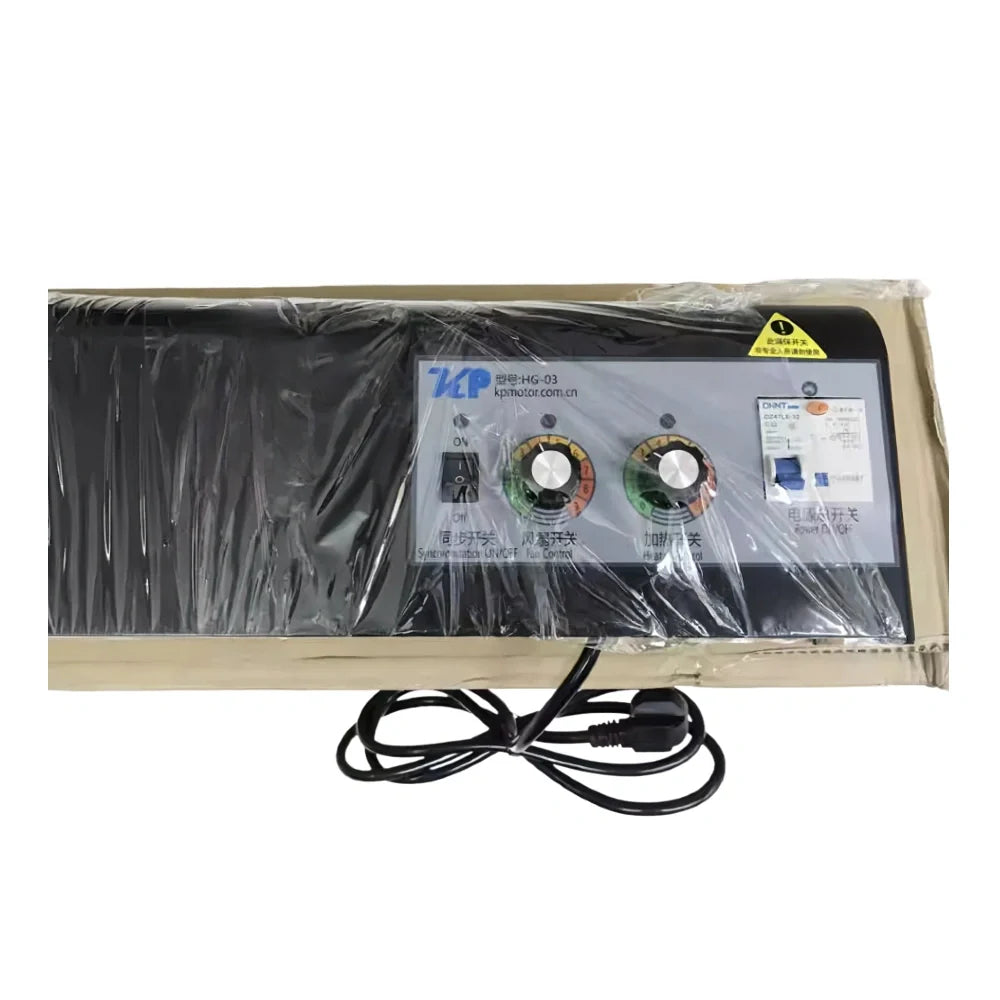

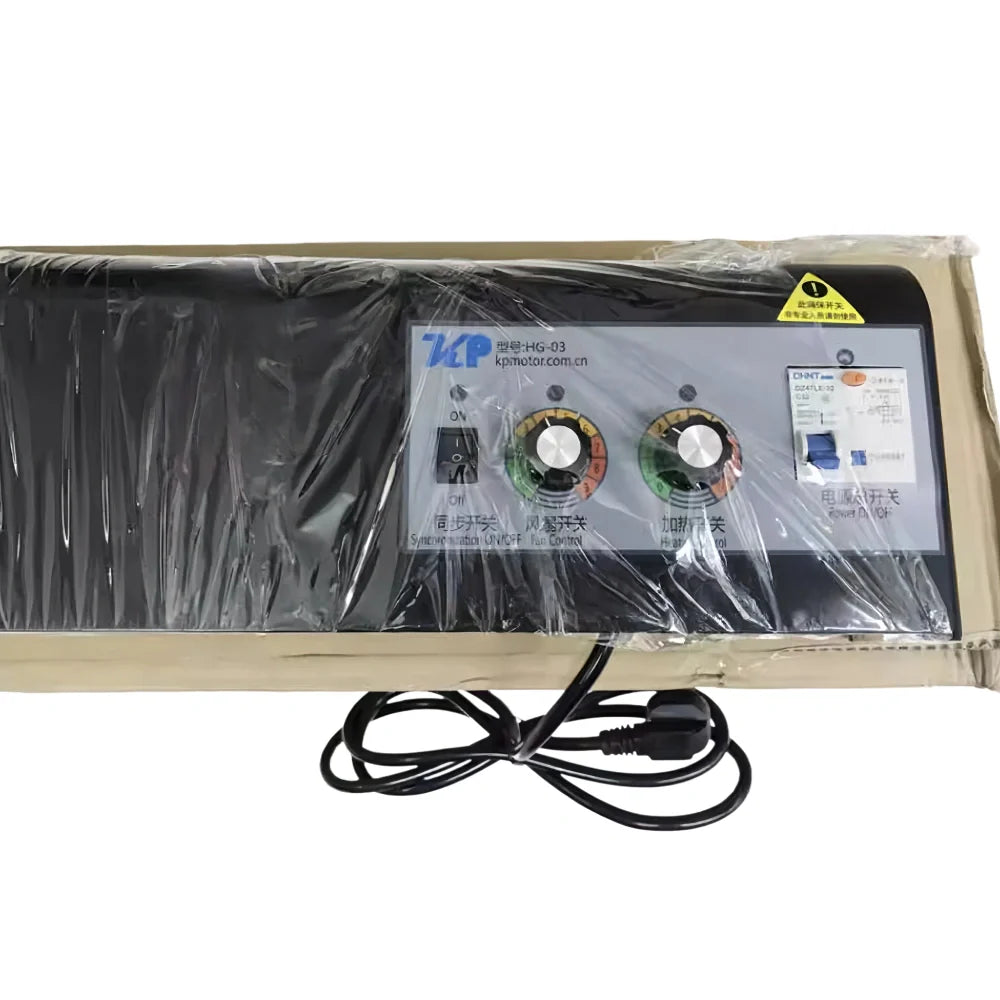

- Control box / panel
- Power cable
- Mounting kit (brackets or stand, depending on selection)
- User wiring guide for print-sync (GX16)
Notes
- Ensure proper grounding and follow local electrical codes.
- Keep airflow unobstructed; do not cover the outlet or reflective surface.
- Use print-sync only with the specified voltage/current range.
- Allow cooling before service; IR tubes are hot during operation.

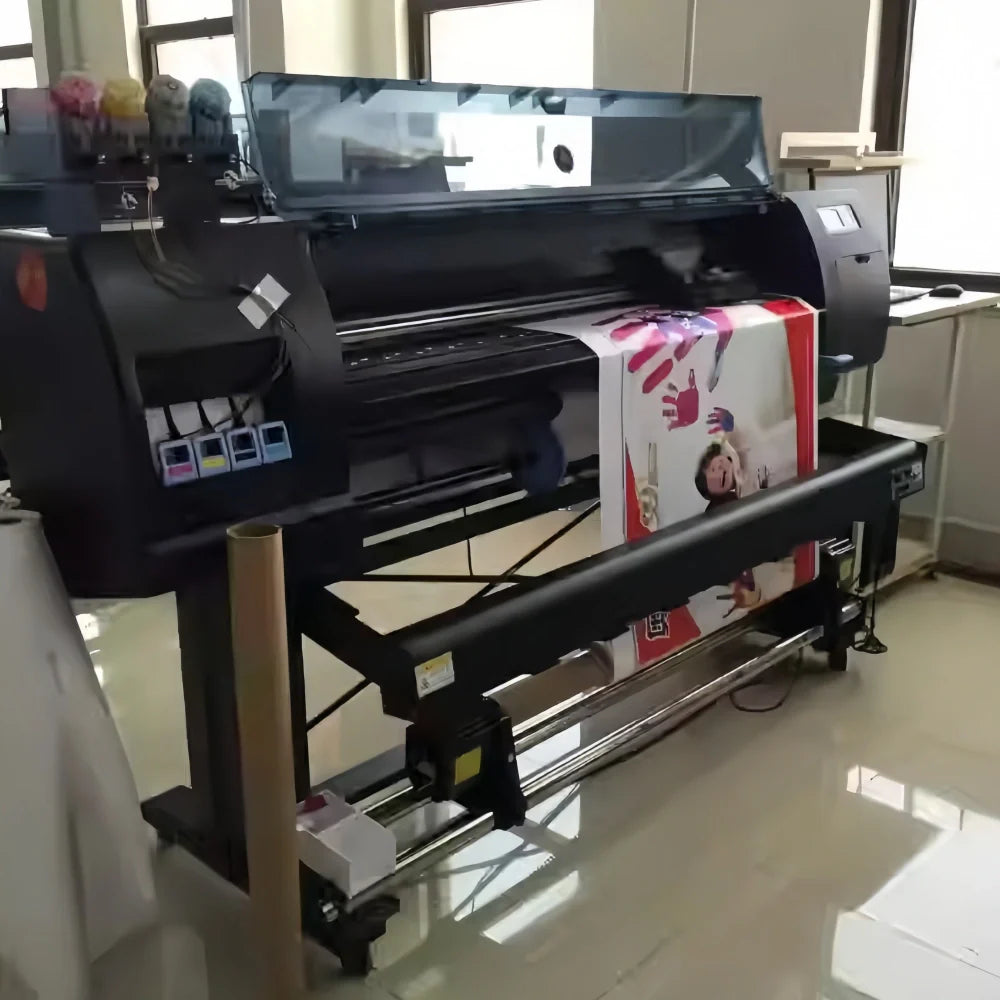

Compatibility: Roland RA-640, RE-640, RF-640, RF-640A, XF-640 (and systems with similar 1.6–1.8 m carriages).
