Roland External Dryer for VS640

Roland External Dryer for VS640/VS540/VS420/VS300/VS300i/VS640i

Product Description

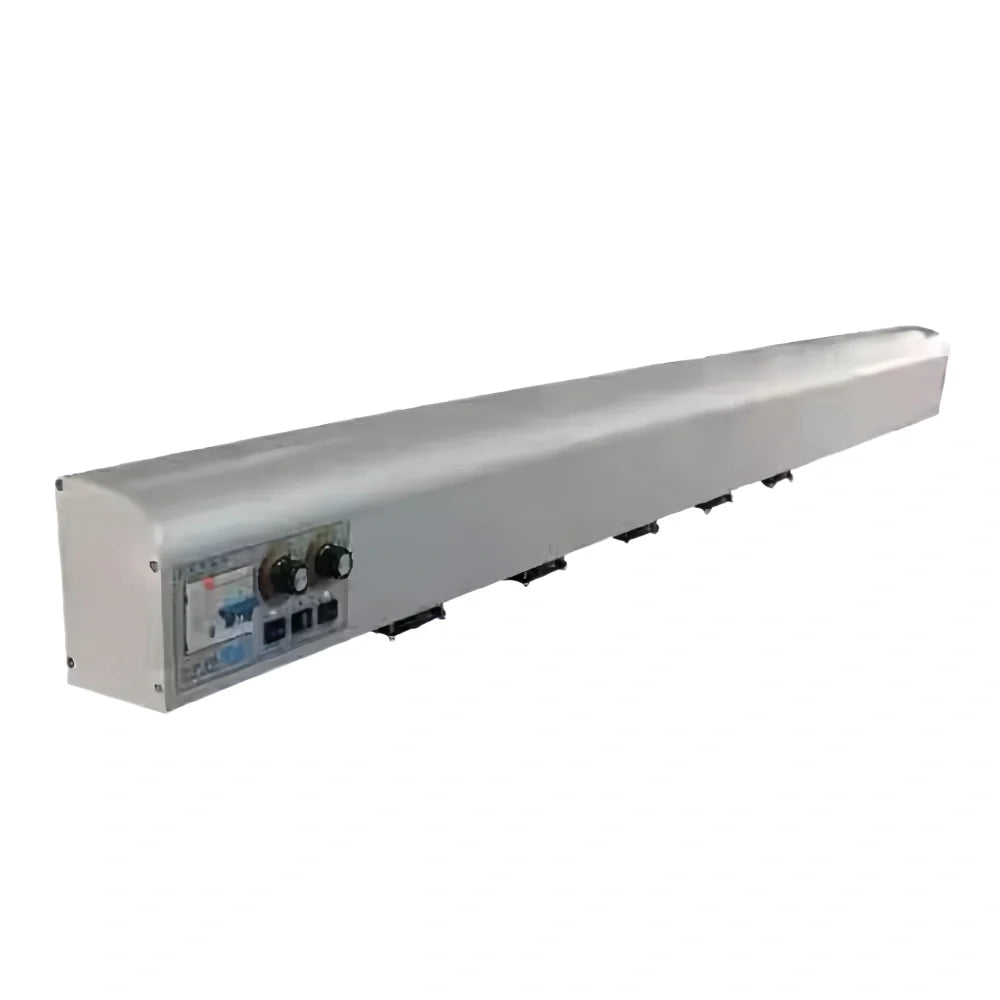

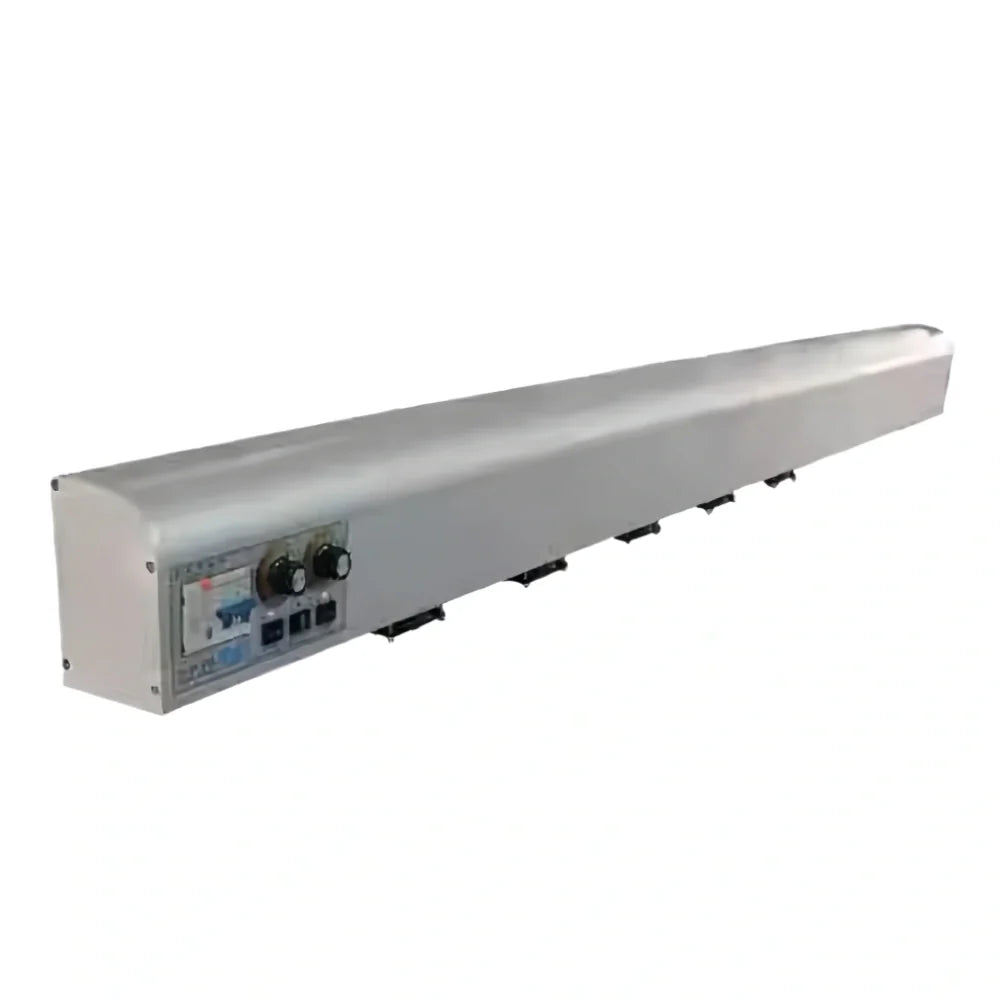

The Roland External Dryer is specially designed to improve drying efficiency for high-speed inkjet printing. It adopts a combined system of infrared heating + fan blowing, ensuring prints dry instantly while maintaining consistent quality. The dryer works synchronously with printing (auto start with printing, auto stop after printing).

Features:

• Infrared heating with optimized air duct for uniform drying.
• High thermal efficiency with reflector design – 85% of light directly reflected to printing material.
• Dual function: blower + infrared can be used independently or together.
• Compatible with Roland VS series and similar eco-solvent printers.
• Durable construction with optional iron frame stand.

Technical Highlights:

• Power consumption: as low as 0.039 kWh per hour.
• Drying capacity: up to 45㎡/hour at 350% ink coverage.
• Lamp tube length: 1.6m with 1690 heating units.
• External synchronous control port: GX16 aviation plug, voltage 5–24V, current 10–40mA.

Application:

Suitable for Roland VS640 / VS540 / VS420 / VS300 / VS300i / VS640i printers, as well as XF640 / RF640 series. Also widely used with printers from Mutoh, Mimaki, and other eco-solvent machines requiring fast-drying output.
