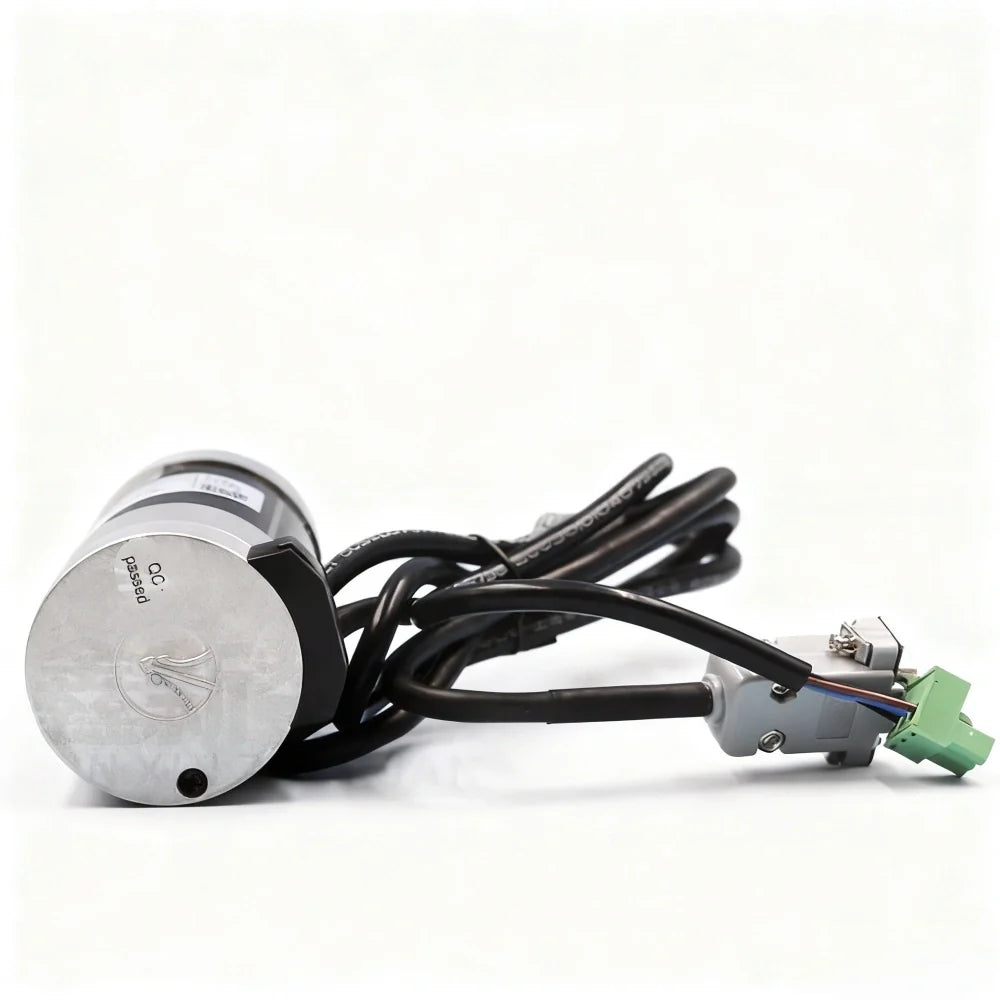

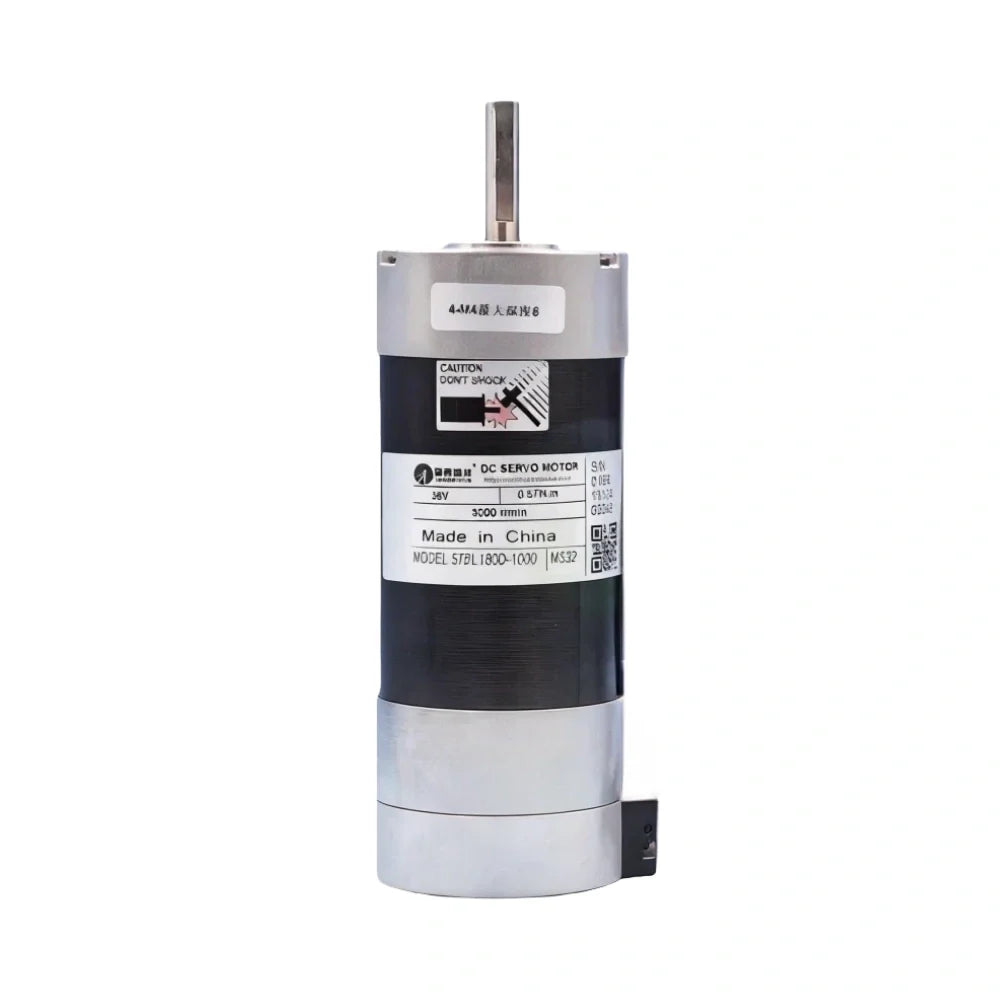

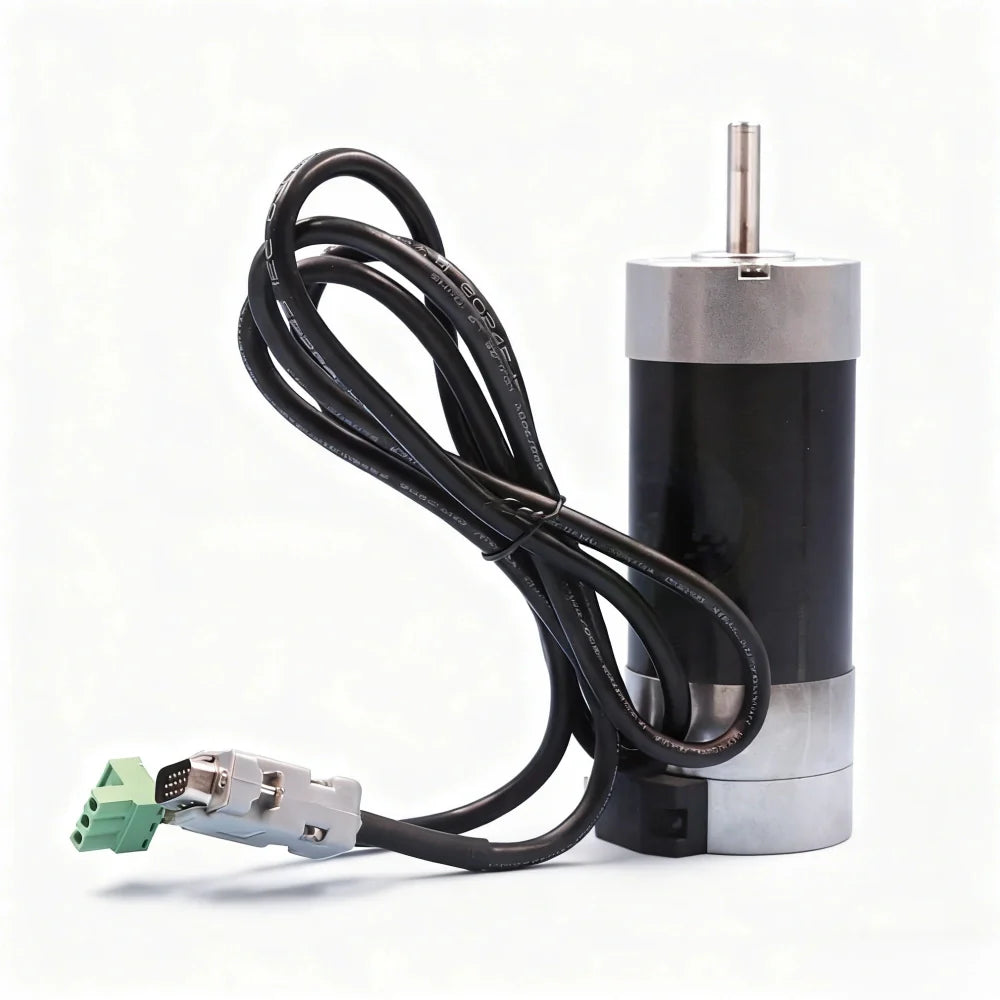

Brushless Servo Motor – 57BL180D-1000

The 57BL180D-1000 is a 36V brushless servo motor built for industrial printer motion systems. It is designed to deliver smooth and stable movement for carriage and positioning tasks where accuracy and fast response are required.

With a 1000PPR incremental encoder, this motor provides reliable feedback for closed-loop servo control. It helps maintain consistent positioning at high speeds, improving print stability and reducing alignment issues during long production runs.

Product Highlights

• Industrial BLDC servo motor for printer motion control
• 36V DC operation for common servo drive systems
• Fast response for high-speed carriage movement
• Encoder feedback for stable closed-loop performance

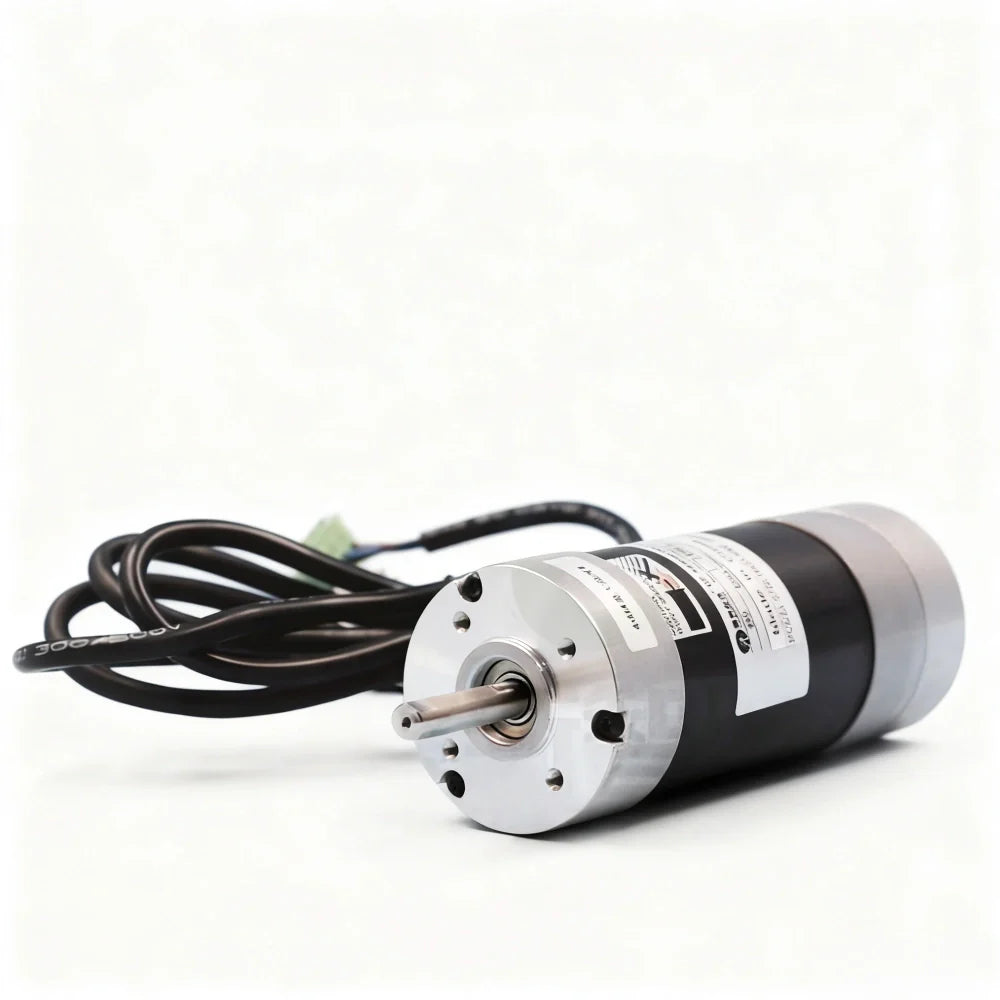

• Standard 8mm output shaft for easy mechanical integration

Technical Specifications

Typical Uses

• Large-format printer carriage and gantry systems
• UV flatbed printer positioning and drive assemblies
• Plotters, textile printing equipment, and automation lines
• Replacement motor for motion modules using encoder feedback

Usage Recommendations

• Match with a compatible servo driver (e.g., 20–80V DC range drivers)
• Keep encoder connectors secure to avoid feedback errors
• Provide proper mounting and alignment to reduce vibration
• Test low-speed motion first, then increase speed gradually

This motor is suitable for professional printing systems requiring reliable servo control, stable torque, and accurate encoder feedback.

Compatibility Check

• Confirm the exact machine model before ordering.
• Compare the connector layout, mounting position, and dimensions with the model-reference part.
• Match the manufacturer part number whenever possible before purchase.

Buying Notes

• This part should be selected by machine revision, connection style, and physical fit, not by title similarity alone.
• If your printer has multiple board, cable, or motor revisions, compare the old part directly before ordering.
• For critical electronics or motion parts, professional installation is recommended after fitment is confirmed.
