Servo Motor - iSV5713V36T-01-1000
- $114.21
- $114.21
- Unit price
- per
All prices are in USD. Available payment methods and shipping options are shown at checkout based on destination and order details.
Secure payments
Order issue support
Product Details

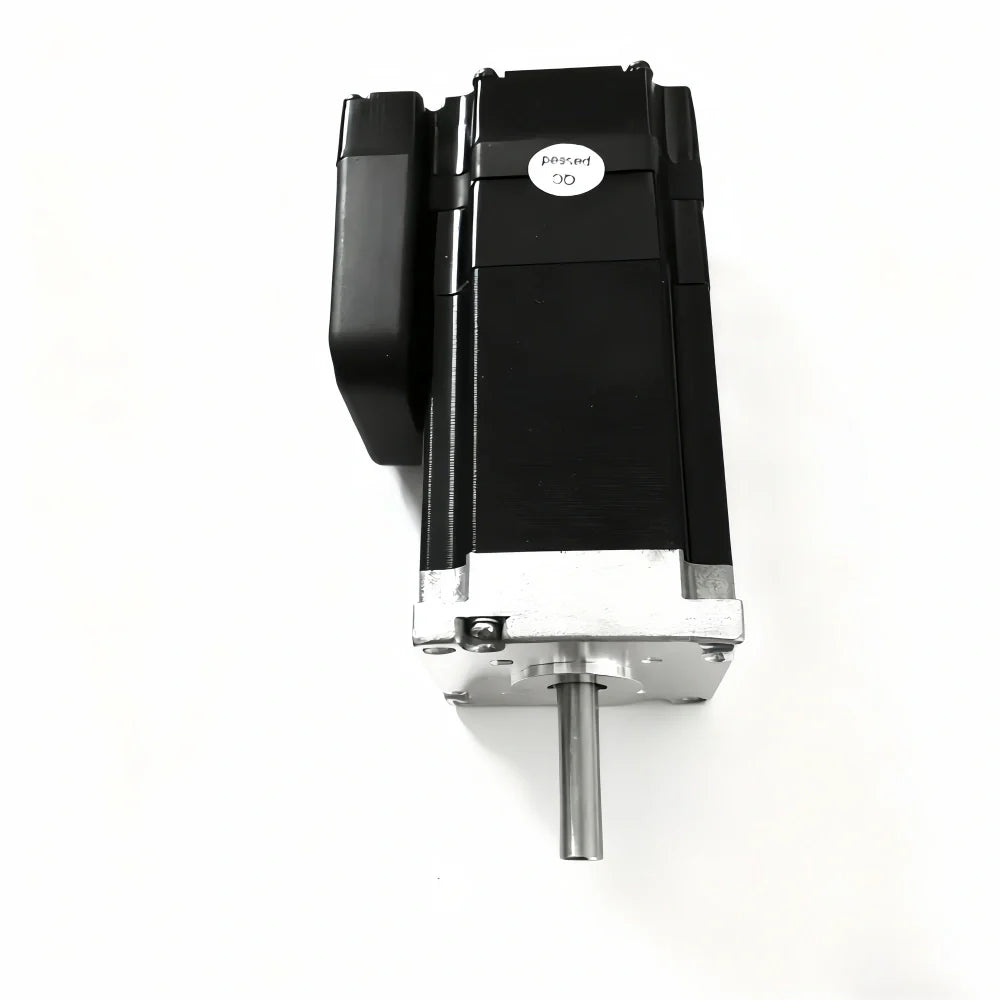

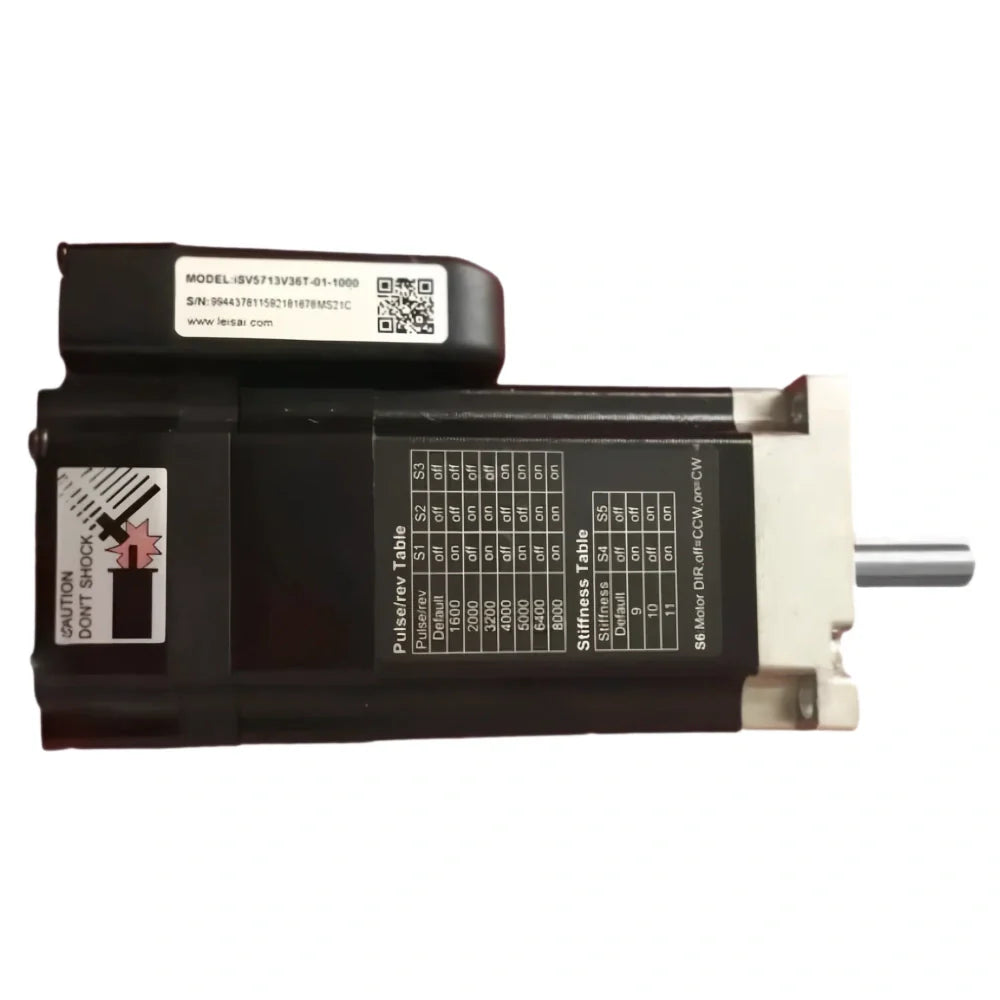

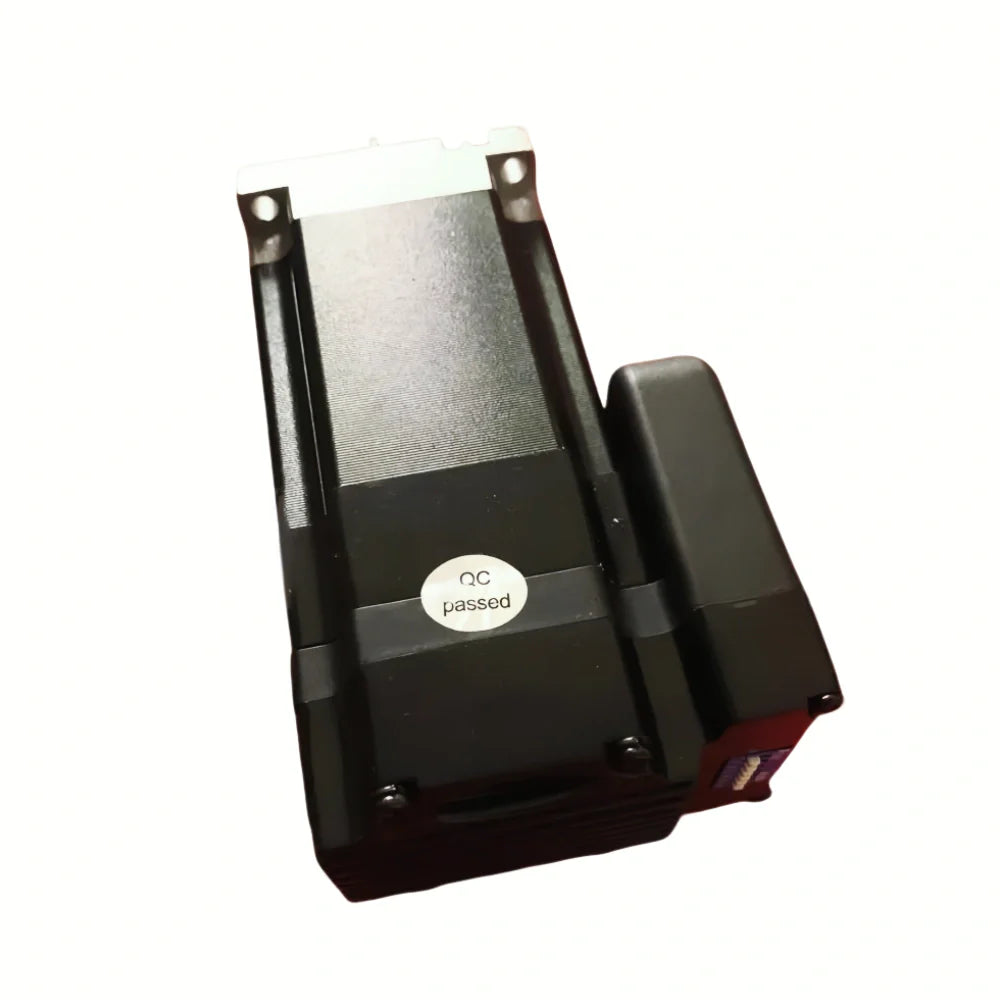

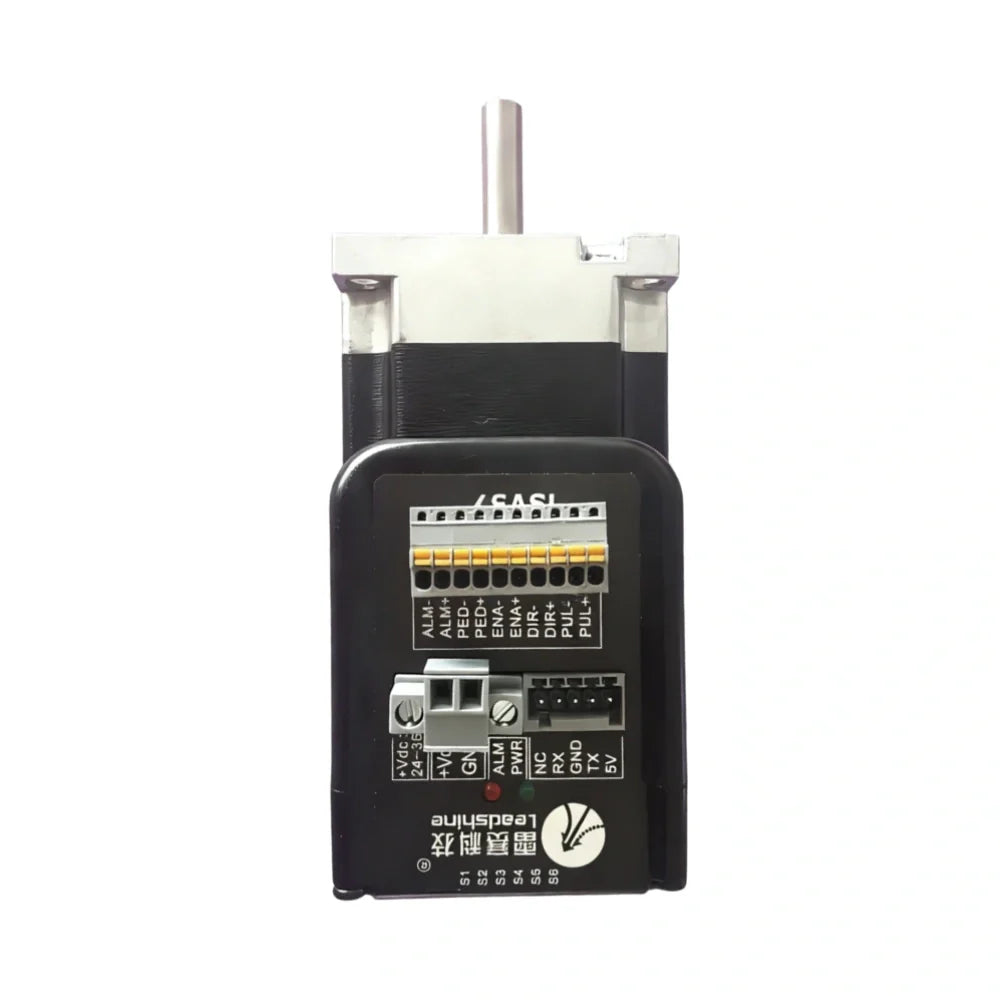

xiSV5713V36T-01-1000 Servo Motor
The iSV5713V36T-01-1000 is a high-performance 57mm servo motor with enhanced torque and a larger shaft for demanding applications. With 130W rated power and a robust 10mm shaft, it's ideal for mid-sized industrial automation systems requiring precision, speed, and durability.
Key Features
- Rated Torque: 0.45 N·m
- Peak Torque: 1.1 N·m
- Rated Current: 5.4 A
- Rated Speed: 3000 rpm
- Power Output: 130 W
- Voltage: 36 VDC
- Frame Size: 57 mm
- Motor Length: 129 mm
- Shaft Diameter: 10 mm
Technical Comparison Table
| Model | Rated Torque (N·m) | Peak Torque (N·m) | Rated Current (A) | Rated Speed (rpm) | Power (W) | Voltage (VDC) | Motor Length (mm) | Shaft Diameter (mm) |
|---|---|---|---|---|---|---|---|---|

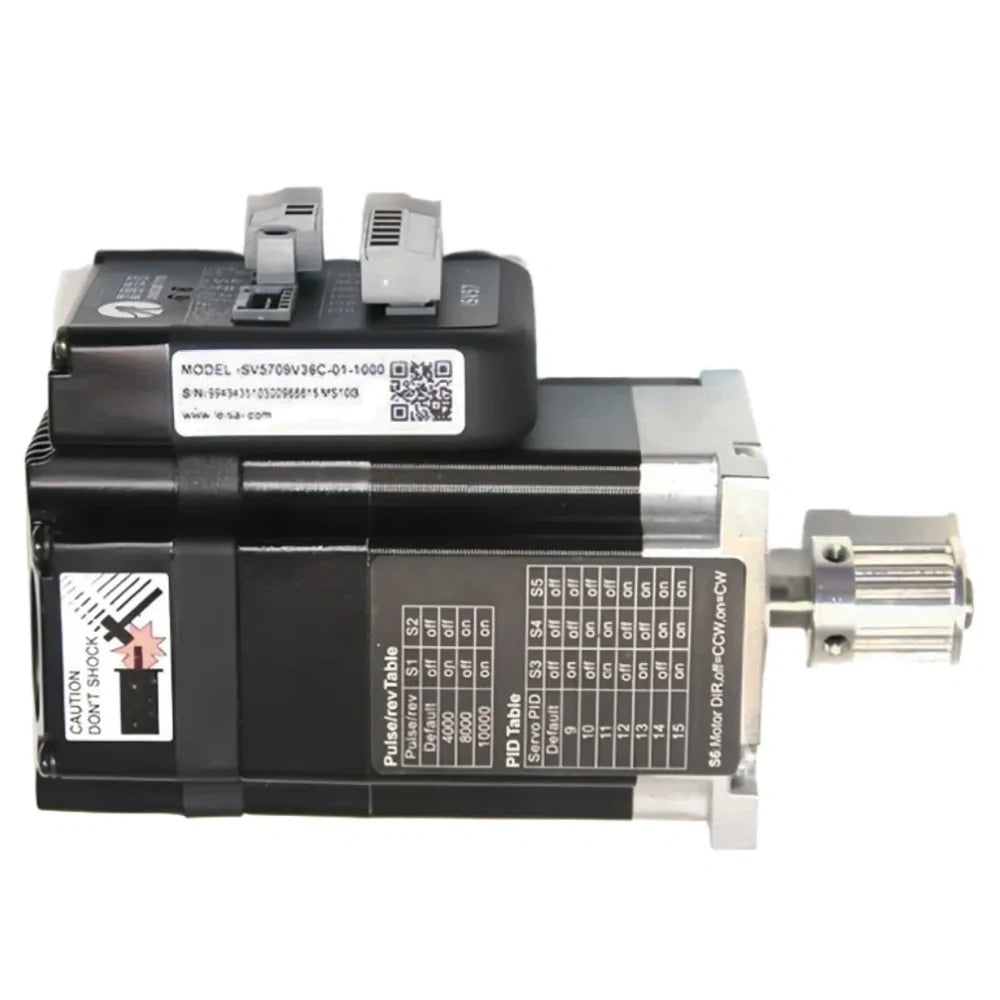

| iSV5709V36C-01-1000 | 0.3 | 0.8 | 3.6 | 3000 | 90 | 36 | 106 | 8 |

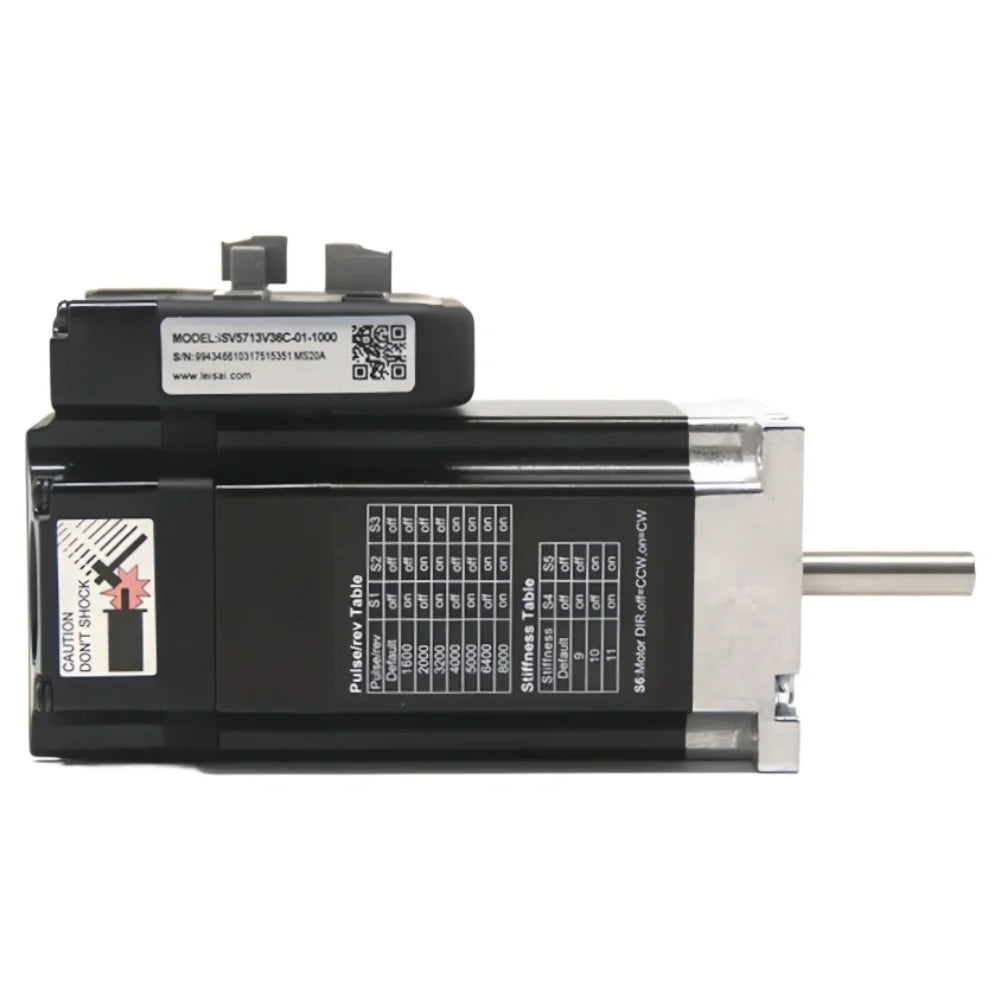

| iSV5713V36C-01-1000 | 0.45 | 1.1 | 5.4 | 3000 | 130 | 36 | 129 | 8 |

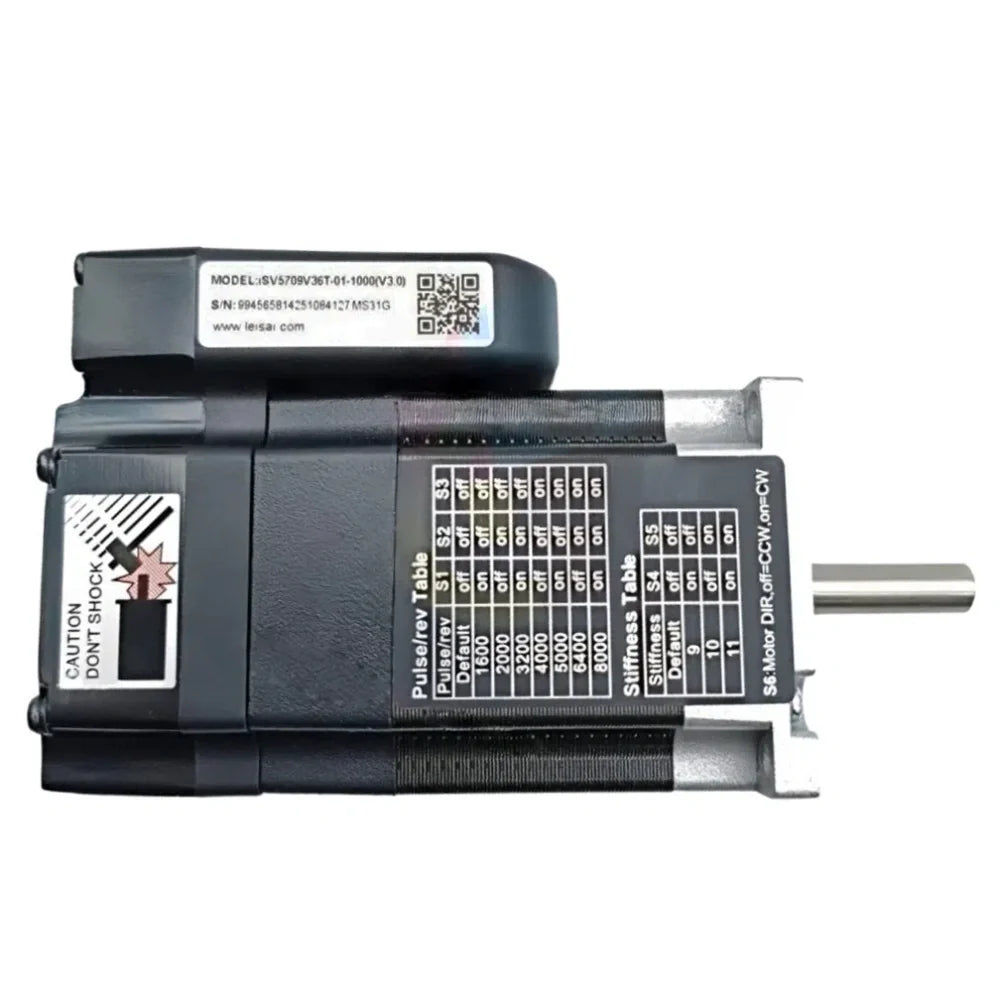

| iSV5709V36T-01-1000 | 0.3 | 0.8 | 3.6 | 3000 | 90 | 36 | 106 | 10 |
| iSV5713V36T-01-1000 | 0.45 | 1.1 | 5.4 | 3000 | 130 | 36 | 129 | 10 |

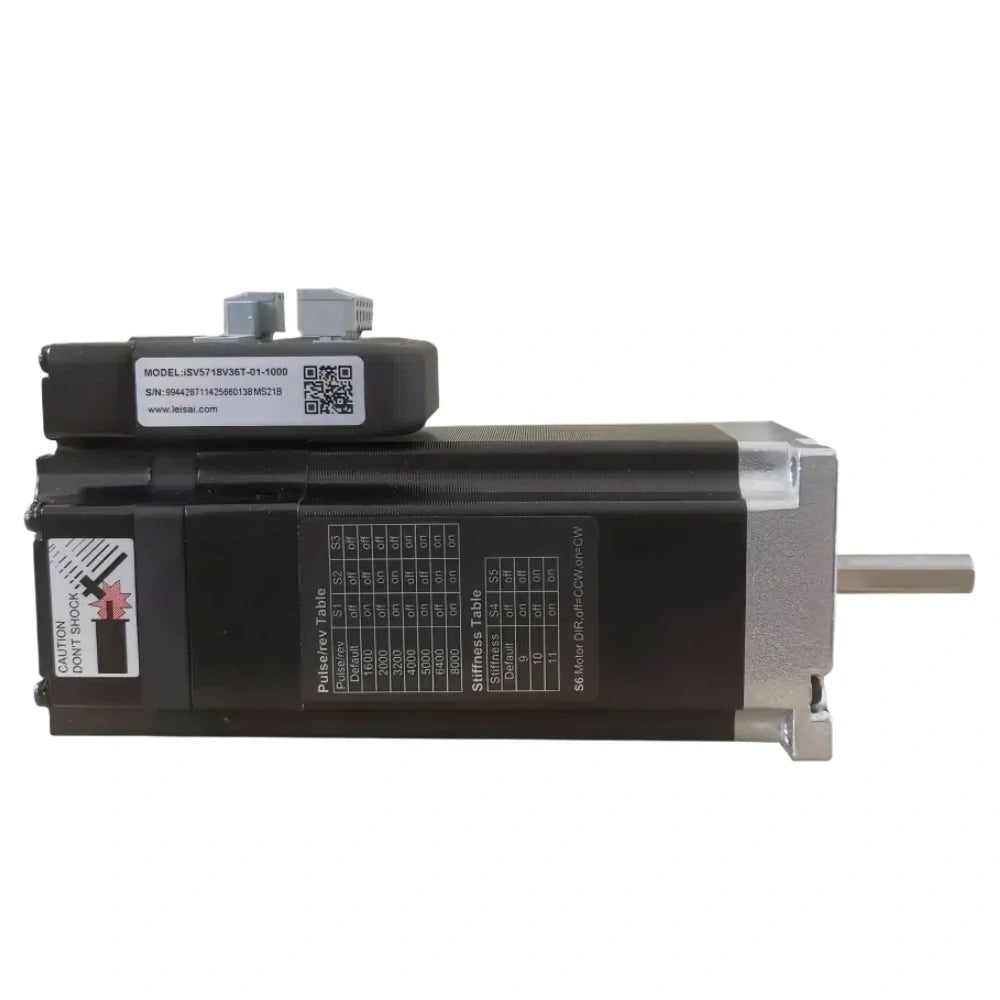

| iSV5718V36T-01-1000 | 0.6 | 1.5 | 7.5 | 3000 | 180 | 36 | 149 | 10 |
Applications
This servo motor is suitable for:
- Medium-sized CNC machines
- Industrial robotics
- Textile machinery
- Automation control systems
Installation & Maintenance Tips
- Mount the motor on a vibration-isolated platform for optimal stability.
- Use shielded cables for encoder feedback to prevent signal interference.
- Ensure ventilation space is maintained for heat dissipation.
- Check shaft alignment before coupling to avoid motor wear.
