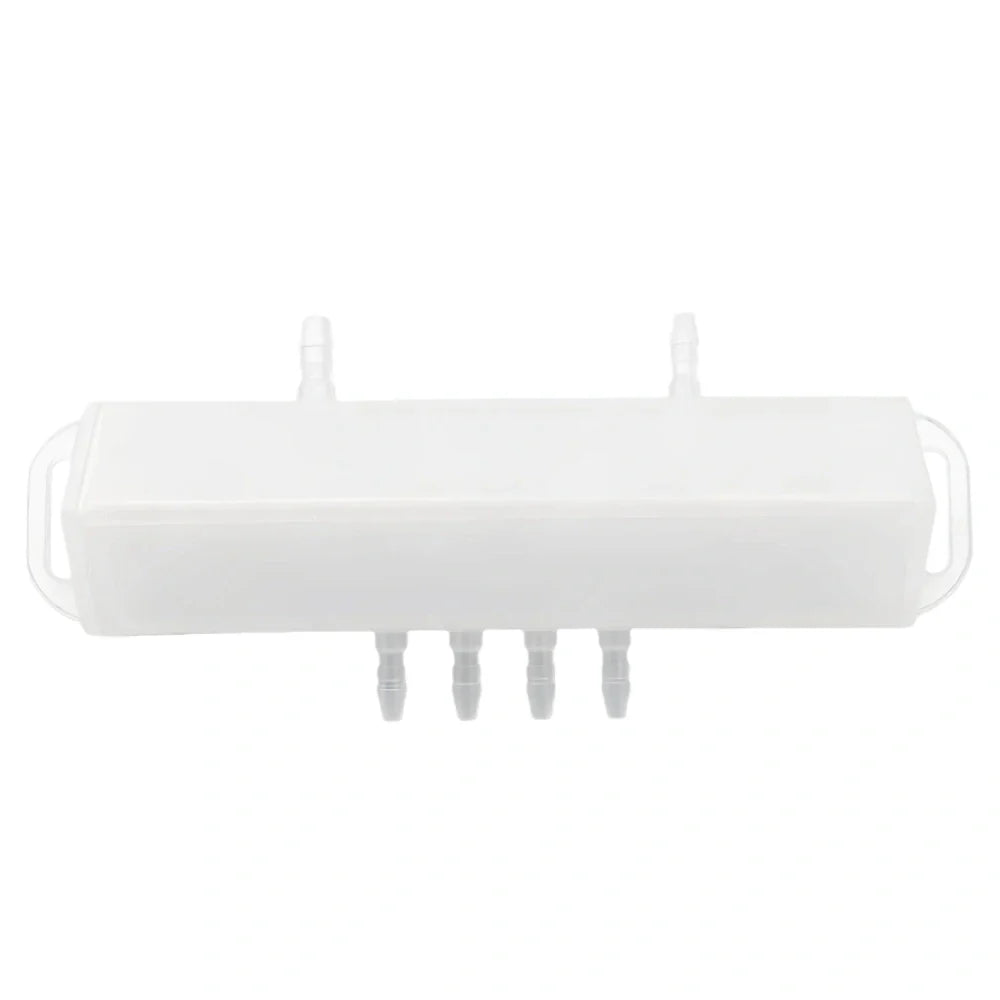

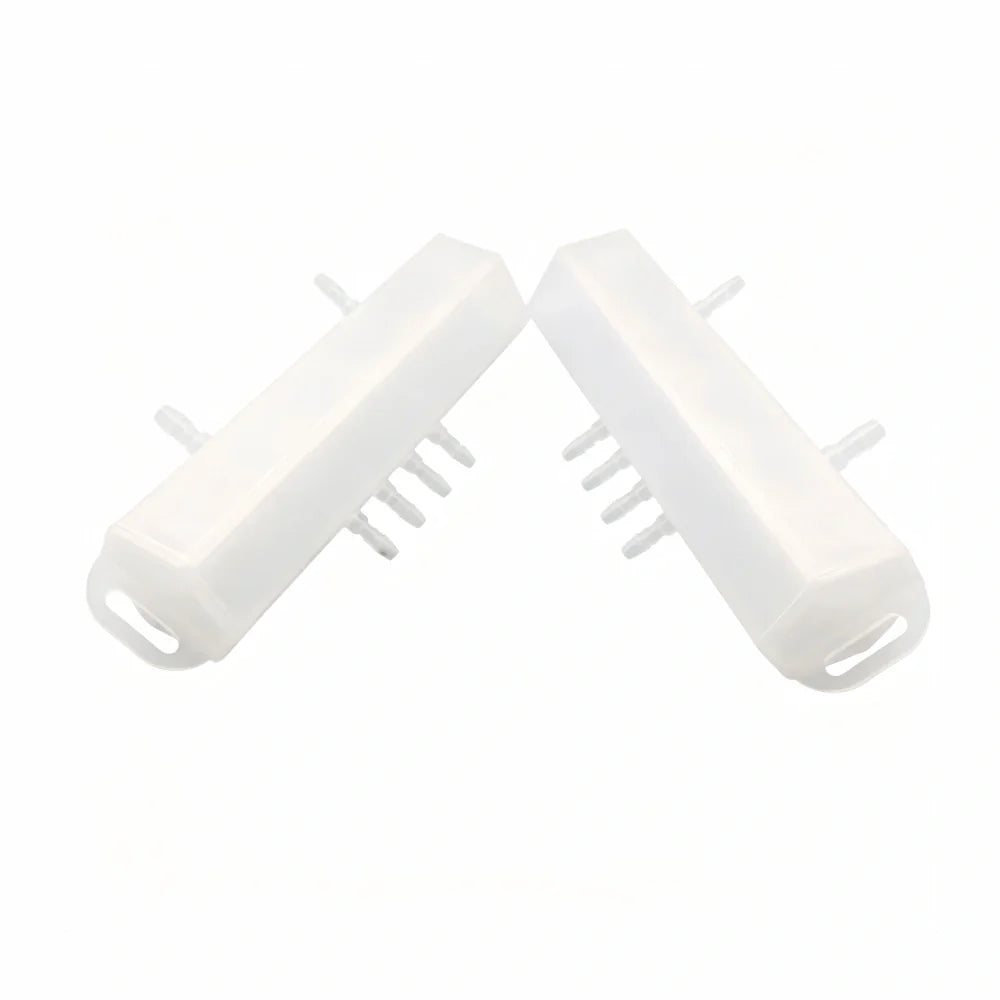

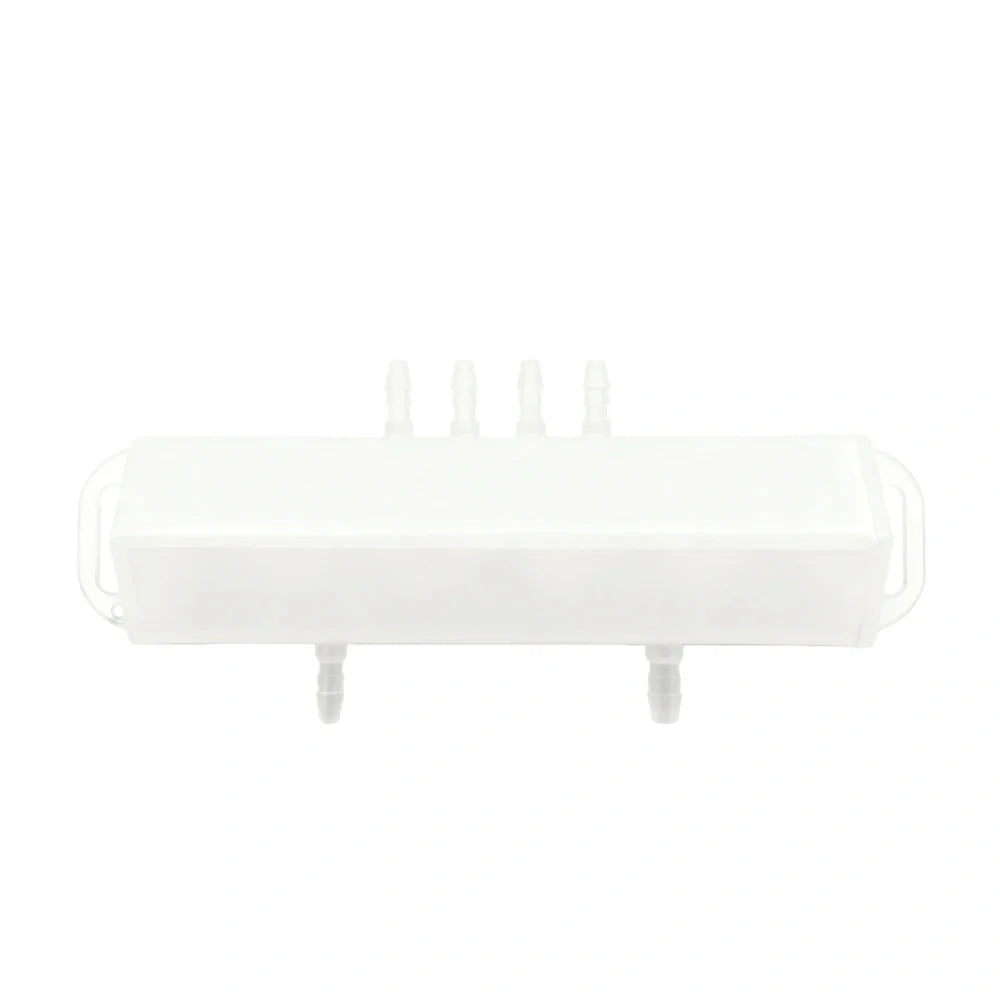

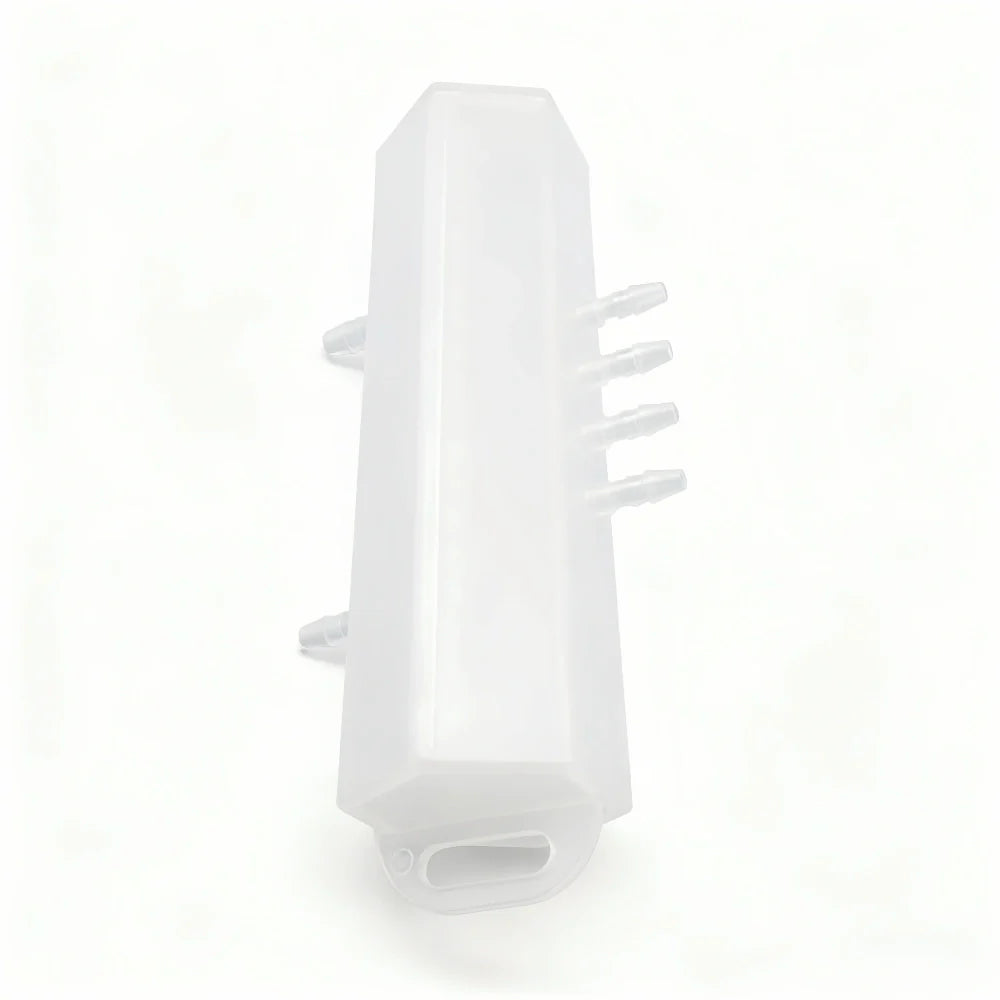

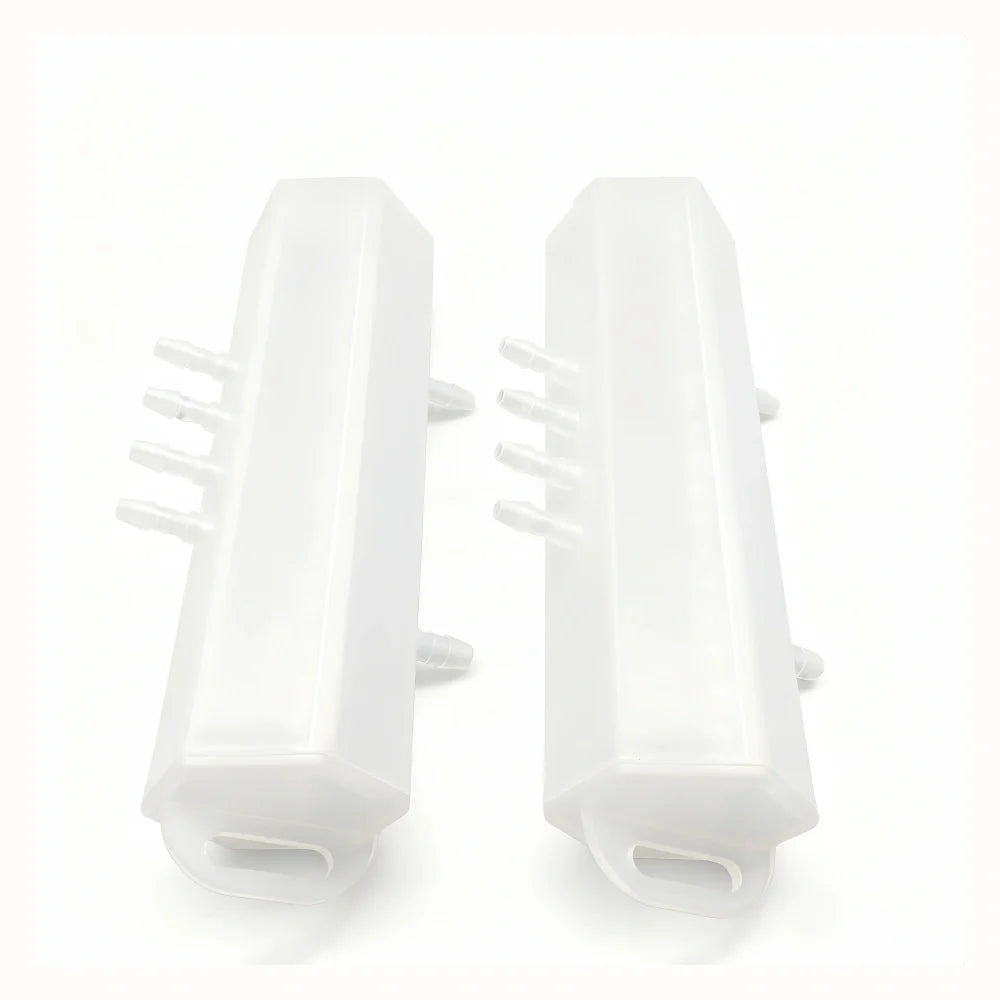

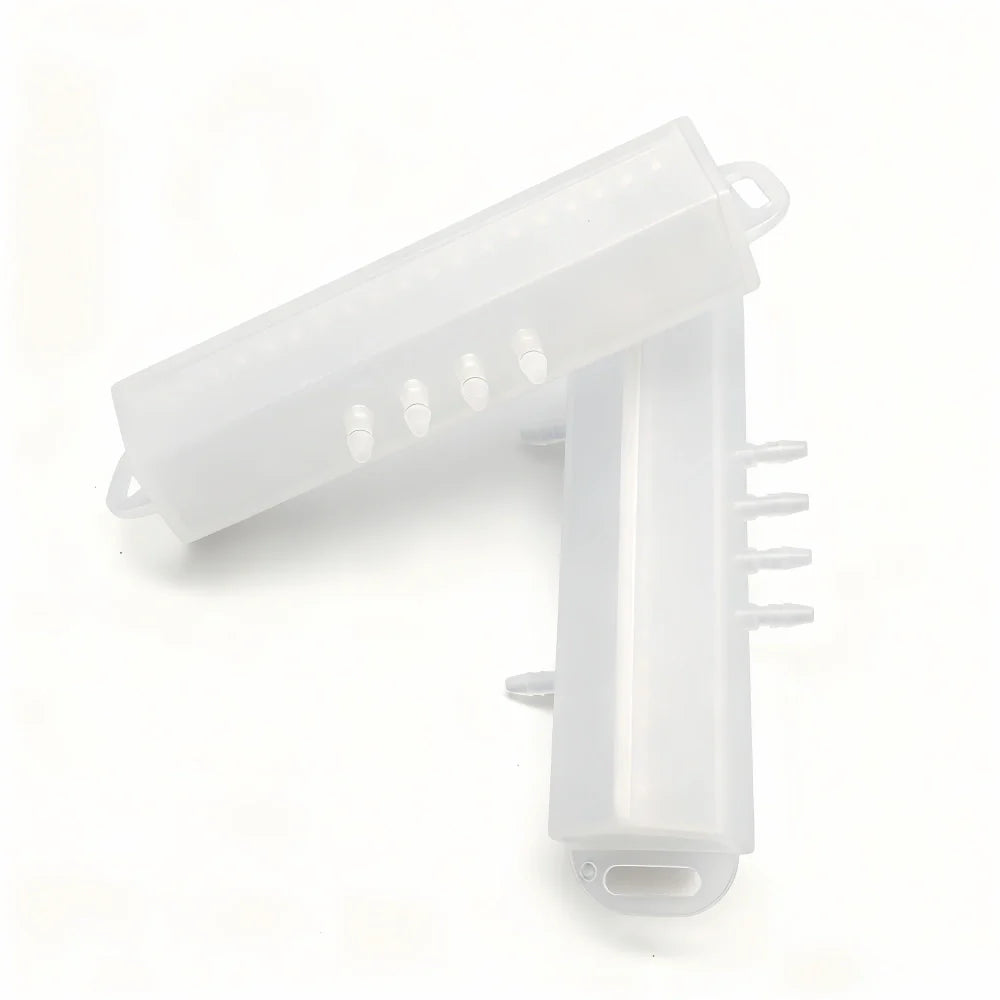

Shunt - Model 5 (1 Inlet 1 Air Hole 4 Outlets)
Shunt Model 5 is a compact ink splitter designed with 1 inlet, 1 air hole, and 4 outlet ports. The integrated air hole supports ink flow and pressure balance when correctly matched, installed, and maintained, making it a great choice for print systems requiring low-output multi-channel ink delivery with air regulation.
Key Features:
- 1 inlet + 1 air hole + 4 outlets
- Supports both 4×3mm and 5×3mm ink tubing
- Air hole size: 6×4mm
- Ensures stable pressure and smooth ink flow
- Compact structure for tight installation spaces
Model Comparison Table:
| Model | Port Description | Compatible Tube Size | Air Hole Size |
|---|---|---|---|
| Model 1 | 1 inlet + 1 air port + 8 outlets | 4×3 / 5×3 mm | 6×4 mm |

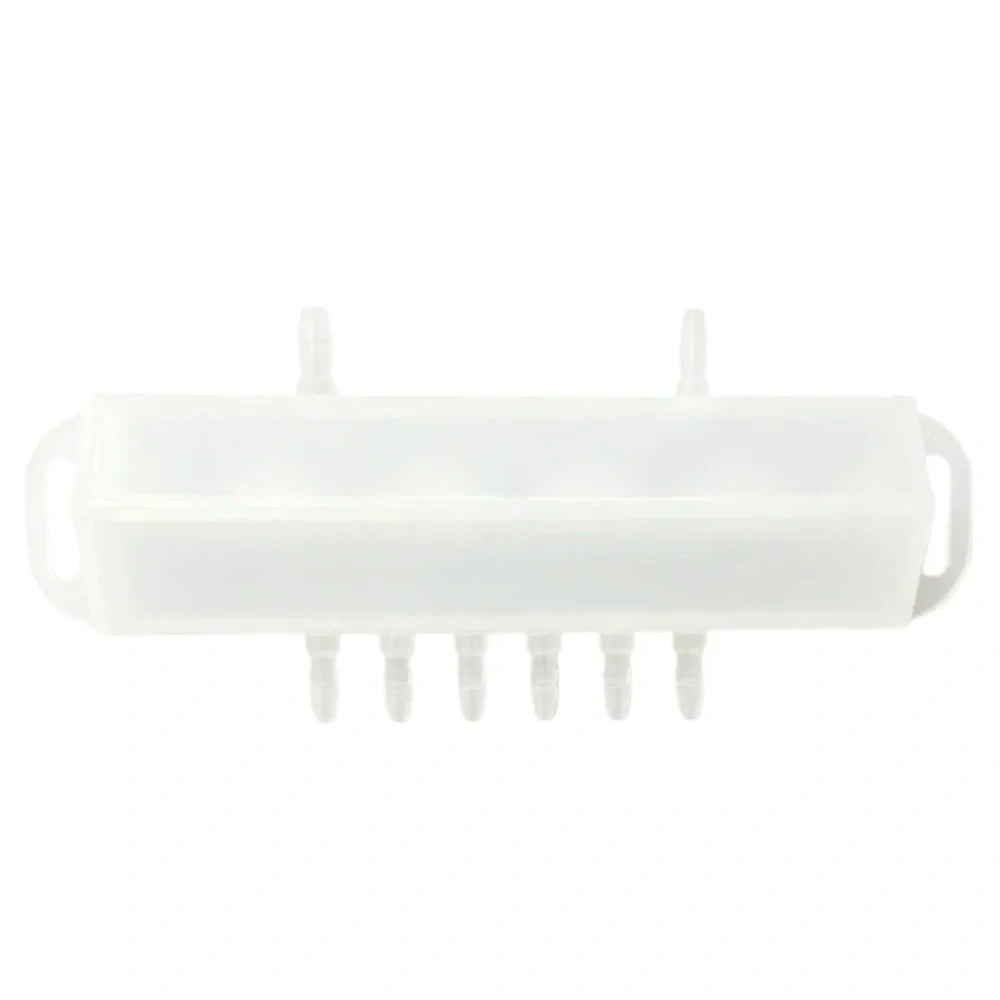

| Model 2 | 1 inlet + 1 air port + 6 outlets | 4×3 / 5×3 mm | 6×4 mm |

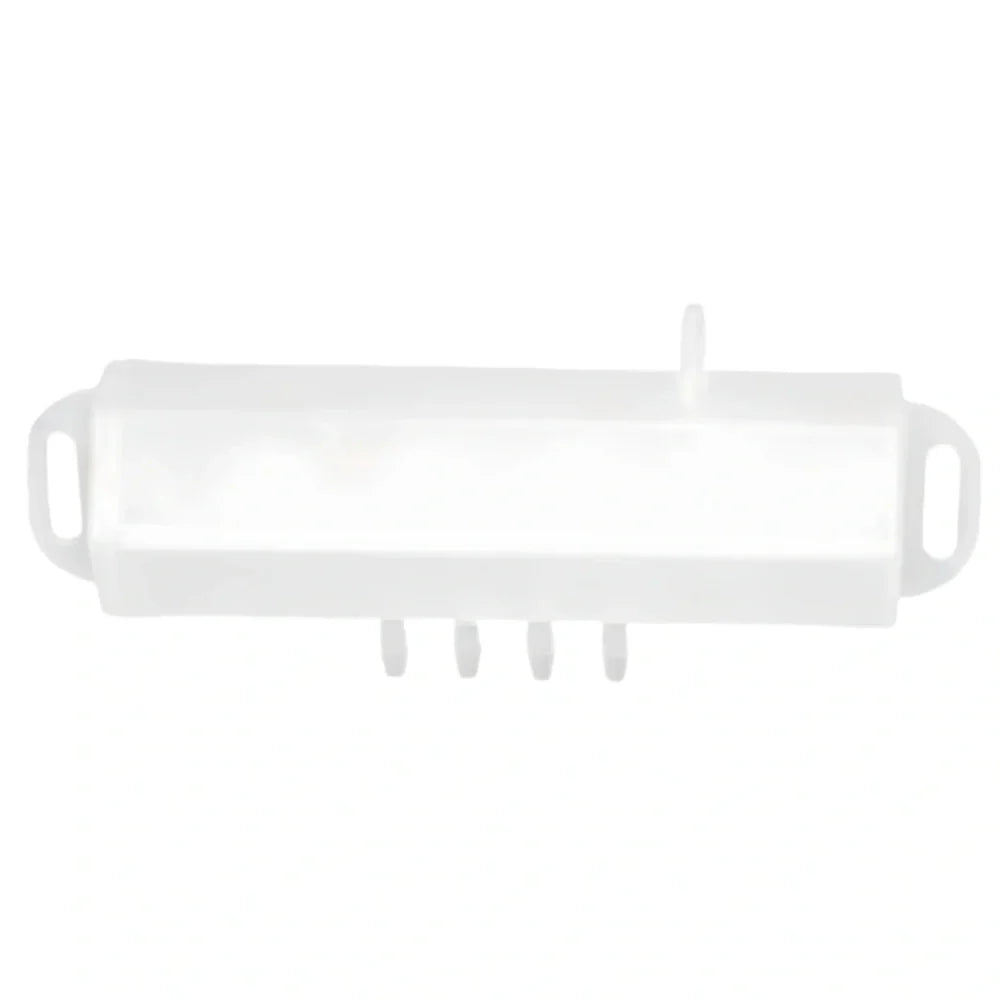

| Model 3 | 1 inlet + 4 outlets | 4×3 / 5×3 mm | None |
| Model 4 | 1 inlet + 8 outlets | 4×3 / 5×3 mm | None |
| Model 5 | 1 inlet + 1 air port + 4 outlets | 4×3 / 5×3 mm | 6×4 mm |

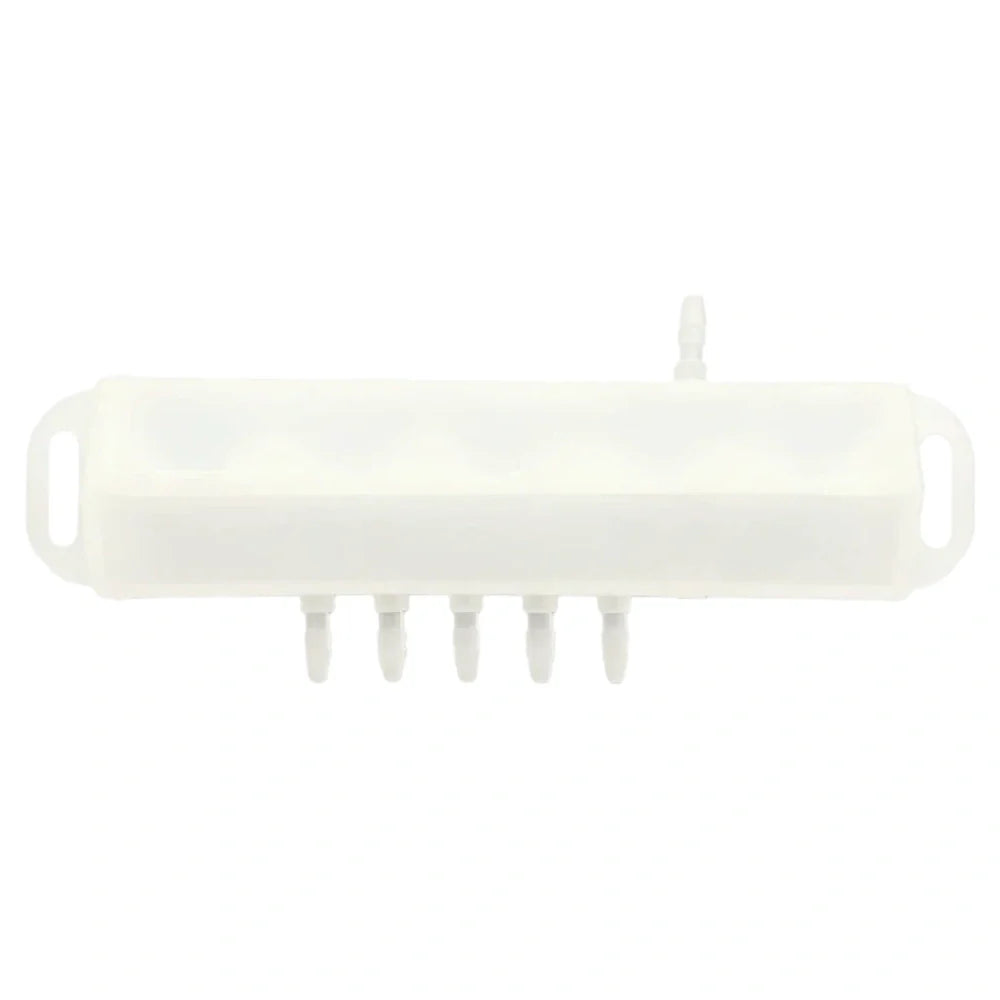

| Model 6 | 1 inlet + 5 outlets | 4×3 / 5×3 mm | None |

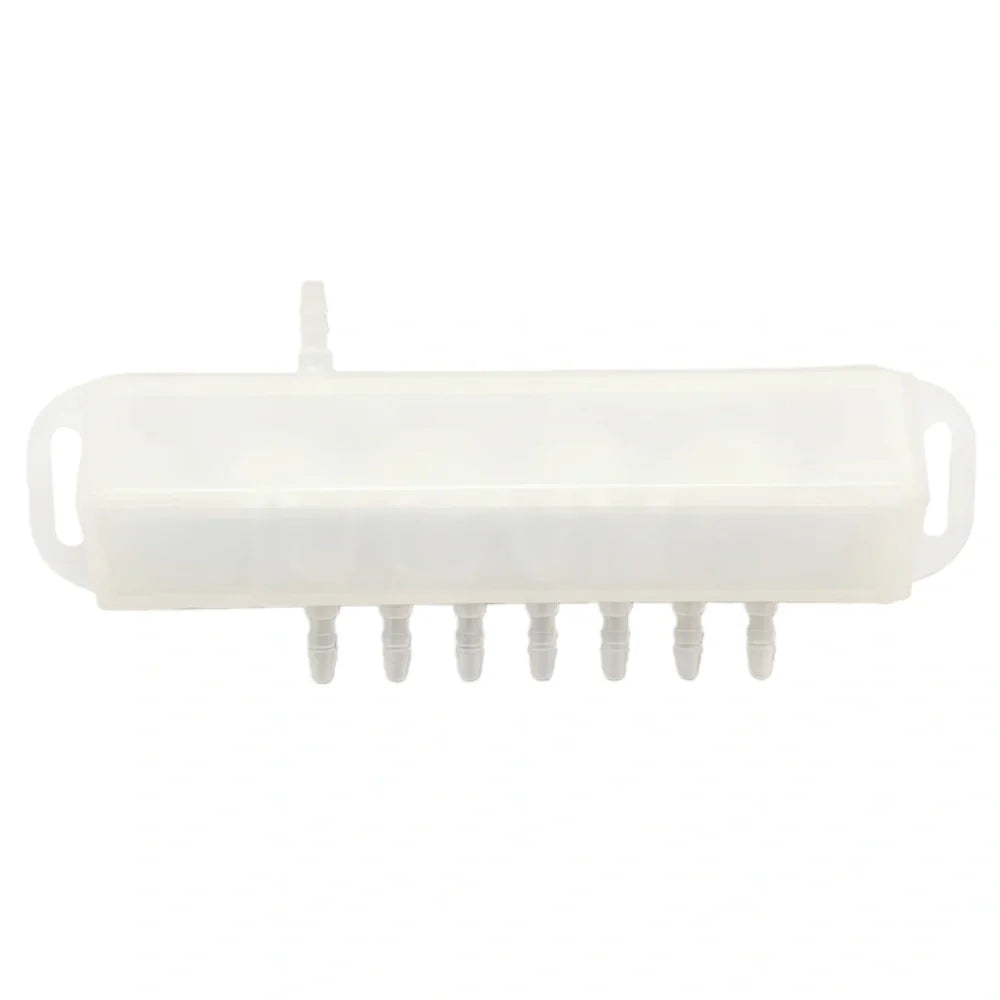

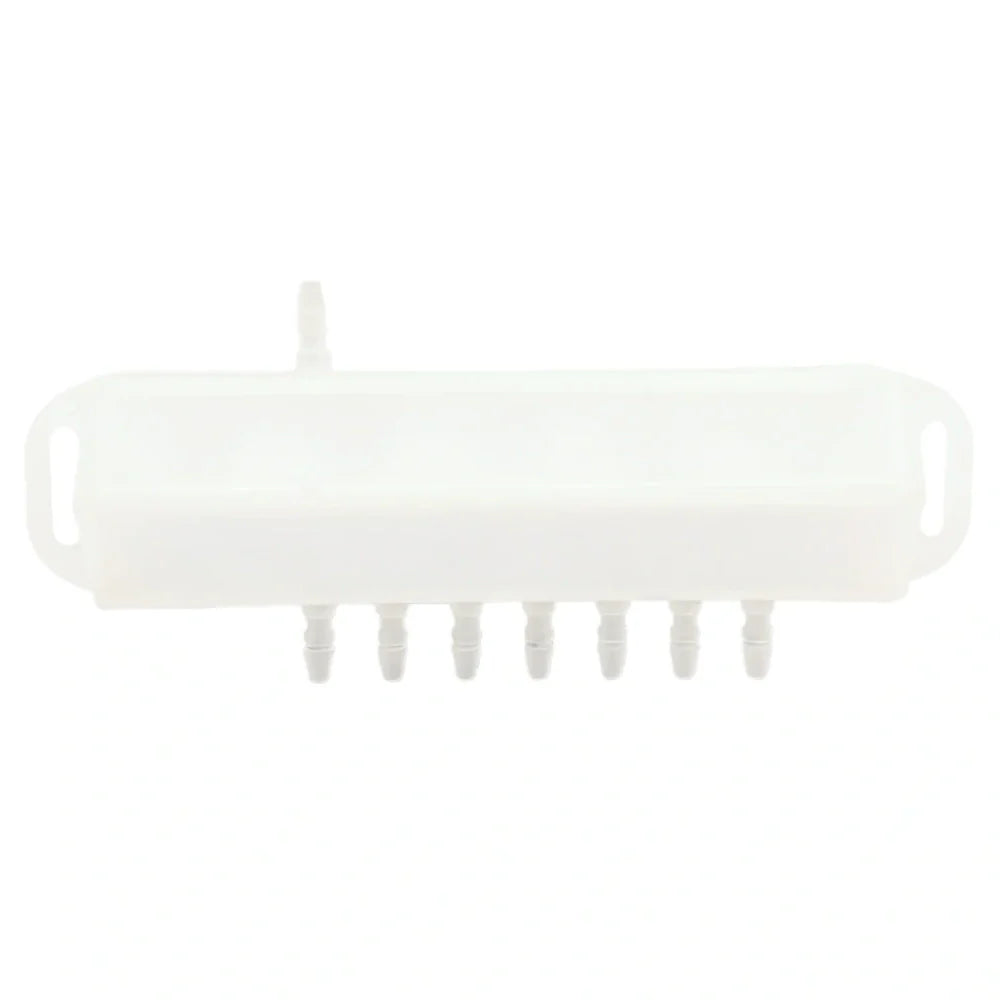

| Model 7 | 1 inlet + 7 outlets | 4×3 / 5×3 mm | None |

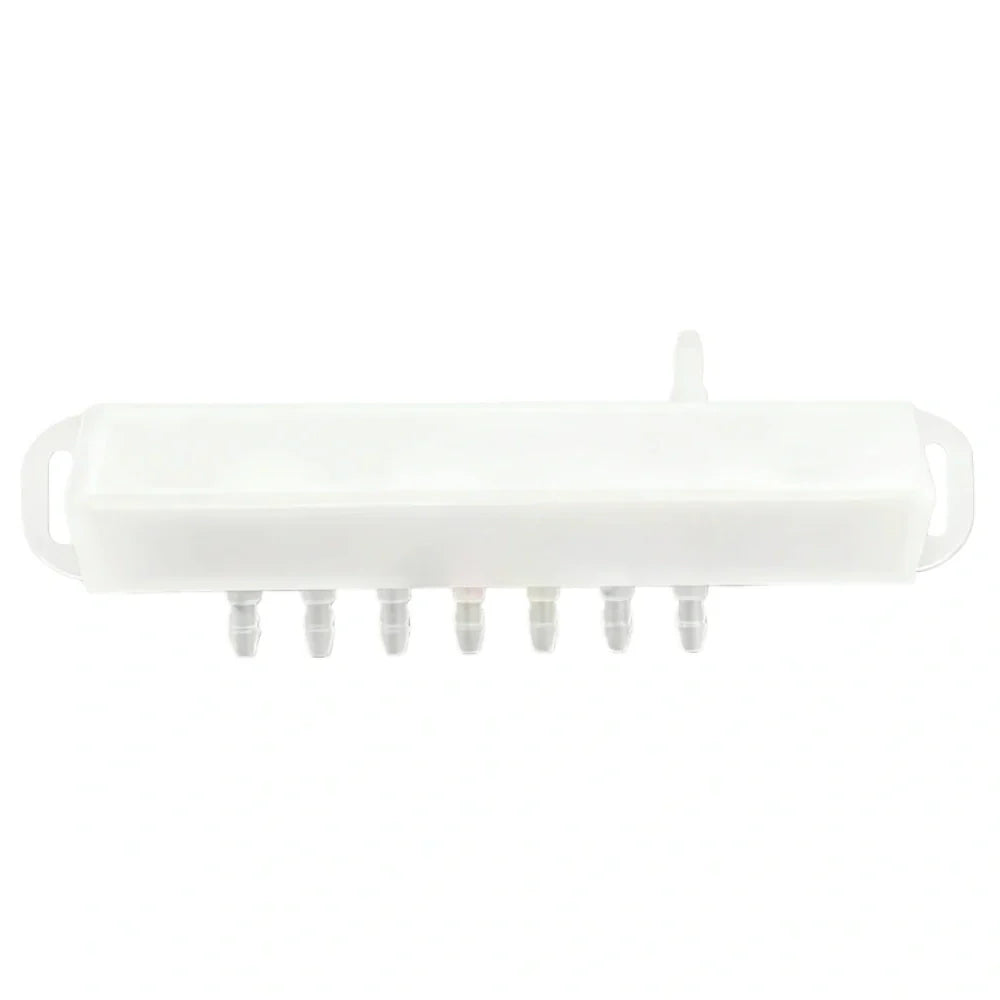

| Model 8 | 1 inlet + 6 outlets | 4×3 / 5×3 mm | None |
Use Recommendation:
This model is ideal for printers with lower ink distribution requirements that still benefit from an integrated air hole to maintain consistent ink pressure. Its small footprint makes it a practical choice for compact machines or limited installation areas.
Looking for more outlet ports or a non-vented version? Check out Model 1 (8 outlets) or Model 3 (4 outlets without air hole).
