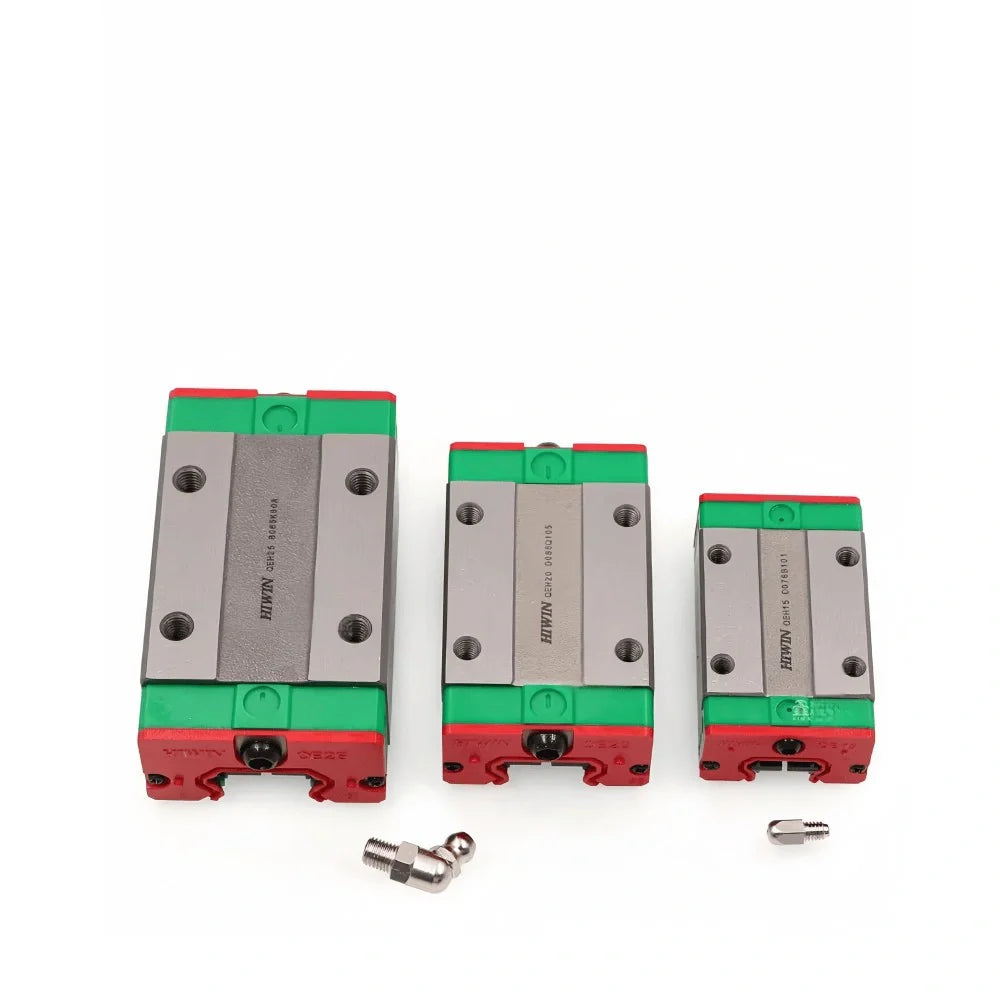

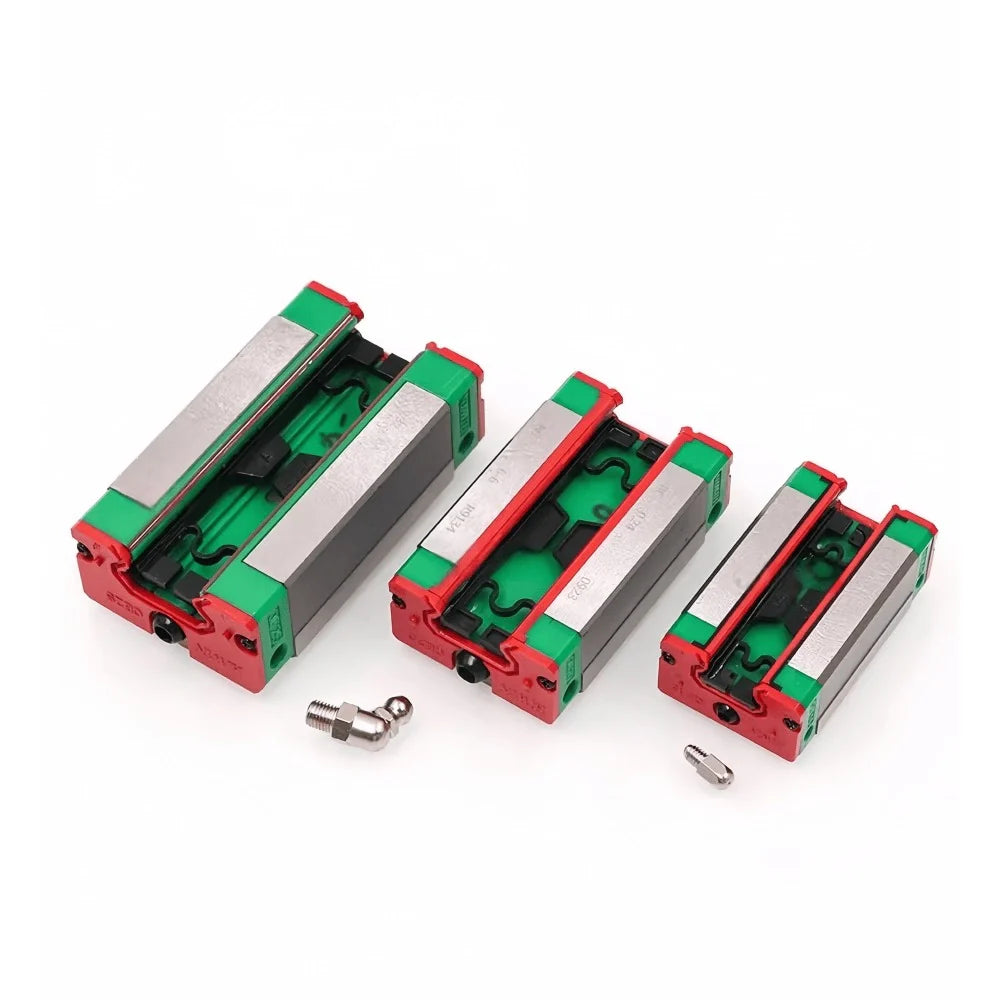

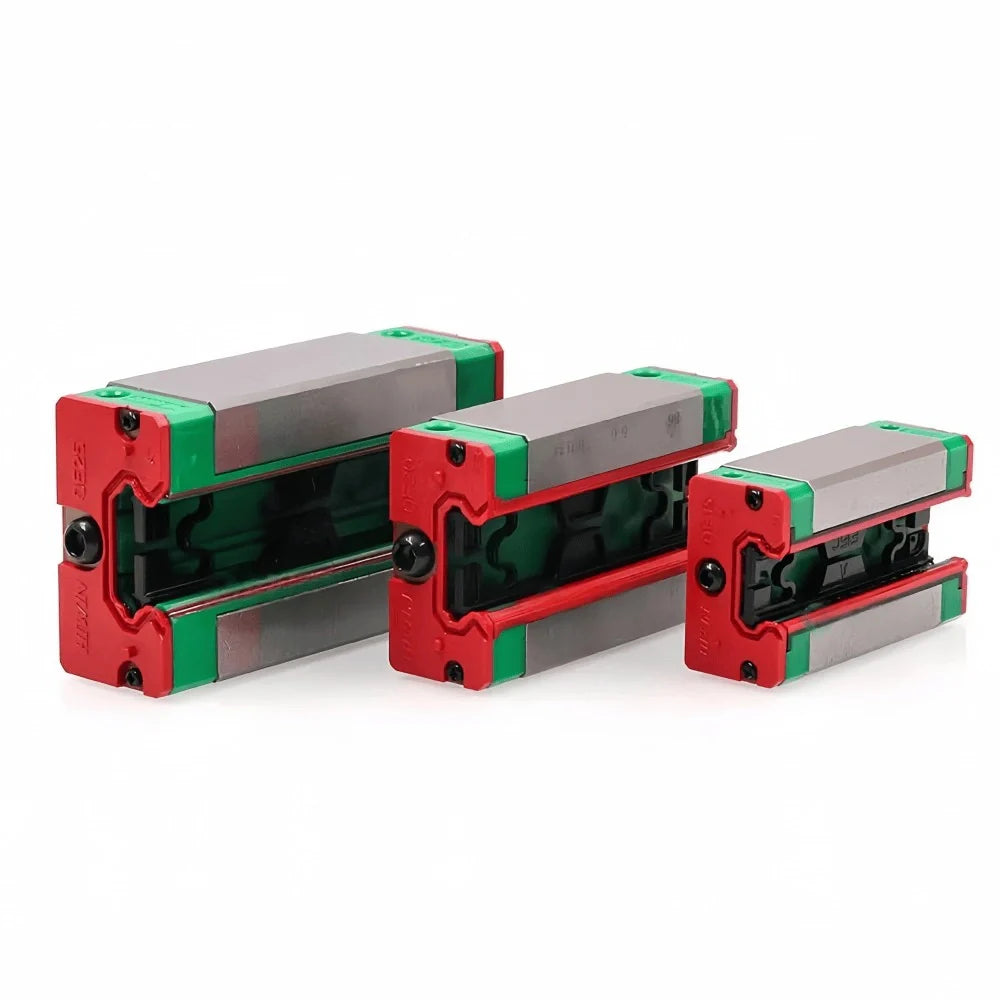

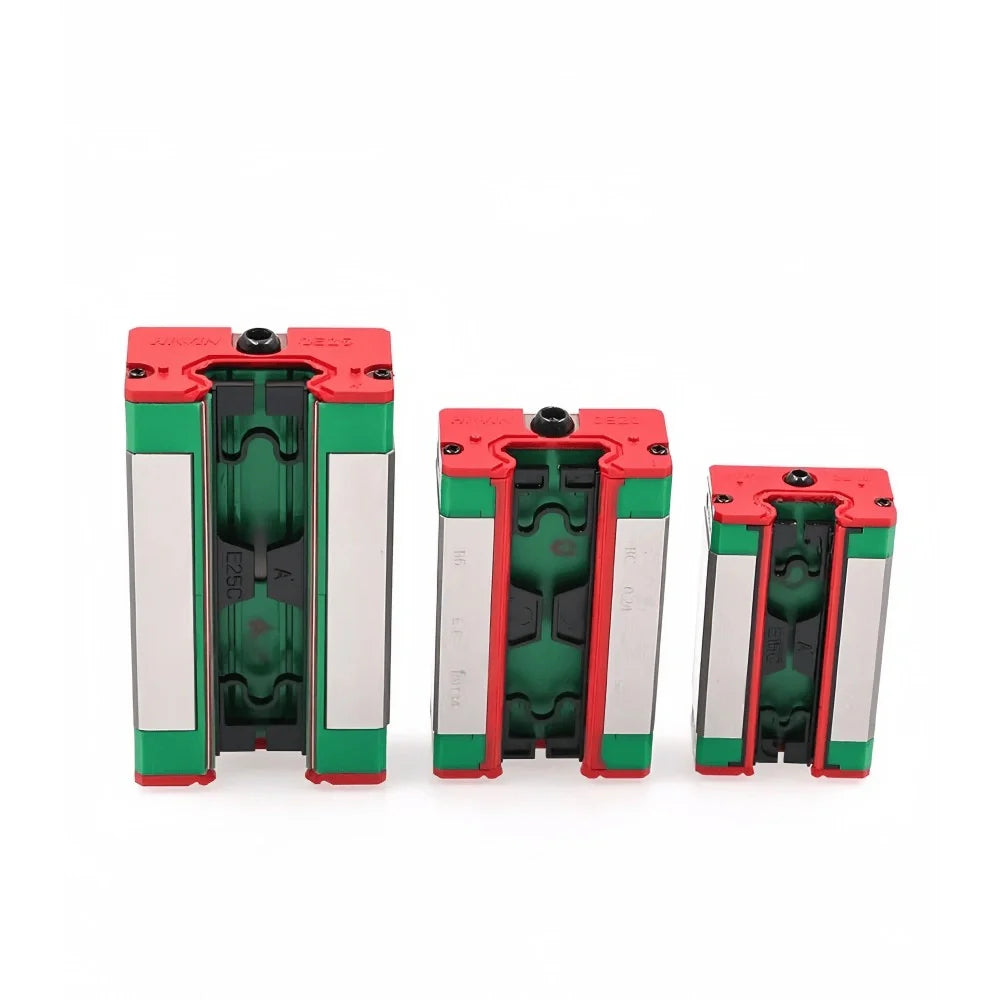

Linear Guide Block – QH / QE Series
This linear guide block series is developed for motion control applications in printing and automation equipment. It enables smooth and accurate linear travel of the carriage assembly, supporting consistent output...
SKU:
Slider - 003
- $55.40
- $55.40
- Unit price
- per
All prices are in USD. Available payment methods and shipping options are shown at checkout based on destination and order details.
Review the product details, model notes, destination, and checkout information before ordering. Contact us if you need fitment help.
Secure payments
Checkout is processed through Shopify and available payment providers using their security measures and verification processes.
Order issue support
Please contact us promptly if your order arrives damaged, incorrect, or incomplete so we can review the case.
Description
xThis linear guide block series is developed for motion control applications in printing and automation equipment. It enables smooth and accurate linear travel of the carriage assembly, supporting consistent output quality in demanding environments.

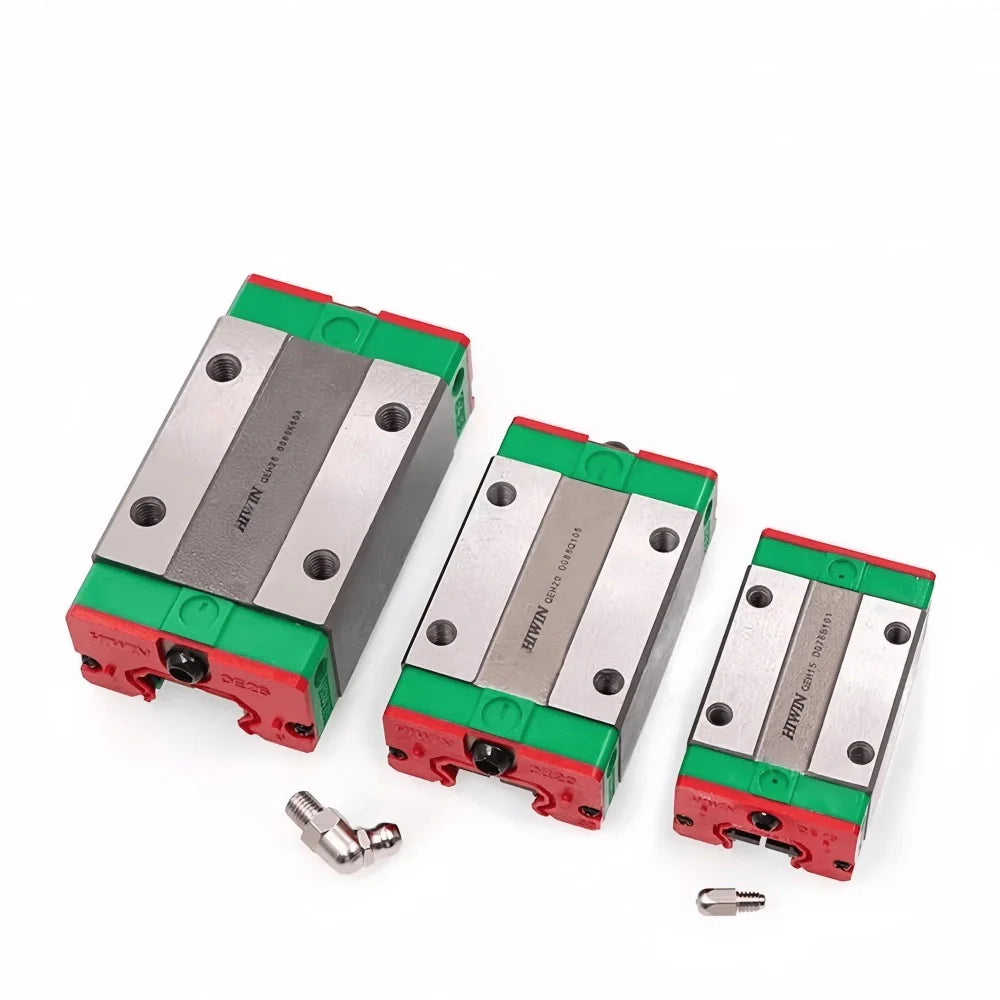

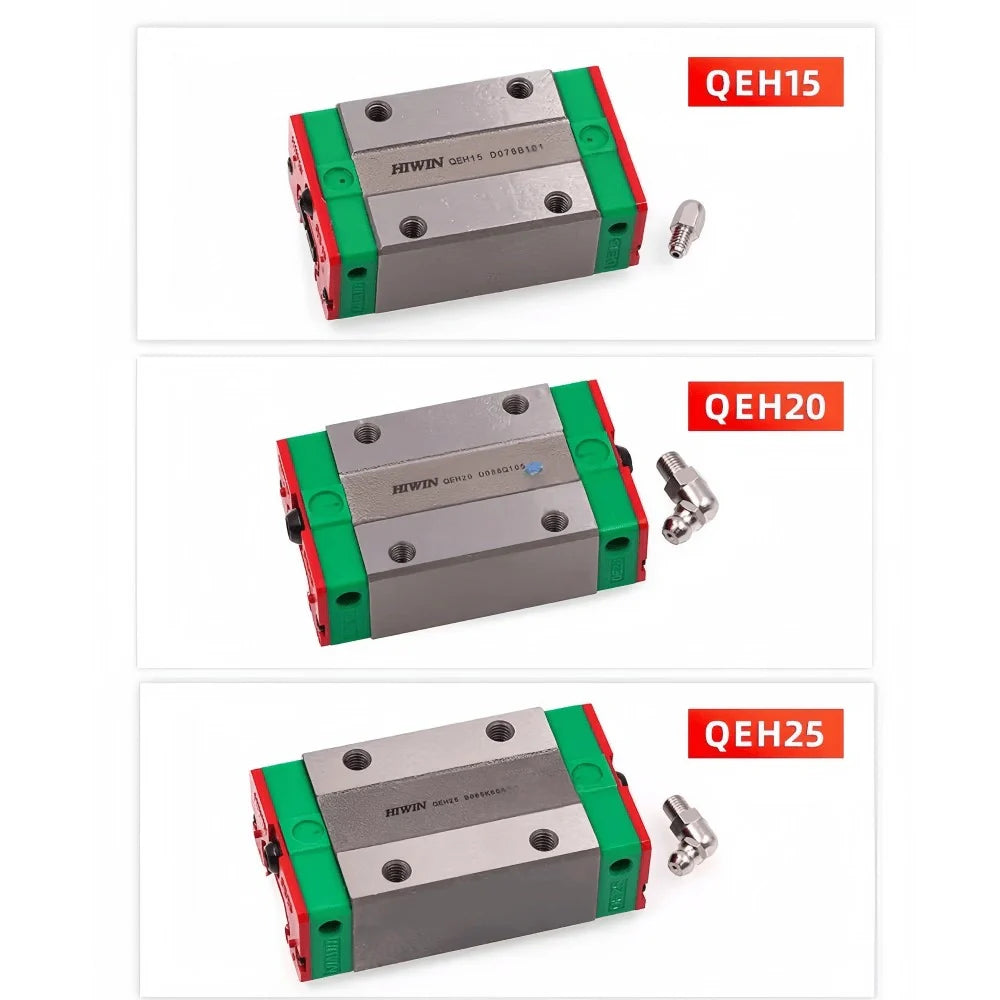

Supported models include QHH15, QH25, QE15, QE20, and QHH25. Different block sizes and load capacities allow flexible selection based on printer structure and operating conditions.
Product Highlights
- Compatible with QH / QE / QHH series linear rails
- Low-friction ball circulation for smooth movement
- High rigidity design for stable load handling
- Durable steel construction for long-term use
- Suitable for replacement or equipment upgrades
Technical Specifications
| Model | Rail Size | Load Capacity | Motion Structure | Construction | Usage Scenario |
|---|---|---|---|---|---|
| QE15 | 15 mm | Light | Ball bearing linear motion | Alloy steel body | Compact printer platforms |
| QHH15 | 15 mm | Medium | Ball bearing linear motion | Alloy steel body | UV printer carriages |
| QE20 | 20 mm | Medium | Ball bearing linear motion | Alloy steel body | Flatbed printers |
| QH25 | 25 mm | Heavy | Ball bearing linear motion | Alloy steel body | Wide-format printers |
| QHH25 | 25 mm | Extra High | Ball bearing linear motion | Alloy steel body | Industrial printing systems |
Typical Uses
- UV printer motion assemblies
- Large format printing gantry systems
- Plotter and CNC linear positioning modules
- Automation equipment linear drives
This guide block series offers a reliable solution for precision motion systems where stability, durability, and smooth operation are required.
