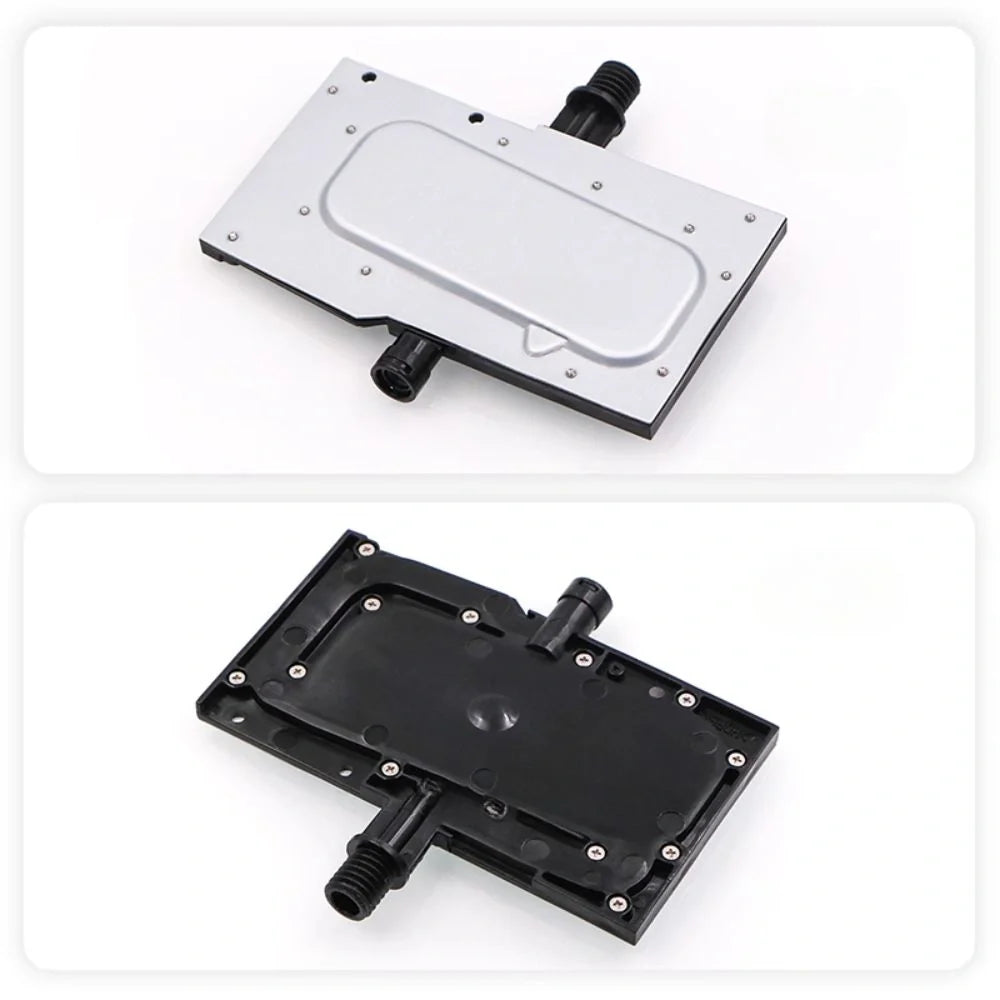

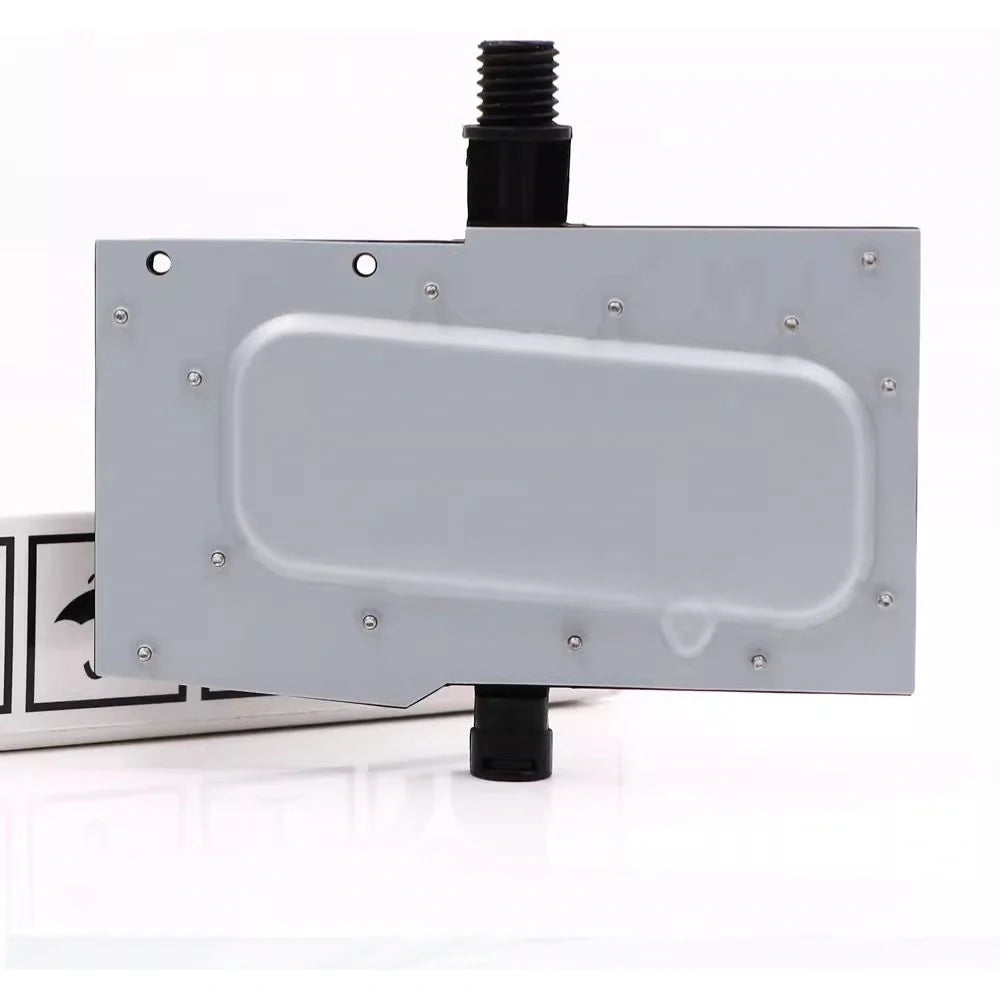

This ink damper is designed specifically for Seiko SPT-1020 and SPT-1024 grayscale printheads used in industrial UV and solvent printing systems. It functions as a negative-pressure buffer and filtration unit between the ink supply and the printhead, ensuring stable ink delivery during high-speed production.

With a large internal ink chamber and dual stainless steel filters, the damper helps remove micro-particles and air bubbles before ink reaches the nozzle plate. This significantly reduces banding, color inconsistency, and nozzle drop-out during long continuous print jobs.

Compatible Printheads & Machines

Printhead Models Seiko SPT-1020 / SPT-1024 (Grayscale)
Printer Types UV flatbed printers, UV roll-to-roll printers, eco-solvent industrial printers
Common Platforms Flora LJ-3204 / 3304, Gongzheng GZC series, Handtop, Docan and similar machines

Available Configurations

Option Included Parts Recommended Use
Single Ink Cap Ink damper body only Replacing worn or contaminated damper cap

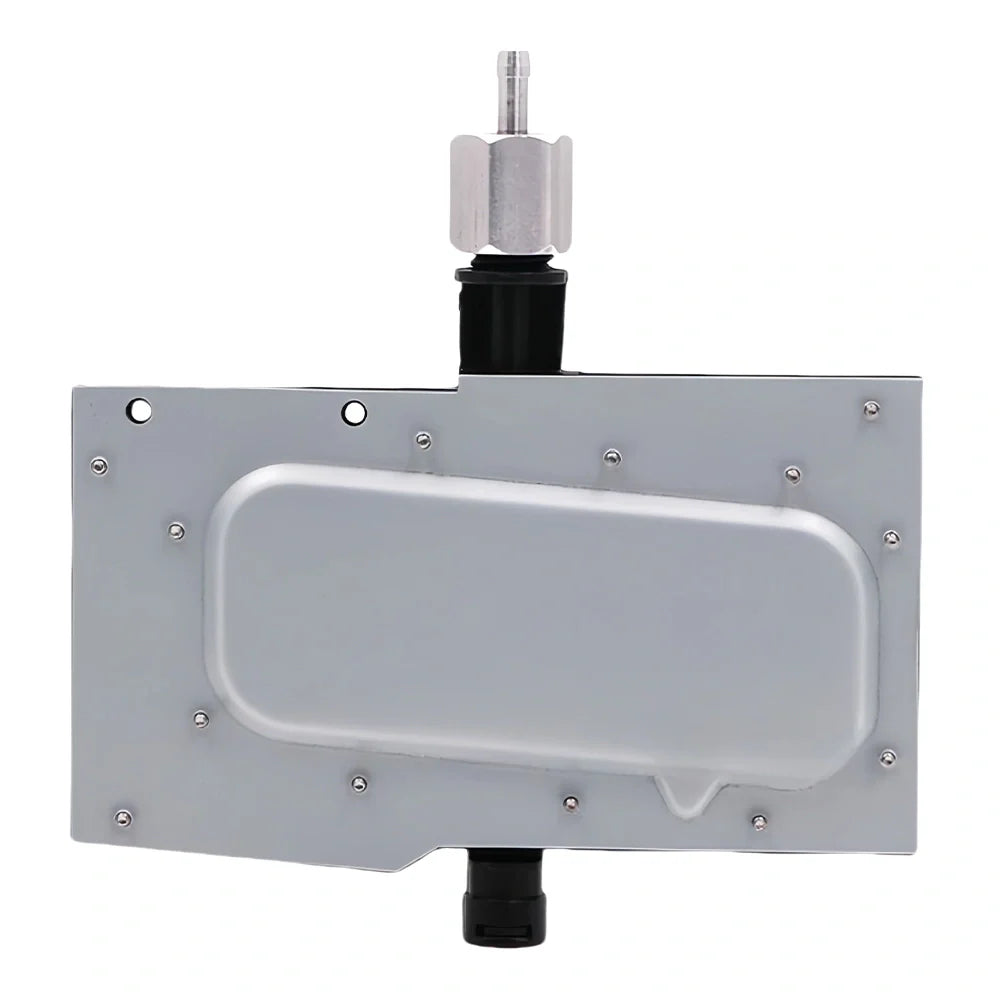

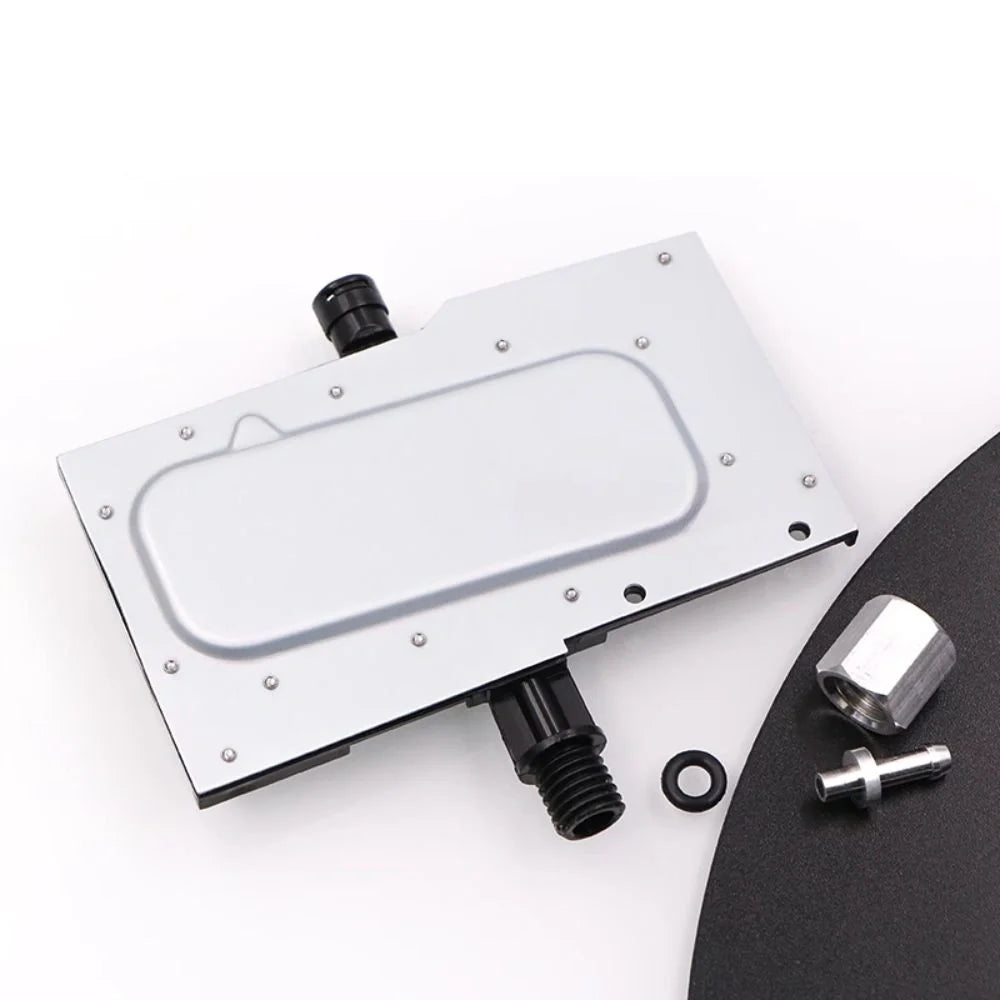

Ink Cap with Connector Complete damper assembly Full damper replacement during scheduled maintenance

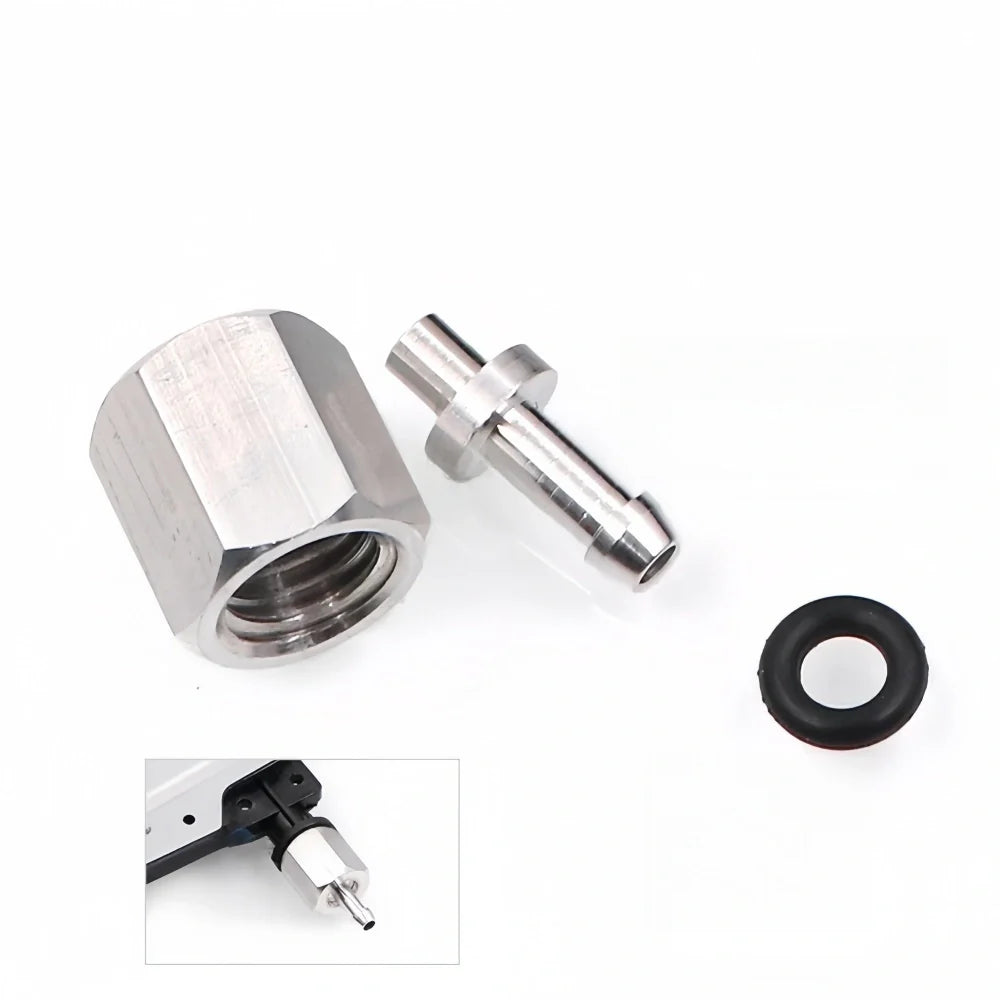

Single Connector Connector fitting only Repairing leakage or connector wear

Key Features

  • Large-volume internal chamber supports high-speed inkjet operation
  • Dual 5 μm stainless steel filters protect the nozzle plate
  • Stable negative pressure helps prevent banding and color shift
  • Chemically resistant housing for UV and solvent inks

Ink Compatibility

  • UV-curable ink
  • Eco-solvent and mild solvent ink
  • Pigment ink, CMYK / White / Varnish

Maintenance Recommendation

  • Replace every 3–6 months under normal industrial usage
  • Earlier replacement recommended if ink contamination is observed

Note: Regular damper replacement is a cost-effective way to protect expensive Seiko printheads and minimize downtime.
