Toshiba CF3R Inkjet Printhead

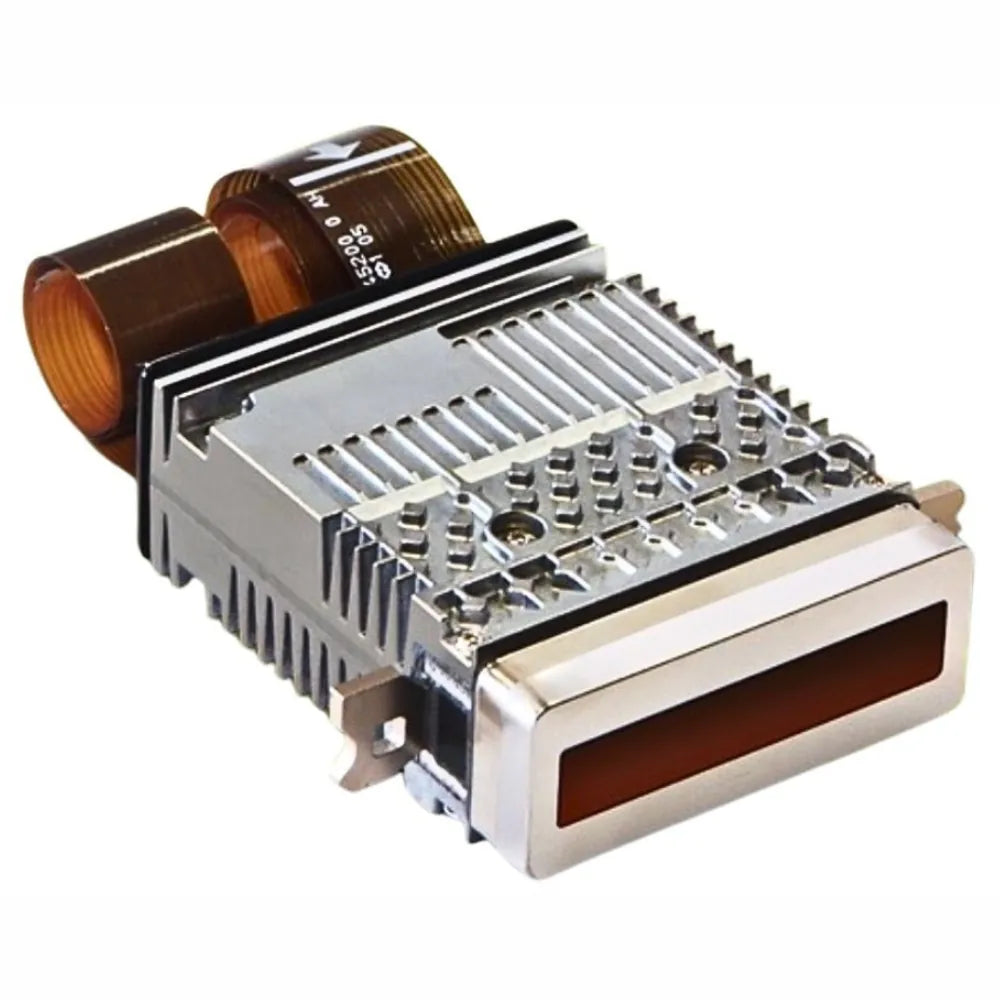

Toshiba CF3R Printhead

Toshiba CF3R Printhead is supplied for professional printing systems that need stable output, precise droplet placement, and lower downtime risk.

• Model-reference printhead
• Stable printing and lower clogging risk when matched with the correct ink system
• Compatible with UV-curable inks, Oil-based inks
• shipping details confirmed before payment shipping and compatibility support before order

Not sure if it fits your printer? Contact us with your printer model, printhead model, and ink type before you order.

Ask Compatibility Request Current Quote Request Test Video

Before You Order

• Confirm printer model
• Confirm printhead model
• Confirm ink type (UV-curable inks, Oil-based inks)
• Contact us if you are not sure

Why Choose Us

• Model-reference printhead
• Model and appearance check before shipment
• Real product photos available on request
• Anti-static packing with foam protection
• After-sales support for compatibility questions

Technical Specifications

Applications

• Photo Printing
• Label Printing
• Packaging Printing
• Signage & Graphics
• UV Flatbed Printing
• Industrial Product Decoration

Compatibility note: Printhead fit depends on printer design, ink type, cable setup, and board configuration. Please confirm these details before purchase to reduce ordering mistakes.

Packing & Shipping

• Anti-static packing
• Foam protection
• Safe export shipping
• shipping details confirmed before payment delivery options available

Technical Overview

The Toshiba CF3R is the flagship water-cooled member of Toshiba’s CF3 series. Its full-channel ink recirculation keeps pigments moving right up to the nozzle plate, dramatically reducing clogging and enabling flawless jetting of high-viscosity UV-curable or oil-based inks at up to 600 dpi native resolution. Per-nozzle drop-volume tuning and six-level greyscale deliver photographic smoothness even in demanding single-pass production lines. Key Features & Benefits Water-cooled for heavy-duty environments – integrated cooling block keeps head temperature stable during long production runs. True recirculation at the nozzle – prevents sedimentation, auto-recovers mis-fires and extends head life. Dual-colour flexibility – 639 nozzles × 2 rows at 300 NPI each, or single-colour 1 278 nozzles at 600 NPI for ultra-sharp mono work. Fine drop-volume control (3 – 20 pL) and six greyscale levels ensure smooth gradients and ink savings. High firing frequency 9.2 kHz supports faster linear speeds on single-pass or scanning architectures. Compact & robust – 96.7 × 31.3 × 100.7 mm, 285 g; easy to integrate into existing UV or hybrid presses. Built-in temperature sensor enables closed-loop head management for consistent print quality. Toshiba supply – brand-new & sealed – every head ships with factory QC report. Typical Applications Roll-to-roll signage, folding carton & label presses, rigid packaging, décor laminates and specialty industrial coatings benefit from the CF3R’s high pigment load capability and two-colour layout. Technical Specifications Parameter Value Print Method Piezo on-demand, full-channel recirculation Native Resolution 600 NPI (1 colour) / 300 NPI × 2 (dual colour) Nozzle Count 1 278 (mono) / 639 × 2 (dual) Print Width 53.95 mm (mono) / 53.91 mm (dual) Drop Volume 3 – 20 pL (six greyscale levels) Max Frequency 9.2 kHz @ 5-drop mode Cooling Integrated water-cooling block + sensor Printing Ink Compatibility UV-curable & oil-based inks (others on request) Dimensions / Weight 96.7 W × 31.3 D × 100.7 H mm / 285 g Specifications based on Toshiba supplier datasheet. Always verify ink compatibility with your manufacturer part reference before installation.

FAQ

Is this reference?

Please confirm the exact model and supply type with our team before order. Model-reference printhead support is available for this page.

How do I confirm compatibility?

Send your printer model, current printhead model, and ink type. We will help review fit before you order.

Do you test before shipping?

Visual and model checks can be arranged before shipment, and real product photos or confirmation can be provided on request.

Need help before ordering? Send us your printer model, printhead model, ink type, and destination country. We will help you confirm compatibility before you buy.

Ask Compatibility Request Current Quote Contact Sales
