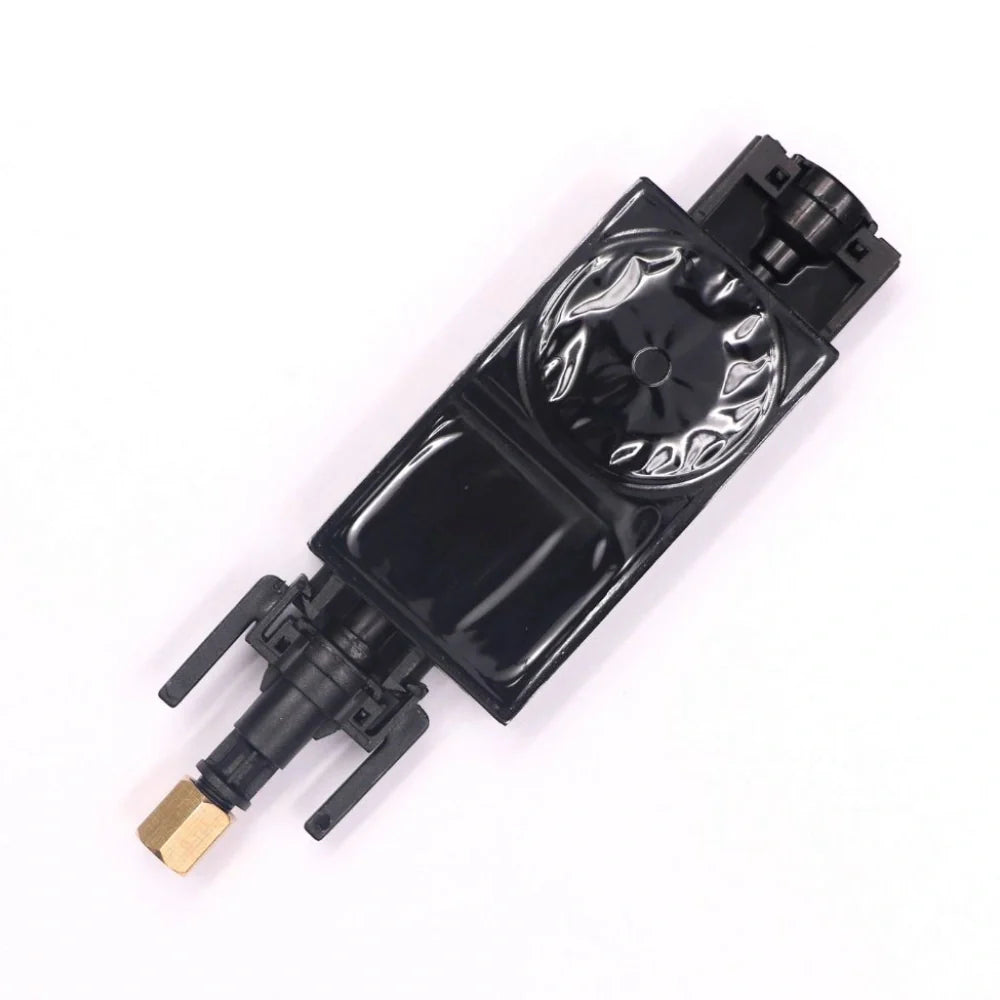

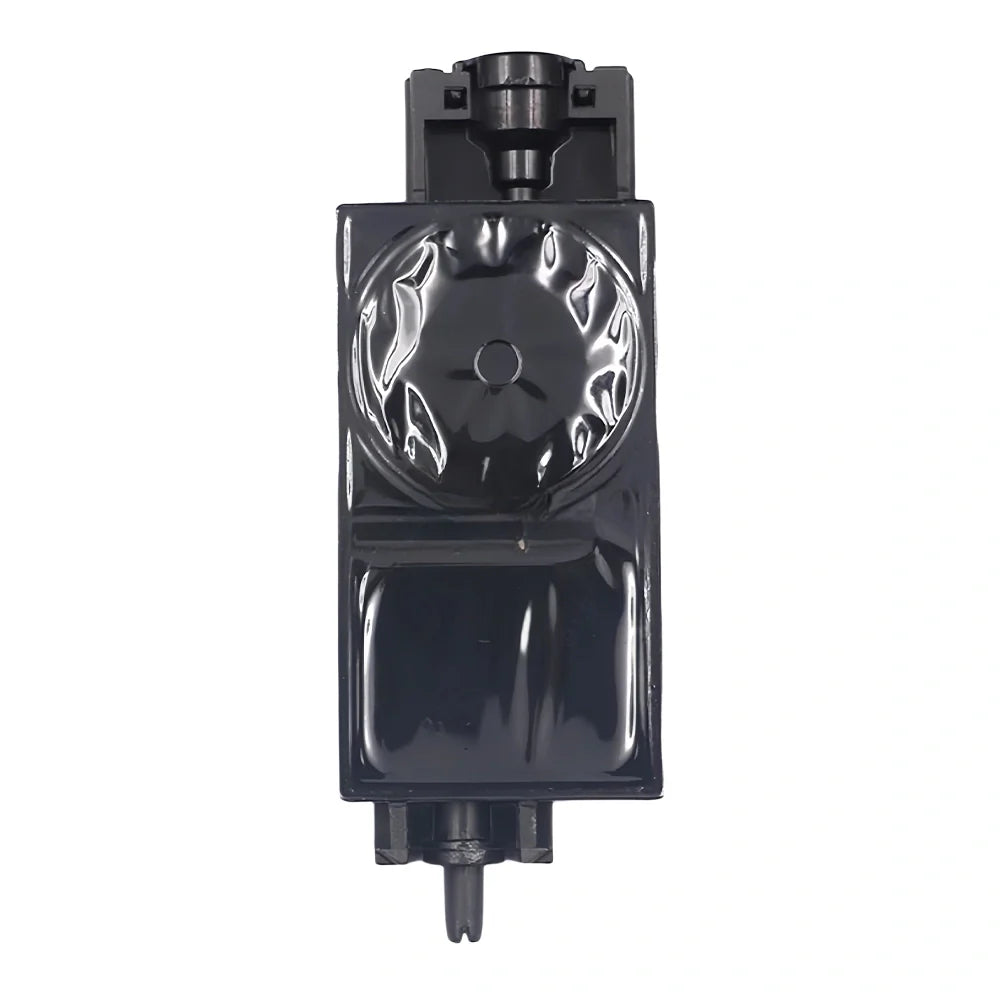

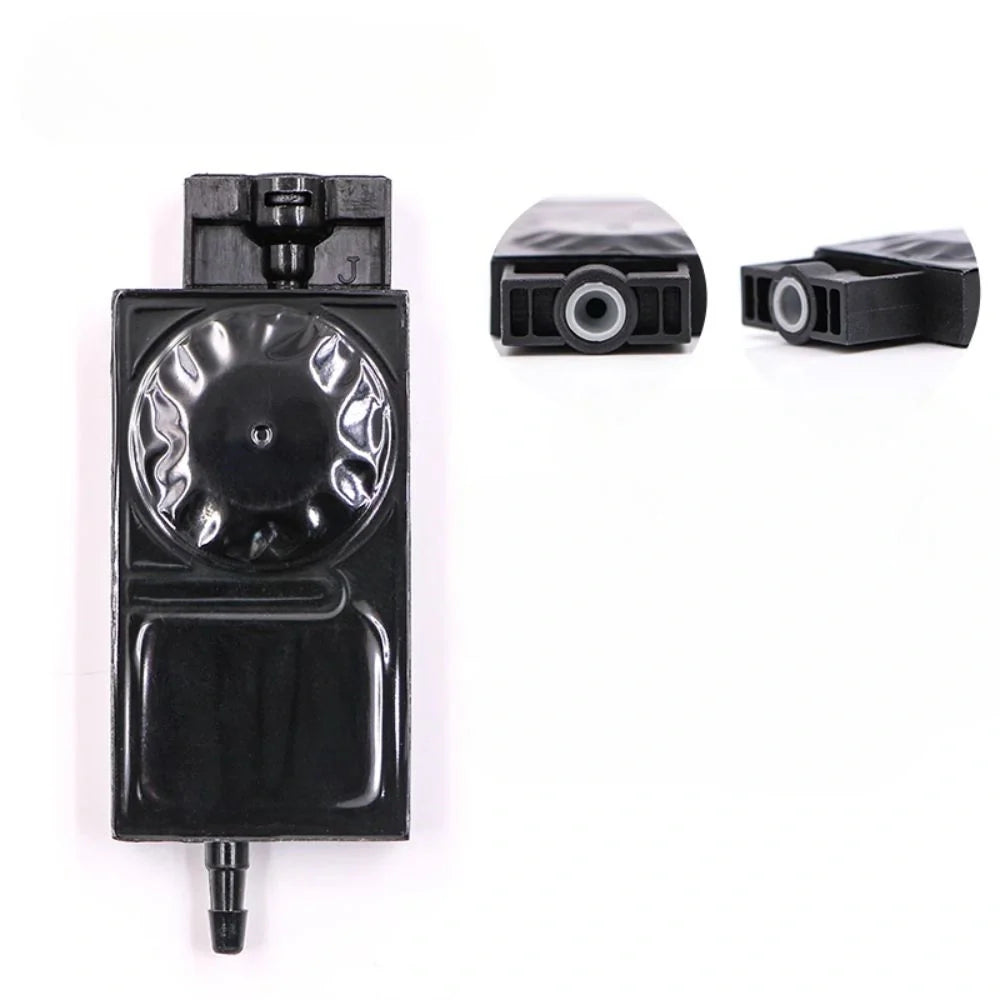

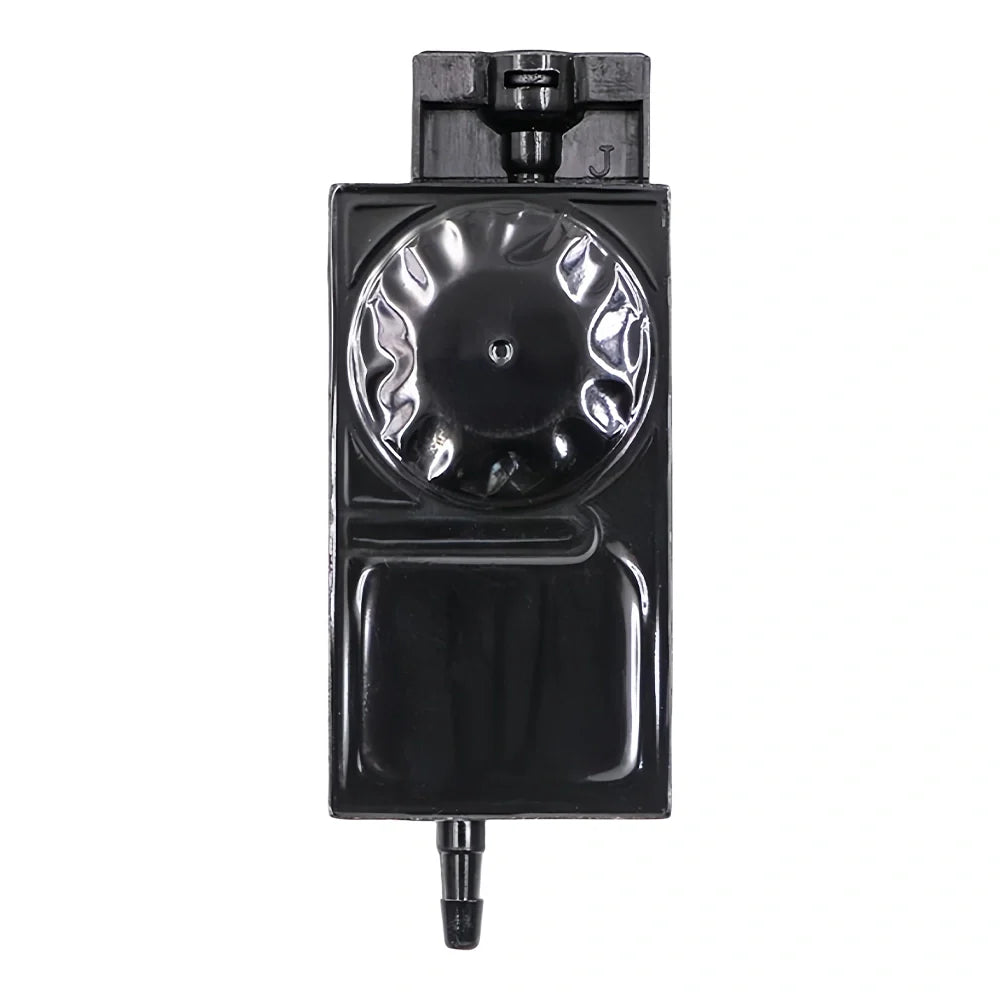

UV Ink Damper for Epson TX800 Printhead
This UV ink damper is designed for ink supply systems using the Epson TX800 printhead. It regulates negative pressure, stabilizes ink flow, and filters fine particles to protect nozzles during high-frequency UV printing.
Proper damper performance helps prevent air intake, ink backflow, color mixing, and banding issues commonly caused by unstable pressure in UV ink systems.
Key Features
- Designed specifically for Epson TX800 printhead ink delivery
- Used for pressure and ink-flow maintenance when correctly matched and installed
- Integrated fine filter is used to strain visible particles and help manage air in the ink path
- May be relevant during nozzle, ink starvation, or ink-path troubleshooting
- Use depends on printer configuration, printhead condition, ink/fluid type, and operating environment
Available Types
| Type | Description |
|---|---|

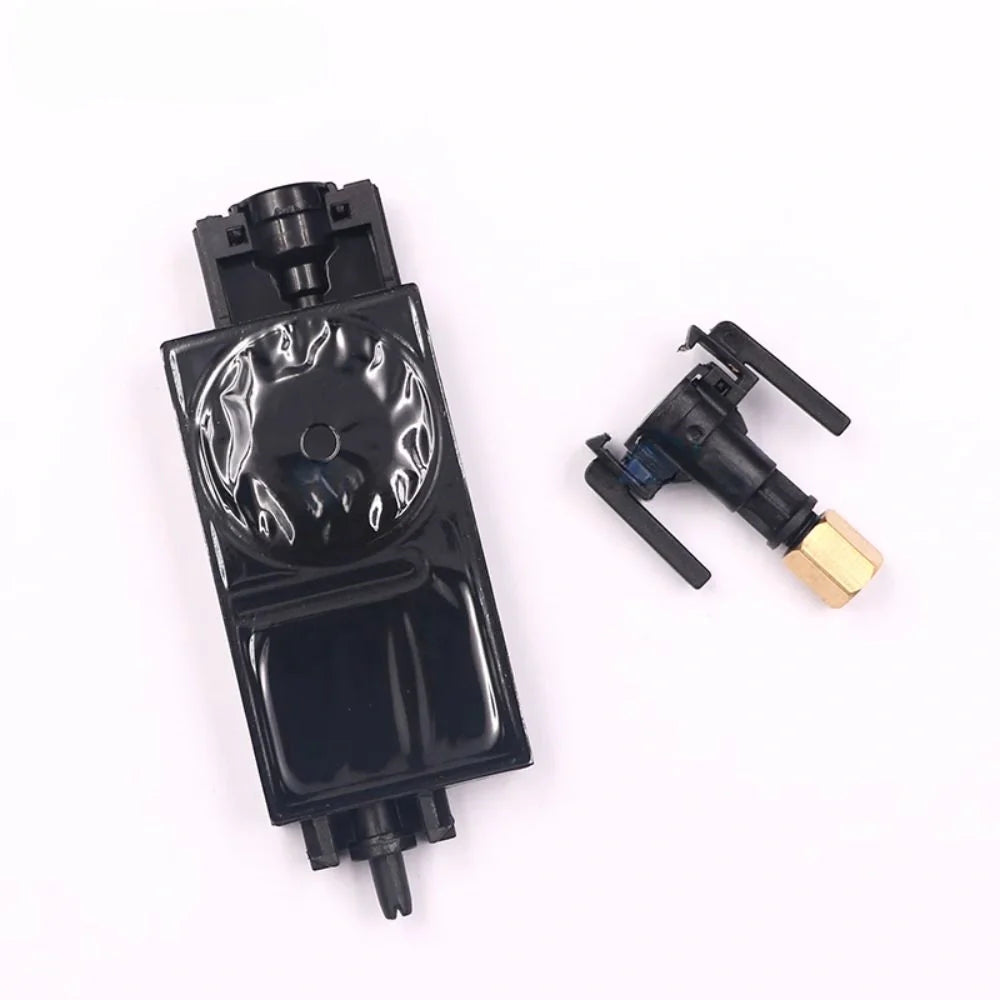

| No.1 Direct Plug-in Type | Dedicated direct-insert damper for TX800 printhead. Designed for stable sealing and fast replacement without additional caps. |

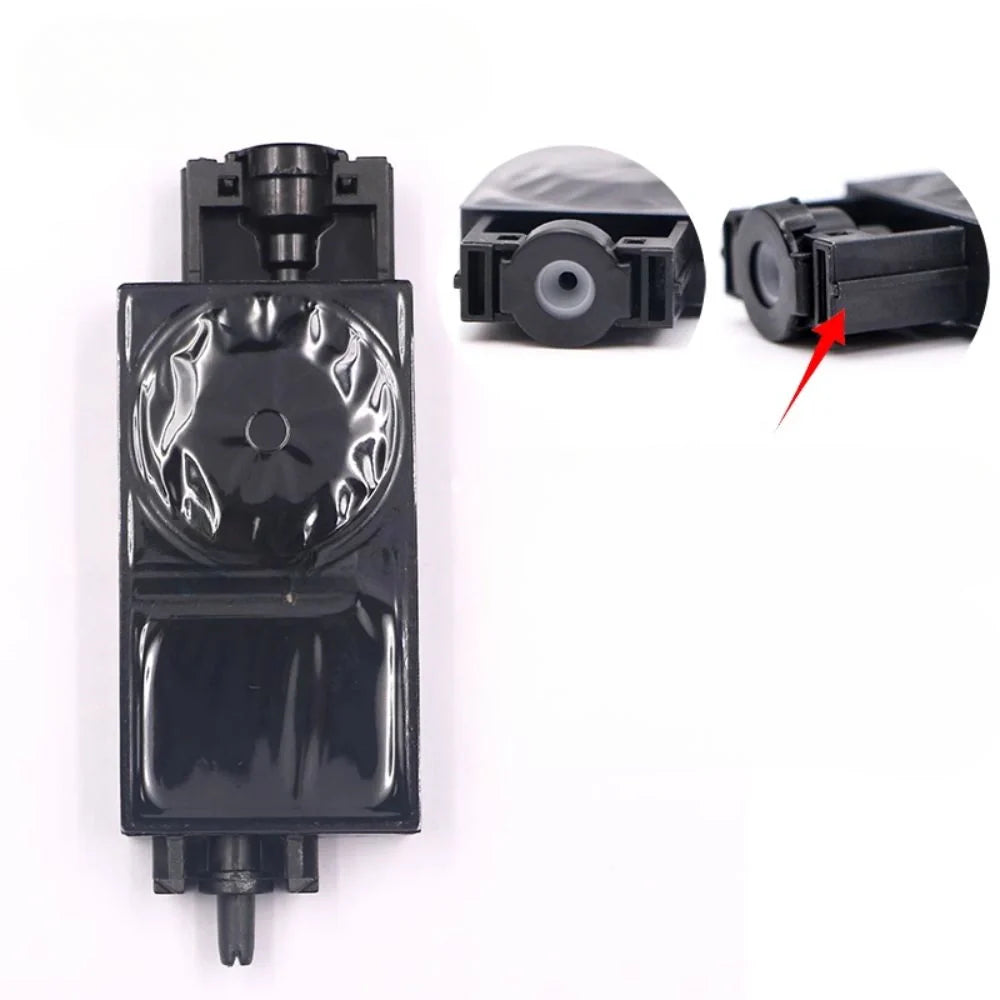

| No.2 Snap-in Capping Cover Type | TX800-dedicated snap-in design using a capping cover structure, providing additional fixation and pressure stability. |
Technical Specifications
| Printhead Compatibility | Epson TX800 |
| Filters | UV Curable Ink |
| Ink Colors | CMYK / White / Varnish |
| Filter Rating | 5 µm high-density mesh |
| Ink Tube Size | 4 × 3 mm |
| Housing Material | UV-resistant PP |
| Packaging | 10 pcs / box, vacuum sealed |
Service Recommendation
For optimal nozzle protection, replace the damper every 3–6 months or after approximately 3 liters of ink per color.
