UV Metal Pretreatment Coating
- $10.00
- $10.00
- Unit price
- per
All prices are in USD. Available payment methods and shipping options are shown at checkout based on destination and order details.
*
Note
Secure payments
Order issue support
Product Details

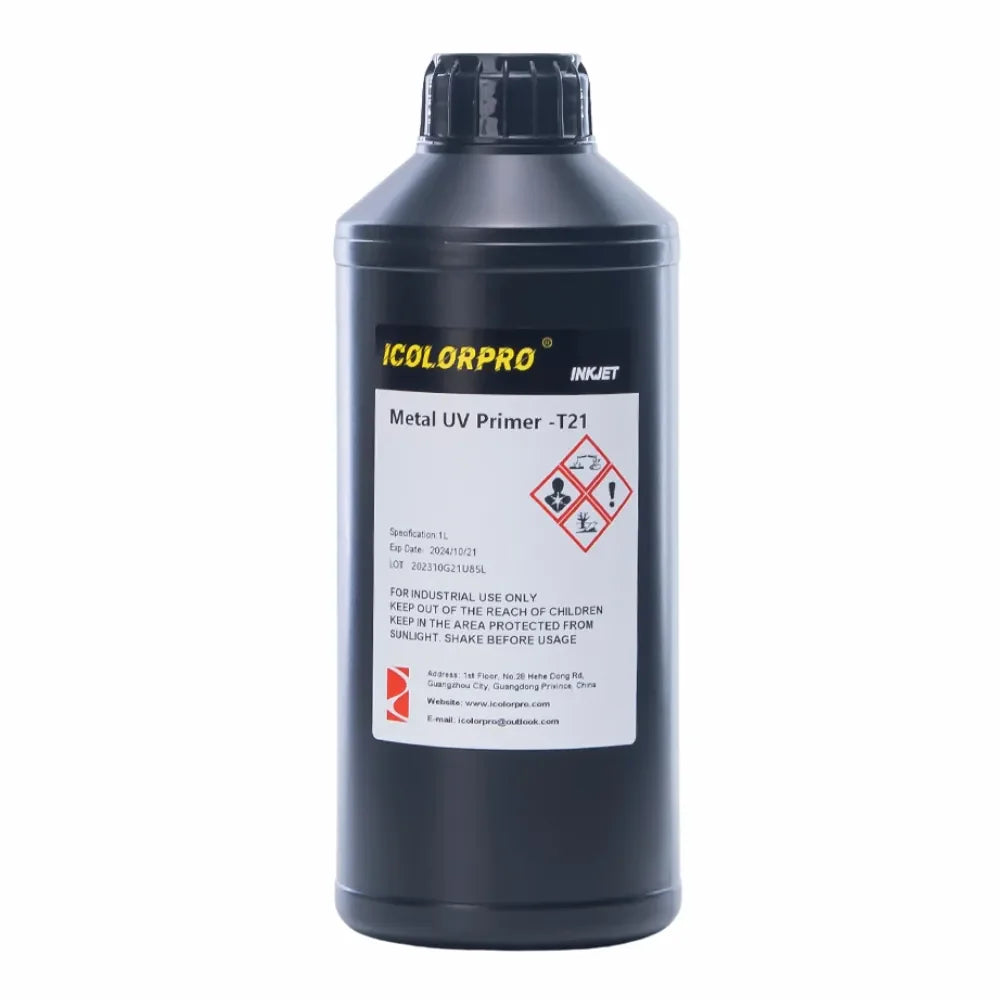

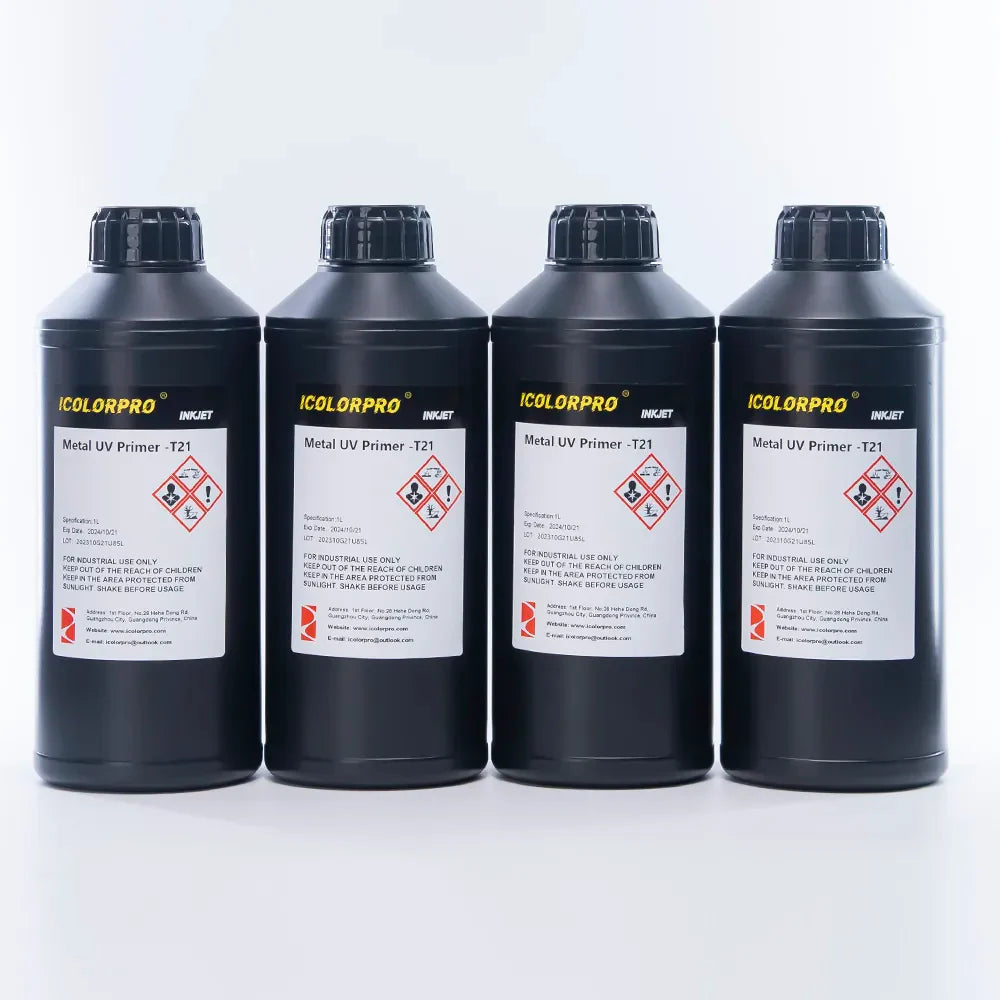

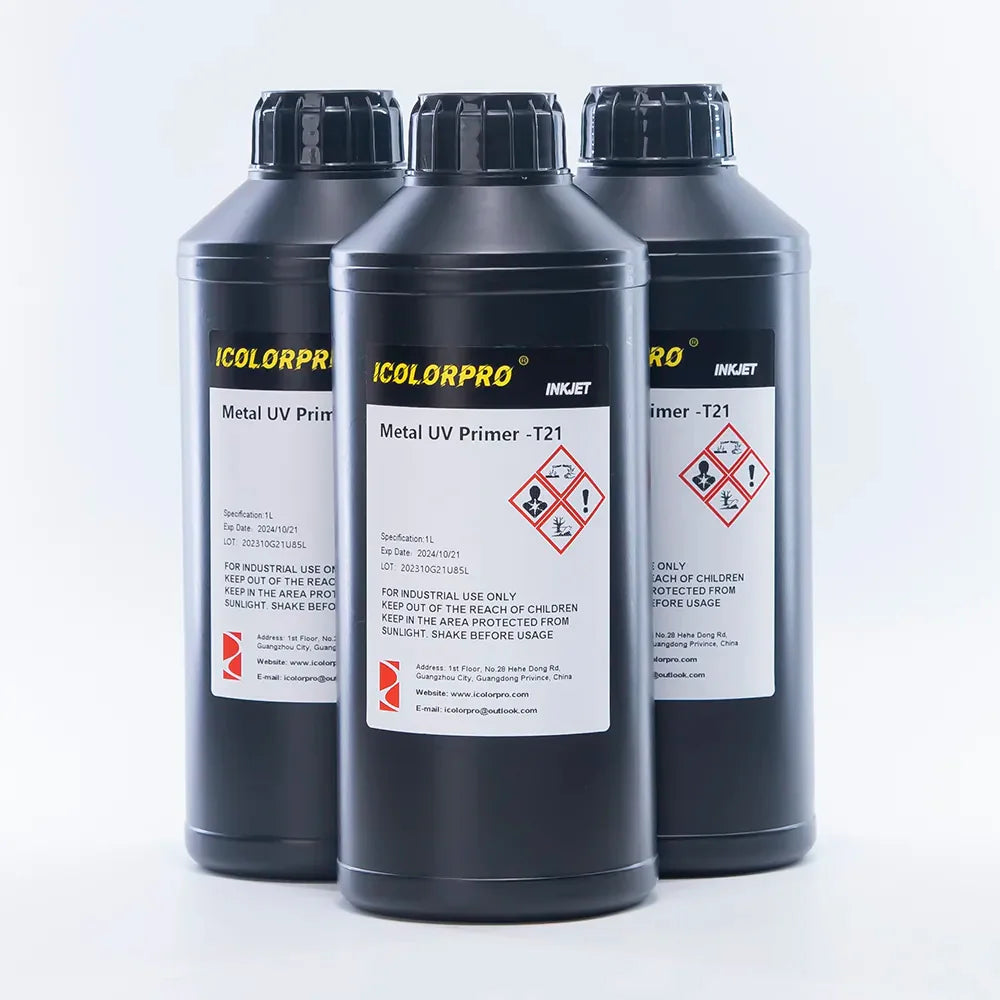

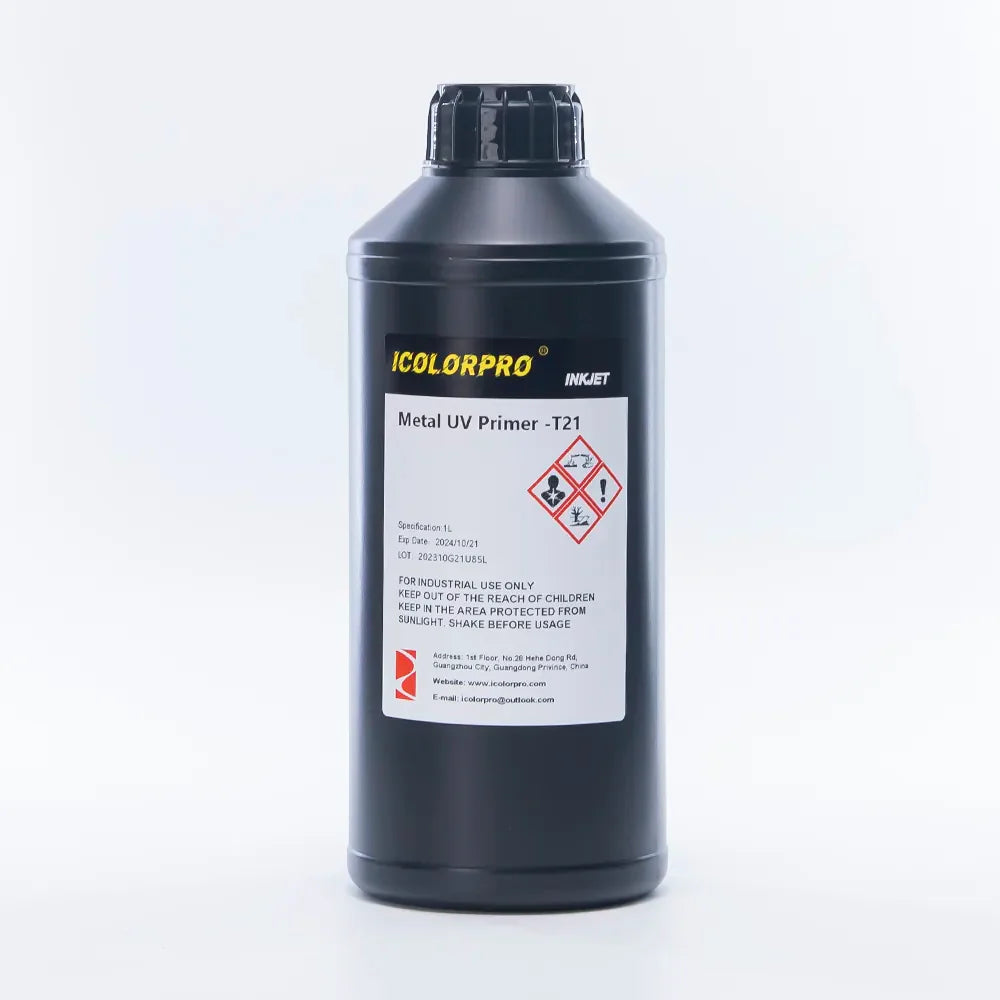

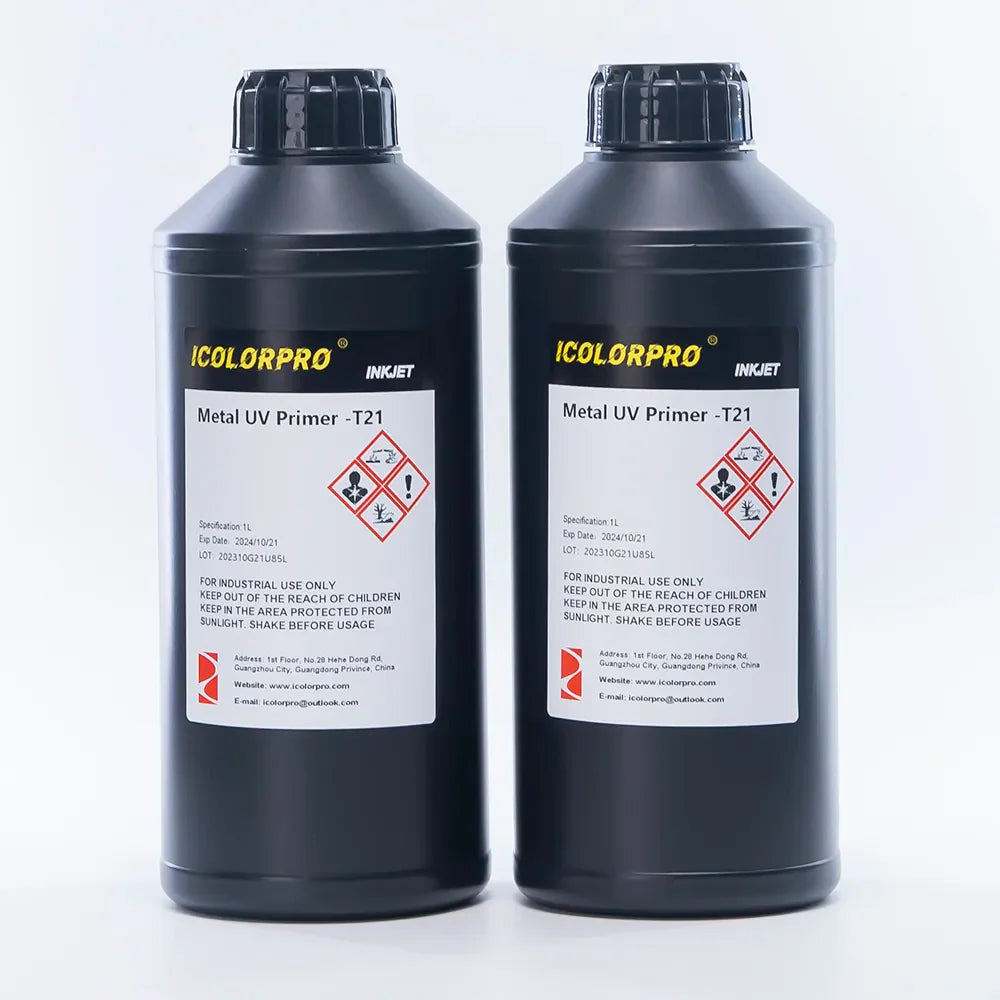

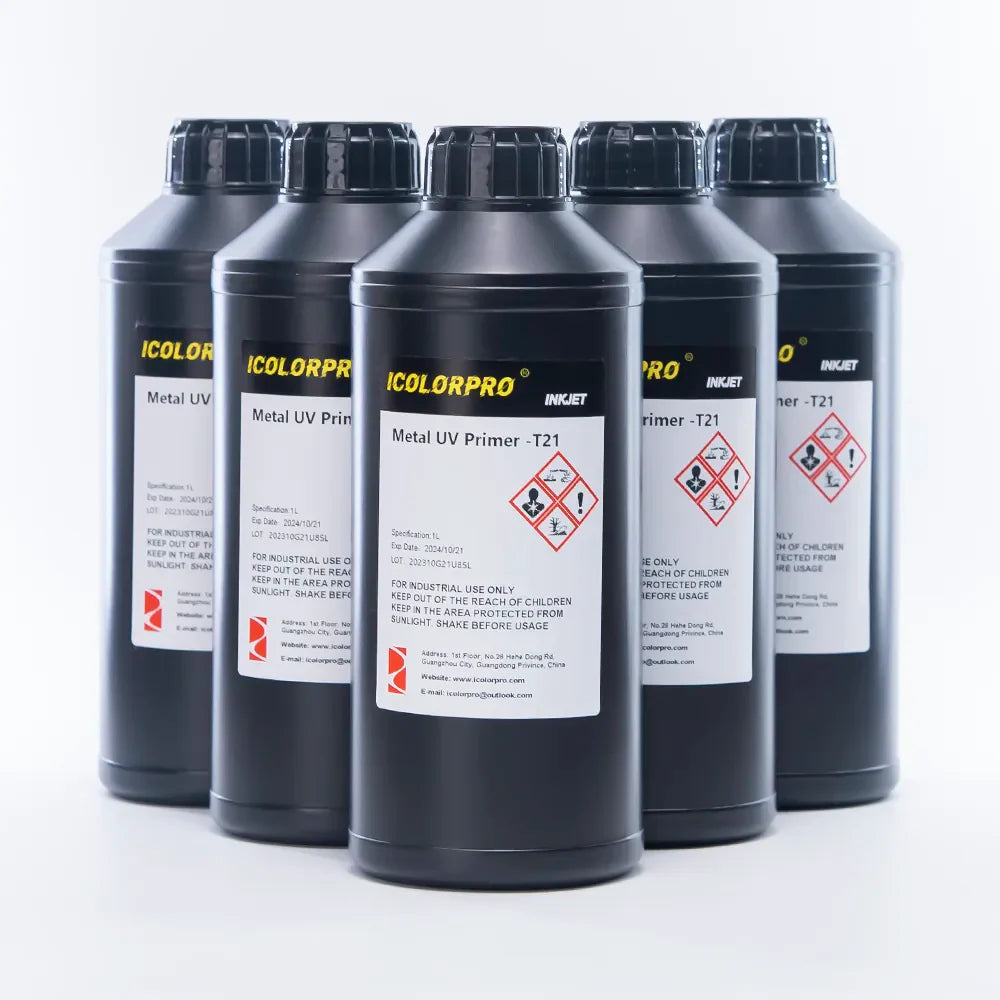

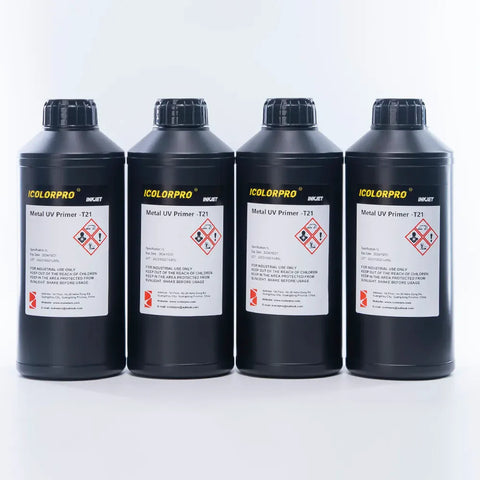

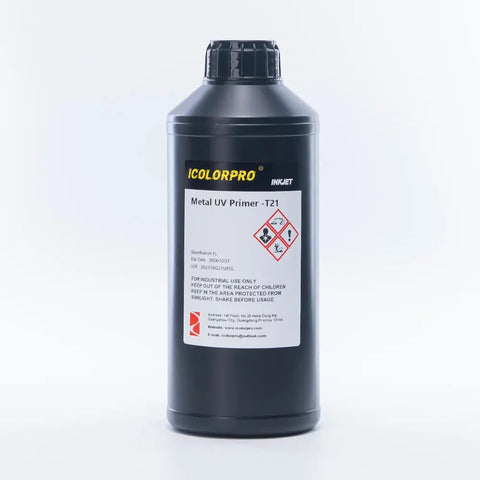

xUVINKPRO UV Metal Pretreatment Coating is a UV printing pretreatment coating for tested metal substrates. It is not UV ink and it is not UV varnish. Test adhesion, curing, surface preparation, and ink-system compatibility on the actual substrate before production.
UVINKPRO UV Metal Coating
UVINKPRO UV Metal Coating cures in seconds under UVA lamps to create an ultra-tough, chemical-resistant film that locks onto bare or painted metals. The result is a brilliant, long-lasting finish that protects signage, nameplates and industrial parts from corrosion, abrasion and fading.
Key Benefits
- Instant UV cure — production speed depends on equipment and settings
- hardness information available on request for extreme scratch resistance
- Excellent adhesion to aluminum, steel & stainless substrates (Cross-cut 0-1)
- Corrosion & solvent resistance; maintains gloss after 1000 h corrosion-resistance test
- Low-odor formulation; supplier documents can be checked on request where applicable
Recommended Uses
- Outdoor & indoor metal signage, display panels
- Engraved or printed nameplates, rating plates
- Consumer electronics housings, phone & laptop cases
- Stainless drinkware, aluminum tumblers, decorative metal parts
Technical Specs
- Viscosity (25 °C): 300 – 450 cP
- Optimal cure dose: 900 – 1300 mJ/cm² UVA
- Gloss: 85 + GU @ 60° (gloss version) / 25 ± 5 GU (matte version)
- Shelf life: 12 months (sealed, 20 – 25 °C)
Packaging
- 1 kg & 5 kg HDPE bottles
- 20 kg pails for automated lines
Need tech sheets or bulk pricing? Chat with our support team on WhatsApp for a fast response.
Recommended Substrates
- Recommended for metal panels, coated metal parts, aluminum, stainless steel, and decorative metal surfaces.
- Used to improve adhesion, surface performance, or bonding stability before or after printing depending on the production workflow.
- Always test on the actual substrate and curing setup before full production.
Compatibility Notes
- Confirm the coating process together with your UV ink, printhead configuration, and curing energy before bulk use.
- Check whether the surface requires cleaning, flame treatment, corona treatment, or another pre-treatment process.
- For stable production, confirm application thickness, drying or curing conditions, and final adhesion requirements.
Typical Applications
- Industrial decoration, promotional products, rigid signage, packaging, and specialty surface printing.
- Workflows where buyers need better adhesion and more reliable surface performance on difficult materials.
- Suitable for sampling, small-batch production, and scale-up after adhesion testing is approved.
Surface Preparation Checklist
- For metal surfaces, remove oil, dust, and oxide contamination before coating and printing.
- Run a small adhesion test before production and confirm whether wiping, degreasing, flame treatment, or corona treatment is required.
- Check coating thickness, flash-off or drying time, and UV curing energy before moving from sample work to batch production.
Workflow Notes
- Confirm whether the coating is used as a primer, adhesion promoter, or post-treatment step in your printing workflow.
- Buyers usually validate cross-hatch adhesion, tape test results, scratch resistance, and final appearance on the real substrate first.
- Use this product only after confirming compatibility with your solvent printing process and target material.
Buying Notes
- If the same material is supplied by multiple factories, test each substrate batch because surface energy can vary.
- For export or contract production, lock down the approved process window before ordering larger volumes.
- When in doubt, request a sample workflow or confirm the intended application with your production engineer before purchase.
