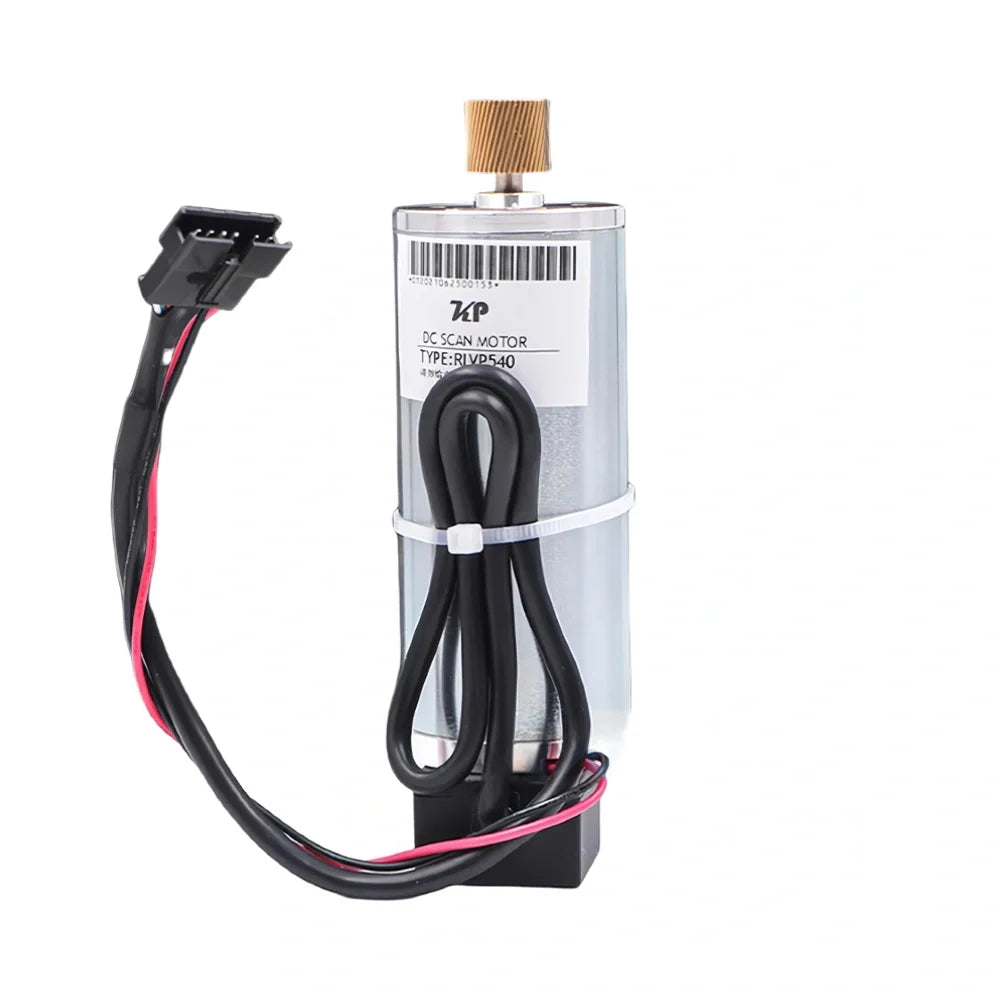

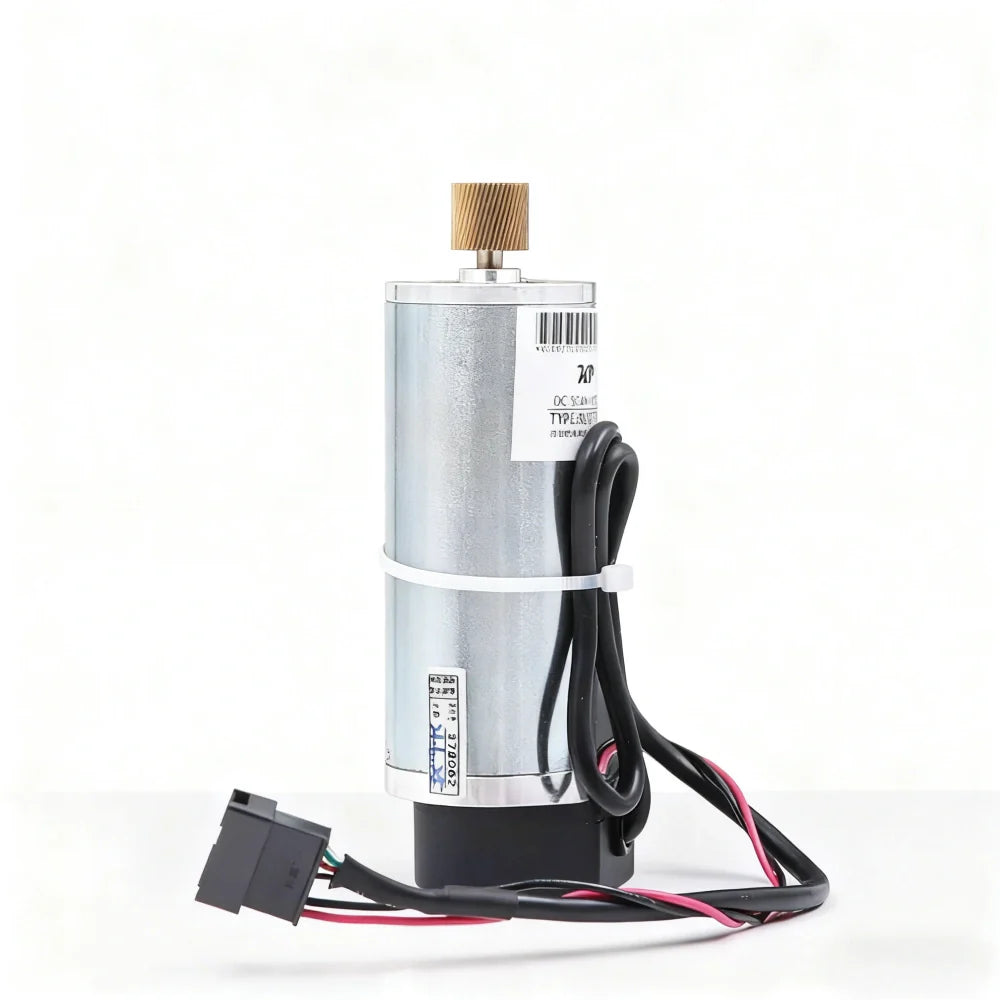

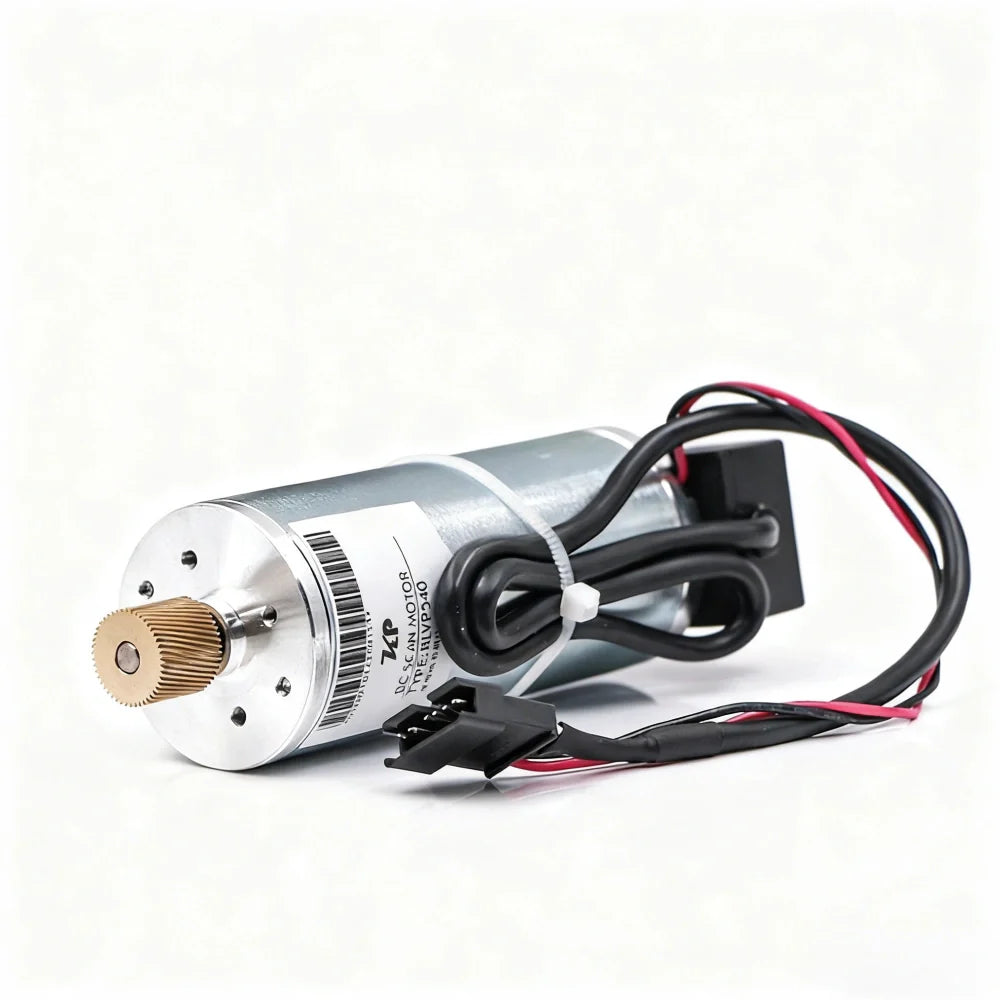

VP540 Printer Carriage Servo Motor

This carriage servo motor is used in VP540 printing systems to control the scanning movement of the printhead carriage along the Y-axis. Stable carriage motion is essential for maintaining accurate positioning, smooth scanning speed, and consistent print output.

The motor adopts a brushed DC drive structure combined with a precision gear-driven shaft, allowing reliable torque transmission and smooth mechanical engagement with the carriage assembly. This helps reduce vibration and supports uniform movement during high-speed printing operations.

For ease of servicing, the motor is supplied with a pre-connected wiring harness, enabling direct installation without additional wiring modification. The internal components are designed for continuous operation, making the motor suitable for demanding production environments.

Key Features

• Carriage servo motor for VP540 eco-solvent printers
• Controls Y-axis scanning movement of the printhead carriage
• Brushed DC motor design with precision gear shaft
• Smooth motion with reduced vibration and operating noise
• Pre-attached cable for simplified installation
• Built for long-term, high-frequency printing use

Working Function

During printing, the motor drives the carriage assembly along the guide rail while maintaining stable speed and positioning. Consistent motor performance helps ensure accurate dot placement and uniform image quality across the print width.

Application

Commonly used in large-format eco-solvent printing systems where reliable carriage motion and long-term mechanical stability are required.
