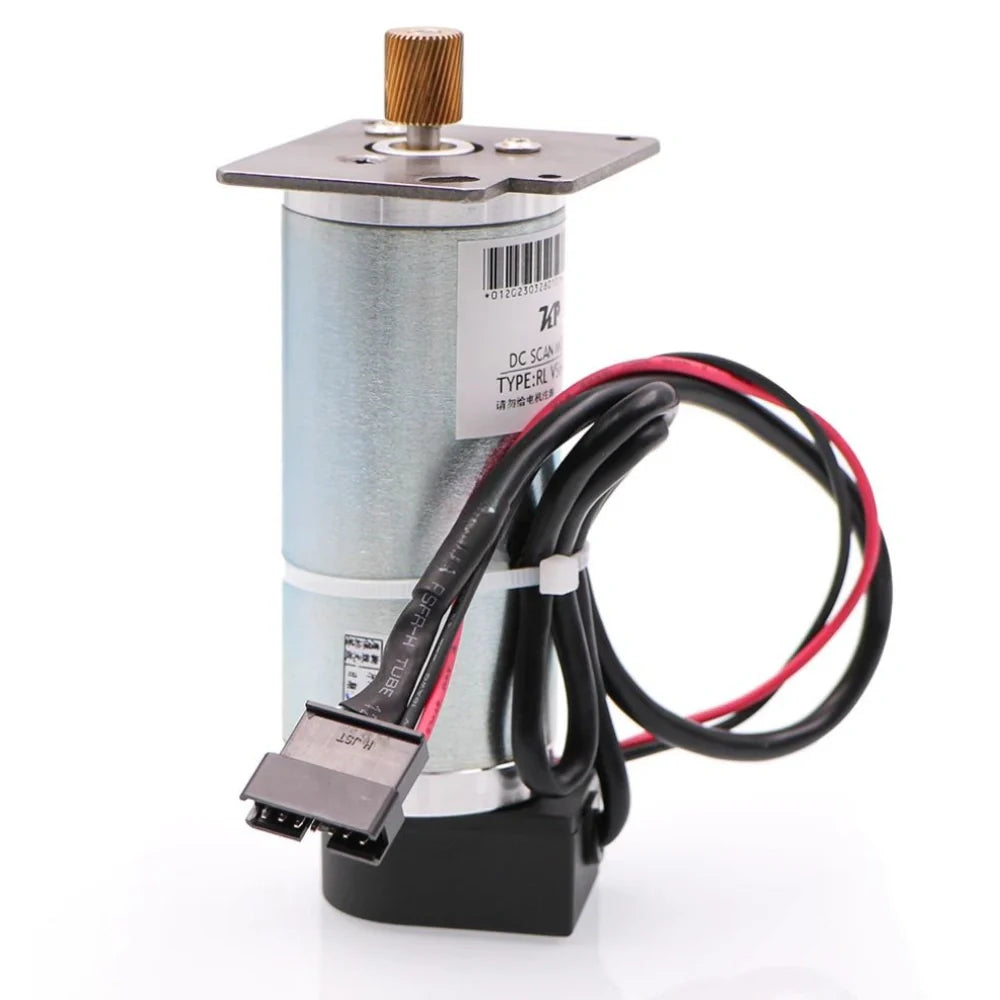

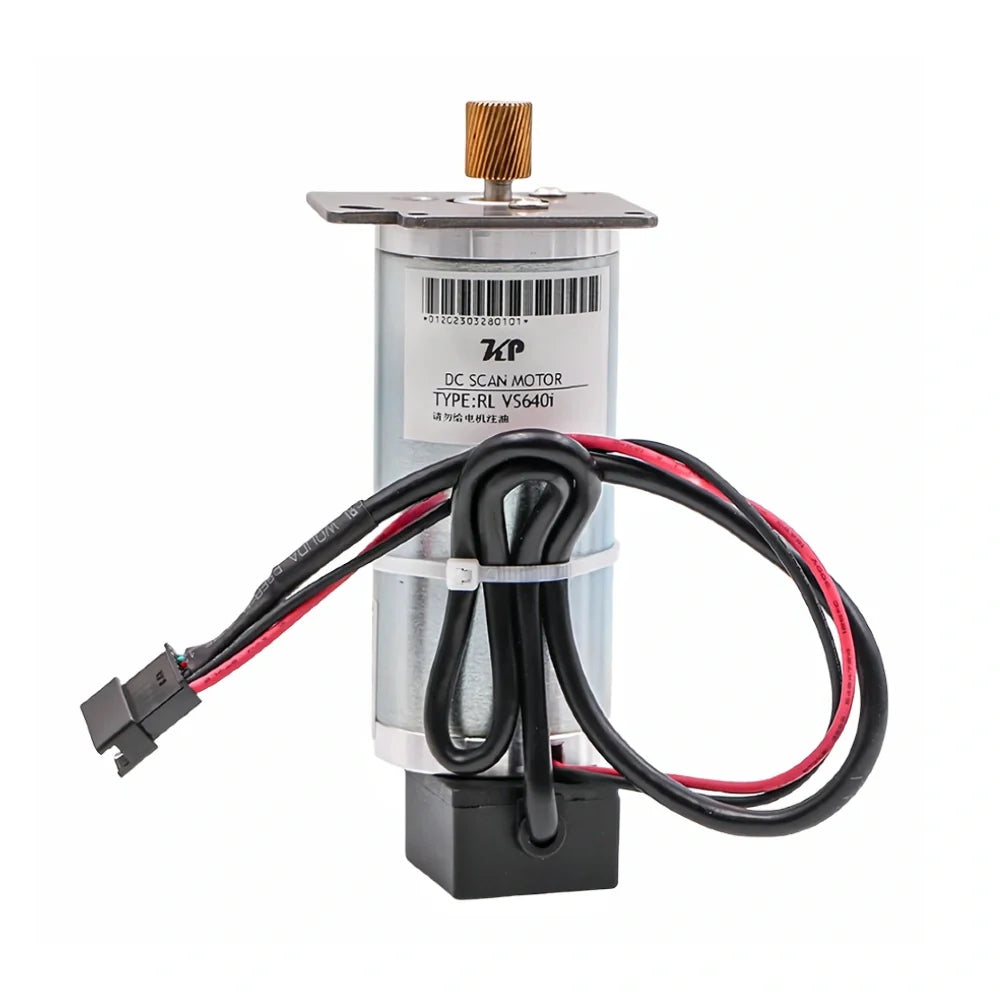

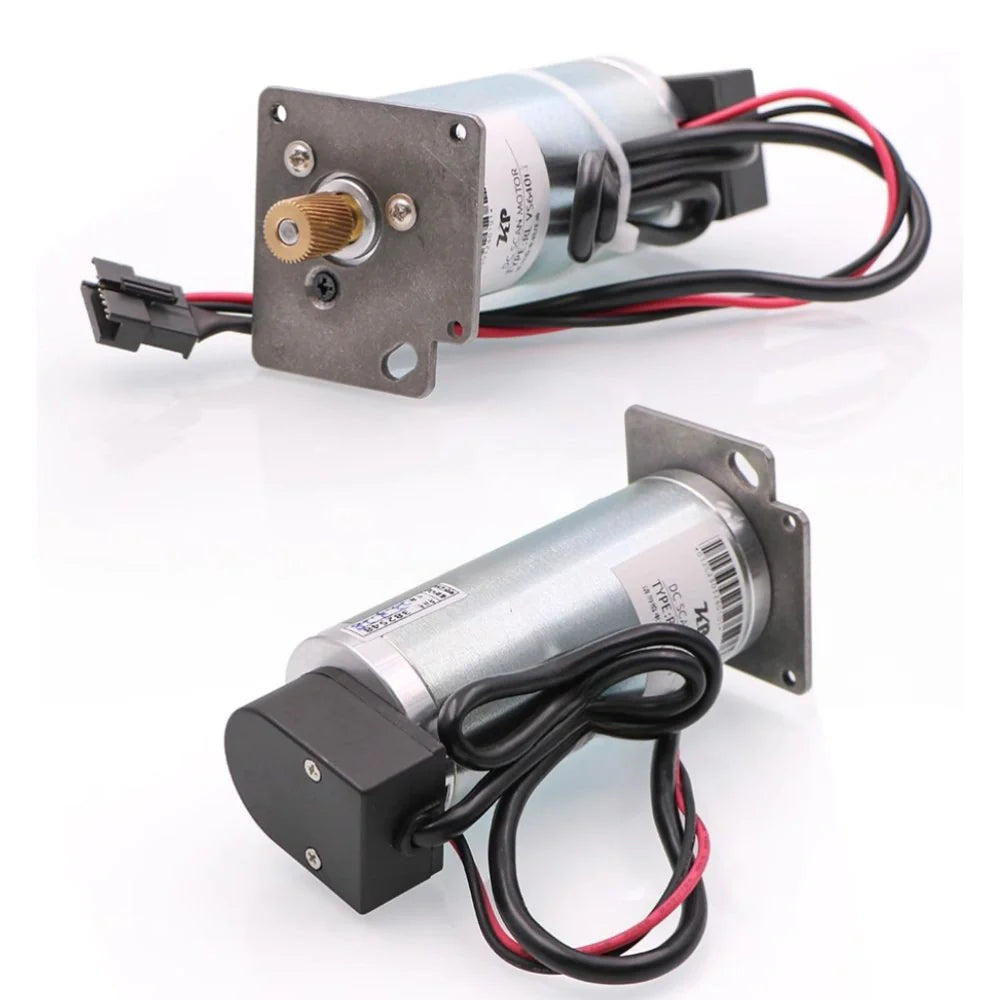

VS640i Printer Carriage Drive Motor

This carriage drive motor is used in VS640i printing systems to control the horizontal movement of the printhead carriage during the scanning process. Stable and precise carriage motion is essential for maintaining print alignment, reducing vibration, and ensuring consistent image output.

The motor adopts a DC drive structure combined with a precision gear shaft, allowing controlled torque transmission and smooth mechanical engagement with the carriage assembly. This design helps minimize backlash and supports accurate positioning even during high-speed scanning.

To simplify installation and maintenance, the motor is supplied with a pre-connected signal cable, enabling direct replacement without additional wiring modification. The internal components are engineered for continuous operation, making the motor suitable for demanding production environments.

Key Features

• Carriage drive motor for VS640i large-format printing systems
• Controls Y-axis scanning movement of the printhead carriage
• DC motor design with precision gear output shaft
• Smooth motion control with reduced vibration and noise
• Integrated signal cable for straightforward installation
• Designed for stable performance in continuous printing cycles

Working Function

During printing, the motor drives the carriage assembly along the guide rail, coordinating with the encoder and control board to achieve accurate scanning motion. Consistent motor performance directly contributes to stable dot placement and uniform print results.

Application

Commonly used in large-format eco-solvent printing systems where reliable carriage movement and long-term mechanical stability are required.
